ACU25L-BRPNKA (2003)
Toyota Highlander
ILLUST NO. 3 OF 3(0308- )

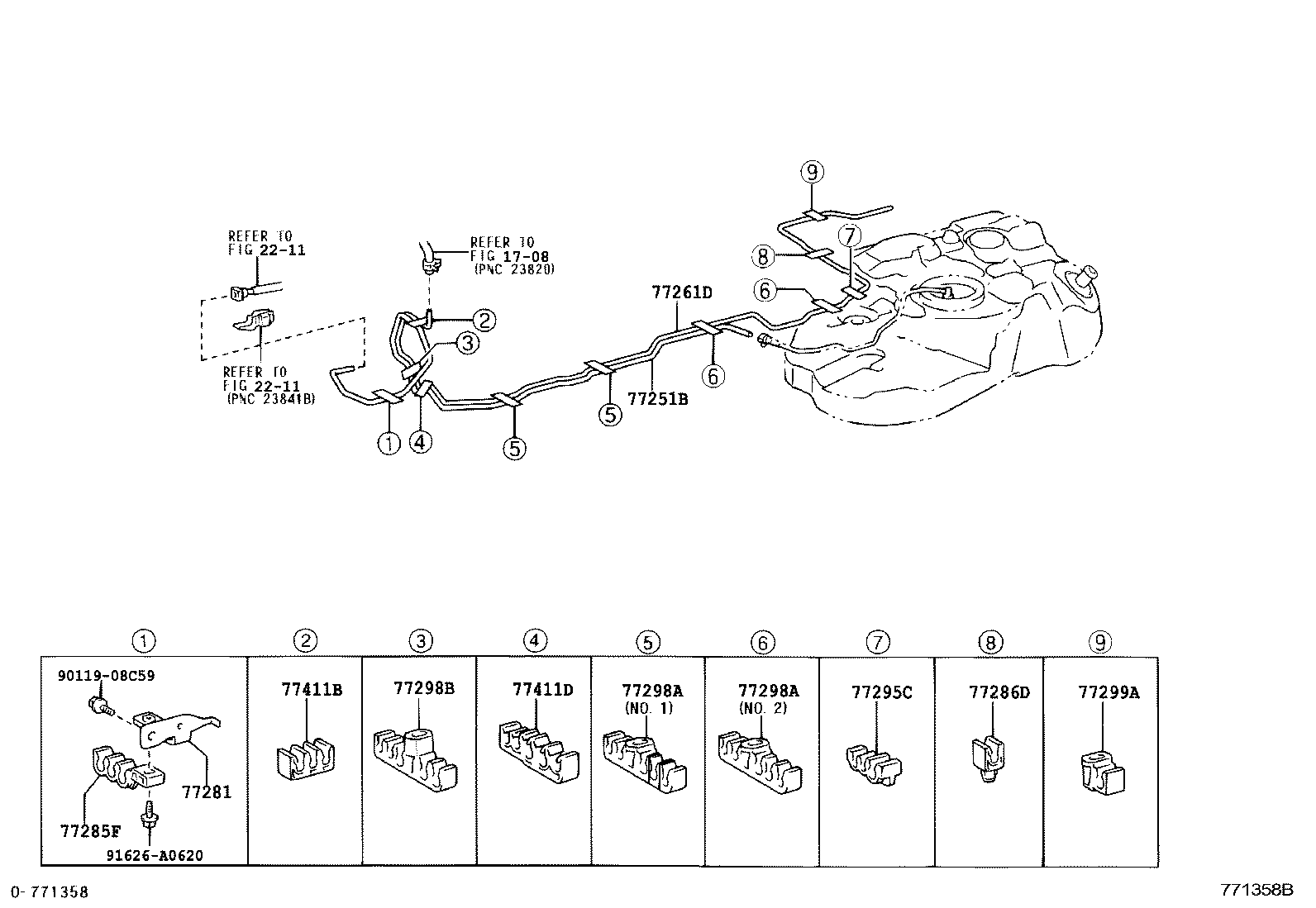

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48130 |
ACU2#,MCU2# |
1 | ||
| 77251-48080 |
ACU2# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-48090 |
ACU2#,MCU2# |
1 | ||
| 77261-48060 |
ACU2#,MCU2# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-48010 |
ACU2# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-48020 |
ACU2# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20170 |
ACU2#,MCU2# NO.1 |
2 | ||
| 77286-48040 |
ACU2#,MCU2# |
1 | ||
| 77286-48050 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-42030 |
ACU2#,MCU2# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48030 |
ACU2#,MCU2# |
1 | ||
| 77298-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 77298-48020 |
ACU2#,MCU2# NO.2 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48030 |
ACU2#,MCU2# |
1 | ||
| 77298-48050 |
ACU2#,MCU2# NO.1 |
2 | ||
| 77298-48020 |
ACU2#,MCU2# NO.2 |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48060 |
ACU2# |
1 | ||
| 77298-30140 |
ACU2#,MCU2# |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48030 |
ACU2#,MCU2# |
1 | ||
| 77299-48020 |
ACU2#,MCU2# |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48020 |
ACU2#,MCU2# |
1 | ||
| 77411-48030 |
ACU2#,MCU2# |
2 | ||
| 77411D - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77411-48040 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 91626-A0620 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 1 OF 3(0308- )

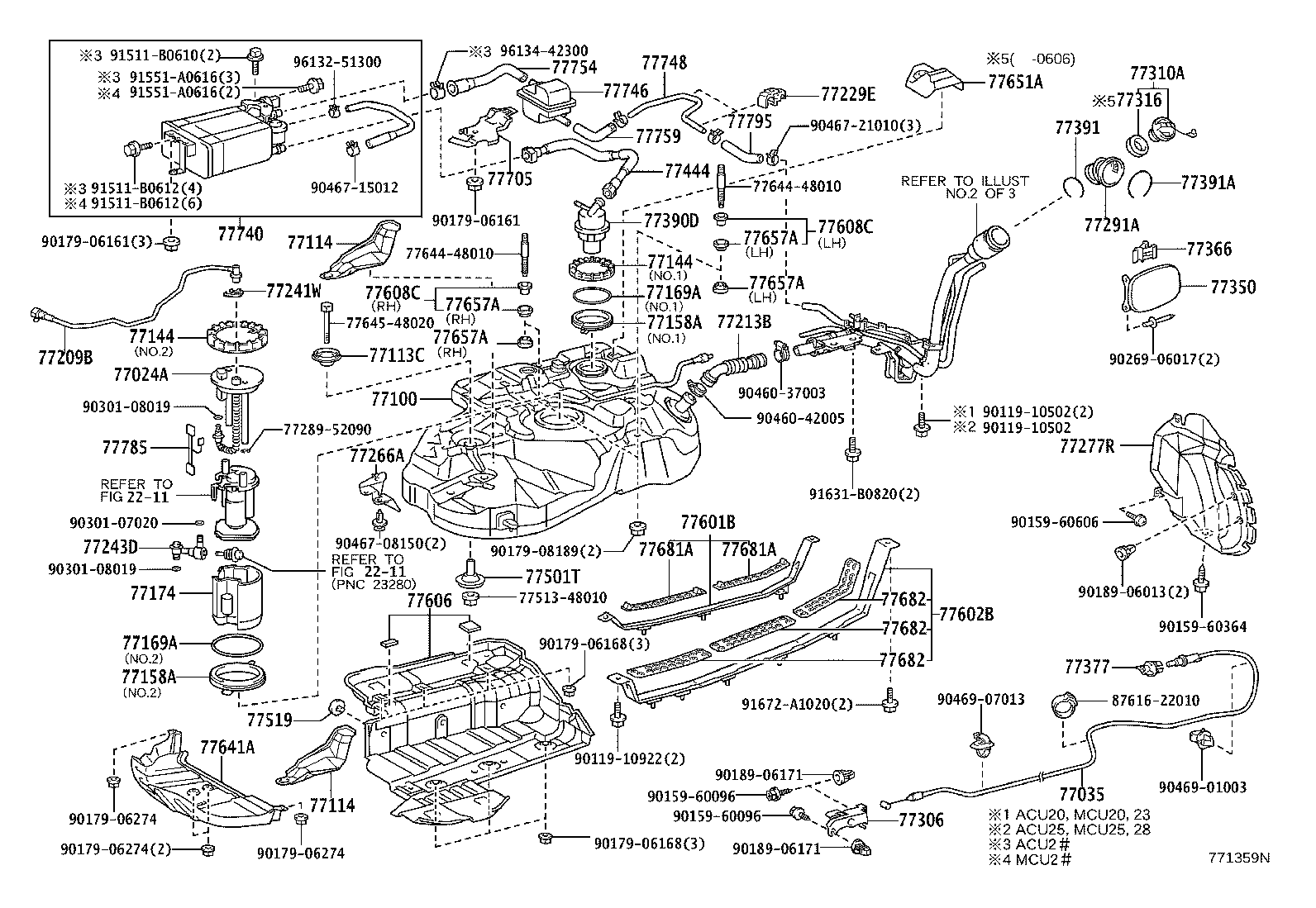

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-48010 |
ACU2#,MCU2# |
1 | ||
| 77024-30070 |
ACU2#,MCU2# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-48040 |
ACU2#,MCU2# |
1 | ||
| 77035-48060 |
ACU2#,MCU2# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-48060 |
ACU2#,MCU2# |
1 | ||
| 77001-48090 |
ACU2# |
1 | ||
| 77001-48090 |
ACU2# |
1 | ||
| 77113C - PLATE, FUEL TANK SIDE | ||||
| 77103-48021 |
ACU2# |
1 | ||
| 77103-48021 |
ACU2#,MCU2# |
1 | ||
| 77114 - PLATE, FUEL TANK SIDE, REAR | ||||
| 77114-48010 |
ACU2# |
1 | ||
| 77114-48010 |
ACU2#,MCU2# |
1 | ||
| 77114 - PLATE, FUEL TANK SIDE, REAR | ||||
| 77114-48010 |
ACU2# |
1 | ||
| 77114-48010 |
ACU2#,MCU2# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-48010 |
ACU2#,MCU2# NO.1 |
1 | ||
| 77144-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-48010 |
ACU2#,MCU2# NO.1 |
1 | ||
| 77144-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77158-48010 |
ACU2#,MCU2# NO.1 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77158-48010 |
ACU2#,MCU2# NO.1 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ACU2#,MCU2# |
1 | ||
| 77169-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77169-48030 |
ACU2#,MCU2# NO.1 |
1 | ||
| 77169-48010 |
ACU2#,MCU2# NO.1 |
1 | ||
| 77169-48040 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ACU2#,MCU2# |
1 | ||
| 77169-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77169-48030 |
ACU2#,MCU2# NO.1 |
1 | ||
| 77169-48010 |
ACU2#,MCU2# NO.1 |
1 | ||
| 77169-48040 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-35020 |
ACU2# |
1 | ||
| 77174-35022 |
ACU2# |
1 | ||
| 77174-35021 |
ACU2# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-48011 |
ACU2#,MCU2# |
1 | ||
| 77209-48020 |
ACU2#,MCU2# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-48060 |
ACU2#,MCU2# |
1 | ||
| 77213-48050 |
ACU2#,MCU2# |
1 | ||
| 77213-48060 |
ACU2# |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-48040 |
ACU2#,MCU2# |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ACU2# |
1 | ||
| 77241-60320 |
ACU2#,MCU2# NO.2 |
1 | ||
| 77241-33011 |
ACU2#,MCU2# NO.1 |
1 | ||
| 77243D - JOINT, FUEL TUBE, NO.1 | ||||
| 77243-48010 |
ACU2# |
1 | ||
| 77243-48010 |
ACU2# |
1 | ||
| 77243-48010 |
ACU2# |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-48010 |
ACU2#,MCU2# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-48060 |
ACU2#,MCU2# |
1 | ||
| 77277-48030 |
ACU2#,MCU2# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-48030 |
ACU2#,MCU2# |
1 | ||
| 77291-48010 |
ACU2#,MCU2# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-48020 |
ACU2#,MCU2# |
1 | ||
| 77306-48020 |
ACU2#,MCU2# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-33070 |
ACU2#,MCU2# |
1 | ||
| 77300-52040 |
ACU2#,MCU2# |
1 | ||
| 77300-53010 |
ACU2#,MCU2# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-33042 |
ACU2#,MCU2# |
1 | ||
| 77316-16010 |
ACU2#,MCU2# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-48030 |
ACU2#,MCU2# |
1 | ||
| 77350-48070 |
ACU2#,MCU2# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
ACU2#,MCU2# |
1 | ||
| 77360-30080 |
ACU2#,MCU2# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ACU2#,MCU2# |
1 | ||
| 77377-12050 |
ACU2#,MCU2# |
1 | ||
| 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK | ||||
| 77390-48010 |
ACU2#,MCU2# |
1 | ||
| 77390-48022 |
ACU2#,MCU2# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ACU2#,MCU2# |
1 | ||
| 77391-12020 |
ACU2#,MCU2# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-33010 |
ACU2#,MCU2# |
1 | ||
| 77391-33010 |
ACU2#,MCU2# |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-48020 |
ACU2#,MCU2# |
1 | ||
| 77404-48010 |
ACU2#,MCU2# |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-48011 |
ACU2#,MCU2# |
1 | ||
| 77501-48011 |
ACU2# |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77529-48010 |
ACU2#,MCU2# |
3 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-48030 |
ACU2#,MCU2# |
1 | ||
| 77601-48040 |
ACU2#,MCU2# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-48040 |
ACU2#,MCU2# |
1 | ||
| 77602-48030 |
ACU2#,MCU2# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-48060 |
ACU2#,MCU2# |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48011 |
ACU2# RH |
1 | ||
| 77608-48011 |
ACU2#,MCU2# RH |
1 | ||
| 77608-48020 |
ACU2#,MCU2# LH |
1 | ||
| 77608-48020 |
ACU2# LH |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48011 |
ACU2# RH |
1 | ||
| 77608-48011 |
ACU2#,MCU2# RH |
1 | ||
| 77608-48020 |
ACU2#,MCU2# LH |
1 | ||
| 77608-48020 |
ACU2# LH |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-48030 |
ACU2#,MCU2# |
1 | ||
| 77641-48040 |
ACU2#,MCU2# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ACU2#,MCU2# |
6 | ||
| 77651-48010 |
ACU2# |
1 | ||
| 77651-48010 |
ACU2#,MCU2# |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
ACU2#,MCU2# RH |
2 | ||
| 77655-48020 |
ACU2#,MCU2# LH |
2 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
ACU2#,MCU2# RH |
2 | ||
| 77655-48020 |
ACU2#,MCU2# LH |
2 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
ACU2#,MCU2# RH |
2 | ||
| 77655-48020 |
ACU2#,MCU2# LH |
2 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
ACU2#,MCU2# RH |
2 | ||
| 77655-48020 |
ACU2#,MCU2# LH |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-48010 |
ACU2#,MCU2# |
2 | ||
| 77681-32060 |
ACU2#,MCU2# |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-48010 |
ACU2#,MCU2# |
2 | ||
| 77681-32060 |
ACU2#,MCU2# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-16010 |
ACU2#,MCU2# |
1 | ||
| 77682-48010 |
ACU2#,MCU2# |
3 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-16010 |
ACU2#,MCU2# |
1 | ||
| 77682-48010 |
ACU2#,MCU2# |
3 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-16010 |
ACU2#,MCU2# |
1 | ||
| 77682-48010 |
ACU2#,MCU2# |
3 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-48010 |
ACU2#,MCU2# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48120 |
ACU2# |
1 | ||
| 77740-48080 |
ACU2#,MCU2# |
1 | ||
| 77740-48121 |
ACU2# |
1 | ||
| 77746 - FILTER, CHARCOAL CANISTER, NO.2 | ||||
| 77746-48010 |
ACU2#,MCU2# |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-48010 |
ACU2#,MCU2# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-48050 |
ACU2# |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-48020 |
ACU2#,MCU2# L=180 |
2 | ||
| 77759-48010 |
ACU2#,MCU2# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
ACU2#,MCU2# |
1 | ||
| 77785-48010 |
ACU2#,MCU2# |
1 | ||
| 77785-48010 |
ACU2#,MCU2# |
1 | ||
| 77785-48010 |
ACU2#,MCU2# |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-48010 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 77289-52090 | ||||
| 77513-48010 | ||||
| 77644-48010 | ||||
| 77645-48020 | ||||
| 87616-22010 | ||||
| 90119-10502 | ||||
| 90119-10922 | ||||
| 90159-60096 | ||||
| 90159-60364 | ||||
| 90159-60606 | ||||
| 90179-06161 | ||||
| 90179-06168 | ||||
| 90179-06274 | ||||
| 90179-08189 | ||||
| 90189-06013 | ||||
| 90189-06171 | ||||
| 90269-06017 | ||||
| 90301-07020 | ||||
| 90301-08019 | ||||
| 90460-37003 | ||||
| 90460-42005 | ||||
| 90467-08150 | ||||
| 90467-15012 | ||||
| 90467-21010 | ||||
| 90469-01003 | ||||
| 90469-07013 | ||||
| 91511-B0610 | ||||
| 91511-B0612 | ||||
| 91551-A0616 | ||||
| 91631-B0820 | ||||
| 91672-A1020 | ||||
| 96132-51300 | ||||
| 96134-42300 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 2 OF 3(0308- )
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

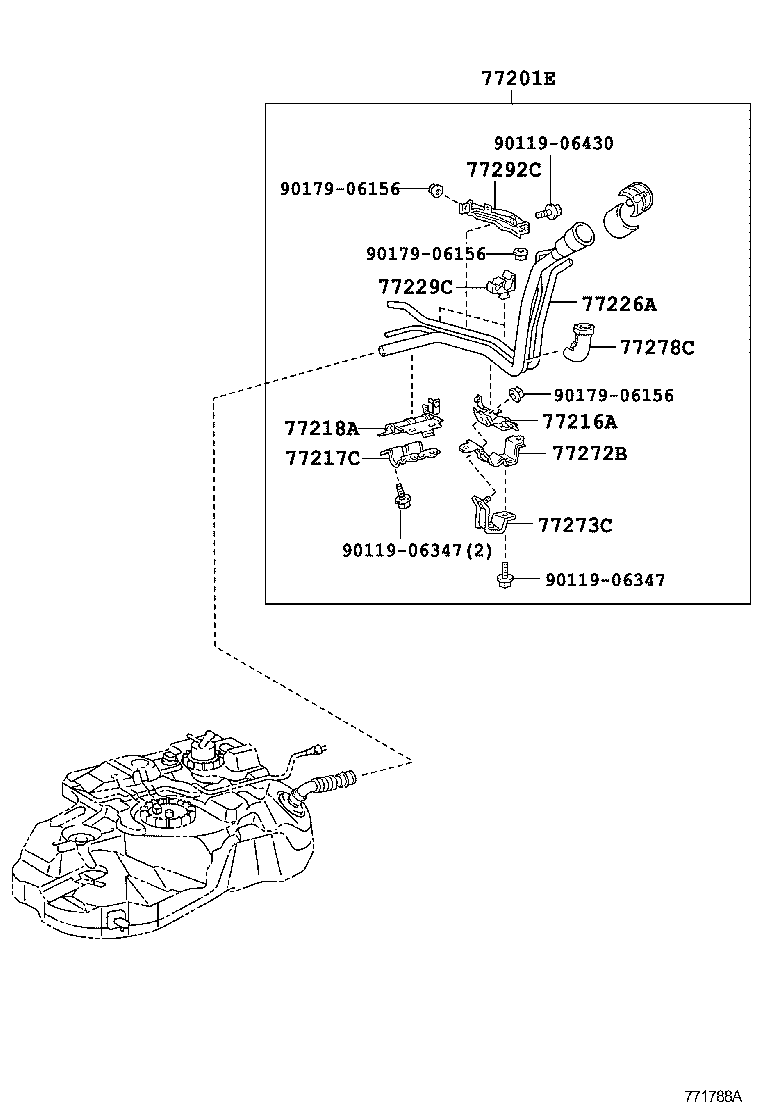

| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77210-48132 |
ACU2#,MCU2# |
1 | ||
| 77210-48131 |
ACU2#,MCU2# |
1 | ||
| 77210-48130 |
ACU2#,MCU2# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-48020 |
ACU2#,MCU2# |
1 | ||
| 77216-48030 |
ACU2#,MCU2# |
1 | ||
| 77216-48030 |
ACU2#,MCU2# |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48050 |
ACU2#,MCU2# |
1 | ||
| 77217-48040 |
ACU2#,MCU2# |
1 | ||
| 77217-48050 |
ACU2#,MCU2# |
1 | ||
| 77217-12070 |
ACU2#,MCU2# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-48060 |
ACU2#,MCU2# |
1 | ||
| 77218-48030 |
ACU2#,MCU2# |
1 | ||
| 77218-48060 |
ACU2#,MCU2# |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-48020 |
ACU2#,MCU2# |
1 | ||
| 77226-48020 |
ACU2#,MCU2# |
1 | ||
| 77226-48020 |
ACU2#,MCU2# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48020 |
ACU2#,MCU2# |
2 | ||
| 77229-48030 |
ACU2#,MCU2# |
2 | ||
| 77229-48030 |
ACU2#,MCU2# |
2 | ||
| 77229-48030 |
ACU2#,MCU2# |
2 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-48020 |
ACU2#,MCU2# |
1 | ||
| 77272-48020 |
ACU2#,MCU2# |
1 | ||
| 77272-48020 |
ACU2#,MCU2# |
1 | ||
| 77273C - SUPPORT, BREATHER TUBE, NO.2 | ||||
| 77273-48020 |
ACU2#,MCU2# |
1 | ||
| 77273-48020 |
ACU2#,MCU2# |
1 | ||
| 77273-48020 |
ACU2#,MCU2# |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-48010 |
ACU2#,MCU2# |
1 | ||
| 77278-48010 |
ACU2#,MCU2# |
1 | ||
| 77278-48010 |
ACU2#,MCU2# |
1 | ||
| 77278-48010 |
ACU2#,MCU2# |
1 | ||
| 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77292-48010 |
ACU2#,MCU2# |
1 | ||
| 77292-48020 |
ACU2#,MCU2# |
1 | ||
| 77292-48020 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06430 | ||||
| 90179-06156 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
