ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

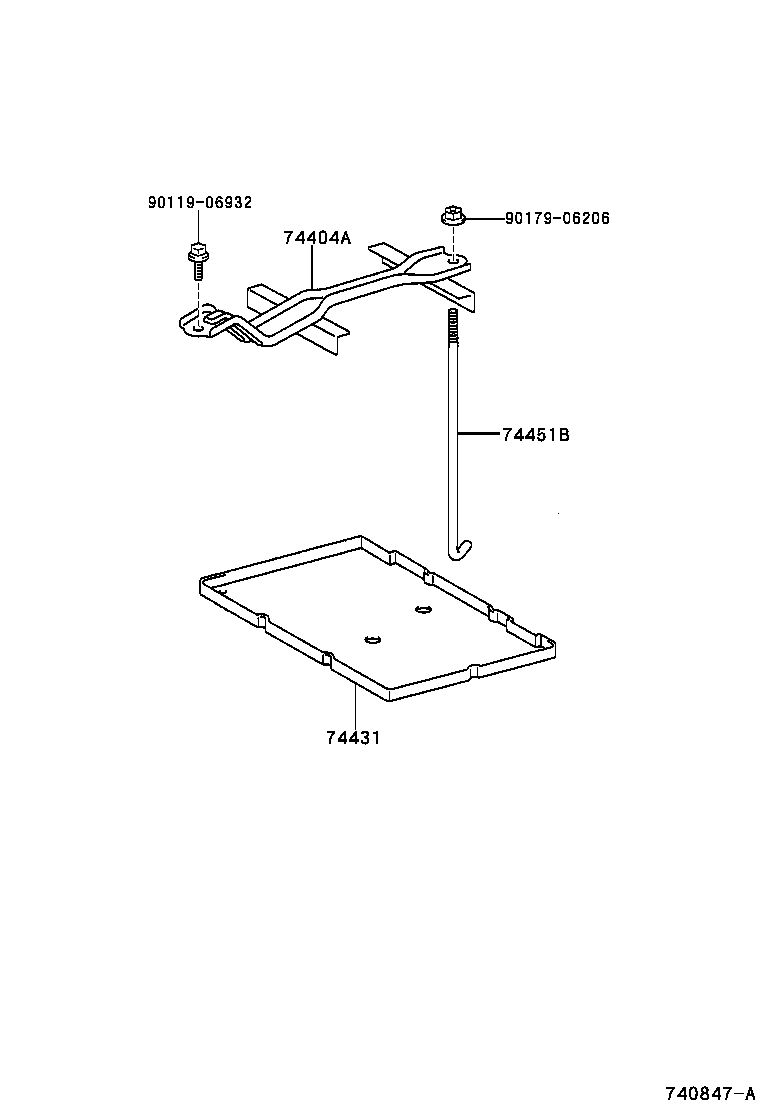

Click highlighted areas on diagram

diagram 74404A 74431 74451B 9011906932 9017906206
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-48020

ACU2#,MCU2#

 1
74404-48020

ACU2#,MCU2#

 1
74431 - TRAY, BATTERY
74431-33011

ACU2#,MCU2#

 1
74431-33011

ACU2#,MCU2#

 1
74451B - BOLT, BATTERY CLAMP
74452-33010

ACU2#,MCU2#

 1
74452-33010

ACU2#,MCU2#

 1
Common parts
90119-06932
90179-06206
