ACU25L-BRPNKA (2003)
Toyota Highlander

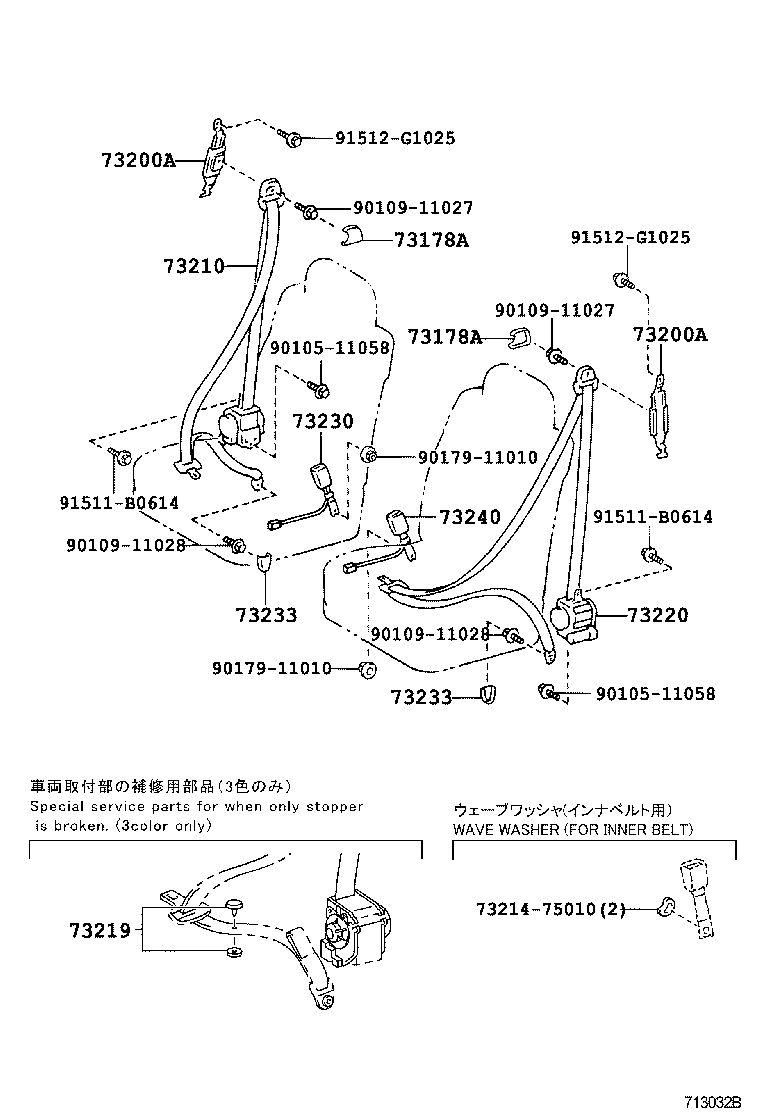

ILLUST NO. 1 OF 3(0308- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73178-33020A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73178-33020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
2 | ||
| 73178-33020P3 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73178-33020A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73178-33020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
2 | ||
| 73178-33020P3 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52010A0 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73200-52010A0 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73200-52010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
2 | ||
| 73200-52010B6 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52010A0 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73200-52010A0 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73200-52010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
2 | ||
| 73200-52010B6 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-48060B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73210-48060A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73210-48130B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73210-48130A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
ACU2#,MCU2# GRAY |
1 | ||
| 73219-02030 |
ACU2#,MCU2# BEIGE |
1 | ||
| 73219-02010 |
ACU2#,MCU2# BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-48110B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73220-48040A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73220-48040B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73220-48110A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-48020B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-48020A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73230-48160B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73230-48160A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
2 | ||
| 73233-33010P3 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 73233-33010A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73233-33010A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
2 | ||
| 73233-33010P3 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 73233-33010A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73233-33010A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-48010A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73230-48030B2 |
ACU2#,MCU2# W(POWER SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-48150A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73230-48150B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73230-48030A0 |
ACU2#,MCU2# W(POWER SEAT),IVORY,TRIM0# |
1 | ||
| 73230-48210B0 |
ACU2#,MCU2# W(POWER SEAT),GRAY,TRIM1# |
1 | ||
| 73230-48210A0 |
ACU2#,MCU2# W(POWER SEAT),IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11058 | ||||
| 90109-11027 | ||||
| 90109-11028 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||

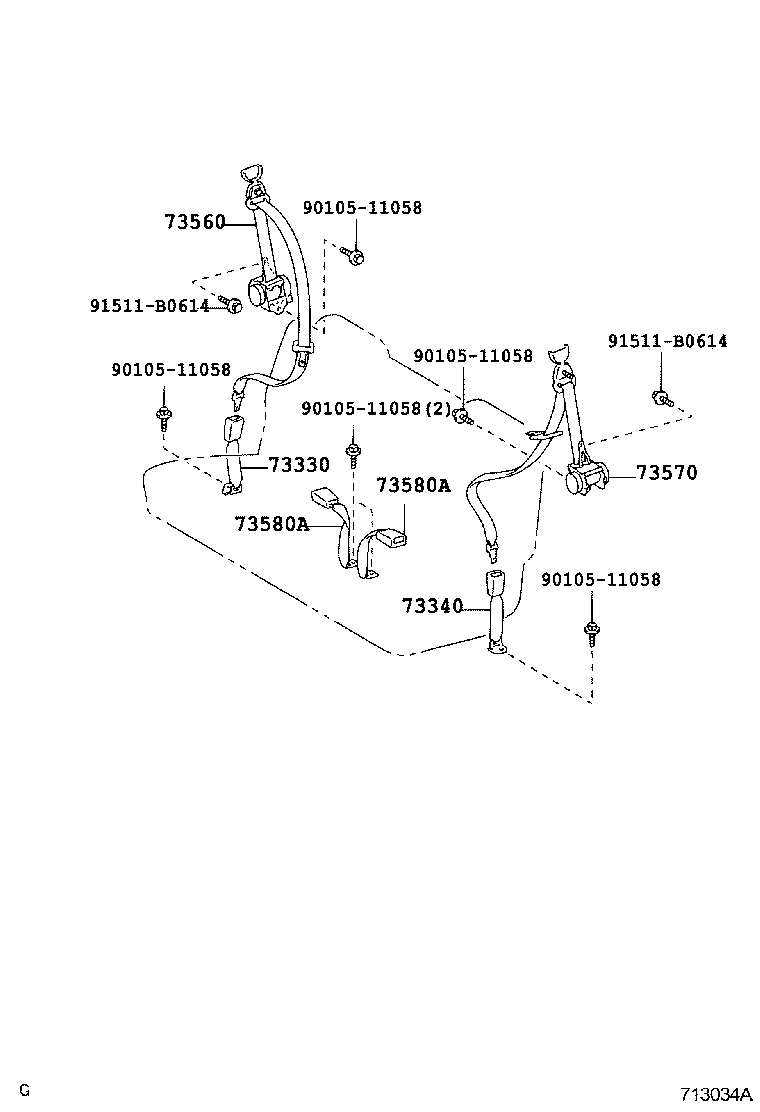

ILLUST NO. 3 OF 3(0308- )07S
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73330 - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73330-48020A0 |
ACU2#,MCU2#..07S IVORY,TRIM0# |
1 | ||
| 73330-48020B0 |
ACU2#,MCU2#..07S GRAY,TRIM1# |
1 | ||
| 73340 - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73330-48030A0 |
ACU2#,MCU2#..07S IVORY,TRIM0# |
1 | ||
| 73330-48030B0 |
ACU2#,MCU2#..07S GRAY,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-48010A0 |
ACU2#,MCU2#..07S IVORY,TRIM0# |
1 | ||
| 73560-48010B0 |
ACU2#,MCU2#..07S GRAY,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-48010A0 |
ACU2#,MCU2#..07S IVORY,TRIM0# |
1 | ||
| 73570-48010B0 |
ACU2#,MCU2#..07S GRAY,TRIM1# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-48010B0 |
ACU2#,MCU2#..07S GRAY,TRIM1# |
2 | ||
| 73580-48010A0 |
ACU2#,MCU2#..07S IVORY,TRIM0# |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-48010B0 |
ACU2#,MCU2#..07S GRAY,TRIM1# |
2 | ||
| 73580-48010A0 |
ACU2#,MCU2#..07S IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 91511-B0614 | ||||

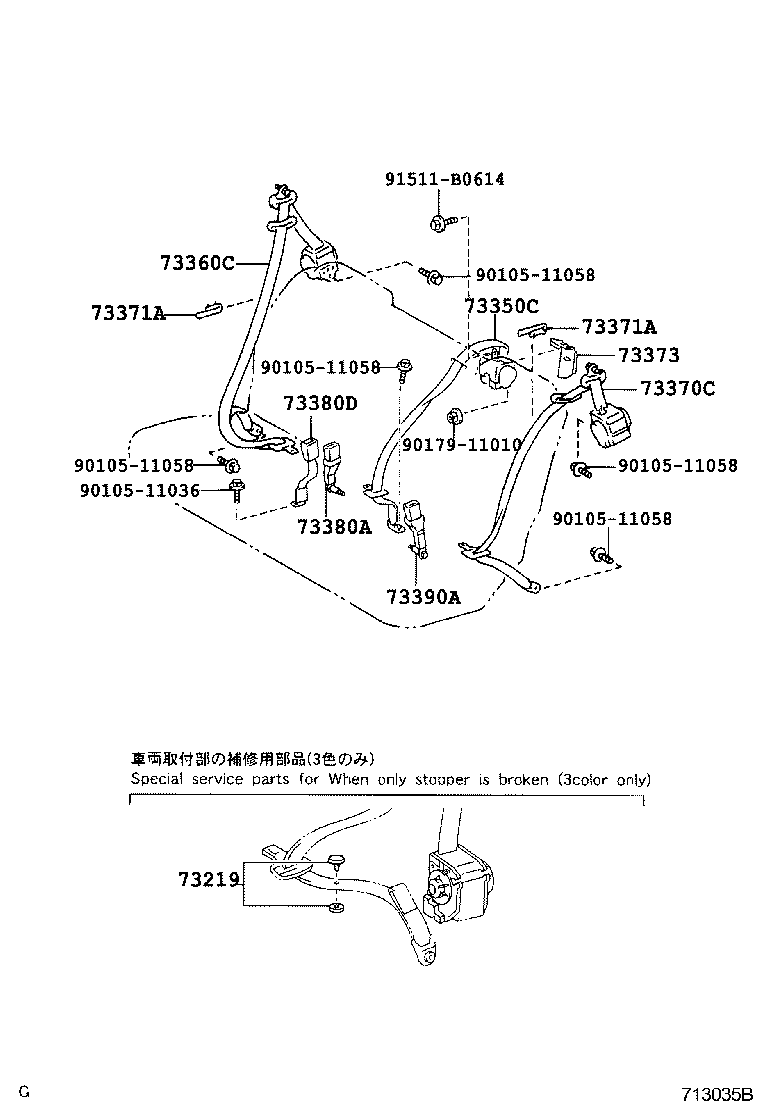

ILLUST NO. 2 OF 3(0308- )07S
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
ACU2#,MCU2# GRAY |
1 | ||
| 73219-02030 |
ACU2#,MCU2# BEIGE |
1 | ||
| 73219-02010 |
ACU2#,MCU2# BLACK |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-48010A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73350-48040A0 |
ACU2#,MCU2#..07S IVORY,TRIM0# |
1 | ||
| 73350-48010B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73350-48040B0 |
ACU2#,MCU2#..07S GRAY,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73360-48030A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73360-48050A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73360-48050B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73370-48050A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73370-48030A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73370-48050B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73371-44020B2 |
ACU2#,MCU2# DK.CHARCOAL,TRIM1# |
2 | ||
| 73371-44020P0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 73371-44020A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73371-44020B2 |
ACU2#,MCU2# DK.CHARCOAL,TRIM1# |
2 | ||
| 73371-44020P0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 73371-44020A1 |
ACU2#,MCU2# IVORY,TRIM0# |
2 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-33020A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73373-33020B4 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 73373-48040 |
ACU2#,MCU2#..07S |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-48010B3 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-48030A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73380-48030B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73380-48010A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-48020B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73380-48020A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73380-48040B1 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 73380-48040A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73390A - BELT ASSY, REAR SEAT, INNER | ||||
| 73480-48020B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 73480-48030A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73480-48020A0 |
ACU2#,MCU2# IVORY,TRIM0# |
1 | ||
| 73480-48030B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11058 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||
