ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

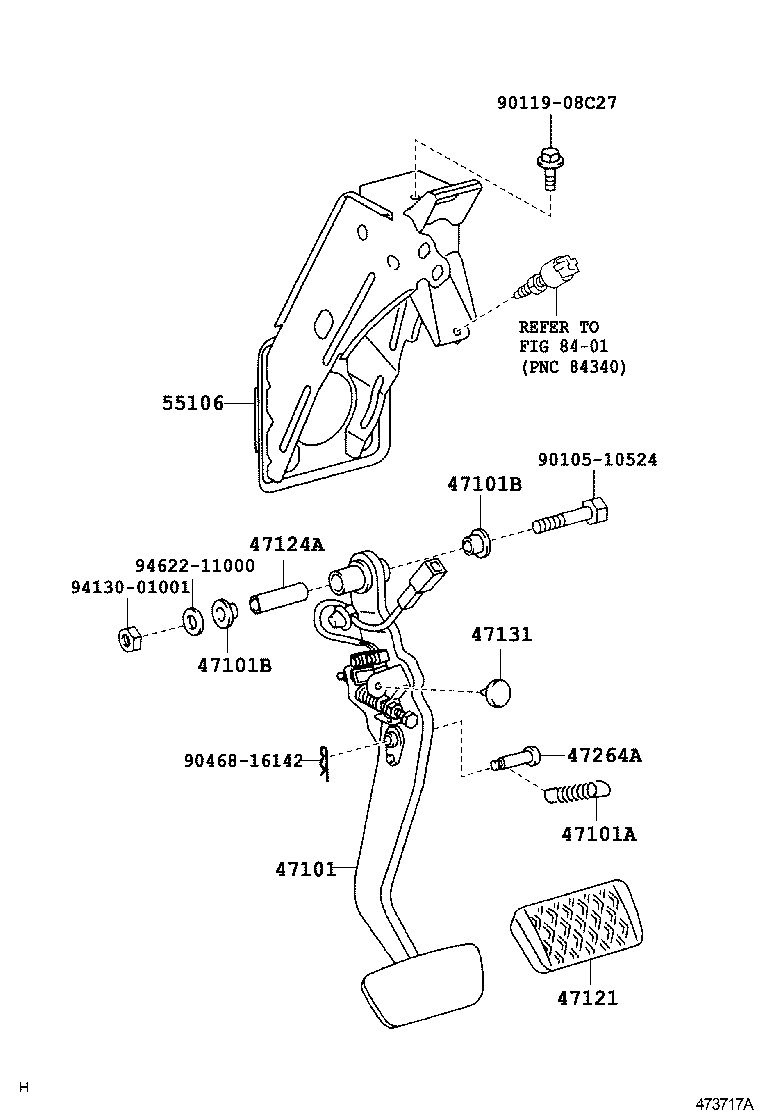

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124A 47131 47264A 55106 8401 9010510524 9011908C27 9046816142 9413001001 9462211000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-48050

ACU2#,MCU2#

 1
47106-48050

ACU2#,MCU2#

 1
47106-48020

ACU2#,MCU2#

W(VSC)

 1
47106-48050

ACU2#,MCU2#

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15004

ACU2#,MCU2#

 1
90905-07032

ACU2#,MCU2#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ACU2#,MCU2#

 2
90386-13015

ACU2#,MCU2#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ACU2#,MCU2#

 2
90386-13015

ACU2#,MCU2#

 2
47121 - PAD, BRAKE PEDAL
47121-50020

ACU2#,MCU2#

 1
47121-50020

ACU2#,MCU2#

 1
47121-50020

ACU2#,MCU2#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

ACU2#,MCU2#

 1
90387-10003

ACU2#,MCU2#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

ACU2#,MCU2#

 1
90541-06036

ACU2#,MCU2#

 1
47264A - PIN(FOR PUSH ROD)
47148-33010

ACU2#,MCU2#

 1
90249-06180

ACU2#,MCU2#

W(VSC)

 1
90249-06180

ACU2#,MCU2#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-48090

ACU2#,MCU2#

 1
55106-48040

ACU2#,MCU2#

 1
55106-48091

ACU2#,MCU2#

 1
Common parts
90105-10524
90119-08C27
90468-16142
94130-01001
94622-11000
Linked diagrams
8401
