ACU25L-BRPNKA (2003)
Toyota Highlander

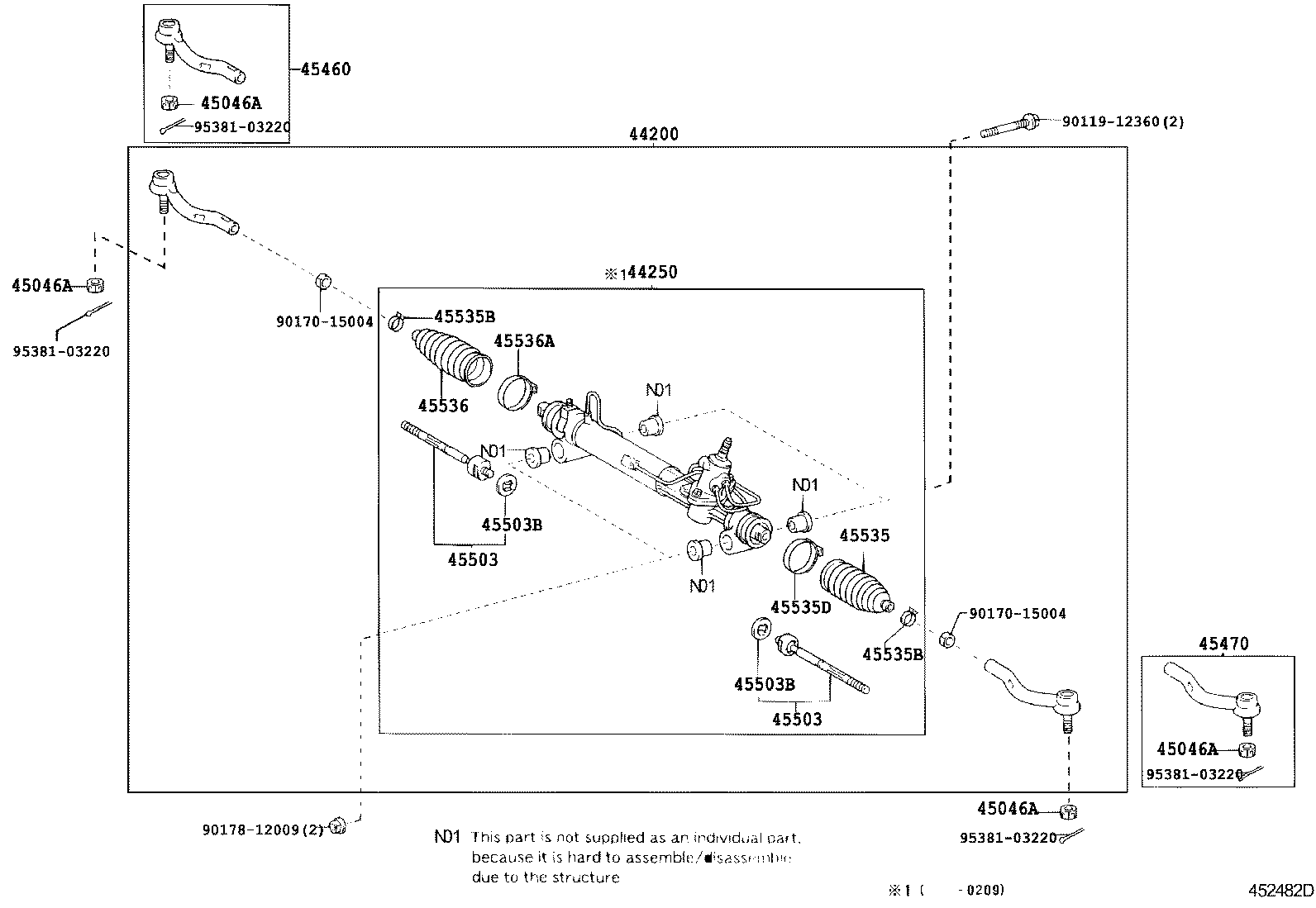

ILLUST NO. 1 OF 2(0011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-48070 |
ACU2#,MCU2# |
1 | ||
| 44200-48090 |
ACU2#,MCU2# |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-48070 |
ACU2#,MCU2# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACU2#,MCU2# |
2 | ||
| 90171-12028 |
ACU2#,MCU2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACU2#,MCU2# |
2 | ||
| 90171-12028 |
ACU2#,MCU2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACU2#,MCU2# |
2 | ||
| 90171-12028 |
ACU2#,MCU2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACU2#,MCU2# |
2 | ||
| 90171-12028 |
ACU2#,MCU2# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29425 |
ACU2#,MCU2# |
1 | ||
| 45460-29435 |
ACU2#,MCU2# |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-29435 |
ACU2#,MCU2# |
1 | ||
| 45470-29185 |
ACU2#,MCU2# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49125 |
ACU2#,MCU2# |
2 | ||
| 45503-49085 |
ACU2#,MCU2# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49125 |
ACU2#,MCU2# |
2 | ||
| 45503-49085 |
ACU2#,MCU2# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
ACU2#,MCU2# OD=35.2 |
2 | ||
| 90214-14007 |
ACU2#,MCU2# OD=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
ACU2#,MCU2# OD=35.2 |
2 | ||
| 90214-14007 |
ACU2#,MCU2# OD=38 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-48020 |
ACU2#,MCU2# (J) |
1 | ||
| 45535-48010 |
ACU2#,MCU2# |
1 | ||
| 45535-0E010 |
ACU2#,MCU2# (L) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
ACU2#,MCU2# |
2 | ||
| 90467-19021 |
ACU2#,MCU2# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19017 |
ACU2#,MCU2# |
2 | ||
| 90467-19021 |
ACU2#,MCU2# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90080-46340 |
ACU2#,MCU2# (L) |
1 | ||
| 90460-58007 |
ACU2#,MCU2# |
1 | ||
| 90460-60007 |
ACU2#,MCU2# (J) |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-48020 |
ACU2#,MCU2# (J) |
1 | ||
| 45535-0E010 |
ACU2#,MCU2# (L) |
1 | ||
| 45535-48010 |
ACU2#,MCU2# |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-58007 |
ACU2#,MCU2# |
1 | ||
| 90460-60007 |
ACU2#,MCU2# (J) |
1 | ||
| 90080-46340 |
ACU2#,MCU2# (L) |
1 | ||
| Common parts | ||||
| 90119-12360 | ||||
| 90170-15004 | ||||
| 90178-12009 | ||||
| 95381-03220 | ||||

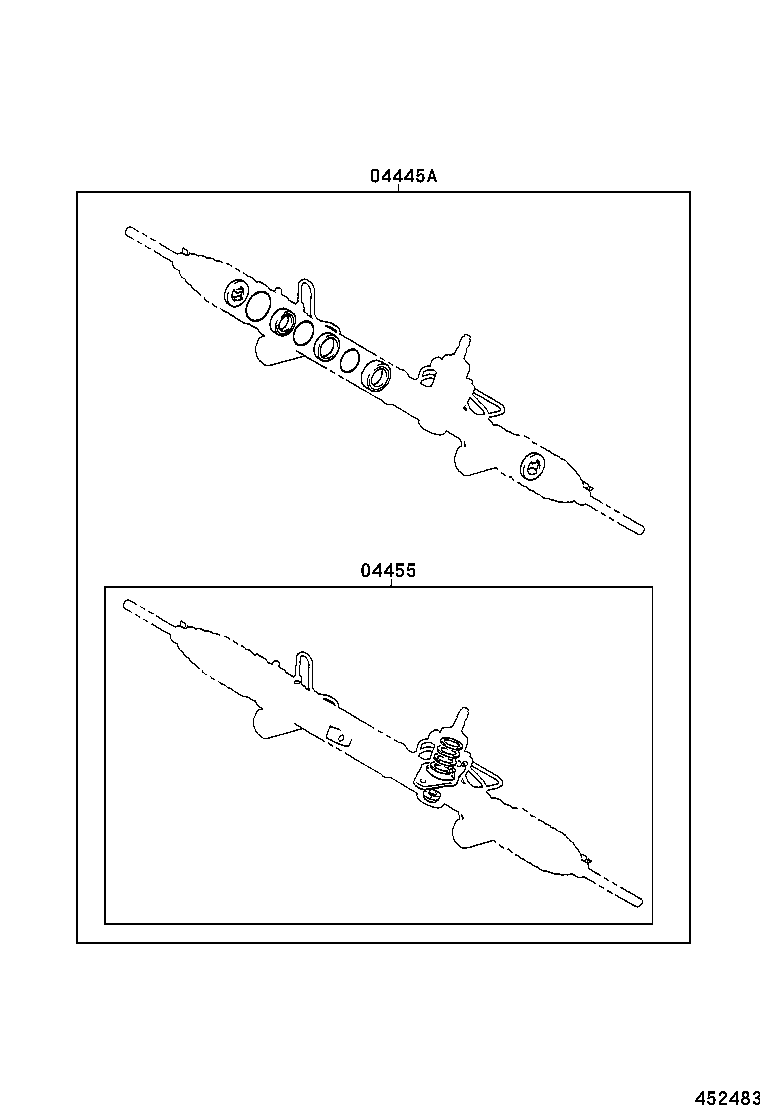

ILLUST NO. 2 OF 2(0011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-48010 |
ACU2#,MCU2# |
1 | ||
| 04445-48040 |
ACU2#,MCU2# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-48020 |
ACU2#,MCU2# |
1 | ||
| 04455-48020 |
ACU2#,MCU2# |
1 | ||
