ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

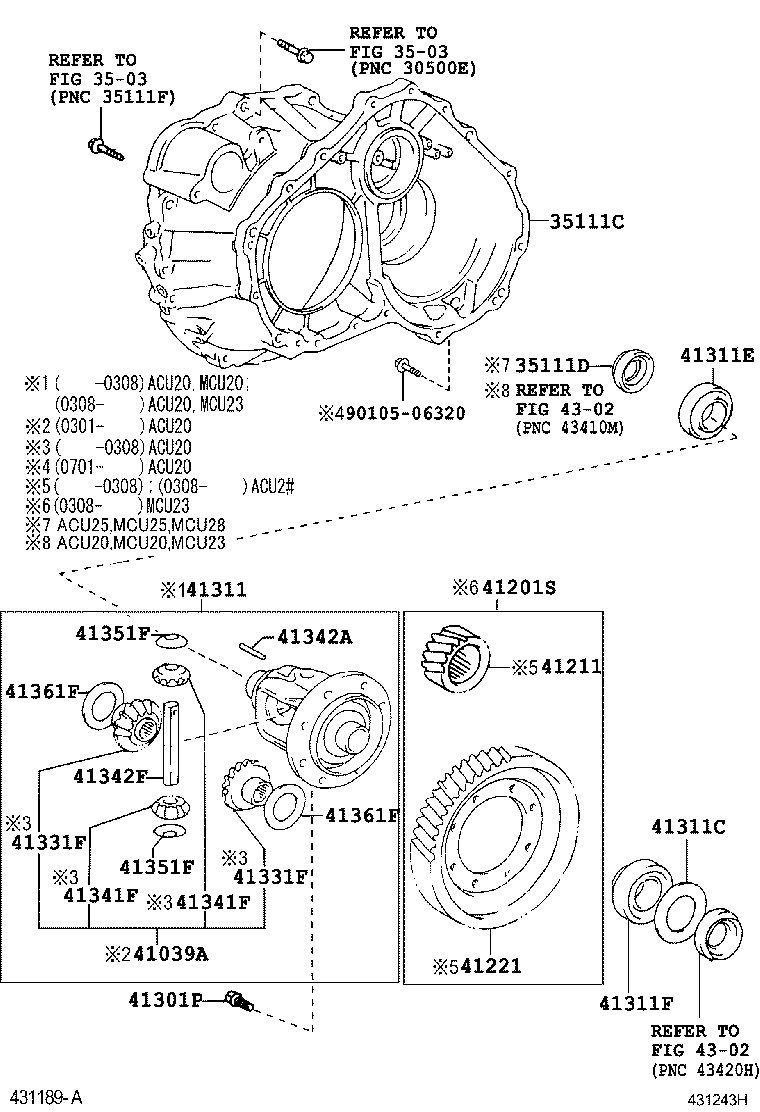

Click highlighted areas on diagram

U140E,U140F,U151E,U151F,U241E

diagram 3503 3503 35111C 35111D 41039A 41201S 41211 41221 41301P 41311 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302 4302 9010506320
Part # Description Qty Price
35111C - HOUSING, TRANSAXLE
35105-42010

ACU25

 1
35105-42012

ACU25

 1
35105-42013

ACU25

 1
35105-42014

ACU25

 1
35111D - SEAL, OIL (FOR TRANSAXLE HOUSING)
90311-62004

ACU25,MCU28

 1
90311-62006

ACU25,MCU28

 1
90311-62004

ACU25,MCU25

 1
41211 - PINION, DIFFERENTIAL DRIVE
41211-48030

ACU25

 1
41211-48030

ACU25

 1
41211-48030

ACU25

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-48030

ACU25

 1
41221-48030

ACU25

 1
41221-48030

ACU25

 1
41301P - SCREW(FOR FRONT DIFFERENTIAL CASE)
90105-12302

ACU25,MCU25

 16
90105-12302

ACU25

 16
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-79004

ACU25,MCU2#

T=2.15,MARK 3

 1
90564-79007

ACU25,MCU2#

T=2.30,MARK 6

 1
90564-79008

ACU25,MCU2#

T=2.35,MARK 7

 1
90564-79005

ACU25,MCU2#

T=2.20,MARK 4

 1
90564-79011

ACU25,MCU2#

T=2.50,MARK A

 1
90564-79001

ACU25,MCU2#

T=2.00,MARK 0

 1
90564-79002

ACU25,MCU2#

T=2.05,MARK 1

 1
90564-79013

ACU25,MCU2#

T=2.60,MARK C

 1
90564-79010

ACU25,MCU2#

T=2.45,MARK 9

 1
90564-79012

ACU25,MCU2#

T=2.55,MARK B

 1
90564-79015

ACU25,MCU2#

T=2.70,MARK E

 1
90564-79006

ACU25,MCU2#

T=2.25,MARK 5

 1
90564-79003

ACU25,MCU2#

T=2.10,MARK 2

 1
90564-79009

ACU25,MCU2#

T=2.40,MARK 8

 1
90564-79016

ACU25,MCU2#

T=2.75,MARK F

 1
90564-79017

ACU25,MCU2#

T=2.80,MARK G

 1
90564-79014

ACU25,MCU2#

T=2.65,MARK D

 1
90564-79018

ACU25,MCU2#

T=2.85,MARK H

 1
90564-79002

ACU25

T=2.05,MARK 1

 1
90564-79001

ACU25

T=2.00,MARK 0

 1
90564-79004

ACU25

T=2.15,MARK 3

 1
90564-79003

ACU25

T=2.10,MARK 2

 1
90564-79005

ACU25

T=2.20,MARK 4

 1
90564-79008

ACU25

T=2.35,MARK 7

 1
90564-79009

ACU25

T=2.40,MARK 8

 1
90564-79006

ACU25

T=2.25,MARK 5

 1
90564-79011

ACU25

T=2.50,MARK A

 1
90564-79010

ACU25

T=2.45,MARK 9

 1
90564-79007

ACU25

T=2.30,MARK 6

 1
90564-79012

ACU25

T=2.55,MARK B

 1
90564-79013

ACU25

T=2.60,MARK C

 1
90564-79015

ACU25

T=2.70,MARK E

 1
90564-79016

ACU25

T=2.75,MARK F

 1
90564-79017

ACU25

T=2.80,MARK G

 1
90564-79091

ACU25,MCU2#

T=2.075,MARK K,AISIN:REFER 35-01

 1
90564-79094

ACU25,MCU2#

T=2.225,MARK N,AISIN:REFER 35-01

 1
90564-79014

ACU25

T=2.65,MARK D

 1
90564-79095

ACU25,MCU2#

T=2.275,MARK P,AISIN:REFER 35-01

 1
90564-79102

ACU25,MCU2#

T=2.625,MARK W,AISIN:REFER 35-01

 1
90564-79093

ACU25,MCU2#

T=2.175,MARK M,AISIN:REFER 35-01

 1
90564-79018

ACU25

T=2.85,MARK H

 1
90564-79103

ACU25,MCU2#

T=2.675,MARK X,AISIN:REFER 35-01

 1
90564-79097

ACU25,MCU2#

T=2.375,MARK R,AISIN:REFER 35-01

 1
90564-79098

ACU25,MCU2#

T=2.425,MARK S,AISIN:REFER 35-01

 1
90564-79101

ACU25,MCU2#

T=2.575,MARK V,AISIN:REFER 35-01

 1
90564-79092

ACU25,MCU2#

T=2.125,MARK L,AISIN:REFER 35-01

 1
90564-79100

ACU25,MCU2#

T=2.525,MARK U,AISIN:REFER 35-01

 1
90564-79090

ACU25,MCU2#

T=2.025,MARK J,AISIN:REFER 35-01

 1
90564-79105

ACU25,MCU2#

T=2.775,MARK AA,AISIN:REFER 35-01

 1
90564-79104

ACU25,MCU2#

T=2.725,MARK Y,AISIN:REFER 35-01

 1
90564-79096

ACU25,MCU2#

T=2.325,MARK Q,AISIN:REFER 35-01

 1
90564-79099

ACU25,MCU2#

T=2.475,MARK T,AISIN:REFER 35-01

 1
90564-79106

ACU25,MCU2#

T=2.825,MARK AB,AISIN:REFER 35-01

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-62004

ACU25,MCU25

 1
90366-62004

ACU25

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50057

ACU25,MCU2#

 1
90366-50106

ACU25

 1
90366-50057

ACU25,MCU2#

 1
Common parts
90105-06320
Linked diagrams
3503
4302
