ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

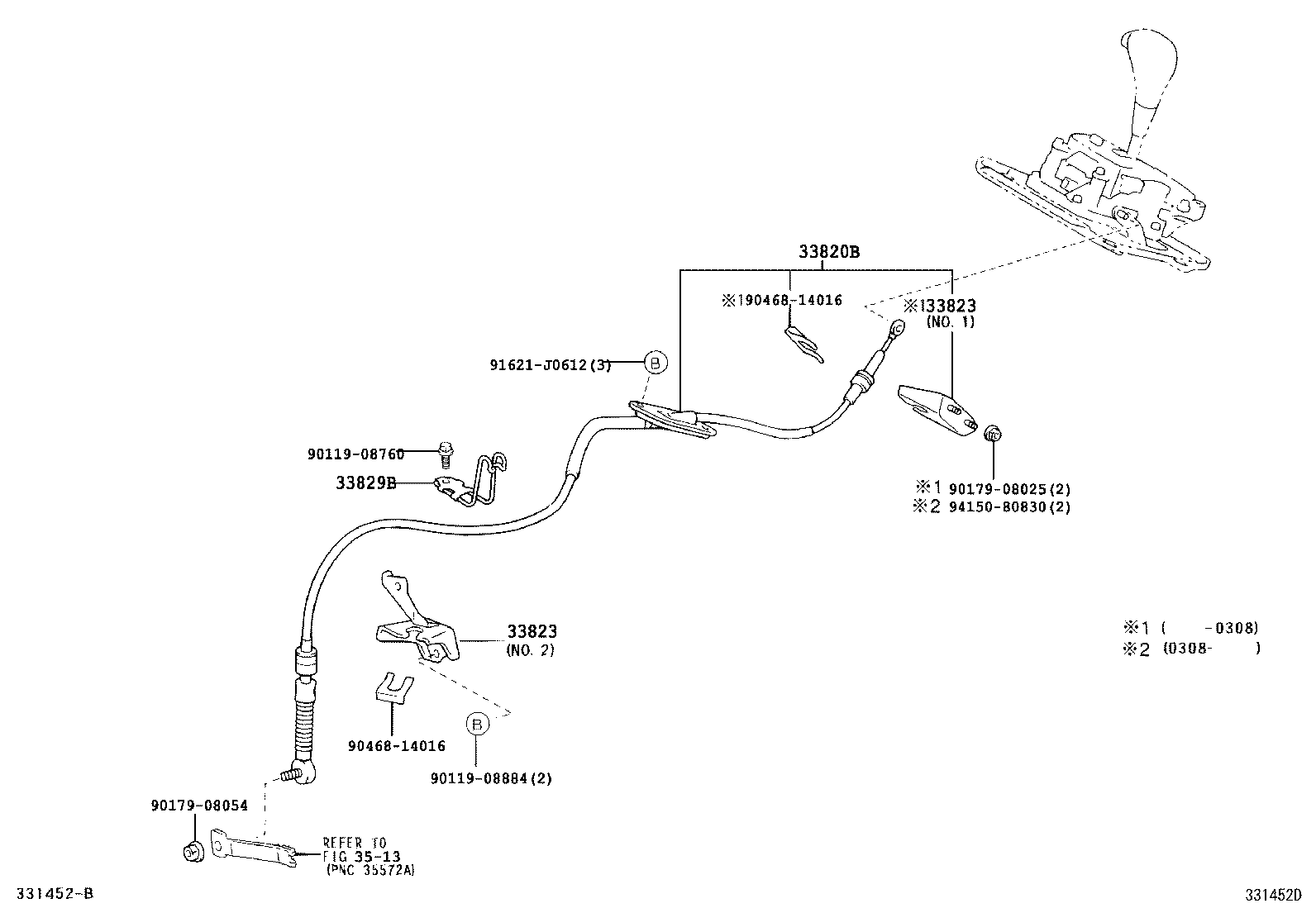

ILLUST NO. 2 OF 2(0011- )

Click highlighted areas on diagram

diagram 33820B 33823 33823 33829B 3513 9011908760 9011908884 9017908025 9017908054 9046814016 9046814016 91621J0612 9415080830
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-48110

ACU2#

 1
33820-48170

ACU2#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-48050

ACU2#,MCU2#

NO.2

 1
33823-48020

ACU2#,MCU2#

NO.1

 1
33823-48050

ACU2#,MCU2#

NO.2

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-48050

ACU2#,MCU2#

NO.2

 1
33823-48020

ACU2#,MCU2#

NO.1

 1
33823-48050

ACU2#,MCU2#

NO.2

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33826-48010

ACU2#

 1
33826-48030

ACU2#

 1
Common parts
90119-08760
90119-08884
90179-08025
90179-08054
90468-14016
91621-J0612
94150-80830
Linked diagrams
3513
