ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )2AZFE

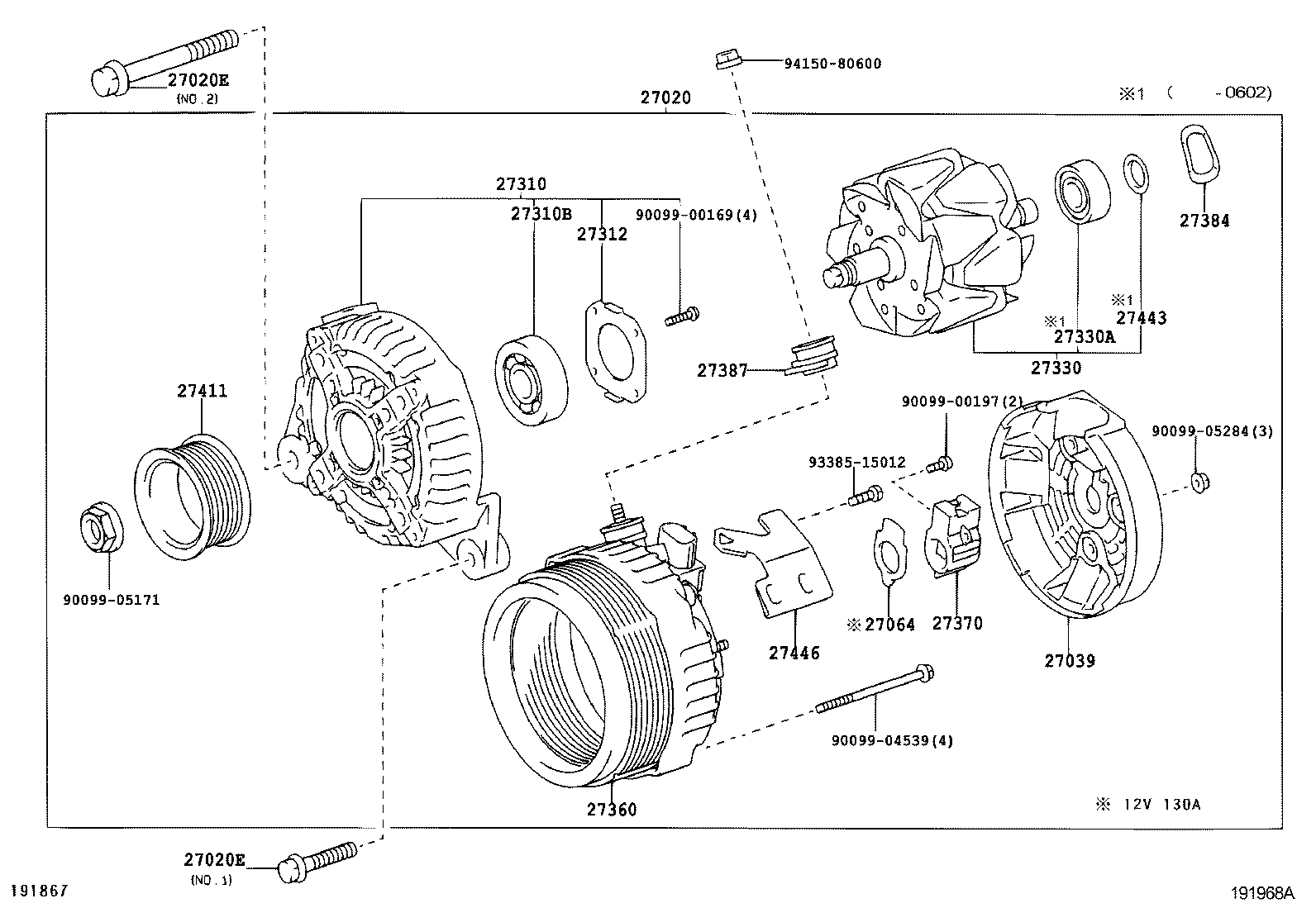

Click highlighted areas on diagram

12V 100A,130A

diagram 27020 27020E 27020E 27039 27064 27310 27310B 27312 27330 27330A 27360 27370 27384 27387 27411 27443 27446 9009900169 9009900197 9009904539 9009905171 9009905284 9338515012 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-28100

2AZFE..ACU2#

12V 100A

 1
27060-28290

2AZFE..ACU2#

12V 130A

 1
27060-28130

2AZFE..ACU2#

12V 130A

 1
27060-28270

2AZFE..ACU2#

12V 100A

 1
27020E - BOLT(FOR ALTERNATOR)
91512-81085

2AZFE..ACU2#

NO.2

 1
91551-80840

2AZFE..ACU2#

NO.1

 1
91511-J0840

2AZFE..ACU2#

NO.1

 1
91512-81085

2AZFE..ACU2#

NO.2

 1
91511-60840

2AZFE..ACU2#

NO.1

 1
27020E - BOLT(FOR ALTERNATOR)
91512-81085

2AZFE..ACU2#

NO.2

 1
91551-80840

2AZFE..ACU2#

NO.1

 1
91511-J0840

2AZFE..ACU2#

NO.1

 1
91512-81085

2AZFE..ACU2#

NO.2

 1
91511-60840

2AZFE..ACU2#

NO.1

 1
27039 - COVER, ALTERNATOR REAR END
27039-28150

2AZFE,3MZFE..ACU2#,MCU2#

12V 130A

 1
27039-27060

2AZFE,3MZFE..ACU2#,MCU2#

12V 100A

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

2AZFE..ACU2#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-28120

2AZFE..ACU2#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

2AZFE,3MZFE..ACU2#,MCU2#

 1
90099-10223

2AZFE,3MZFE..ACU2#,MCU2#

 1
27312 - PLATE, RETAINER
27312-72100

2AZFE,3MZFE..ACU2#,MCU2#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-20070

2AZFE,1MZFE..ACU2#,MCU2#

12V 100A

 1
27330-20130

2AZFE,3MZFE..ACU2#,MCU2#

12V 130A

 1
27330-20130

2AZFE,1MZFE..ACU2#,MCU2#

12V 130A

 1
27330-33090

2AZFE,3MZFE..ACU2#,MCU2#

12V 130A

 1
27330-30070

2AZFE,3MZFE..ACU2#,MCU2#

12V 100A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

2AZFE,3MZFE..ACU2#,MCU2#

 1
27360 - COIL ASSY, ALTERNATOR
27360-28100

2AZFE..ACU2#

12V 130A

 1
27360-28220

2AZFE..ACU2#

12V 130A

 1
27360-28210

2AZFE..ACU2#

12V 100A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

2AZFE,1MZFE..ACU2#,MCU2#

12V 100A

 1
27370-20130

2AZFE,1MZFE..ACU2#,MCU2#

12V 130A

 1
27370-20130

2AZFE,3MZFE..ACU2#,MCU2#

12V 130A

 1
27370-58460

2AZFE,3MZFE..ACU2#,MCU2#

12V 100A

 1
27384 - WASHER
27384-50030

2AZFE,3MZFE..ACU2#,MCU2#

 1
27387 - INSULATOR, TERMINAL
27387-20130

2AZFE,3MZFE..ACU2#,MCU2#

 1
27411 - PULLEY, ALTERNATOR
27411-28060

2AZFE..ACU2#

 1
27411-28060

2AZFE..ACU2#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

2AZFE,3MZFE..ACU2#,MCU2#

 1
27446 - CLIP, ALTERNATOR CORD
27446-28120

2AZFE..ACU2#

 1
Common parts
90099-00169
90099-00197
90099-04539
90099-05171
90099-05284
93385-15012
94150-80600
