ACU25L-BRPNKA (2003)
Toyota Highlander
Production
Aug 2003
-
May 2007
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0308- )2AZFE

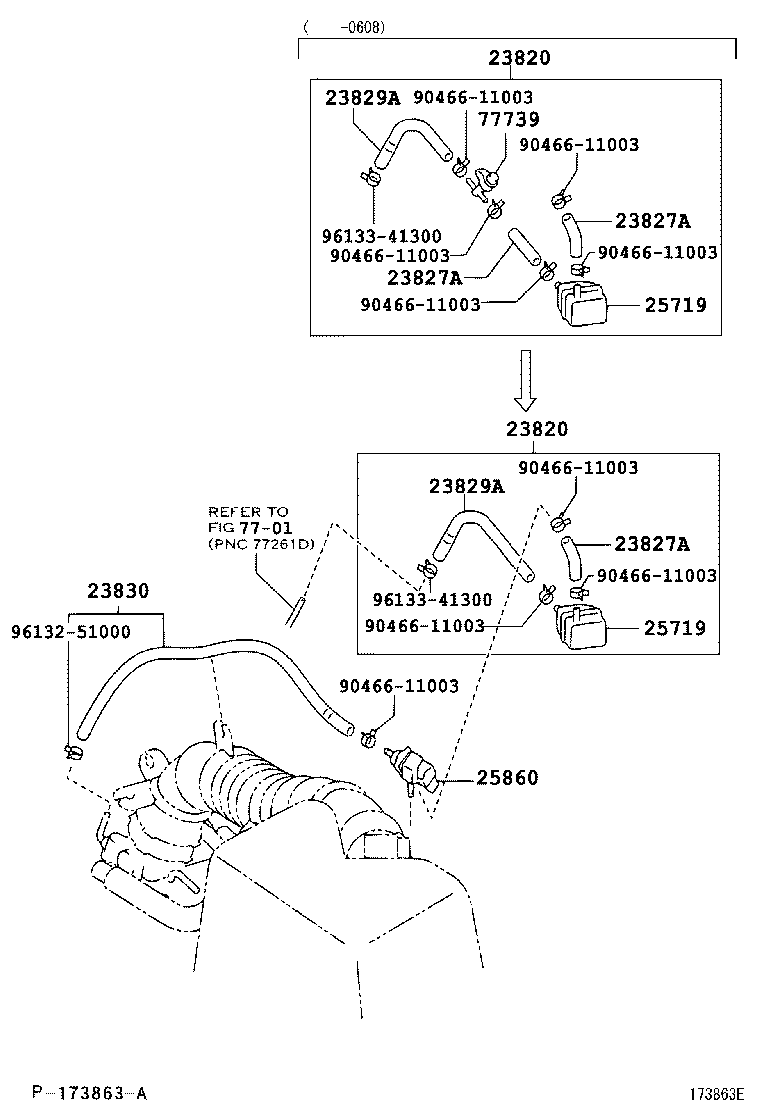

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-28180 |
2AZFE..ACU2# |
1 | ||
| 23820-28181 |
2AZFE..ACU2# |
1 | ||
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-28180 |
2AZFE..ACU2# |
1 | ||
| 23820-28181 |
2AZFE..ACU2# |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 95326-07005 |
2AZFE..ACU2# |
1 | ||
| 95326-07005 |
2AZFE..ACU2# |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 95326-07005 |
2AZFE..ACU2# |
1 | ||
| 95326-07005 |
2AZFE..ACU2# |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 95326-07005 |
2AZFE..ACU2# |
1 | ||
| 95326-07005 |
2AZFE..ACU2# |
2 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-28112 |
2AZFE..ACU2# |
1 | ||
| 23829-28110 |
2AZFE..ACU2# |
1 | ||
| 23829-28111 |
2AZFE..ACU2# |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-28112 |
2AZFE..ACU2# |
1 | ||
| 23829-28110 |
2AZFE..ACU2# |
1 | ||
| 23829-28111 |
2AZFE..ACU2# |
1 | ||
| 23830 - HOSE ASSY, FUEL VAPOR FEED, NO.2 | ||||
| 23830-28040 |
2AZFE..ACU2# |
1 | ||
| 23830-28110 |
2AZFE..ACU2# |
1 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-62040 |
2AZFE..ACU2# |
1 | ||
| 25719-28020 |
2AZFE..ACU2# |
1 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-62040 |
2AZFE..ACU2# |
1 | ||
| 25719-28020 |
2AZFE..ACU2# |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-28010 |
2AZFE..ACU2# |
1 | ||
| 25860-28050 |
2AZFE..ACU2# |
1 | ||
| 77739 - VALVE, EVAP SERVICE PORT | ||||
| 77739-33010 |
ACU2# |
1 | ||
| 77739-33010 |
ACU2# |
1 | ||
| Common parts | ||||
| 90466-11003 | ||||
| 96132-51000 | ||||
| 96133-41300 | ||||
| Linked diagrams | ||||
| 7701 | ||||
