ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )2AZFE

Click highlighted areas on diagram

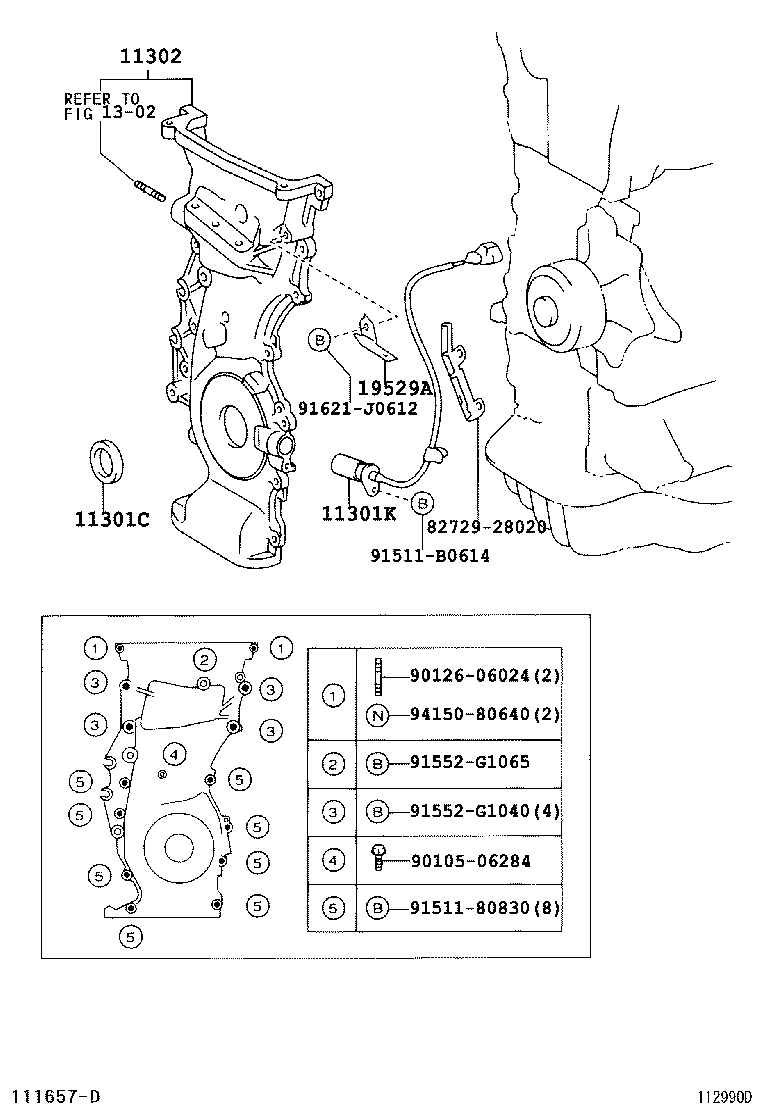

diagram 11301C 11301K 11302 1302 19529A 8272928020 9010506284 9012606024 9151180830 91511B0614 91552G1040 91552G1065 91621J0612 9415080640
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-38078

2AZFE..ACU2#

 1
90311-38089

2AZFE..ACU2#

 1
11301K - SENSOR, CRANK POSITION
90919-05047

2AZFE..ACU2#

 1
90919-05047

2AZFE..ACU2#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-28071

2AZFE..ACU2#

 1
11310-28070

2AZFE..ACU2#

 1
11310-28070

2AZFE..ACU2#

 1
19529A - CLAMP
19529-28010

2AZFE..ACU2#

 1
19529-28010

2AZFE..ACU2#

 1
Common parts
82729-28020
90105-06284
90126-06024
91511-80830
91511-B0614
91552-G1040
91552-G1065
91621-J0612
94150-80640
Linked diagrams
1302
