ACU25L-BRPNKA (2003)

Toyota Highlander

Production Aug 2003 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

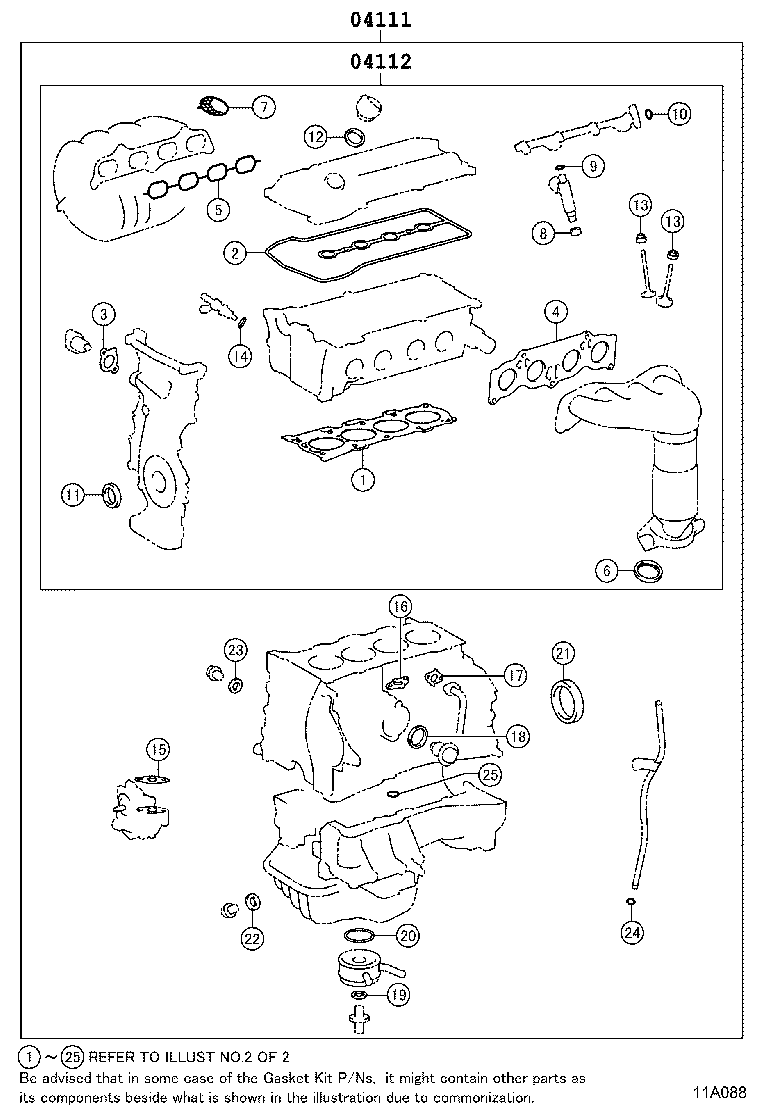

ILLUST NO. 1 OF 2(0308- )2AZFE

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-28100

2AZFE..ACU2#

 1
04111-28930

2AZFE..ACU2#

TOWING PACKAGE

 1
04111-28511

2AZFE..ACU2#

 1
04111-28190

2AZFE..ACU2#

 1
04111-28193

2AZFE..ACU2#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-28100

2AZFE..ACU2#

 1
04112-28192

2AZFE..ACU2#

 1
04112-28190

2AZFE..ACU2#

 1
04112-28057

2AZFE..ACU2#

 1
04112-28193

2AZFE..ACU2#

TOWING PACKAGE

 1

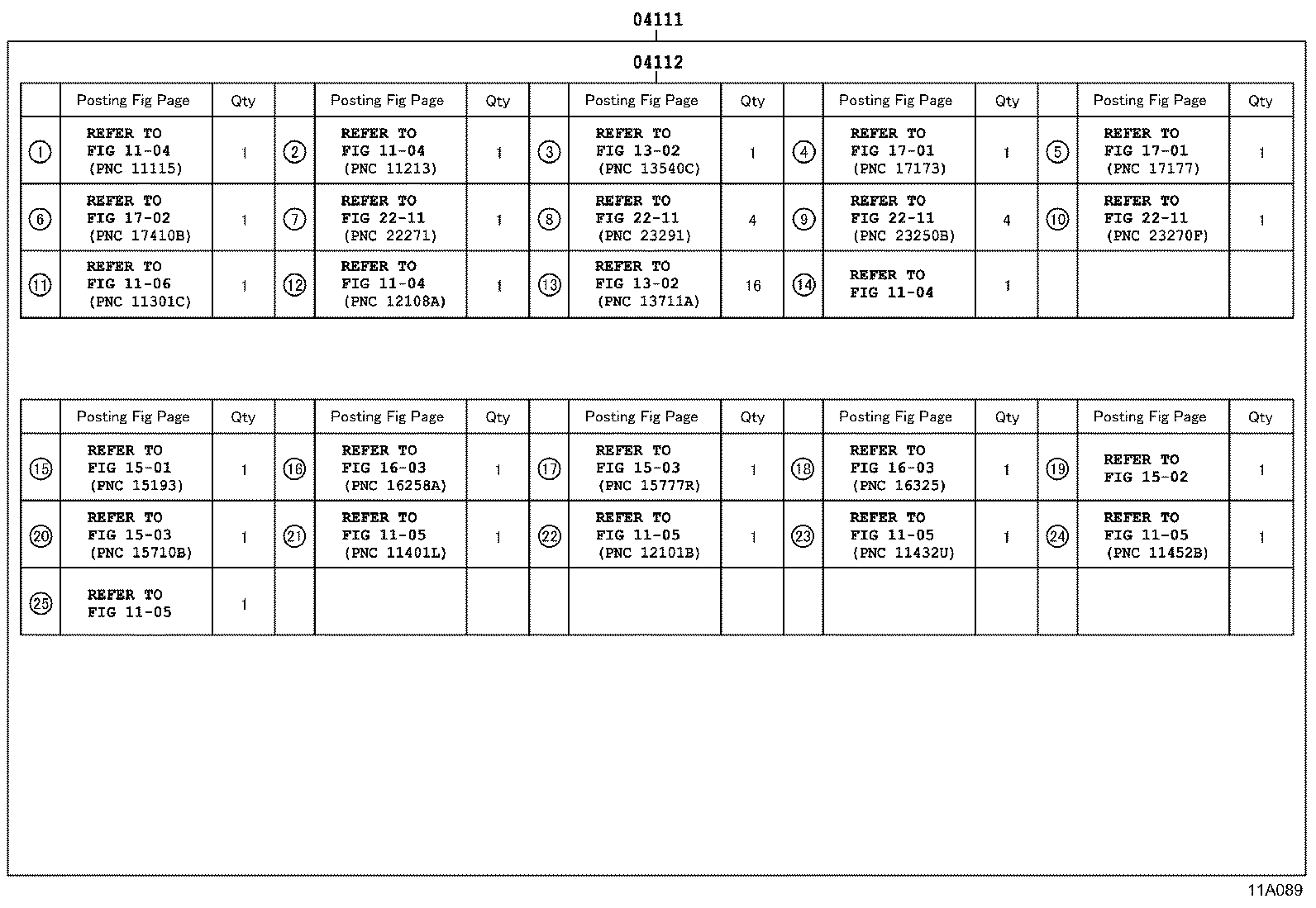

ILLUST NO. 2 OF 2(0011- )2AZFE

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1105 1105 1105 1106 1302 1302 1501 1502 1503 1503 1603 1603 1701 1701 1702 2211 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-28100

2AZFE..ACU2#

 1
04111-28930

2AZFE..ACU2#

TOWING PACKAGE

 1
04111-28511

2AZFE..ACU2#

 1
04111-28190

2AZFE..ACU2#

 1
04111-28193

2AZFE..ACU2#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-28100

2AZFE..ACU2#

 1
04112-28192

2AZFE..ACU2#

 1
04112-28190

2AZFE..ACU2#

 1
04112-28057

2AZFE..ACU2#

 1
04112-28193

2AZFE..ACU2#

TOWING PACKAGE

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1603
1701
1702
2211
