ACU20L-BWPNKA (2000)

Toyota Highlander

Production Nov 2000 - May 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)

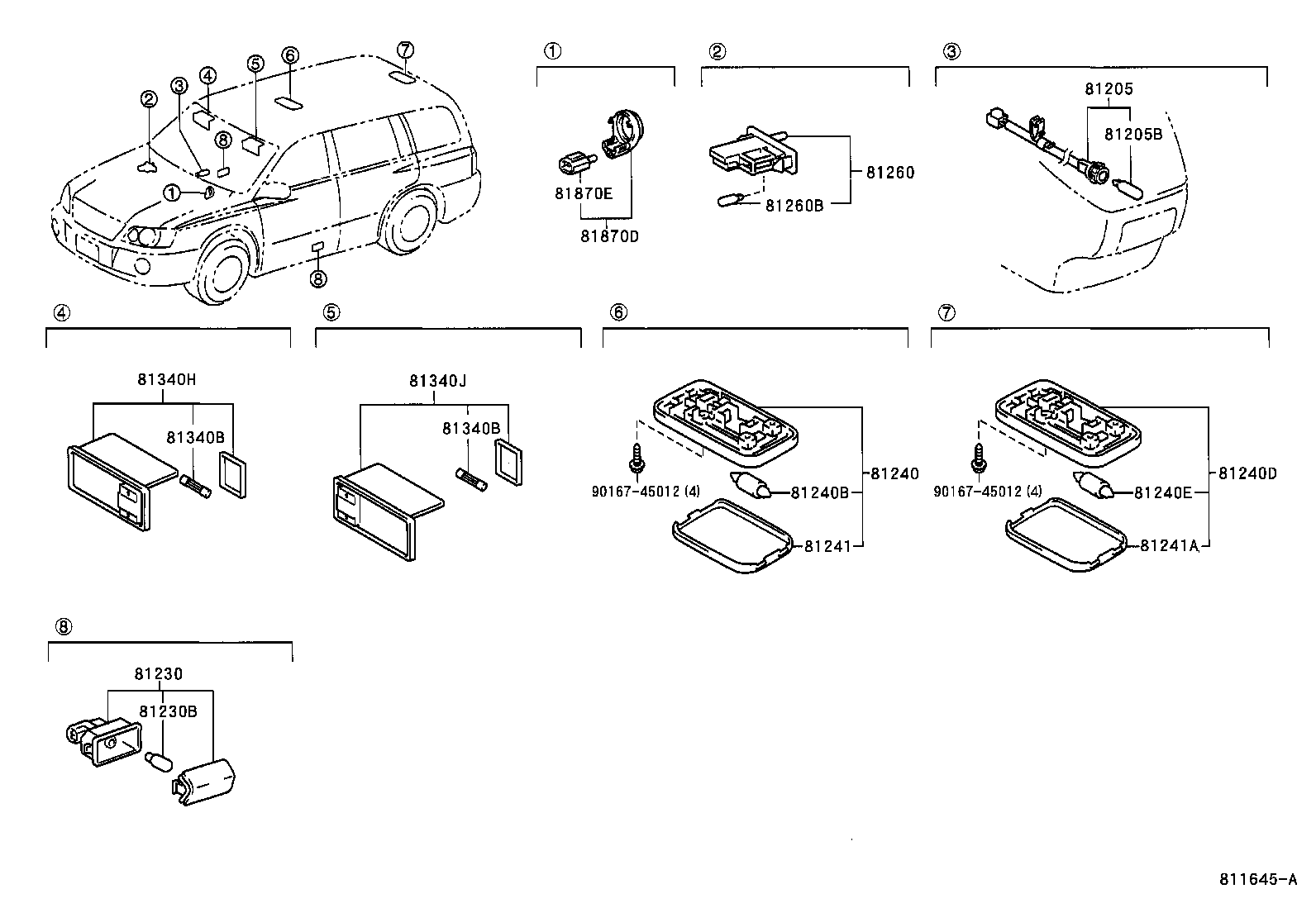

Click highlighted areas on diagram

diagram 81205 81205B 81230 81230B 81240 81240B 81240D 81240E 81241 81241A 81260 81260B 81340B 81340B 81340H 81340J 81870D 81870E 9016745012 9016745012
Part # Description Qty Price
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81850-48040

ACU2#,MCU2#

 1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014

ACU2#,MCU2#

14V 1.4W

 1
81230 - LAMP ASSY, COURTESY
81230-48010

ACU2#,MCU2#

 2
81230-48010

ACU2#,MCU2#

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ACU2#,MCU2#

12V 5W

 2
90981-12010

ACU2#,MCU2#

12V 5W

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-22120A1

ACU2#,MCU2#

IVORY,TRIM0#

 1
81240-33030A0

ACU2#,MCU2#

IVORY,TRIM0#

 1
81240-33030B3

ACU2#,MCU2#

GRAY,TRIM1#

 1
81240-22120B4

ACU2#,MCU2#

MD.CHARCOAL,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ACU2#,MCU2#

12V 8W

 1
90981-14004

ACU2#,MCU2#

12V 8W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-22120B4

ACU2#,MCU2#

MD.CHARCOAL,TRIM1#

 1
81240-22120A1

ACU2#,MCU2#

IVORY,TRIM0#

 1
81240-33030B3

ACU2#,MCU2#

GRAY,TRIM1#

 1
81240-33030A0

ACU2#,MCU2#

IVORY,TRIM0#

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14004

ACU2#,MCU2#

12V 8W

 1
90981-14011

ACU2#,MCU2#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-33030

ACU2#,MCU2#

 1
81241-32031

ACU2#,MCU2#

 1
81241A - LENS, ROOM LAMP, NO.2
81241-32031

ACU2#,MCU2#

 1
81241-33030

ACU2#,MCU2#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33030

ACU2#,MCU2#

 1
81260-22160

ACU2#,MCU2#

 1
81260-33040

ACU2#,MCU2#

 1
81260-33030

ACU2#,MCU2#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ACU2#,MCU2#

12V 1.2W W/O SOCKET

 1
90981-11018

ACU2#,MCU2#

12V 1.2W W/O SOCKET

 1
81340B - BULB (FOR VANITY LAMP)
90981-14003

ACU2#,MCU2#

12V 1.5W

 2
81340B - BULB (FOR VANITY LAMP)
90981-14003

ACU2#,MCU2#

12V 1.5W

 2
81340H - LAMP ASSY, VANITY, RH
81340-33090B3

ACU2#,MCU2#

MD.CHARCOAL,TRIM1#

 1
81340-33090A1

ACU2#,MCU2#

IVORY,TRIM0#

 1
81340J - LAMP ASSY, VANITY, LH
81350-33050B2

ACU2#,MCU2#

MD.CHARCOAL,TRIM1#

 1
81350-33050A1

ACU2#,MCU2#

IVORY,TRIM0#

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-48030

ACU2#,MCU2#

 1
81870-48030

ACU2#,MCU2#

 1
81870E - BULB, KEY CYLINDER LAMP
90010-01056

ACU2#,MCU2#

14V 1.4W

 1
90010-01056

ACU2#,MCU2#

14V 1.4W

 1
Common parts
90167-45012

(0308- )

Click highlighted areas on diagram

diagram 81230 81230B 81240 81240B 81240D 81240E 81241 81241A 81260 81260B 81870D 81870E
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-48010

ACU2#,MCU2#

 2
81230-48010

ACU2#,MCU2#

 2
81230B - BULB(FOR COURTESY LAMP)
90981-12010

ACU2#,MCU2#

12V 5W

 2
90981-12010

ACU2#,MCU2#

12V 5W

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-22120A1

ACU2#,MCU2#

IVORY,TRIM0#

 1
81240-33030A0

ACU2#,MCU2#

IVORY,TRIM0#

 1
81240-33030B3

ACU2#,MCU2#

GRAY,TRIM1#

 1
81240-22120B4

ACU2#,MCU2#

MD.CHARCOAL,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ACU2#,MCU2#

12V 8W

 1
90981-14004

ACU2#,MCU2#

12V 8W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-22120B4

ACU2#,MCU2#

MD.CHARCOAL,TRIM1#

 1
81240-22120A1

ACU2#,MCU2#

IVORY,TRIM0#

 1
81240-33030B3

ACU2#,MCU2#

GRAY,TRIM1#

 1
81240-33030A0

ACU2#,MCU2#

IVORY,TRIM0#

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14004

ACU2#,MCU2#

12V 8W

 1
90981-14011

ACU2#,MCU2#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-33030

ACU2#,MCU2#

 1
81241-32031

ACU2#,MCU2#

 1
81241A - LENS, ROOM LAMP, NO.2
81241-32031

ACU2#,MCU2#

 1
81241-33030

ACU2#,MCU2#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33030

ACU2#,MCU2#

 1
81260-22160

ACU2#,MCU2#

 1
81260-33040

ACU2#,MCU2#

 1
81260-33030

ACU2#,MCU2#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ACU2#,MCU2#

12V 1.2W W/O SOCKET

 1
90981-11018

ACU2#,MCU2#

12V 1.2W W/O SOCKET

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-48030

ACU2#,MCU2#

 1
81870-48030

ACU2#,MCU2#

 1
81870E - BULB, KEY CYLINDER LAMP
90010-01056

ACU2#,MCU2#

14V 1.4W

 1
90010-01056

ACU2#,MCU2#

14V 1.4W

 1
