TRH223L-LEMDKV (2005)
Toyota Hiace
(0501- )KDH222,223,LH222,TRH22#..SG..STD..ARL,GCC,GEN

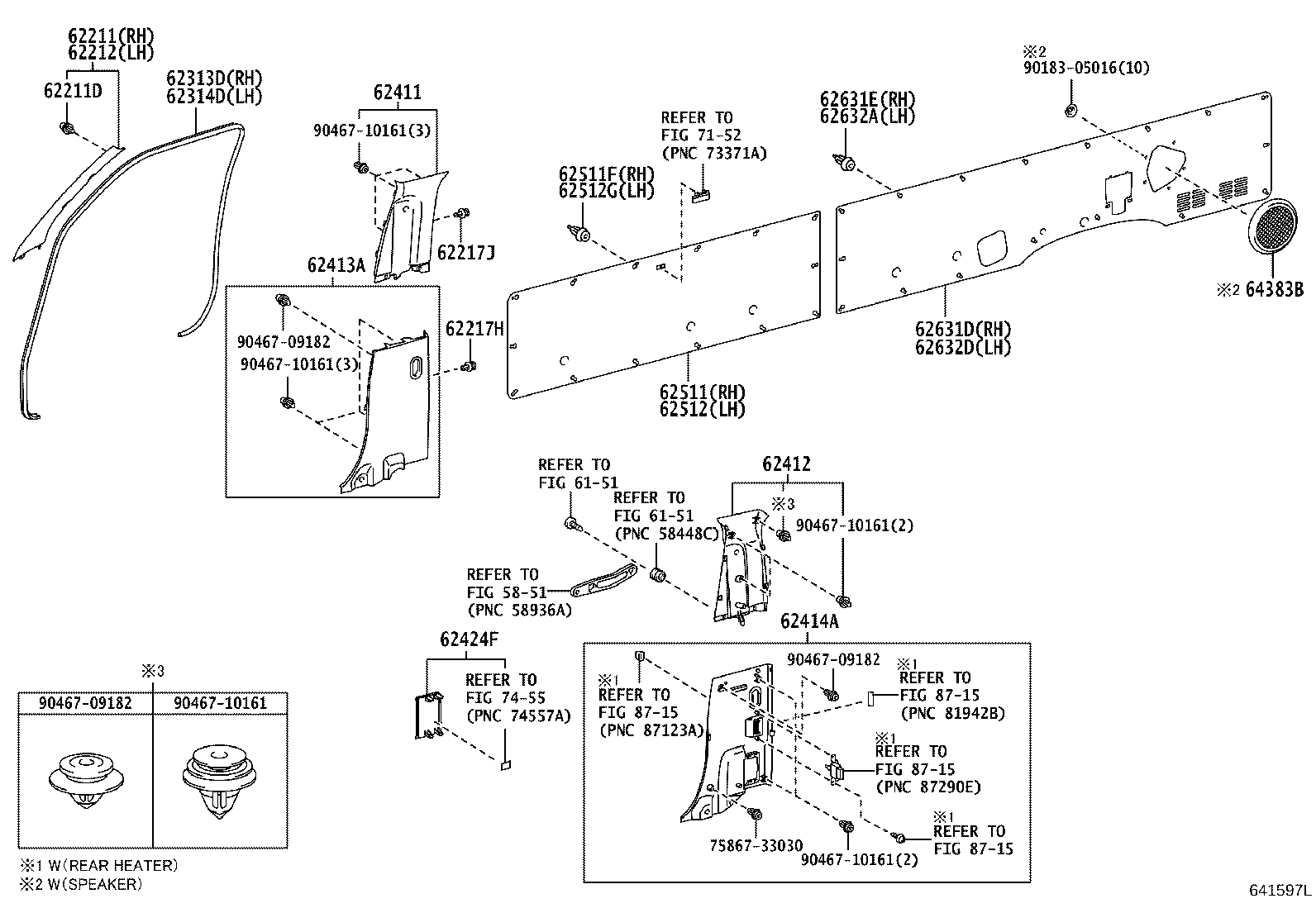

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26050B0 |
TRH223;KDH202..MA;KDH202,212,222,LH212,222,TRH20#,213,221..(HRF,SMRF)..(03S,09S,10S,11S,12S,16S) LT.GRAY,TRIM1# |
1 | ||
| 62210-26051B0 |
KDH202..MA,TH;KDH201,TRH201..SP..06S;KDH202,223,TRH213,223..(HRF,SMRF)..(ARL,CIS,GCC,GEN,RUS,SA,TH,VN);KDH212,220,221,222,LH212,222,TRH20#,221..(HRF,SMRF)..(ARL,GCC,GEN,MA,SA,VN) LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
KDH202..MA,TH;KDH201..SP..06S;KDH223,TRH213,223;KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,212,220,222,LH212,222,TRH201,221..(HRF,SMRF)..(ARL,GCC,GEN,SA,VN) |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26050B0 |
KDH222..GL..GCC;KDH222..STD..(GCC,SA);KDH212,TRH213,22#..GCC;TRH201,213,221..SG..(03S,09S) LT.GRAY,TRIM1# |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 62489-26010B1 |
KDH202,TRH203..SRF..(GCC,GEN);KDH222,TRH223..STD..(GCC,GEN,SA,TH);KDH200,201,203,220,221,LH20#,222,TRH201,221..4D GRAY,TRIM1# |
1 | ||
| 62489-26010B0 |
KDH222,LH222,TRH22#..SG..5F..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM12,13 |
1 | ||
| 62217J - CLIP, CENTER PILLER GARNISH | ||||
| 62489-26010B1 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM12 |
1 | ||
| 62489-26010B2 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM13 |
1 | ||
| 62489-26010B0 |
KDH222,LH222,TRH22#..SG..5F..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM12,13 |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-26010C0 |
KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S BLACK,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62314-26010C0 |
KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S BLACK,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-26080B0 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-26080B0 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-26210B1 |
TRH221..ARL,GEN,SA;KDH201,TRH201..SG..GEN;KDH201,TRH201..5D..03S..GEN;KDH200,220,221,LH200..5D..(ARL,GEN,SA);KDH200,202,222,LH20#,222,TRH203,223..LHD..4D..STD GRAY,TRIM1# |
1 | ||
| 62413-26230B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1# |
1 | ||
| 62413-26210B0 |
KDH201,TRH201..SG..GEN;KDH220,221,TRH221..ARL,GEN,SA;KDH200,201,LH200,TRH201..5D..03S..GEN;KDH200,202,203,222,LH20#,222,TRH203,223..LHD..4D..STD DK.GRAY,TRIM1# |
1 | ||
| 62413-26230B0 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26280B1 |
KDH200,202,222,LH20#,222,TRH20#,22#..LHD..4D..STD GRAY,TRIM1# |
1 | ||
| 62414-26300B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1# |
1 | ||
| 62414-26300B0 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1# |
1 | ||
| 62414-26280B0 |
KDH200,202,203,222,LH20#,222,TRH201,203,22#..LHD..4D..STD DK.GRAY,TRIM1# |
1 | ||
| 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH | ||||
| 62424-26030B1 |
KDH212..4FC;TRH223..RHD;TRH223..12S,13S;TRH223..LHD..STD;KDH222..STD..GCC;KDH212..10S,15S,16S;KDH222..ARL,GEN,SA,TH;KDH20#,220,221,223,LH20#,212,222,TRH20#,213,221..03S,06S,10S,11S,12S,14S,15S,16S GRAY,TRIM1# |
1 | ||
| 62424-26030B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62512-26110B0 |
KDH202,222,LH202,222,TRH203,223..LHD..STD AMBURANCE BASE,GRAY,TRIM1# |
1 | ||
| 62512-26120B1 |
KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..STD DK.GRAY,TRIM1# |
1 | ||
| 62512-26110B1 |
KDH202,203,222,LH202,222,TRH203,223..LHD..STD AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 62512-26110B0 |
KDH202,222,LH202,222,TRH203,223..LHD..STD AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 62512-26120B0 |
KDH222,LH222,TRH223..LHD..STD;KDH202,LH202,212,TRH203..LHD..(10S,12S) GRAY,TRIM1# |
1 | ||
| 62512G - RETAINER, QUATER TRIM | ||||
| 75867-33030 |
KDH202,203,212,222,LH202,212,222,TRH201,203,213,22#..LHD..4D..STD |
14 | ||
| 62631D - BOARD, QUARTER TRIM, REAR RH | ||||
| 62631-26420B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE,GRAY,TRIM1# |
1 | ||
| 62631-26500B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,GRAY,TRIM1# |
1 | ||
| 62631-26480B0 |
KDH222,LH222,TRH223..(15S,16S)..STD GRAY,TRIM1# |
1 | ||
| 62631-26500B0 |
KDH222,TRH223..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,GRAY,TRIM1# |
1 | ||
| 62631-26420B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 62631-26500B1 |
KDH222,TRH223..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 62631-26420B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 62631-26500B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 62631-26500B1 |
KDH222,TRH223..5F..STD..GCC AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 62631E - RETAINER, QUATER TRIM | ||||
| 75867-33030 |
KDH223,LH222,TRH22#..SG..STD;KDH222..STD..(ARL,GCC,GEN,SA) |
17 | ||
| 62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD) | ||||
| 75867-33030 |
KDH223,LH222,TRH22#..SG..STD;KDH222..STD..(ARL,GCC,GEN,SA) |
17 | ||
| 62632D - BOARD, QUARTER TRIM, REAR LH | ||||
| 62632-26440B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE,GRAY,TRIM1# |
1 | ||
| 62632-26470B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,GRAY,TRIM1# |
1 | ||
| 62632-26470B0 |
KDH222,TRH223..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,GRAY,TRIM1# |
1 | ||
| 62632-26460B0 |
KDH222,LH222,TRH223..(15S,16S)..STD GRAY,TRIM1# |
1 | ||
| 62632-26440B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 62632-26470B1 |
KDH222,TRH223..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 62632-26470B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 62632-26440B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 62632-26470B1 |
KDH222,TRH223..5F..STD..GCC AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER,DK.GRAY,TRIM1# |
1 | ||
| 64383B - GRILLE, REAR SPEAKER, RH | ||||
| 64383-26060B0 |
KDH222,TRH223..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,GRAY,TRIM1# |
2 | ||
| 64383-26060B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD;KDH212,TRH213..STD..SA AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,GRAY,TRIM1# |
2 | ||
| 64383-26060B1 |
KDH202,212,222,LH202,212,222,TRH203,213,223..(15S,16S)..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER,DK.GRAY,TRIM1# |
2 | ||
| 64383-26060B1 |
KDH202,212,222,TRH203,213,223..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER,DK.GRAY,TRIM1# |
2 | ||
| 64383-26060B1 |
KDH222,TRH223..5F..STD..GCC AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER,DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 75867-33030 | ||||
| 90183-05016 | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 5851 | ||||
| 6151 | ||||
| 7152 | ||||
| 7455 | ||||
| 8715 | ||||
