TRH213R-KDPNK (2005)

Toyota Hiace

Production Jan 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-1008)TRH213..4FC

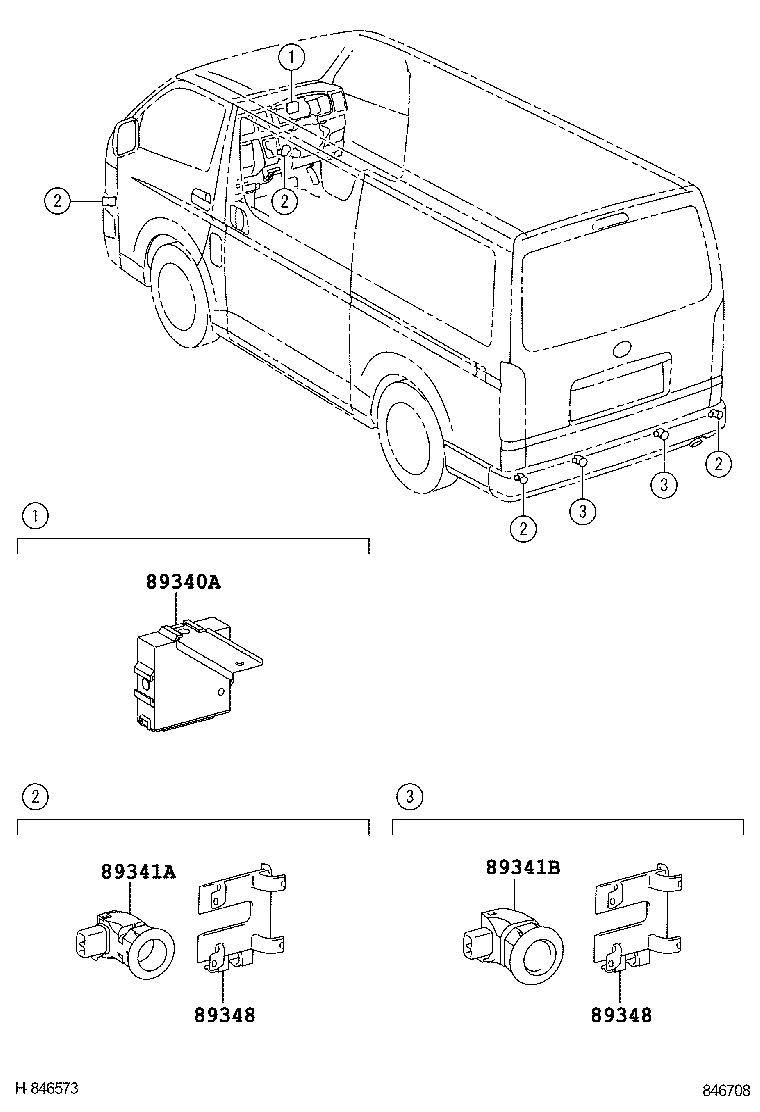

Click highlighted areas on diagram

diagram 89340A 89341A 89341B 89348 89348
Part # Description Qty Price
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-26170

TRH213,223..(10S,11S,13S)..(GEN,TH)

CLEARANCE & BACK SONER-WITH(6SENSOR)

 1
89341A - SENSOR, ULTRASONIC, NO.1
89341-44130

TRH213,223..(10S,11S,13S)..(GEN,TH)

CLEARANCE & BACK SONER-WITH(6SENSOR)

 4
89341B - SENSOR, ULTRASONIC, NO.2
89341-26360

TRH213,223..(10S,11S,13S)..(GEN,TH)

CLEARANCE & BACK SONER-WITH(6SENSOR)

 2
89348 - RETAINER, ULTRASONIC SENSOR, NO.1
89348-44010

TRH213,223..(10S,11S,13S)..(GEN,TH)

CLEARANCE & BACK SONER-WITH(6SENSOR)

 6
89348 - RETAINER, ULTRASONIC SENSOR, NO.1
89348-44010

TRH213,223..(10S,11S,13S)..(GEN,TH)

CLEARANCE & BACK SONER-WITH(6SENSOR)

 6
