TRH213R-KDPNK (2005)

Toyota Hiace

Production Jan 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH203,TRH213..4D..GCC,GEN,SA,VN ; (0501- )KDH200,201,202,212,LH20#,2

Click highlighted areas on diagram

BODY STRIPE

diagram 75983C 75984A 75991D 75991D 75992D 75992D 75993A 75993A 75994B 75994B
Part # Description Qty Price
75983C - STRIPE, SLIDE DOOR, RH
75983-26220F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75983-26260

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75984A - STRIPE, SLIDE DOOR
75984-26520F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 4
75984-26560

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75991D - STRIPE, QUARTER, FRONT RH
75991-26580F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75991-26600

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75991D - STRIPE, QUARTER, FRONT RH
75991-26580F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75991-26600

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75992D - STRIPE, QUARTER, FRONT LH
75992-26390F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75992-26420

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75992D - STRIPE, QUARTER, FRONT LH
75992-26390F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75992-26420

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75993A - STRIPE, QUARTER, REAR RH
75993-26300F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75993-26310

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75993A - STRIPE, QUARTER, REAR RH
75993-26300F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75993-26310

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75994B - STRIP, QUARTER, REAR LH
75994-26420F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75994-26430

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75994B - STRIP, QUARTER, REAR LH
75994-26420F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75994-26430

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1

(0501-0506)TRH213..4FC ; (0501- )TRH213..TH ;(0501- )KDH200,201,212..GL ; (0

Click highlighted areas on diagram

BODY COLOR-TWO-TONE

diagram 75941 75942 75973F 75974F 75977D 75978D 75983C 75984A 75984A 75984A 75984A 75984C 75985A 75986A 75987C 75987D 75988C 75988D 75991B 75991D 75992 75992A 75992D 75993A 75994B 75994B 75996E 75997F 75997F 75998E 75999E 75999E
Part # Description Qty Price
75941 - STRIPE, CENTER PILLAR, RH
75941-26220

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75941-26210F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75942 - STRIPE, CENTER PILLAR, NO.2
75942-26430

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75942-26400F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75973F - STRIPE, FRONT SIDE PANEL, RH
75973-26040F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75974F - STRIPE, FRONT SIDE PANEL, LH
75974-26040F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75977D - STRIPE, REAR DOOR, RH
75985-26490F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75978D - STRIPE, REAR DOOR, LH
75985-26490F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75983C - STRIPE, SLIDE DOOR, RH
75983-26220F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75983-26260

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75984A - STRIPE, SLIDE DOOR
75984-26520F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 4
75984-26560

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75984A - STRIPE, SLIDE DOOR
75984-26520F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 4
75984-26560

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75984A - STRIPE, SLIDE DOOR
75984-26520F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 4
75984-26560

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75984A - STRIPE, SLIDE DOOR
75984-26520F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 4
75984-26560

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75984C - STRIPE, SLIDE DOOR, LH UPPER
75984-26510F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75985A - STRIPE, SIDE PANEL, RH
75985-26480F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75986A - STRIPE, SIDE PANEL, LH
75986-26480F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75987C - STRIPE, REAR DOOR, OUTSIDE, RH
75983-26240F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75987-26010

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75987D - STRIPE, REAR DOOR, OUTSIDE, RH
75983-26250F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75987-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75988C - STRIPE, REAR DOOR, OUTSIDE LH
75984-26540F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75988-26010

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75988D - STRIPE, REAR DOOR OUTSIDE, LH
75984-26550F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75988-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75991B - STRIPE, QUARTER, RH
75991-26590F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75991D - STRIPE, QUARTER, FRONT RH
75991-26580F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75991-26600

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75992 - STRIPE, QUARTER, LH NO.1
75992-26400F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75992D - STRIPE, QUARTER, FRONT LH
75992-26390F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75992-26420

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75993A - STRIPE, QUARTER, REAR RH
75993-26300F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75993-26310

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75994B - STRIP, QUARTER, REAR LH
75994-26420F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75994-26430

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75994B - STRIP, QUARTER, REAR LH
75994-26420F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75994-26430

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75996E - STRIPE, QUARTER, FRONT LOWER RH
75996-26010F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75996-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75997F - STRIPE, QUARTER, FRONT LOWER LH
75997-26010F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75997-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75997F - STRIPE, QUARTER, FRONT LOWER LH
75997-26010F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75997-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75998E - STRIPE, QUARTER REAR LOWER, RH
75998-26070

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75998-26060F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75999E - STRIPE, QUARTER REAR LOWER, LH
75999-26050F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75999-26060

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75999E - STRIPE, QUARTER REAR LOWER, LH
75999-26050F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75999-26060

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1

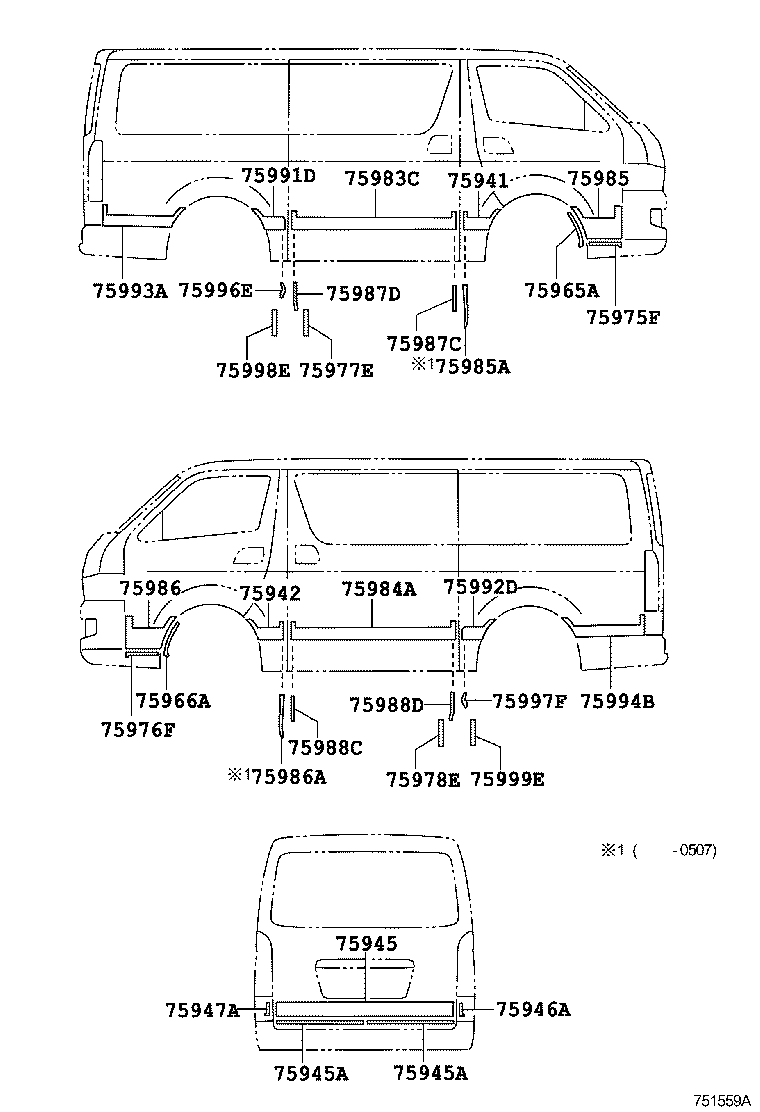

(0506- )TRH213..4FC..GL

Click highlighted areas on diagram

BODY COLOR-TWO-TONE

diagram 75941 75942 75945 75945A 75945A 75946A 75947A 75965A 75966A 75975F 75976F 75977E 75978E 75983C 75984A 75985 75985A 75986 75986A 75987C 75987D 75988C 75988D 75991D 75992D 75993A 75994B 75996E 75997F 75998E 75999E
Part # Description Qty Price
75941 - STRIPE, CENTER PILLAR, RH
75941-26220

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75941-26210F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75942 - STRIPE, CENTER PILLAR, NO.2
75942-26430

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75942-26400F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75945 - STRIPE, BACK DOOR
75945-26040

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75945A - STRIPE, TAIL GATE
75945-26050

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 2
75945A - STRIPE, TAIL GATE
75945-26050

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 2
75946A - STRIPE, BACK DOOR, UPPER RH
75946-26030

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75947A - STRIPE, BACK DOOR, UPPER LH
75947-26030

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75965A - STRIPE, FRONT DOOR OUTSIDE, REAR RH
75965-26010

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75966A - STRIPE, FRONT DOOR OUTSIDE, REAR LH
75966-26010

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75975F - STRIPE, FRONT DOOR OUTSIDE, LOWER RH
75975-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75976F - STRIPE, FRONT DOOR OUTSIDE, LOWER LH
75976-26030

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75977E - STRIPE, REAR DOOR OUTSIDE, LOWER RH
75977-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75978E - STRIPE, REAR DOOR OUTSIDE, LOWER LH
75978-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75983C - STRIPE, SLIDE DOOR, RH
75983-26220F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75983-26260

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75984A - STRIPE, SLIDE DOOR
75984-26520F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 4
75984-26560

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75985 - STRIPE, FRONT DOOR, RH
75985-26500

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75985A - STRIPE, SIDE PANEL, RH
75985-26480F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75986 - STRIPE, FRONT DOOR, LH
75986-26490

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75986A - STRIPE, SIDE PANEL, LH
75986-26480F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75987C - STRIPE, REAR DOOR, OUTSIDE, RH
75983-26240F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75987-26010

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75987D - STRIPE, REAR DOOR, OUTSIDE, RH
75983-26250F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75987-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75988C - STRIPE, REAR DOOR, OUTSIDE LH
75984-26540F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75988-26010

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75988D - STRIPE, REAR DOOR OUTSIDE, LH
75984-26550F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75988-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75991D - STRIPE, QUARTER, FRONT RH
75991-26580F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75991-26600

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75992D - STRIPE, QUARTER, FRONT LH
75992-26390F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75992-26420

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75993A - STRIPE, QUARTER, REAR RH
75993-26300F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75993-26310

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75994B - STRIP, QUARTER, REAR LH
75994-26420F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75994-26430

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75996E - STRIPE, QUARTER, FRONT LOWER RH
75996-26010F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75996-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75997F - STRIPE, QUARTER, FRONT LOWER LH
75997-26010F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75997-26020

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75998E - STRIPE, QUARTER REAR LOWER, RH
75998-26070

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
75998-26060F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75999E - STRIPE, QUARTER REAR LOWER, LH
75999-26050F0

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JM

 1
75999-26060

TRH213..4FC

BODY COLOR-TWO-TONE(METALLIC)

 1
