TRH213R-KDPNK (2005)
Toyota Hiace
(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#
FRONT RH(SPLIT TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A70B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26A40B0 |
KDH212,TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26020 |
TRH213..09S;TRH213..RHD..GL;KDH212,222,TRH223..(10S,11S,14S,16S)..GL |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26170 |
TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26280 |
KDH212,222,223,TRH213,223..GL..(CIS,GCC,GEN,RUS,SA,TH) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B0 |
KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26010B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-26410B0 |
KDH212,TRH213..4FC GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
KDH212,TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
KDH212,222,TRH213,223..(10S,11S,12S,13S,14S)..GL W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
KDH212,TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020B8 |
KDH212,222,TRH213,223..(10S,11S,12S,13S,14S)..GL W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD RH SEAT |
1 | ||
| 72249-26020 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD LH SEAT |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0501- )
FRONT RH(INTEGRATED TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A70B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26A40B0 |
KDH212,TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26020 |
TRH213..09S;TRH213..RHD..GL;KDH212,222,TRH223..(10S,11S,14S,16S)..GL |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26170 |
TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26280 |
KDH212,222,223,TRH213,223..GL..(CIS,GCC,GEN,RUS,SA,TH) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B0 |
KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26010B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD RH SEAT |
1 | ||
| 72249-26020 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD LH SEAT |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#
FRONT LH(INTEGRATED TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26810B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-26A40B0 |
KDH212,TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-26020 |
KDH212,222,TRH213,223..GL..(CIS,GCC,GEN,SA,TH) |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD |
4 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-26050 |
TRH213..4FC..GL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26280 |
KDH212,222,223,TRH213,223..GL..(CIS,GCC,GEN,RUS,SA,TH) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26010B0 |
KDH222,TRH223..LHD..GEN;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,220,LH20#,212,222,TRH20#,221..LHD;KDH212,222,TRH213,223..(12S,14S,16S)..(ARL,CIS,GCC,SA,VN) GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26010B0 |
KDH222,TRH223..LHD..GEN;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,220,LH20#,212,222,TRH20#,221..LHD;KDH212,222,TRH213,223..(12S,14S,16S)..(ARL,CIS,GCC,SA,VN) GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,212,220,LH20#,212,222,TRH20#,213,221..LHD..STD GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,212,220,LH20#,212,222,TRH20#,213,221..LHD..STD GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,212,220,LH20#,212,222,TRH20#,213,221..LHD..STD GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,212,220,LH20#,212,222,TRH20#,213,221..LHD..STD GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD RH SEAT |
1 | ||
| 72249-26020 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD LH SEAT |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26020B0 |
TRH201..SA;TRH221..GCC,GEN,SA;KDH220..SP..(GEN,SA);KDH200,202..GCC,SA,TH;LH20#,212,222,TRH20#..LHD;TRH223..ARL,CIS,GCC,SA,TH;KDH200,202,222,TRH223..LHD..GEN;KDH212,222,TRH213..(14S,16S)..(ARL,GCC,SA,TH,VN);KDH201,203,212,221,223,TRH213..03S,06S,09S,10S,11S,14S,15S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||

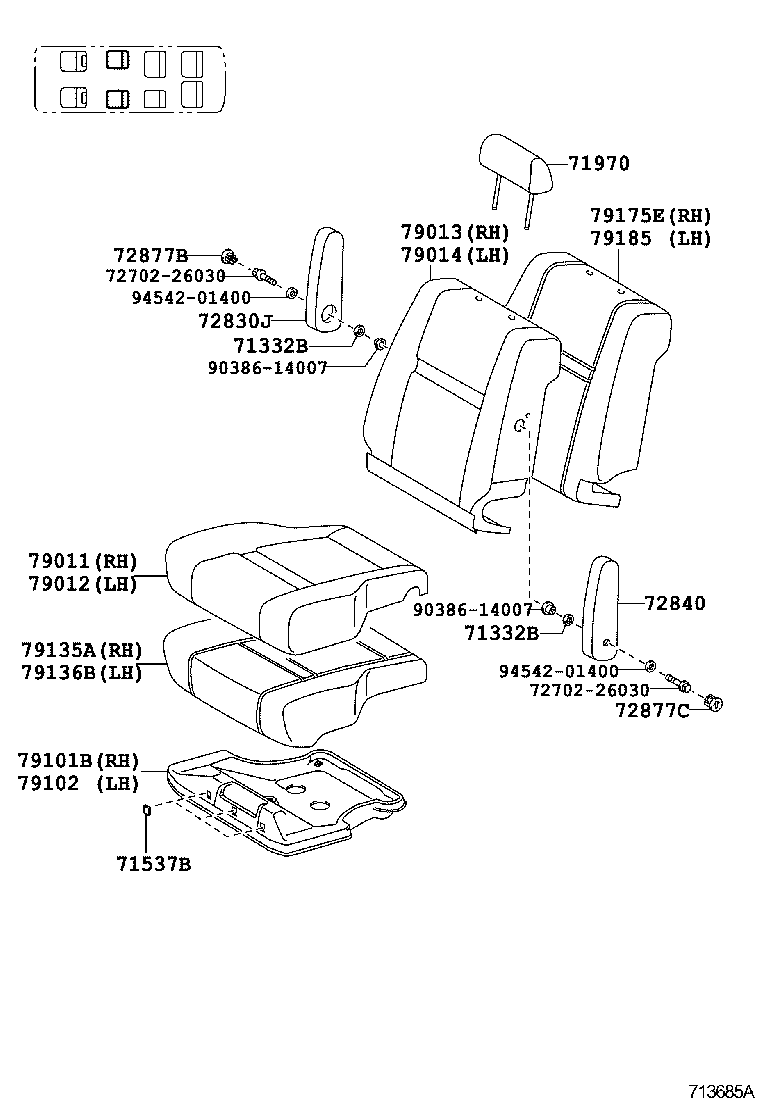

ILLUST NO. 1 OF 2(0501-0506)TRH213..4FC
RHD REAR(CAPTAIN SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 90560-18011 |
TRH213..4FC |
4 | ||
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 90560-18011 |
TRH213..4FC |
4 | ||
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
TRH213..4FC |
8 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-26240A0 |
TRH213..4FC IVORY |
2 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-26270A0 |
TRH213..4FC IVORY |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-26150A0 |
TRH213..4FC IVORY |
2 | ||
| 72877B - COVER, SEAT ARMREST, RH | ||||
| 71877-26030B1 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 72877C - COVER, SEAT ARMREST | ||||
| 71877-26030B1 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-26850A0 |
TRH213..4FC IVORY |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79011-26850A0 |
TRH213..4FC IVORY |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-26800A0 |
TRH213..4FC IVORY |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-26800A0 |
TRH213..4FC IVORY |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 71011-26040 |
TRH213..4FC |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71011-26040 |
TRH213..4FC |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-26240 |
TRH213..4FC |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79135-26240 |
TRH213..4FC |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-26230 |
TRH213..4FC |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79175-26230 |
TRH213..4FC |
1 | ||
| Common parts | ||||
| 72702-26030 | ||||
| 90386-14007 | ||||
| 94542-01400 | ||||

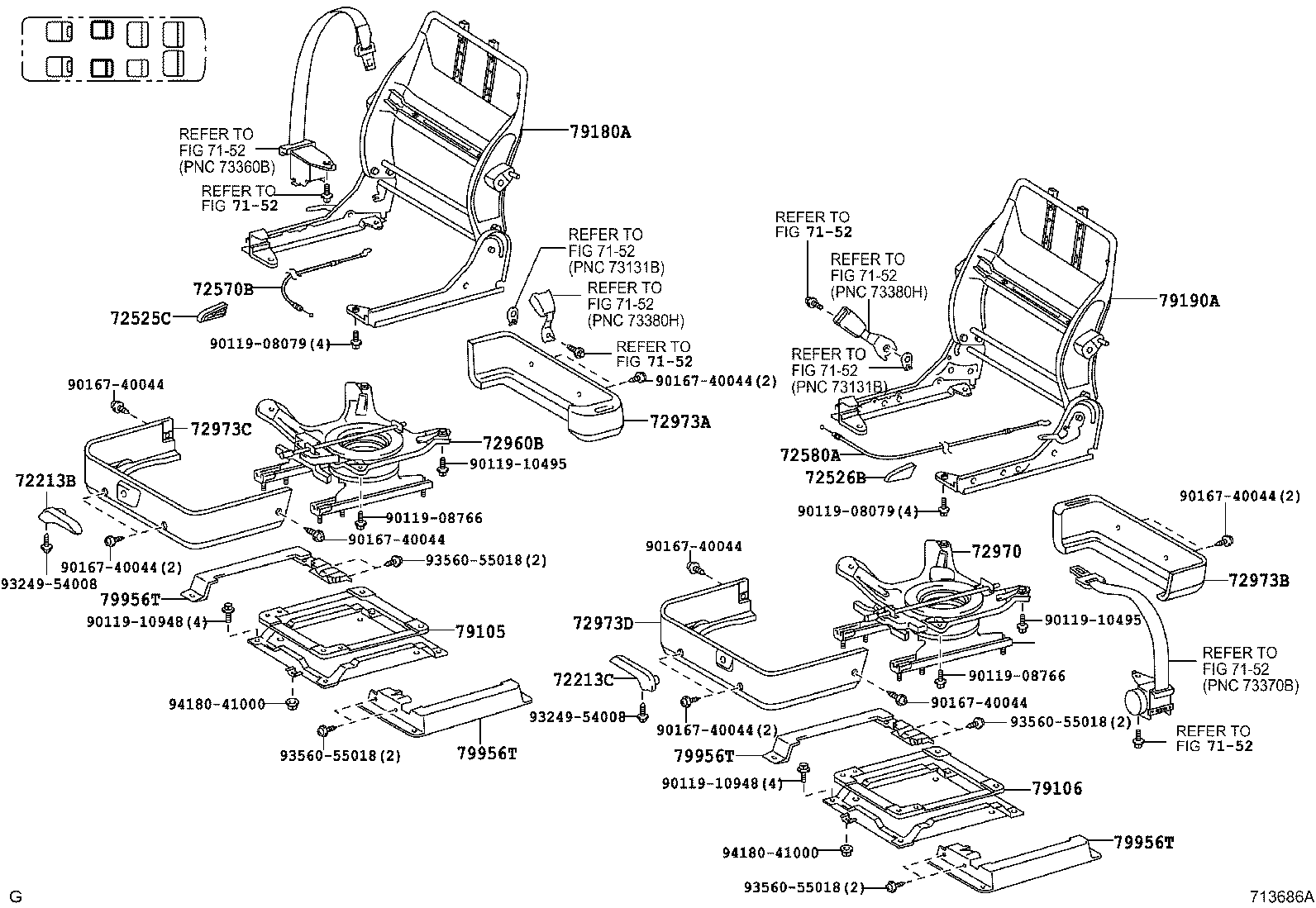

ILLUST NO. 2 OF 2(0501-0506)TRH213..4FC
RHD REAR(CAPTAIN SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72213B - KNOB, SEAT TRACK ADJUSTING HANDLE, RH | ||||
| 72213-28020B2 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH | ||||
| 72213-28020B2 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-26060B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72525-26070B8 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72570-26030 |
TRH213..4FC |
1 | ||
| 72580A - CABLE ASSY, RECLINING ADJUSTING, LH | ||||
| 72570-26030 |
TRH213..4FC |
1 | ||
| 72960B - TABLE ASSY, REAR SEAT TURN, RH | ||||
| 72960-26060 |
TRH213..4FC |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-26110 |
TRH213..4FC |
1 | ||
| 72973A - COVER, REAR SEAT TURN TABLE | ||||
| 72973-26030B2 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72973B - COVER, REAR SEAT TURN TABLE, NO.2 | ||||
| 72973-26040B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72973C - COVER, FRONT SEAT TURN TABLE,NO.1 | ||||
| 72973-26150B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72973D - COVER, FRONT SEAT TURN TABLE, NO.2 | ||||
| 72973-26150B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-26510 |
TRH213..4FC |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-26270 |
TRH213..4FC |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-26230 |
TRH213..4FC |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-26100 |
TRH213..4FC |
1 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79956-26260B0 |
TRH213..4FC GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26260B0 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26270B0 |
TRH213..4FC GRAY,TRIM1#,NO.2 |
2 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79956-26260B0 |
TRH213..4FC GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26260B0 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26270B0 |
TRH213..4FC GRAY,TRIM1#,NO.2 |
2 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79956-26260B0 |
TRH213..4FC GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26260B0 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26270B0 |
TRH213..4FC GRAY,TRIM1#,NO.2 |
2 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79956-26260B0 |
TRH213..4FC GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26260B0 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26270B0 |
TRH213..4FC GRAY,TRIM1#,NO.2 |
2 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08766 | ||||
| 90119-10495 | ||||
| 90119-10948 | ||||
| 90167-40044 | ||||
| 93249-54008 | ||||
| 93560-55018 | ||||
| 94180-41000 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(0501- )KDH212,223,TRH213..RHD..10S,11S,14S..ARL,GEN,SA ; (1110- )LH222,TRH22
RHD REAR(1 PERSON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71812-26290B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812-26290B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71811L - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26280B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71811-26280B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26300B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812-26300B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812N - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26250B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812-26250B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71867F - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71867-26060B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71868E - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71868-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-26090B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525-26090B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH | ||||
| 72525-28090B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525-28090B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79106-26260 |
TRH213..4FC |
1 | ||
| 79106-26260 |
TRH213..4FC |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79106-26260 |
TRH213..4FC |
1 | ||
| 79106-26260 |
TRH213..4FC |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79190-26130 |
TRH213..4FC |
1 | ||
| 79190-26130 |
TRH213..4FC |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79390-26040 |
TRH213..4FC |
1 | ||
| 79390-26040 |
TRH213..4FC |
1 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 71218-90516 |
TRH213..4FC |
1 | ||
| 71218-90516 |
TRH213..4FC |
1 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 71218-90516 |
TRH213..4FC |
1 | ||
| 71218-90516 |
TRH213..4FC |
1 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79968-26010 |
TRH213..4FC |
1 | ||
| 79968-26010 |
TRH213..4FC |
1 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79968-26010 |
TRH213..4FC |
1 | ||
| 79968-26010 |
TRH213..4FC |
1 | ||
| Common parts | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||

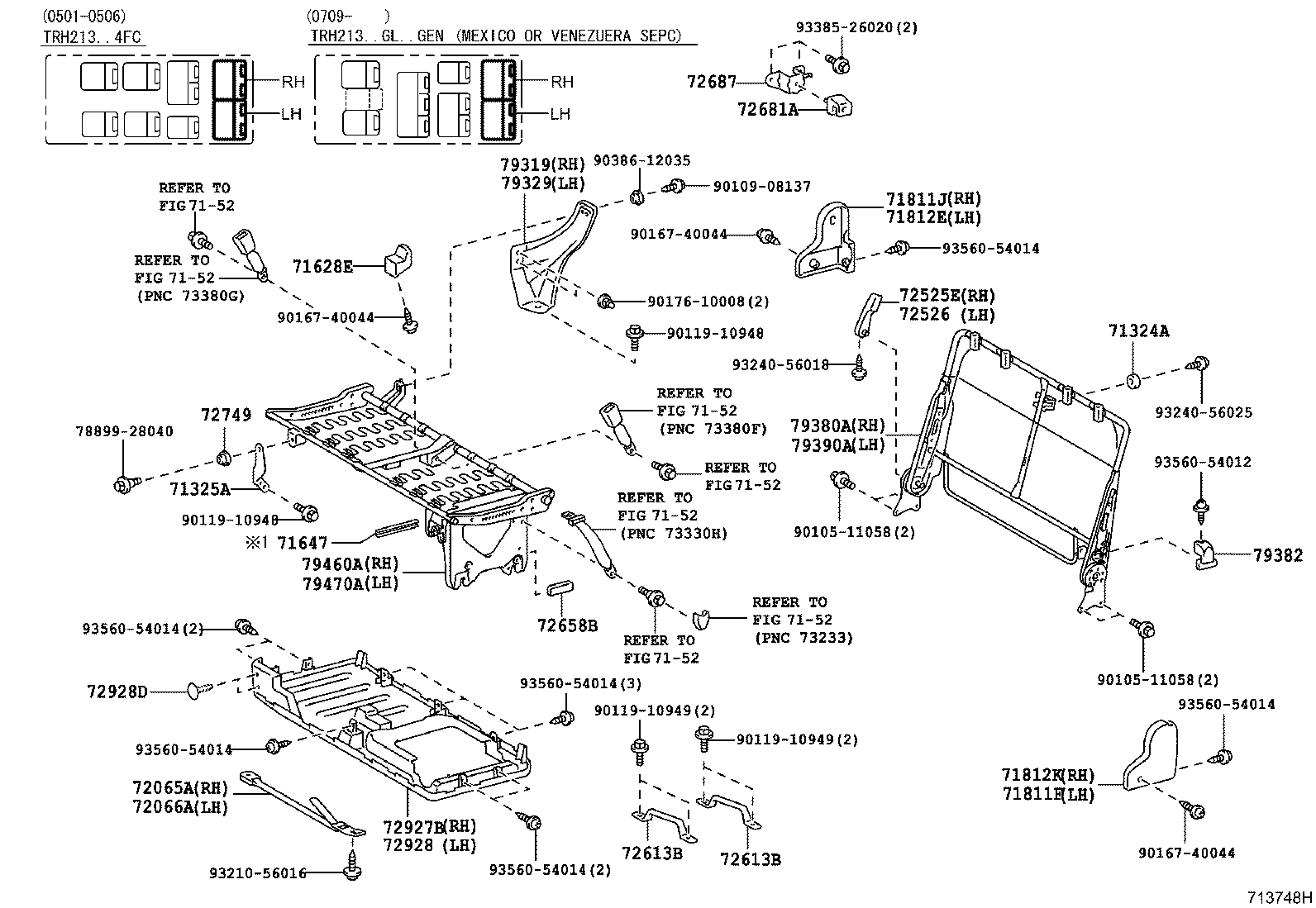

ILLUST NO. 1 OF 2(0501-0506)TRH213..4FC ; (0501- )KDH222..RHD..16S ; (0610- )TRH223..TH ; (071
RHD REAR(1 & 2 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71701-26030B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..4FC GRAY,TRIM1# |
6 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..4FC GRAY,TRIM1# |
6 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..4FC GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B1 |
TRH213..4FC GRAY,TRIM1# |
7 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B1 |
TRH213..4FC GRAY,TRIM1# |
7 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B1 |
TRH213..4FC GRAY,TRIM1# |
7 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-26850A0 |
TRH213..4FC IVORY |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-26800A0 |
TRH213..4FC IVORY |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-26800A0 |
TRH213..4FC IVORY |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-26450B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-26110B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-26A20B4 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-26A20B4 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-26A20B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-26540B3 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79022-26140B3 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-26470B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-26470B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79024-26030B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-26240 |
TRH213..4FC |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-26230 |
TRH213..4FC |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-26230 |
TRH213..4FC |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-26050 |
TRH213..4FC |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79136-26050 |
TRH213..4FC |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79175-26280 |
TRH213..4FC |
2 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79175-26280 |
TRH213..4FC |
2 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79175-26280 |
TRH213..4FC |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79235-26110 |
TRH213..4FC |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79245-26020 |
TRH213..4FC |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79275-26110 |
TRH213..4FC |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79275-26110 |
TRH213..4FC |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79285-26020 |
TRH213..4FC |
1 | ||
| Common parts | ||||
| 90159-60604 | ||||
ILLUST NO. 1 OF 2(0501- )4D..09S,11S,16S..GL ; (0709- )TRH213..GL..GEN ; (1110- )KDH222,LH2
LHD REAR(1 & 2 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71701-26030B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..4FC GRAY,TRIM1# |
6 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..4FC GRAY,TRIM1# |
6 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..4FC GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B1 |
TRH213..4FC GRAY,TRIM1# |
7 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B1 |
TRH213..4FC GRAY,TRIM1# |
7 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B1 |
TRH213..4FC GRAY,TRIM1# |
7 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-26450B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-26110B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-26A20B4 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-26A20B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-26A20B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-26540B3 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79022-26140B3 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-26470B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79024-26030B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79024-26030B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-26050 |
TRH213..4FC |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79136-26050 |
TRH213..4FC |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79175-26280 |
TRH213..4FC |
2 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79175-26280 |
TRH213..4FC |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79175-26280 |
TRH213..4FC |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79235-26110 |
TRH213..4FC |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79245-26020 |
TRH213..4FC |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79275-26110 |
TRH213..4FC |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79285-26020 |
TRH213..4FC |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79285-26020 |
TRH213..4FC |
1 | ||
| Common parts | ||||
| 90159-60604 | ||||
ILLUST NO. 2 OF 2(0501-0506)TRH213..4FC ; (0501- )KDH222..RHD..16S ; (0610- )TRH223..TH ; (071
RHD REAR(2 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811H - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26240B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71811J - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26300B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812K - COVER, RECLINING ADJUSTER, LH | ||||
| 71811-26320B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812Q - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26230B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71813D - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71814E - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26020B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71867D - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71868C - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-26060B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525J - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26090B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72525-26070B8 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72526-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-26230 |
TRH213..4FC |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-26230 |
TRH213..4FC |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-26250 |
TRH213..4FC |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79280-26080 |
TRH213..4FC RH SEAT-RH |
1 | ||
| 79290-26020 |
TRH213..4FC RH SEAT-LH |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79280-26080 |
TRH213..4FC RH SEAT-RH |
1 | ||
| 79290-26020 |
TRH213..4FC RH SEAT-LH |
1 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79380-26080 |
TRH213..4FC |
1 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79380-26080 |
TRH213..4FC |
1 | ||
| 79955B - COVER, NO.2 SEAT FRONT BRACKET, RH | ||||
| 71218-90516 |
TRH213..4FC |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79968-26010 |
TRH213..4FC |
1 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79956-26260B0 |
TRH213..4FC GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26260B0 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26270B0 |
TRH213..4FC GRAY,TRIM1#,NO.2 |
2 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(0501- )TRH223..TH ; (0501- )16S..5F..GL ;(0501- )KDH222,223..RHD..16S ;
RR(SPACE UP SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-26110B1 |
TRH213..4FC GRAY,TRIM13 |
2 | ||
| 71324-26110B1 |
TRH213..4FC GRAY,TRIM13 |
2 | ||
| 71325A - HINGE, REAR SEAT CUSHION LEG | ||||
| 71325-26030 |
TRH213..4FC LH SEAT |
1 | ||
| 71325-26030 |
TRH213..4FC LH SEAT |
1 | ||
| 71325-26010 |
TRH213..4FC RH SEAT |
1 | ||
| 71325-26010 |
TRH213..4FC RH SEAT |
1 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-26040B0 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 71628-26040B0 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH | ||||
| 72065-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72065-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH | ||||
| 72065-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72065-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-28090B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72526-28090B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26110 |
TRH213..4FC |
4 | ||
| 72613-26110 |
TRH213..4FC |
4 | ||
| 72613-26110 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER) |
4 | ||
| 72613-26110 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER) |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26110 |
TRH213..4FC |
4 | ||
| 72613-26110 |
TRH213..4FC |
4 | ||
| 72613-26110 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER) |
4 | ||
| 72613-26110 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER) |
4 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95701D0 |
TRH213..4FC ORANGE,TRIM1# |
2 | ||
| 72658-95701D0 |
TRH213..4FC ORANGE,TRIM1# |
2 | ||
| 72681A - HOOK, REAR SEAT | ||||
| 72681-26050B0 |
TRH213..4FC..GL 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),LT.GRAY,TRIM1# |
2 | ||
| 72681-26050B0 |
TRH213..4FC..GL 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),LT.GRAY,TRIM1# |
2 | ||
| 72681-26050B0 |
KDH212..4FC;KDH223,TRH213,223..11S,14S,15S,16S;KDH212,222,LH212,222..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN) LT.GRAY,TRIM1# |
2 | ||
| 72681-26050B0 |
KDH212..4FC;KDH223,TRH213,223..11S,14S,15S,16S;KDH212,222,LH212,222..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN) LT.GRAY,TRIM1# |
2 | ||
| 72687 - BRACKET, REAR SEAT HOOK | ||||
| 72687-26020 |
TRH213..4FC..GL 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER) |
2 | ||
| 72687-26020 |
TRH213..4FC..GL 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER) |
2 | ||
| 72687-26020 |
KDH212..4FC;KDH222,TRH223..ARL;KDH212,TRH213..STD..(GCC,VN);KDH222,TRH223..(14S,16S)..GL;KDH212,TRH213..RHD..(11S,15S,16S);KDH223,LH212..(14S,16S)..(ARL,GEN) |
2 | ||
| 72687-26020 |
KDH212..4FC;KDH222,TRH223..ARL;KDH212,TRH213..STD..(GCC,VN);KDH222,TRH223..(14S,16S)..GL;KDH212,TRH213..RHD..(11S,15S,16S);KDH223,LH212..(14S,16S)..(ARL,GEN) |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48030 |
TRH213..4FC |
2 | ||
| 72749-48030 |
TRH213..4FC |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-26010B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72927-26010B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-26010B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72928-26010B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72928D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-05147B6 |
TRH213..4FC GRAY,TRIM1# |
4 | ||
| 90467-05147B6 |
TRH213..4FC GRAY,TRIM1# |
4 | ||
| 79319 - BRACKET, NO.3 SEAT LEG, RR RH | ||||
| 79319-26080 |
TRH213..4FC |
1 | ||
| 79319-26080 |
TRH213..4FC |
1 | ||
| 79329 - BRACKET, NO.3 SEAT LEG, RR LH | ||||
| 79329-26030 |
TRH213..4FC |
1 | ||
| 79329-26030 |
TRH213..4FC |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-60090B1 |
TRH213..4FC GRAY,TRIM1#,LH SEAT |
1 | ||
| 79382-60090B1 |
TRH213..4FC GRAY,TRIM1#,LH SEAT |
1 | ||
| 79382-60080B1 |
TRH213..4FC GRAY,TRIM1#,RH SEAT |
1 | ||
| 79382-60080B1 |
TRH213..4FC GRAY,TRIM1#,RH SEAT |
1 | ||
| 79460A - SPRING ASSY, NO.4 SEAT CUSHION, RH | ||||
| 71055-26020 |
TRH213..4FC |
1 | ||
| 71055-26020 |
TRH213..4FC |
1 | ||
| 79470A - SPRING ASSY, NO.4 SEAT CUSHION, LH | ||||
| 71056-26020 |
TRH213..4FC |
1 | ||
| 71056-26020 |
TRH213..4FC |
1 | ||
| Common parts | ||||
| 78899-26010 | ||||
| 78899-28040 | ||||
| 90105-11058 | ||||
| 90109-08137 | ||||
| 90119-10948 | ||||
| 90119-10949 | ||||
| 90176-10008 | ||||
| 90206-12050 | ||||
| 90386-12035 | ||||
| 93210-56016 | ||||
| 93240-56018 | ||||
| 93240-56025 | ||||
| 93385-26020 | ||||
| 93560-54012 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(0501- )4D..09S,11S,16S..GL ; (0709- )TRH213..GL..GEN ; (1110- )KDH222,LH2
LHD REAR(2 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71812-26290B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71811L - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26280B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26300B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812N - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26250B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71813D - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71814E - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26020B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71867F - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71868E - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-26060B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-26090B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH | ||||
| 72525-28090B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72525-26070B8 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-26100 |
TRH213..4FC |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79106-26260 |
TRH213..4FC |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79190-26130 |
TRH213..4FC |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79390-26040 |
TRH213..4FC |
1 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 71218-90516 |
TRH213..4FC |
1 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79956-26260B0 |
TRH213..4FC GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26260B0 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26270B0 |
TRH213..4FC GRAY,TRIM1#,NO.2 |
2 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79968-26010 |
TRH213..4FC |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 2(0501- )KDH222,TRH223..STD..GCC,GEN ; (0501-)KDH202,203,212,LH202,212,222,TR
RR(SPACE UP SEAT)
| Part # | Description | Qty | Price |
|---|
(0501- )KDH222,LH222,TRH223..LHD..5F..STD ; (0501- )KDH202,203,LH202,212,TRH2
LHD RR(2 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71812-26290B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71811L - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26280B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26300B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812N - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26250B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..4FC GRAY,TRIM1# |
3 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-26110B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-26A20B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79022-26140B3 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79024-26030B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79106-26260 |
TRH213..4FC |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79136-26050 |
TRH213..4FC |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79175-26280 |
TRH213..4FC |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79245-26020 |
TRH213..4FC |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79285-26020 |
TRH213..4FC |
1 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 71218-90516 |
TRH213..4FC |
1 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79956-26260B0 |
TRH213..4FC GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26260B0 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),GRAY,TRIM1#,NO.1 |
2 | ||
| 79956-26270B0 |
TRH213..4FC GRAY,TRIM1#,NO.2 |
2 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79968-26010 |
TRH213..4FC |
1 | ||
| Common parts | ||||
| 90119-10948 | ||||
| 90159-60595 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 2(0501-0506)TRH213..4FC ; (0709- )KDH212..4FC; (0709- )TRH213..GL..GEN,TH
RR(SPACE UP SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..4FC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
7 | ||
| 71931-42020B8 |
TRH213..4FC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
7 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B1 |
TRH213..4FC GRAY,TRIM1# |
7 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B1 |
TRH213..4FC GRAY,TRIM1# |
7 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-26540B3 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79022-26140B3 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-26470B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79024-26030B4 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79235-26110 |
TRH213..4FC |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79245-26020 |
TRH213..4FC |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79275-26110 |
TRH213..4FC |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79285-26020 |
TRH213..4FC |
1 | ||
ILLUST NO. 2 OF 2(0501-0506)TRH213..4FC ; (0709- )KDH212..4FC; (0709- )TRH213..GL..GEN,TH
RR(SPACE UP SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-26110B1 |
TRH213..4FC GRAY,TRIM13 |
2 | ||
| 71325A - HINGE, REAR SEAT CUSHION LEG | ||||
| 71325-26030 |
TRH213..4FC LH SEAT |
1 | ||
| 71325-26010 |
TRH213..4FC RH SEAT |
1 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-26040B0 |
TRH213..4FC GRAY,TRIM1# |
2 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71812-26290B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71811J - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26300B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26300B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 71812K - COVER, RECLINING ADJUSTER, LH | ||||
| 71811-26320B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH | ||||
| 72065-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH | ||||
| 72065-26040B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH | ||||
| 72525-28090B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-28090B1 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26110 |
TRH213..4FC |
4 | ||
| 72613-26110 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER) |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26110 |
TRH213..4FC |
4 | ||
| 72613-26110 |
TRH213..4FC 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER) |
4 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95701D0 |
TRH213..4FC ORANGE,TRIM1# |
2 | ||
| 72681A - HOOK, REAR SEAT | ||||
| 72681-26050B0 |
TRH213..4FC..GL 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER),LT.GRAY,TRIM1# |
2 | ||
| 72681-26050B0 |
KDH212..4FC;KDH223,TRH213,223..11S,14S,15S,16S;KDH212,222,LH212,222..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN) LT.GRAY,TRIM1# |
2 | ||
| 72687 - BRACKET, REAR SEAT HOOK | ||||
| 72687-26020 |
TRH213..4FC..GL 3ROOM REFRIGERATOR VAN, W/O(IMMOBILIZER) |
2 | ||
| 72687-26020 |
KDH212..4FC;KDH222,TRH223..ARL;KDH212,TRH213..STD..(GCC,VN);KDH222,TRH223..(14S,16S)..GL;KDH212,TRH213..RHD..(11S,15S,16S);KDH223,LH212..(14S,16S)..(ARL,GEN) |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48030 |
TRH213..4FC |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-26010B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-26010B0 |
TRH213..4FC GRAY,TRIM1# |
1 | ||
| 72928D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-05147B6 |
TRH213..4FC GRAY,TRIM1# |
4 | ||
| 79319 - BRACKET, NO.3 SEAT LEG, RR RH | ||||
| 79319-26080 |
TRH213..4FC |
1 | ||
| 79329 - BRACKET, NO.3 SEAT LEG, RR LH | ||||
| 79329-26030 |
TRH213..4FC |
1 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79380-26080 |
TRH213..4FC |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-60090B1 |
TRH213..4FC GRAY,TRIM1#,LH SEAT |
1 | ||
| 79382-60080B1 |
TRH213..4FC GRAY,TRIM1#,RH SEAT |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79390-26040 |
TRH213..4FC |
1 | ||
| 79460A - SPRING ASSY, NO.4 SEAT CUSHION, RH | ||||
| 71055-26020 |
TRH213..4FC |
1 | ||
| 79470A - SPRING ASSY, NO.4 SEAT CUSHION, LH | ||||
| 71056-26020 |
TRH213..4FC |
1 | ||
| Common parts | ||||
| 78899-28040 | ||||
| 90105-11058 | ||||
| 90109-08137 | ||||
| 90119-10948 | ||||
| 90119-10949 | ||||
| 90167-40044 | ||||
| 90176-10008 | ||||
| 90386-12035 | ||||
| 93210-56016 | ||||
| 93240-56018 | ||||
| 93240-56025 | ||||
| 93385-26020 | ||||
| 93560-54012 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
