TRH213L-JHMNK (2005)

Toyota Hiace

Production May 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(0501- )LHD

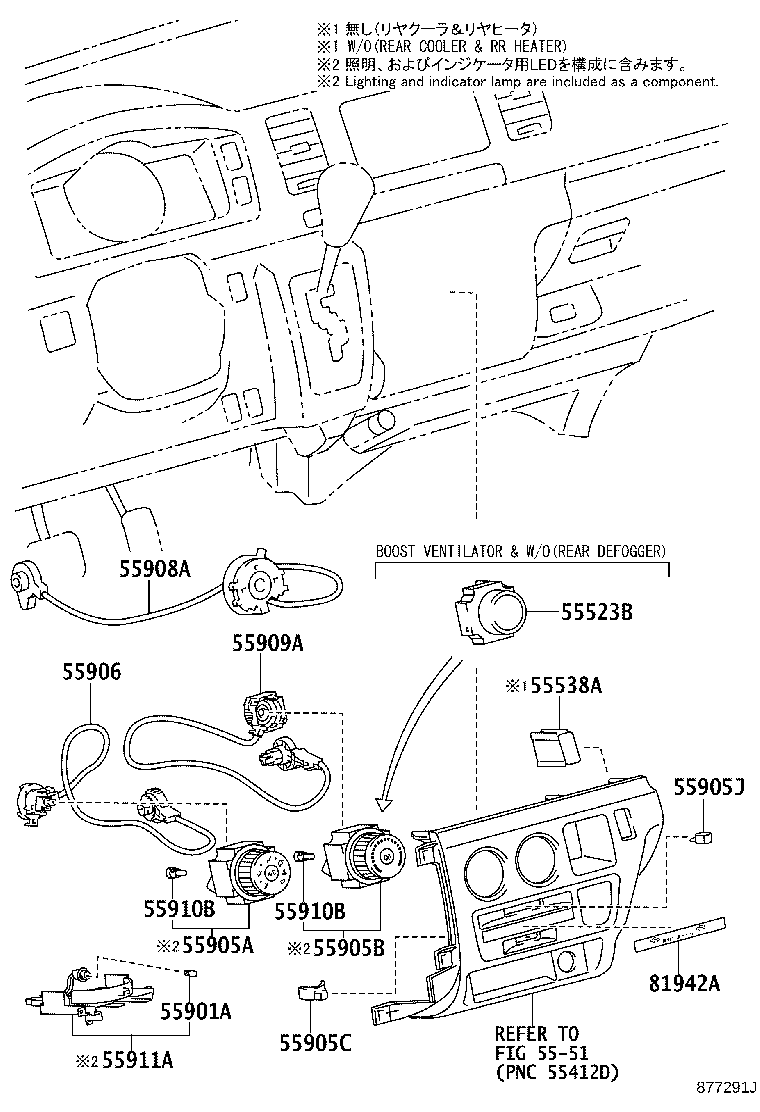

Click highlighted areas on diagram

FRONT HEATER CONTROL

diagram 5551 55523B 55538A 55901A 55905A 55905B 55905C 55905J 55906 55908A 55909A 55910B 55910B 55911A 81942A
Part # Description Qty Price
55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1
90981-11014

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55905A - KNOB, HEATER CONTROL
55901-26200

KDH220..SP..GEN;TRH213..09S,11S,16S;KDH200,TRH201..06S..GCC;KDH20#,212,222,LH20#,212,222,TRH20#,22#..(03S,10S,11S,12S,14S,15S,16S)..(GCC,GEN,MA,TH)

 1
55901-26170

TRH213..09S

REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH

 1
55901-26170

TRH213..09S

FRONT HEATER-WITH

 1
55905B - KNOB, HEATER CONTROL, NO.2
55903-26040

KDH200,202..STD..MA;KDH202,212,TRH203,213..(HRF,SMRF)..(09S,11S,12S)..5F

 1
55903-26030

KDH200,202..STD..MA;KDH202,212,TRH203,213..(HRF,SMRF)..(09S,11S,12S)..5F

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
55903-26010

KDH202..15S;KDH212..RHD..GEN;KDH200,212,TRH201..SG..GCC;TRH201,203..SRF..(03S,12S,15S)..(GCC,GEN);KDH201,202,203,220,222,TRH221..LHD..(03S,12S,16S);KDH200,LH20#,212,222,TRH213,223..(03S,09S,12S,15S,16S)..(GCC,GEN,VN)

REAR WINDOW WIPER-WITH(INTERMITTENT)&FRONT HEATER-WITH

 1
55903-26020

TRH203..SRF;KDH202..15S;KDH212..RHD..GEN;KDH200,212,TRH201..SG..GCC;KDH201,202,203,220,222,TRH221..LHD..(03S,12S,16S);KDH200,LH20#,212,222,TRH201,213,223..(03S,09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
55905C - KNOB, HEATER CONTROL, NO.3
55905-26040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55905J - KNOB SUB-ASSY, CONTROL
55905-26030

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-26060

KDH202,203,TRH203..SRF..(GCC,GEN);KDH200,201,212,22#,LH20#,212,222,TRH200,201,213,22#..ARL,CIS,GCC,GEN,RUS,SA,TH,VN

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-26130

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-26080

TRH203..SRF;KDH202..15S;KDH212..RHD..GEN;KDH200,212,TRH201..SG..GCC;KDH201,202,203,220,222,TRH221..LHD..(03S,12S,16S);KDH200,LH20#,212,222,TRH201,213,223..(03S,09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
55910B - BULB, HEATER CONTROL
84999-10530

TRH223..4FC..GL;KDH200..ARL,MA,SA;KDH202..STD..(MA,TH);KDH201..RHD..(ARL,GEN);KDH202,TRH223..RHD..GL;KDH202,TRH223..HRF..(12S,14S,15S)..(ARL,CIS,GEN,TH);KDH203,220,221,TRH200,203,221..RHD..(03S,06S,12S,14S);KDH200,212,TRH201,213..(06S,09S,10S,11S,15S)..(GEN,SA,TH,VN);KDH212,222,223,TRH201,213..(03S,12S,14S,16S)..(ARL,RUS,SA,TH,VN)

 2
55910B - BULB, HEATER CONTROL
84999-10530

TRH223..4FC..GL;KDH200..ARL,MA,SA;KDH202..STD..(MA,TH);KDH201..RHD..(ARL,GEN);KDH202,TRH223..RHD..GL;KDH202,TRH223..HRF..(12S,14S,15S)..(ARL,CIS,GEN,TH);KDH203,220,221,TRH200,203,221..RHD..(03S,06S,12S,14S);KDH200,212,TRH201,213..(06S,09S,10S,11S,15S)..(GEN,SA,TH,VN);KDH212,222,223,TRH201,213..(03S,12S,14S,16S)..(ARL,RUS,SA,TH,VN)

 2
55911A - BASE, HEATER CONTROL
55911-26040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-26160

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
Linked diagrams
5551

ILLUST NO. 2 OF 5(0501- )LHD

Click highlighted areas on diagram

FRONT AIR DUCT

diagram 55850A 8714 87201A 87201A 87211 87211A 87211B 9015960383 9015960383 9015960383 90159T0005 90159T0005 9046707215
Part # Description Qty Price
55850A - CONNECTOR ASSY, INSTRUMENT PANEL REGISTER, CENTER
55850-26010

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
87201A - DUCT SUB-ASSY, AIR
87201-26060

KDH212,220,222,223,LH212,222,TRH213,22#..LHD

 1
87201A - DUCT SUB-ASSY, AIR
87201-26060

KDH212,220,222,223,LH212,222,TRH213,22#..LHD

 1
87211 - DUCT, AIR, NO.1
87211-26110

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
87211A - DUCT, AIR, NO.2
87211-26120

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
87211B - DUCT, AIR, NO.3
87211-26130

KDH202,203,TRH203..SRF..(GCC,GEN);KDH200,201,212,22#,LH20#,212,222,TRH200,201,213,22#..ARL,CIS,GCC,GEN,RUS,SA,TH,VN

 1
Common parts
90159-60383
90159-T0005
90467-07215
Linked diagrams
8714
