TRH213L-JHMNK (2005)
Toyota Hiace
(0501- )

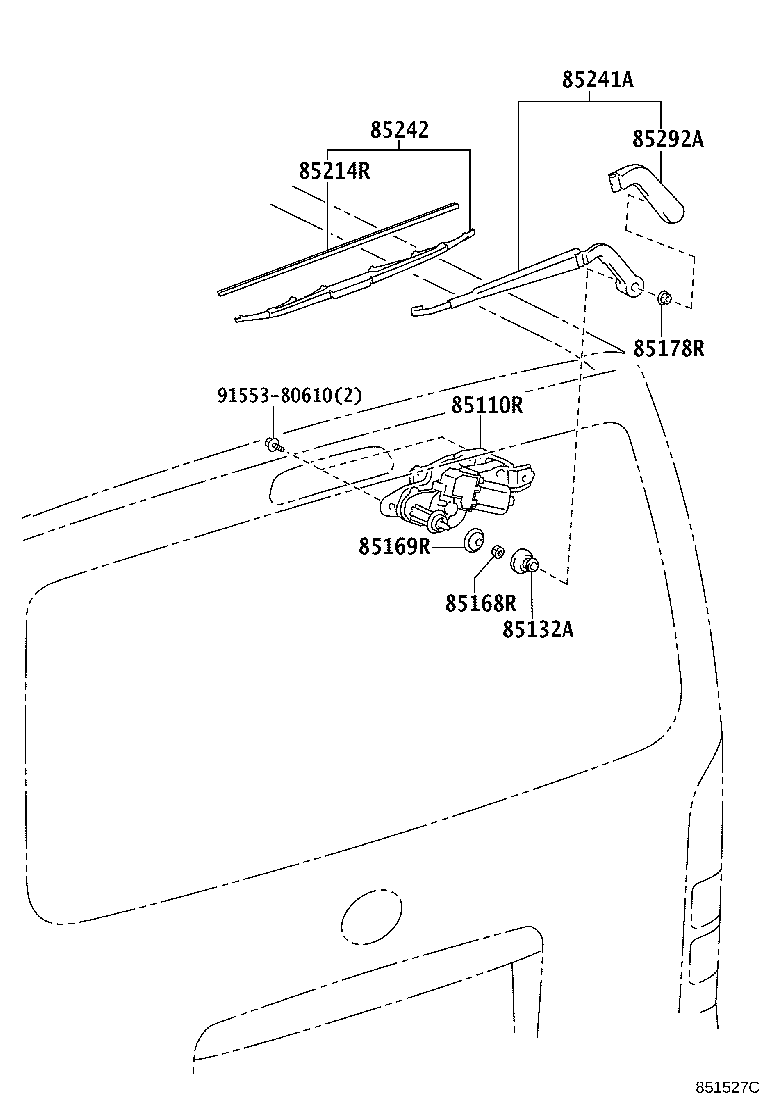

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-26121 |
KDH201..ARL,TH;KDH222..ARL,GCC;TRH201..SP..03S;TRH213..RHD..5F;KDH201,222..LHD..GEN;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);KDH212,223..4D..(ARL,GCC,GEN,RUS,SA,VN);KDH200,201,TRH201,223..SG..(06S,12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH200,202,203,220,221,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85132A - COVER, REAR WIPER SHAFT | ||||
| 85132-53010 |
KDH201..ARL,TH;KDH222..ARL,GCC;TRH201..SP..03S;TRH213..RHD..5F;KDH201,222..LHD..GEN;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);KDH212,223..4D..(ARL,GCC,GEN,RUS,SA,VN);KDH200,201,TRH201,223..SG..(06S,12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH200,202,203,220,221,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85113-26050 |
KDH201..ARL,TH;KDH222..ARL,GCC;TRH201..SP..03S;TRH213..RHD..5F;KDH201,222..LHD..GEN;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);KDH212,223..4D..(ARL,GCC,GEN,RUS,SA,VN);KDH200,201,TRH201,223..SG..(06S,12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH200,202,203,220,221,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85134-53010 |
KDH201..ARL,TH;KDH222..ARL,GCC;TRH201..SP..03S;TRH213..RHD..5F;KDH201,222..LHD..GEN;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);KDH212,223..4D..(ARL,GCC,GEN,RUS,SA,VN);KDH200,201,TRH201,223..SG..(06S,12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH200,202,203,220,221,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06125 |
KDH201..ARL,TH;KDH222..ARL,GCC;TRH201..SP..03S;TRH213..RHD..5F;KDH201,222..LHD..GEN;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);KDH212,223..4D..(ARL,GCC,GEN,RUS,SA,VN);KDH200,201,TRH201,223..SG..(06S,12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH200,202,203,220,221,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-12300 |
KDH222..ARL,GCC;TRH201..SP..03S;KDH222..LHD..GEN;KDH200,TRH201..SG;KDH212,TRH213,223..4D..(09S,11S,12S,14S,16S);KDH20#,220,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-26061 |
KDH201..ARL,TH;KDH222..ARL,GCC;TRH201..SP..03S;TRH213..RHD..5F;KDH201,222..LHD..GEN;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);KDH212,223..4D..(ARL,GCC,GEN,RUS,SA,VN);KDH200,201,TRH201,223..SG..(06S,12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH200,202,203,220,221,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-26040 |
KDH222..ARL,GCC;TRH201..SP..03S;KDH222..LHD..GEN;KDH200,TRH201..SG;KDH212,TRH213,223..4D..(09S,11S,12S,14S,16S);KDH20#,220,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85292-44020 |
KDH201..ARL,TH;KDH222..ARL,GCC;TRH201..SP..03S;TRH213..RHD..5F;KDH201,222..LHD..GEN;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);KDH212,223..4D..(ARL,GCC,GEN,RUS,SA,VN);KDH200,201,TRH201,223..SG..(06S,12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH200,202,203,220,221,LH20#,212,222,TRH203,221..(03S,10S,12S,15S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| Common parts | ||||
| 91553-80610 | ||||
