TRH213L-JHMNK (2005)

Toyota Hiace

Production May 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

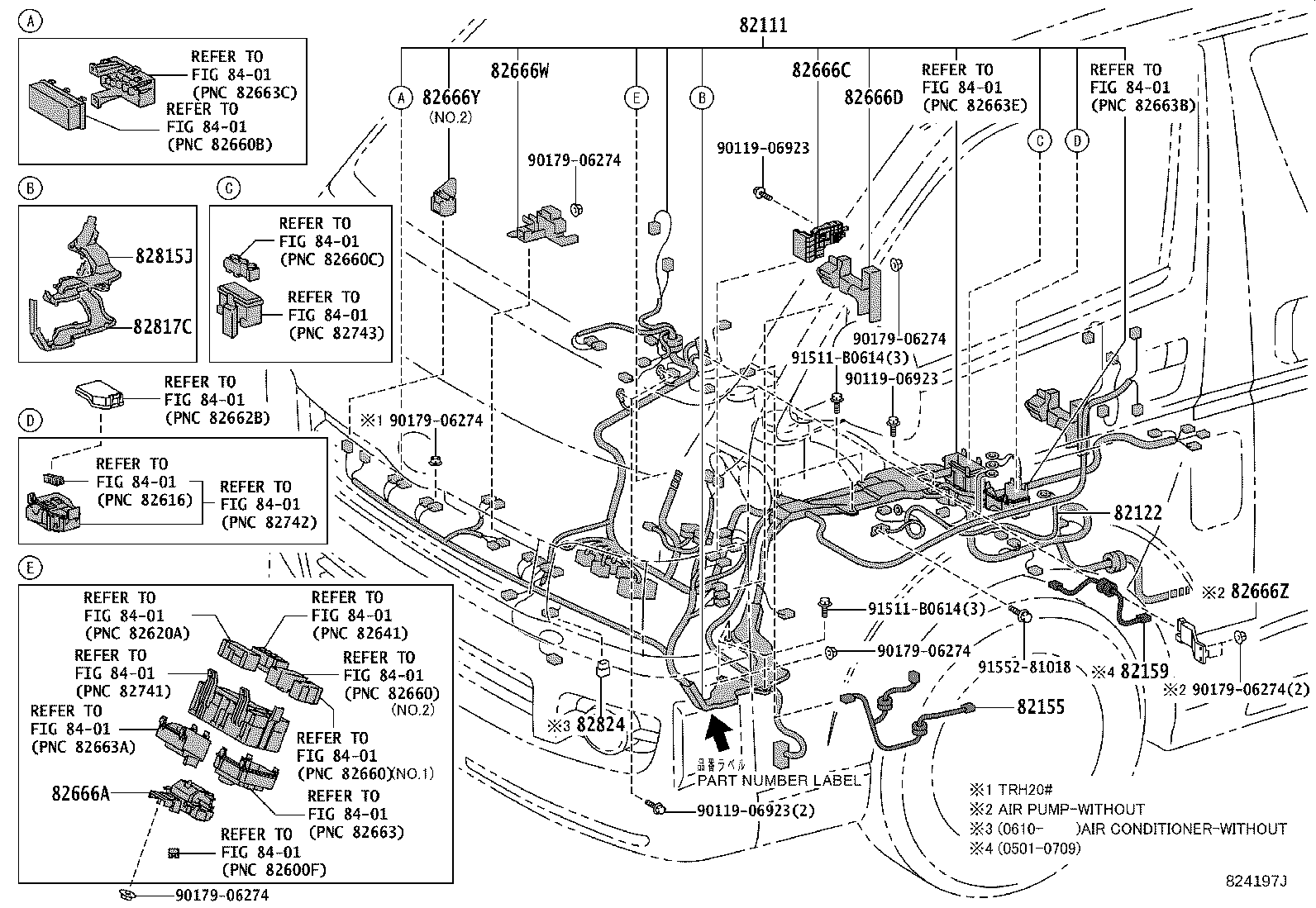

ILLUST NO. 1 OF11(0501- )TRH201,203,213,22#..LHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82122 82155 82159 82666A 82666C 82666D 82666W 82666Y 82666Z 82815J 82817C 82824 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906923 9011906923 9011906923 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 91511B0614 91511B0614 9155281018
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-26G30

TRH213,223..09S,10S,13S

 1
82111-26G50

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82111-26G70

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)

 1
82111-26G70

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82111-26G90

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82111-26G90

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)

 1
82111-26G31

TRH213,223..(09S,10S,13S)..GEN

 1
82111-26G71

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82111-26G51

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82111-26G71

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)

 1
82111-26G91

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82111-26G91

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)

 1
82111-26G30

TRH213,223..09S,10S,13S

PART NUMBER LABEL=82111-26G30

 1
82111-26G70

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G70

 1
82111-26G50

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G50

 1
82111-26G90

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G90

 1
82111-26G51

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G51

 1
82111-26G31

TRH213,223..(09S,10S,13S)..GEN

PART NUMBER LABEL=82111-26G31

 1
82111-26G71

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G71

 1
82111-26G91

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G91

 1
82122 - WIRE, ENGINE, NO.2
82122-26680

TRH221;TRH213..RHD;TRH213..GL..VN;TRH223..GL..SA;TRH213..LHD..(09S,16S);TRH223..(12S,14S,16S)..(ARL,CIS,GCC,GEN)

 1
82155 - WIRE, CENTER PILLER, NO.1
82155-26080

KDH212,222,TRH213,223..LHD..4D..GL

 1
82666A - HOLDER, CONNECTOR NO.2
82666-26220

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
82666C - HOLDER, CONNECTOR NO.4
82666-26430

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
82666D - HOLDER, CONNECTOR NO.5
82666-26470

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
82666Y - HOLDER, CONNECTOR NO.18
82666-26200

KDH202..4FC;KDH200,TRH213..LHD..(06S,09S)

NO.2

 1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-26510

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-26C40

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
Common parts
90119-06923
90179-06274
91511-B0614
91552-81018
Linked diagrams
8401

ILLUST NO. 2 OF11(0501- )TRH20#,213,22#

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 82124 82124A 82219A 82815M 82815V 82815W 82817 82817K 82818E 82818F 8281AC 8281AL 82823T 9011906923 9011908103 9011908103 9017906274 9155380812 9167380612 9167380612 9167380814 9167380814
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-26C00

TRH221..5F..ARL;TRH213,22#..SG..(03S,09S,10S,14S)..5F

 1
82121-26E80

TRH221..5F..ARL;TRH213,22#..SG..(03S,09S,10S,14S)..5F..(ARL,GEN)

 1
82124 - WIRE, ENGINE, NO.4
82124-26150

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
82219A - WIRE, SENSOR
82219-35050

TRH20#,213,22#

 1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-26480

TRH221..ARL;TRH213,22#..SG..(03S,09S,10S,13S,14S)

 1
82815V - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-26800

TRH201,221..ARL;TRH201,213,22#..SG..(03S,06S,09S,10S,13S,14S)..(ARL,GEN)

 1
82815W - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-26490

TRH201,221..ARL;TRH201,213,22#..SG..(03S,06S,09S,10S,13S,14S)..(ARL,GEN)

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82712-26280

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
82712-26280

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82712-26280

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-26D30

TRH201,221..ARL;TRH201,213,22#..SG..(03S,06S,09S,10S,13S,14S)..(ARL,GEN)

 1
82818E - PROTECTOR, WIRING HARNESS, NO.6
82817-26F50

TRH201,221..ARL;TRH201,213,22#..SG..(03S,06S,09S,10S,13S,14S)..(ARL,GEN)

 1
82818F - PROTECTOR, WIRING HARNESS, NO.7
82817-26C20

TRH201,221..ARL;TRH201,213,22#..SG..(03S,06S,09S,10S,13S,14S)..(ARL,GEN)

 1
8281AC - PROTECTOR, WIRING HARNESS, NO.4
82817-26E50

TRH201,221..ARL;TRH201,213,22#..SG..(03S,06S,09S,10S,13S,14S)..(ARL,GEN)

 1
8281AL - PROTECTOR, WIRING HARNESS, NO.12
82817-26B90

TRH221..ARL;TRH213,22#..SG..(03S,09S,10S,13S,14S)

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
Common parts
90119-06923
90119-08103
90179-06274
91553-80812
91673-80612
91673-80814

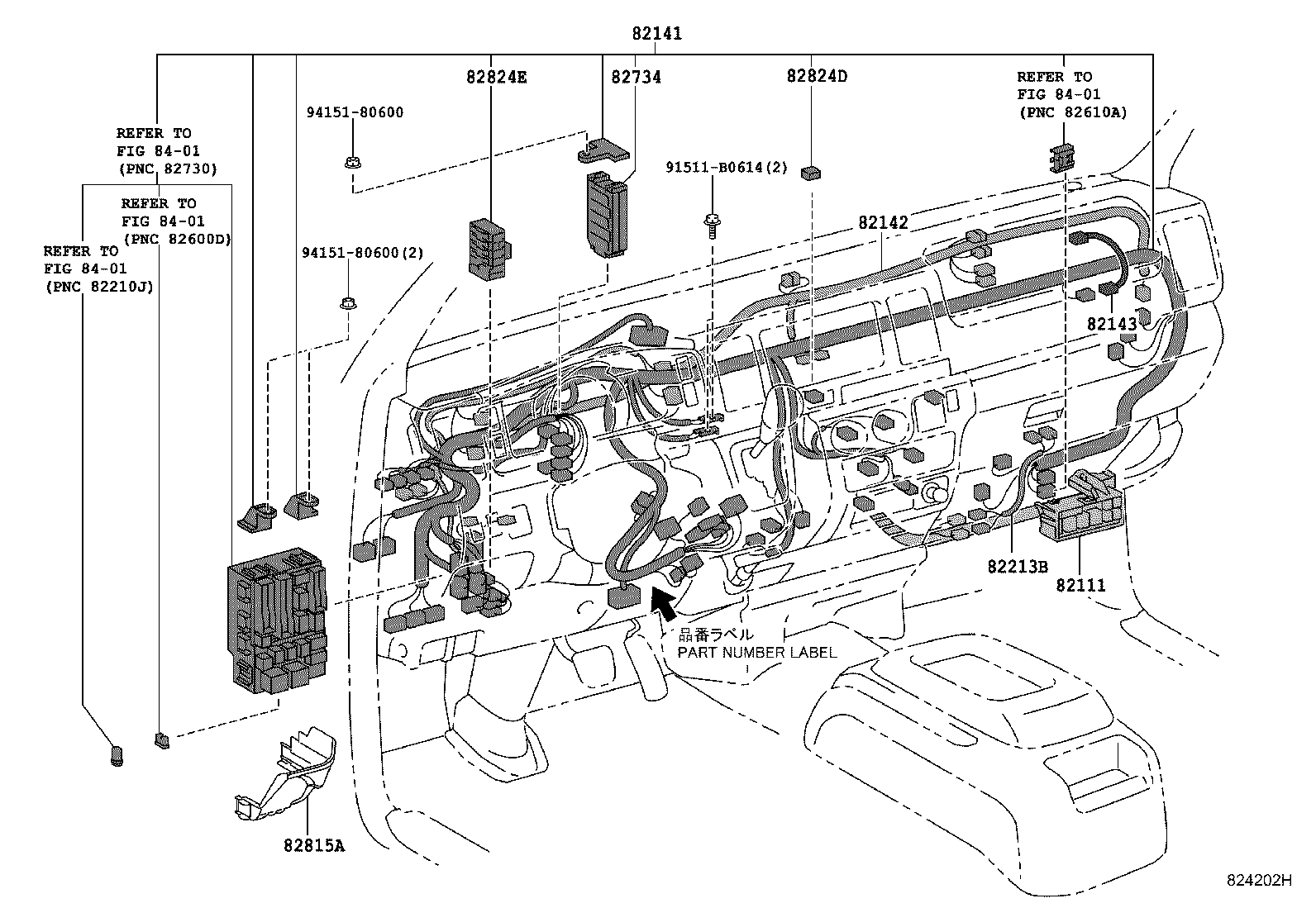

ILLUST NO. 3 OF11(0501- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82111 82141 82142 82143 82213B 82734 82815A 82824D 82824E 8401 8401 8401 8401 91511B0614 9415180600 9415180600
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-26G30

TRH213,223..09S,10S,13S

 1
82111-26G50

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82111-26G70

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)

 1
82111-26G70

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82111-26G90

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82111-26G90

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)

 1
82111-26G31

TRH213,223..(09S,10S,13S)..GEN

 1
82111-26G71

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82111-26G51

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

 1
82111-26G71

TRH213,22#..LHD..(GCC,GEN)

SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)

 1
82111-26G91

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82111-26G91

TRH213,22#..LHD..(GCC,GEN)

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)

 1
82111-26G30

TRH213,223..09S,10S,13S

PART NUMBER LABEL=82111-26G30

 1
82111-26G70

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G70

 1
82111-26G50

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G50

 1
82111-26G90

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G90

 1
82111-26G51

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G51

 1
82111-26G31

TRH213,223..(09S,10S,13S)..GEN

PART NUMBER LABEL=82111-26G31

 1
82111-26G71

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G71

 1
82111-26G91

TRH213,22#..LHD..(GCC,GEN)

PART NUMBER LABEL=82111-26G91

 1
82141 - WIRE, INSTRUMENT PANEL
82141-26510

KDH212,TRH213,223..4D..(09S,10S,11S,12S,13S)

 1
82141-26511

TRH213,223..09S,10S,13S

 1
82141-26510

KDH212,TRH213,223..4D..(09S,10S,11S,12S,13S)

PART NUMBER LABEL=82141-26510

 1
82141-26511

TRH213,223..09S,10S,13S

PART NUMBER LABEL=82141-26511

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-26100

TRH223..GL..GCC;TRH223..LHD..STD;TRH213..LHD..(09S,16S);KDH212,220,222,LH212,222,TRH221..LHD..(03S,10S,16S)

 1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-26020

KDH202..STD..TH;TRH223..16S..GL;KDH222,TRH223..STD;KDH222,TRH213..GL..(GCC,VN);KDH200,201,203,220,221,223,LH20#,212,222,TRH20#,221;KDH202,212,TRH213..4D..(09S,11S,12S,15S,16S)..(GCC,GEN,MA,SA,VN)

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

 1
82734 - BLOCK, CENTER JUNCTION
82734-26060

TRH213,223;KDH212,220,222,TRH221..ARL,GCC,GEN,SA,VN;KDH20#,221,223,LH20#,212,222,TRH20#..ARL,GCC,GEN,MA,RUS,TH

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-26860

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD

 1
82824D - CONNECTOR, WIRING HARNESS
82824-26070

KDH202..4FC;KDH200,TRH213..LHD..(06S,09S)

 1
82824E - CONNECTOR, WIRING HARNESS
82824-48110

LH20#..LHD;TRH213,223;KDH212,220,222,TRH221..ARL,GCC,GEN,SA,VN;KDH20#,221,223,LH212,222,TRH20#..ARL,GCC,GEN,MA,RUS,TH

 1
Common parts
91511-B0614
94151-80600
Linked diagrams
8401

ILLUST NO. 4 OF11(0501- )

Click highlighted areas on diagram

FRONT DOOR & HEADLAMP

diagram 82020 82114 82151 82152 82666L 82666N 82666P 82666Q 82666S 8271126370 8271126370 82815G 82815H 82817A 82817B 82817E 82824K 8504 90105T0194 90105T0194 9011906923 9011906923 9017906274
Part # Description Qty Price
82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP
82020-26550

TRH213..5F..GL..GEN

 1
82151 - WIRE, FRONT DOOR, RH
82151-26550

KDH212,222,TRH213,223..LHD..GL

 1
82152 - WIRE, FRONT DOOR, LH
82152-26510

KDH212,222,TRH213,223..LHD..GL

 1
82666L - HOLDER, CONNECTOR NO.9
82666-26500

TRH213..LHD..5F;KDH20#,212,220,223,LH20#,212,222,TRH201,203,22#..LHD

 1
82666N - HOLDER, CONNECTOR NO.10
82666-26310

KDH222..RHD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
82666P - HOLDER, CONNECTOR NO.11
82666-26320

KDH222..RHD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
82666Q - HOLDER, CONNECTOR NO.12
82666-26230

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
82666S - HOLDER, CONNECTOR NO.13
82666-26250

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-26620

TRH213..5F..GCC;TRH213..GEN,SA,TH,VN;KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,22#

 1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-26610

KDH222..RHD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-26B30

TRH213..5F..GCC;TRH213..GEN,SA,TH,VN;KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,22#

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-26B20

KDH222..RHD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
82824K - CONNECTOR, WIRING HARNESS
82824-26080

KDH201..LHD;TRH223..LHD..GL;LH20#,TRH213,223..RHD;TRH223..4FC..STD..GCC;KDH200,201,TRH201..ARL;TRH213..5F..STD..(GCC,VN);KDH223,TRH221..ARL,RUS,SA,TH;KDH201,222..SG..(ARL,GCC,GEN,SA);KDH200,TRH201,213..SG..(06S,09S,10S)..(GEN,VN);KDH203,212,220,221,LH212,222,TRH200..03S,06S,10S,11S,12S,15S,16S

 1
Common parts
82711-26370
90105-T0194
90119-06923
90179-06274
Linked diagrams
8504

ILLUST NO. 6 OF11(0501- )

Click highlighted areas on diagram

BACK DOOR

diagram 82184 82185 82186 82186 82188A 82666E 82819C 8504 9011906923
Part # Description Qty Price
82184 - WIRE, BACK DOOR, NO.1
82184-26350

KDH212,LH212,TRH213

 1
82185 - WIRE, BACK DOOR, NO.2
82185-26430

KDH212,22#,LH212,222,TRH213,22#

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-26110

KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH220,221,TRH221;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);TRH223..(12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH212,223,LH212,222..4D..(ARL,GCC,GEN,RUS,SA,VN)

REAR WINDOW WIPER-WITH(INTERMITTENT),LH

 1
82186-26100

KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH220,221,TRH221;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);TRH223..(12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH212,223,LH212,222..4D..(ARL,GCC,GEN,RUS,SA,VN)

REAR WINDOW WIPER-WITH(INTERMITTENT),RH

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-26110

KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH220,221,TRH221;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);TRH223..(12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH212,223,LH212,222..4D..(ARL,GCC,GEN,RUS,SA,VN)

REAR WINDOW WIPER-WITH(INTERMITTENT),LH

 1
82186-26100

KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH220,221,TRH221;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);TRH223..(12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH212,223,LH212,222..4D..(ARL,GCC,GEN,RUS,SA,VN)

REAR WINDOW WIPER-WITH(INTERMITTENT),RH

 1
82188A - WIRE, BACK DOOR, NO.3
82188-26250

TRH213..09S;TRH213..GL..SA;KDH212,LH212..(10S,11S)..5F

 1
82188-26260

TRH213..09S;TRH213..GL..SA;KDH212,LH212..(10S,11S)..5F

REAR WINDOW WIPER-WITH(INTERMITTENT)

 1
82666E - HOLDER, CONNECTOR NO.6
82666-26400

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
Common parts
90119-06923
Linked diagrams
8504

ILLUST NO. 8 OF11(0501- )

Click highlighted areas on diagram

SEAT

diagram 82167 82168
Part # Description Qty Price

ILLUST NO. 9 OF11(0501- )

Click highlighted areas on diagram

CLAMP & BRACKET 1/2

diagram 8270226150 8271226290 8271226320 8271226391 8271526A10 8271526A20 8271526A30 8271526A70 8271526B00 8271526B50 8271526B60 8271526D70 8271526D80 8271526D90 8271526E10 8271526E11 8271526G00 8271526G01 8271526G30 8271526G50 8272926341 9011908C20 90119T0206 9015950327 90159T0042 91511B0614 9155281018 9155281018 9155281018 9155281018 9155380812 9155380814 9155380818 9167380820
Part # Description Qty Price
Common parts
82702-26150
82712-26290
82712-26320
82712-26391
82715-26A10
82715-26A20
82715-26A30
82715-26A70
82715-26B00
82715-26B50
82715-26B60
82715-26D70
82715-26D80
82715-26D90
82715-26E10
82715-26E11
82715-26G00
82715-26G01
82715-26G30
82715-26G50
82729-26341
90119-08C20
90119-T0206
90159-50327
90159-T0042
91511-B0614
91552-81018
91553-80812
91553-80814
91553-80818
91673-80820

ILLUST NO.10 OF11(0501- )

Click highlighted areas on diagram

CLAMP & BRACKET 2/2

diagram 8271134310 8271525850 8271525A30 8271526A00 8271526A40 8271526A50 8271526B40 8271526B70 8271526B90 8271526C00 8271526C10 8271526C30 8271526C50 8271526C60 8271526C70 8271526D40 8271526E30 8271526E40 8271526E70 8271526E80 8271526E90 8271526F10 8271526F50 8271526G10 8271526G80 8271526G81 8271528430 8271589119 8272926130 8272926170 9011906375 9011908A96 9017906274 9151180616 9155180814 9155180825 9155380810 9155380810 91611B0610 91671A0612 9167380612 9167380612 9167380612 9167380612 9167380612 9167380612 9167380612 9167380612
Part # Description Qty Price
Common parts
82711-34310
82715-25850
82715-25A30
82715-26A00
82715-26A40
82715-26A50
82715-26B40
82715-26B70
82715-26B90
82715-26C00
82715-26C10
82715-26C30
82715-26C50
82715-26C60
82715-26C70
82715-26D40
82715-26E30
82715-26E40
82715-26E70
82715-26E80
82715-26E90
82715-26F10
82715-26F50
82715-26G10
82715-26G80
82715-26G81
82715-28430
82715-89119
82729-26130
82729-26170
90119-06375
90119-08A96
90179-06274
91511-80616
91551-80814
91551-80825
91553-80810
91611-B0610
91671-A0612
91673-80612

ILLUST NO.11 OF11(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#

Click highlighted areas on diagram

CONNECTOR

diagram 8282448450 9098010619 9098010803 9098010819 9098010996 9098010997 9098011011 9098011016 9098011019 9098011070 9098011096 9098011156 9098011246 9098011314 9098011395 9098011918 9098012113 9098012391 9098012449 9098012450 9098012490 9098012790
Part # Description Qty Price
Common parts
82824-48450
90980-10619
90980-10803
90980-10819
90980-10996
90980-10997
90980-11011
90980-11016
90980-11019
90980-11070
90980-11096
90980-11156
90980-11246
90980-11314
90980-11395
90980-11918
90980-12113
90980-12391
90980-12449
90980-12450
90980-12490
90980-12790
