TRH213L-JHMNK (2005)
Toyota Hiace
(0501-0510)

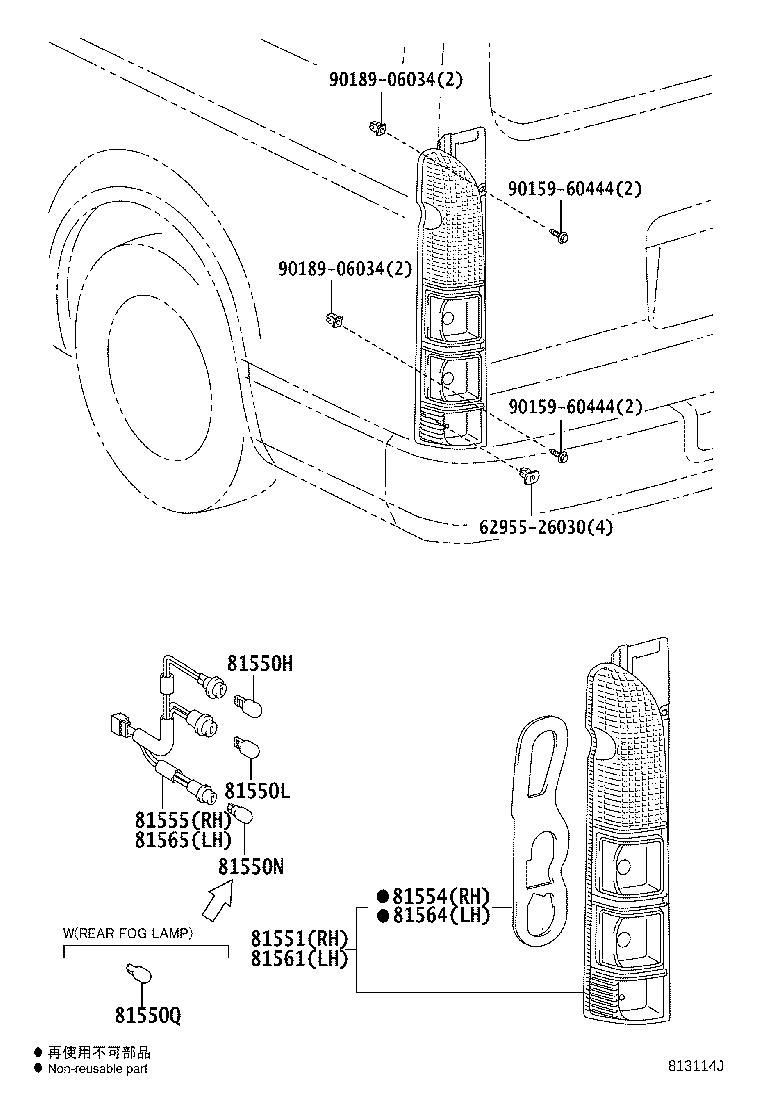

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
KDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
KDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
KDH203..GEN;TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH200,201,202,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH,VN) |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-26200 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-26200 |
KDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-26200 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-26200 |
KDH203..GEN;TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH200,201,202,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH,VN) |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81562-26200 |
KDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-26200 |
TRH213..09S,11S,16S;KDH20#,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 62955-26030 | ||||
| 90159-60444 | ||||
| 90189-06034 | ||||
(0510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
KDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
KDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
KDH203..GEN;TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH200,201,202,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH,VN) |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-26200 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-26200 |
KDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-26200 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-26200 |
KDH203..GEN;TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH200,201,202,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH,VN) |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81562-26200 |
KDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-26200 |
TRH213..09S,11S,16S;KDH20#,212,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,11S,12S,14S,15S,16S)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 62955-26030 | ||||
| 90159-60444 | ||||
| 90189-06034 | ||||
