TRH213L-JHMNK (2005)

Toyota Hiace

Production May 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

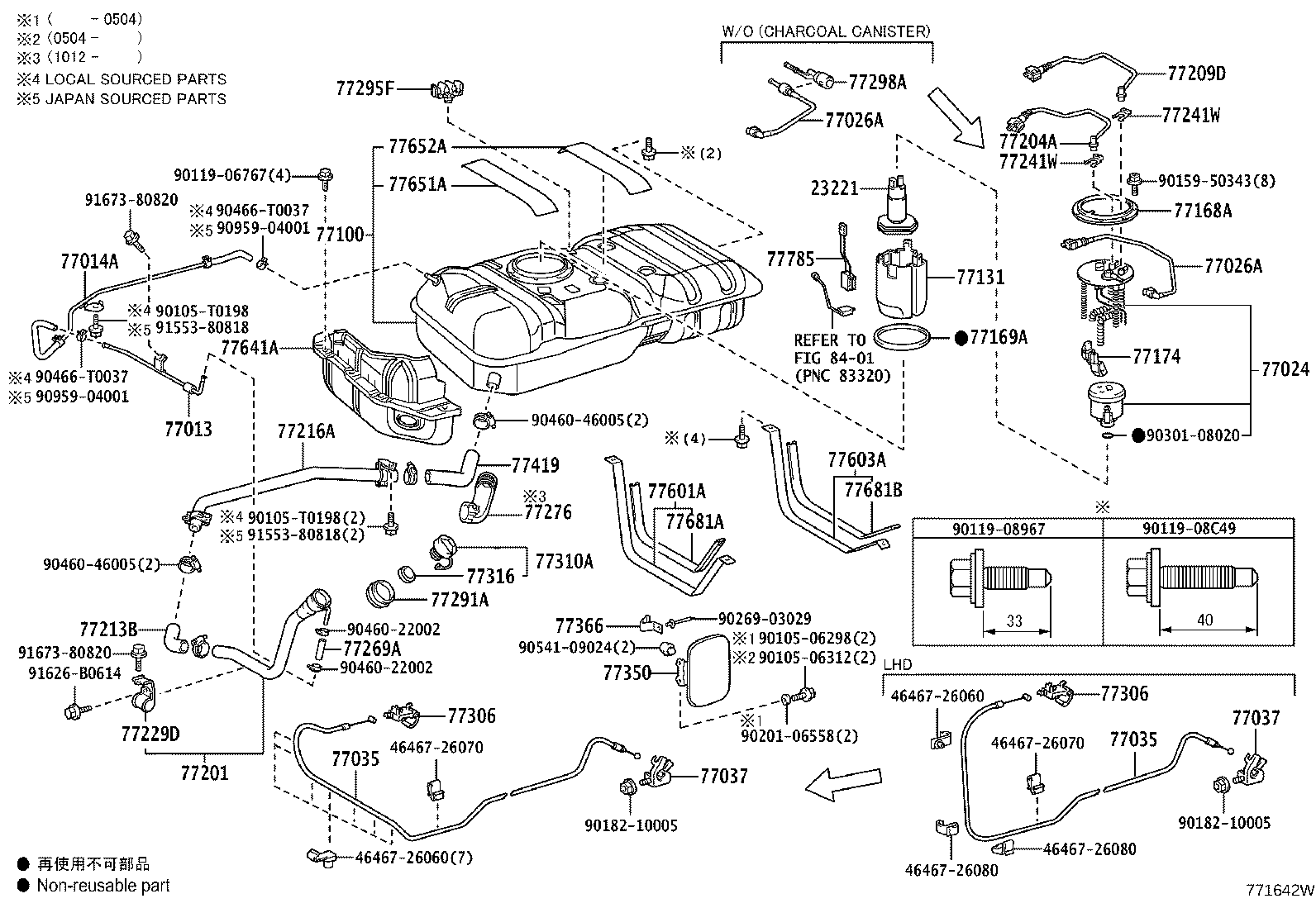

ILLUST NO. 1 OF 2(0501- )TRH20#,213

Click highlighted areas on diagram

FUEL TANK

diagram 23221 4646726060 4646726060 4646726070 4646726070 4646726080 4646726080 77013 77014A 77024 77026A 77026A 77035 77035 77037 77037 77100 77131 77168A 77169A 77174 77201 77204A 77209D 77213B 77216A 77229D 77241W 77241W 77269A 77276 77291A 77295F 77298A 77306 77306 77310A 77316 77350 77366 77419 77601A 77603A 77641A 77651A 77652A 77681A 77681B 77785 8401 9010506298 9010506312 90105T0198 90105T0198 9011906767 9011908967 9011908C49 9015950343 9018210005 9018210005 9020106558 9026903029 9030108020 9046022002 9046022002 9046046005 9046046005 90466T0037 90466T0037 9054109024 9095904001 9095904001 9155380818 9155380818 91626B0614 9167380820 9167380820
Part # Description Qty Price
23221 - PUMP, FUEL
23220-75040

2TRFE..TRH20#,213,22#

 1
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-26120

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014-26040

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-26010

TRH20#,213,22#

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-26070

TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH)

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-26070

TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH)

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-26140

KDH20#,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-26140

KDH20#,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D01

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D01

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
77100 - TANK ASSY, FUEL
77001-26690

TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);TRH20#,22#..03S,06S,12S,14S,15S,16S

 1
77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT
77131-26110

TRH20#,213,22#

 1
77131-26111

TRH20#,213,22#

 1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-52010

TRH203..12S..GEN;TRH201..4D..SP..GEN;TRH201..SP..4FC..GEN;KDH20#,212,22#,LH20#,212,222;TRH213..(09S,11S,15S)..(GEN,SA)

 1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-26010

TRH20#,213,22#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-26240

TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH)

 1
77204A - TUBE, FUEL TANK RETURN
77204-26040

TRH20#,213,22#

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-26140

TRH20#,213,22#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-26120

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77104-26010

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4
77229-26020

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77241W - CLIP, TUBE JOINT
77241-60320

TRH20#,213,22#

 2
77241W - CLIP, TUBE JOINT
77241-60320

TRH20#,213,22#

 2
77269A - HOSE, FUEL TANK BREATHER
77269-26010

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-26020

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77295F - GROMMET, FUEL HOSE
77295-26050

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050B1

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

MD.GRAY,TRIM1#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28050B1

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

MD.GRAY,TRIM1#

 1
77310A - CAP ASSY, FUEL TANK
77300-28010

TRH20#,213,22#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-26030

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-26010

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77419 - HOSE, FUEL, NO.3
77419-26010

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26100

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77602-26020

KDH20#,212,LH20#,212,TRH20#,213

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-26040

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-26080

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-26070

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
77681A - SEAT, FUEL TANK BAND
77681-32060

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
77681B - SEAT, FUEL TANK BAND
77681-34030

KDH20#,212,LH20#,212,TRH20#,213

 1
77785 - HARNESS, FUEL PUMP
77785-26010

TRH20#,213,22#

 1
Common parts
46467-26060
46467-26070
46467-26080
90105-06298
90105-06312
90105-T0198
90119-06767
90119-08967
90119-08C49
90159-50343
90182-10005
90201-06558
90269-03029
90301-08020
90460-22002
90460-46005
90466-T0037
90541-09024
90959-04001
91553-80818
91626-B0614
91673-80820
Linked diagrams
8401

ILLUST NO. 2 OF 2(0501- )TRH20#,213,22#

Click highlighted areas on diagram

FUEL TUBE

diagram 2211 2211 2211 2211 2211 2211 77251B 77254 77255D 77285F 77289B 77740 77751 9167380820 9533706017 9613251100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-26B20

TRH20#,213,22#

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-26230

TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH)

 1
77255D - TUBE, FUEL RETURN
77255-26670

TRH20#,213,22#

 1
77285F - CLAMP, FUEL TUBE, NO.1
77289-26020

TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH)

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-26010

TRH223;KDH201..LHD;KDH221..5D..GEN;KDH201,222..(03S,14S)..STD..(SA,TH);KDH203,223,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S

 5
77740 - CANISTER ASSY, CHARCOAL
77740-26091

TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH)

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-26120

TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH)

 1
Common parts
91673-80820
95337-06017
96132-51100
Linked diagrams
2211
