TRH213L-JHMNK (2005)
Toyota Hiace
(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#
FRONT RH(SPLIT TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A20B3 |
KDH212,222,TRH213,223..LHD..4D..GL GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26A10B3 |
KDH212,222,TRH213,223..4D..GL GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26020 |
TRH213..09S;TRH213..RHD..GL;KDH212,222,TRH223..(10S,11S,14S,16S)..GL |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD |
4 | ||
| 90467-08186 |
KDH222..ARL,GCC;KDH222..LHD..GEN;TRH213..LHD..(09S,16S);KDH20#,212,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,12S,15S,16S)..(GCC,GEN) |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26170 |
TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26280 |
KDH212,222,223,TRH213,223..GL..(CIS,GCC,GEN,RUS,SA,TH) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B0 |
KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26010B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-26360B2 |
KDH212,222,TRH213,223..4D..GL GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1# |
3 | ||
| 71930-52030B4 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,LH |
1 | ||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,CENTER |
1 | ||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,LH |
1 | ||
| 71931-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1# |
3 | ||
| 71930-52030B4 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,LH |
1 | ||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,CENTER |
1 | ||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,LH |
1 | ||
| 71931-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
3 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD RH SEAT |
1 | ||
| 72249-26020 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD LH SEAT |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0501- )
FRONT RH(INTEGRATED TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A20B3 |
KDH212,222,TRH213,223..LHD..4D..GL GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26A10B3 |
KDH212,222,TRH213,223..4D..GL GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26020 |
TRH213..09S;TRH213..RHD..GL;KDH212,222,TRH223..(10S,11S,14S,16S)..GL |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD |
4 | ||
| 90467-08186 |
KDH222..ARL,GCC;KDH222..LHD..GEN;TRH213..LHD..(09S,16S);KDH20#,212,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,12S,15S,16S)..(GCC,GEN) |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26170 |
TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26280 |
KDH212,222,223,TRH213,223..GL..(CIS,GCC,GEN,RUS,SA,TH) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B0 |
KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26010B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD RH SEAT |
1 | ||
| 72249-26020 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD LH SEAT |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0501- )LHD..03S,06S,09S,10S,12S,15S,16S..GCC,GEN,VN
FRONT CENTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-26080B2 |
KDH222,TRH213,223..(09S,16S)..GL GRAY,TRIM1# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-26250B2 |
KDH222,TRH213,223..(09S,16S)..GL GRAY,TRIM1# |
1 | ||
| 71095-26251B2 |
KDH222,TRH213,223..(09S,16S)..GL GRAY,TRIM1# |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-26040 |
KDH20#,212,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,09S,12S,15S,16S)..(GCC,GEN) |
1 | ||
| 71318 - PAD, CENTER SEAT CUSHION | ||||
| 71032-26030 |
KDH212,220,222,LH212,222,TRH213,22#..LHD..(03S,09S,16S) |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71365-26010 |
TRH213..09S;KDH212,TRH213..GCC;KDH20#,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,12S,15S,16S)..(GCC,GEN) |
1 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-26050B0 |
KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,09S,12S,15S,16S)..(GCC,GEN,VN) GRAY,TRIM1# |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-26030B0 |
KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,09S,12S,15S,16S)..(GCC,GEN,VN) GRAY,TRIM1# |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71397-26120B0 |
KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,09S,12S,15S,16S)..(GCC,GEN,VN) GRAY,TRIM1# |
1 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-26030B0 |
KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD..(03S,06S,09S,12S,15S,16S)..(GCC,GEN,VN) GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1# |
3 | ||
| 71930-52030B4 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,LH |
1 | ||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,CENTER |
1 | ||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,LH |
1 | ||
| 71931-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
3 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1# |
3 | ||
| 71930-52030B4 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,LH |
1 | ||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,CENTER |
1 | ||
| 71930-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W(BUTTON),GRAY,TRIM1#,LH |
1 | ||
| 71931-42020B8 |
KDH222,TRH213,223..(09S,16S)..GL W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
3 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26510B0 |
KDH222,TRH213,223..(09S,16S)..GL GRAY,TRIM1# |
1 | ||
| 71910-26540B0 |
KDH222,TRH213,223..(09S,16S)..GL GRAY,TRIM1# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26030B0 |
KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) GRAY,TRIM1#,FRONT SEAT |
1 | ||
| 72526-26040B0 |
KDH212,222,TRH213,223..5F..GL..(GCC,GEN,VN) GRAY,TRIM1#,REAR SEAT |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| 91515-81020 | ||||
| 93269-54016 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#
FRONT LH(INTEGRATED TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26780B5 |
KDH212,222,TRH213,223..4D..GL..(CIS,GEN,SA) GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-26A10B3 |
KDH212,222,TRH213,223..4D..GL GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-26020 |
KDH212,222,TRH213,223..GL..(CIS,GCC,GEN,SA,TH) |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
TRH213..GL;TRH213..LHD..STD;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC;KDH20#,212,LH20#,212,222,TRH20#,221..LHD |
4 | ||
| 90467-08186 |
KDH222..ARL,GCC;KDH222..LHD..GEN;TRH213..LHD..(09S,16S);KDH20#,212,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,12S,15S,16S)..(GCC,GEN) |
4 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-26090 |
KDH222,TRH223..LHD..GEN;TRH213..(09S,10S,15S)..(GEN,SA);KDH200,201,202,220,LH20#,212,222,TRH201,203,221..LHD;KDH212,222,TRH213,223..(12S,14S,16S)..(ARL,CIS,GCC,SA);KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26280 |
KDH212,222,223,TRH213,223..GL..(CIS,GCC,GEN,RUS,SA,TH) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26010B0 |
KDH222,TRH223..LHD..GEN;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,220,LH20#,212,222,TRH20#,221..LHD;KDH212,222,TRH213,223..(12S,14S,16S)..(ARL,CIS,GCC,SA,VN) GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26010B0 |
KDH222,TRH223..LHD..GEN;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,220,LH20#,212,222,TRH20#,221..LHD;KDH212,222,TRH213,223..(12S,14S,16S)..(ARL,CIS,GCC,SA,VN) GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,212,220,LH20#,212,222,TRH20#,213,221..LHD..STD GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,212,220,LH20#,212,222,TRH20#,213,221..LHD..STD GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,212,220,LH20#,212,222,TRH20#,213,221..LHD..STD GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223,TRH213..09S,10S,11S,14S,15S;KDH200,202,212,220,LH20#,212,222,TRH20#,213,221..LHD..STD GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD RH SEAT |
1 | ||
| 72249-26020 |
KDH222,TRH223..LHD..GEN;TRH213..09S,10S,11S,15S;KDH222,TRH223..ARL,CIS,GCC,SA;KDH203,212,223..(10S,11S,12S,14S,15S)..(ARL,GEN,RUS,SA);KDH200,201,202,212,220,LH20#,212,222,TRH201,203,213,221..LHD..STD LH SEAT |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26020B0 |
TRH201..SA;TRH221..GCC,GEN,SA;KDH220..SP..(GEN,SA);KDH200,202..GCC,SA,TH;LH20#,212,222,TRH20#..LHD;TRH223..ARL,CIS,GCC,SA,TH;KDH200,202,222,TRH223..LHD..GEN;KDH212,222,TRH213..(14S,16S)..(ARL,GCC,SA,TH,VN);KDH201,203,212,221,223,TRH213..03S,06S,09S,10S,11S,14S,15S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||

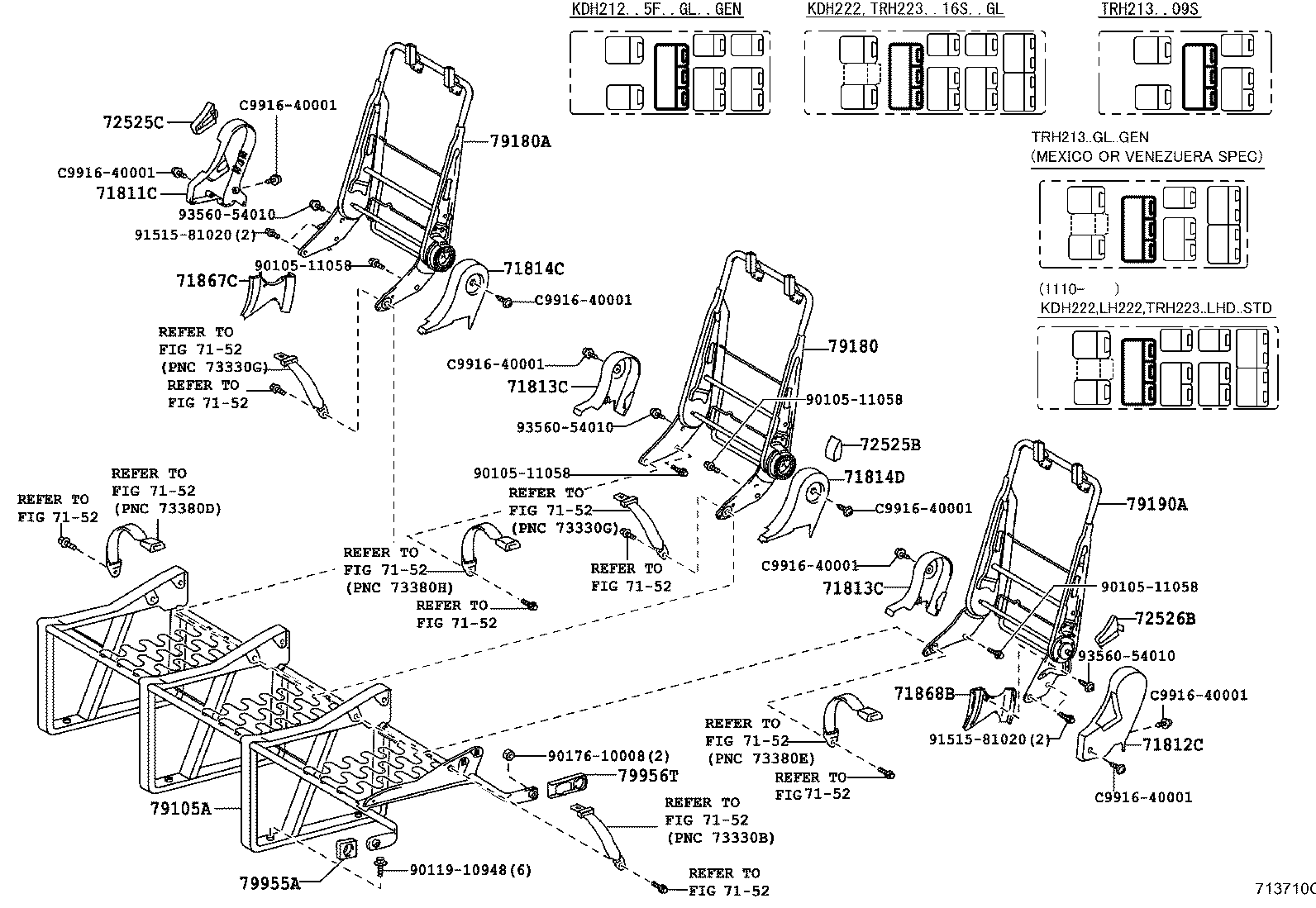

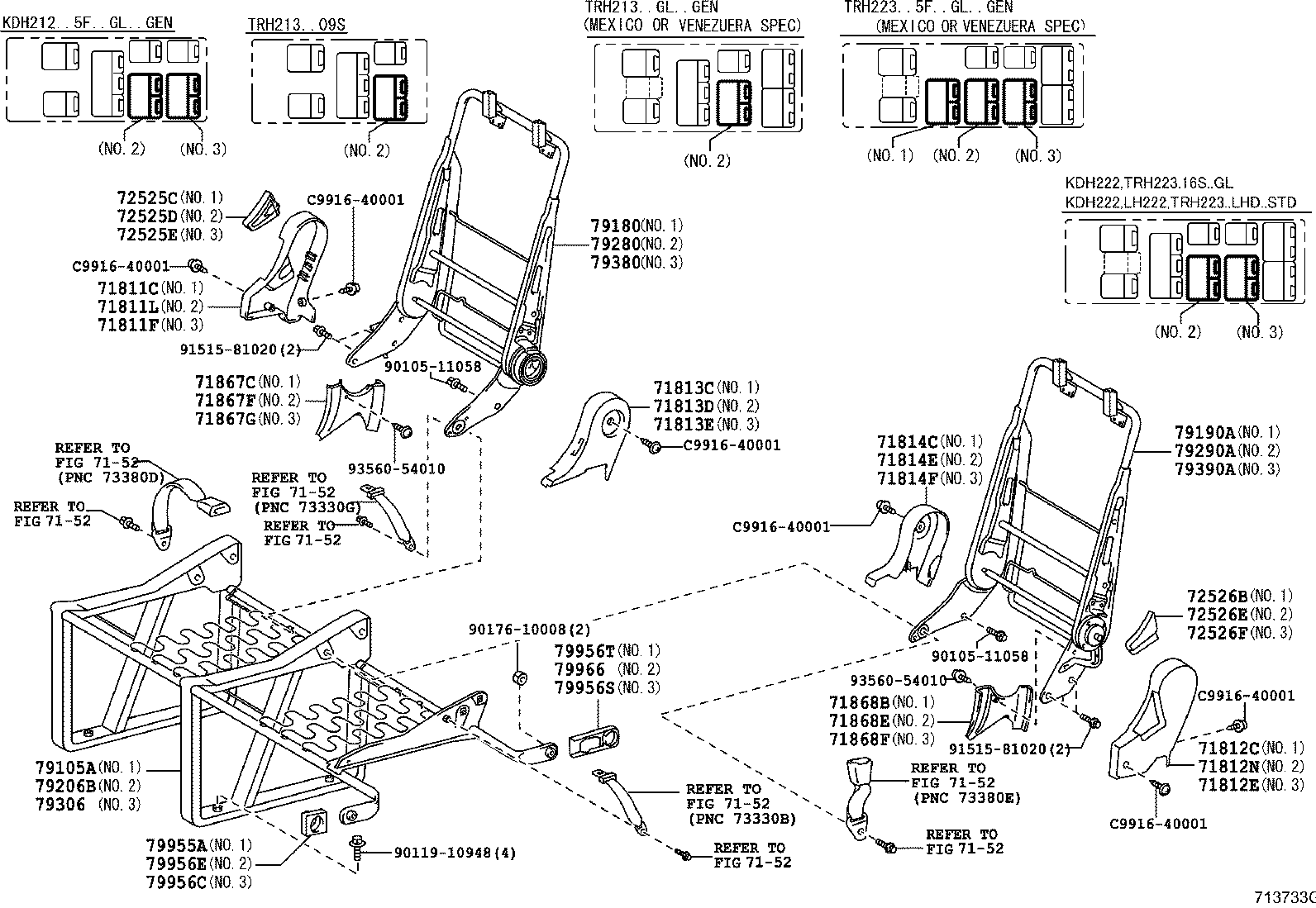

ILLUST NO. 2 OF 2(0501- )LHD..4D..GL ; (1110- )KDH222,LH222,TRH223..LHD..STD
LHD REAR NO.2,NO.3(1 PERSON)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811H - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26260B0 |
KDH212,222,TRH213,223..4D..GL..(GCC,GEN,VN) GRAY,TRIM1# |
1 | ||
| 71812Q - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26230B0 |
KDH222..GL..GCC;TRH223..(14S,16S)..GL;TRH223..(13S,14S)..(ARL,GEN);KDH212,222,223,TRH213..4D..(09S,10S,11S,14S) GRAY,TRIM1# |
1 | ||
| 71867D - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
KDH222..GL..GCC;TRH223..(14S,16S)..GL;TRH223..(13S,14S)..(ARL,GEN);KDH212,222,223,TRH213..4D..(09S,10S,11S,14S) GRAY,TRIM1# |
1 | ||
| 71868C - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
KDH222..GL..GCC;TRH223..(14S,16S)..GL;TRH223..(13S,14S)..(ARL,GEN);KDH212,222,223,TRH213..4D..(09S,10S,11S,14S) GRAY,TRIM1# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72526-26040B0 |
KDH222..GL..GCC;TRH223..(14S,16S)..GL;TRH223..(13S,14S)..(ARL,GEN);KDH212,222,223,TRH213..4D..(09S,10S,11S,14S) GRAY,TRIM1# |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79105-26500 |
KDH212,TRH213..5F..GL..GEN;KDH222,LH222,TRH223..LHD..(GCC,GEN) |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79180-26280 |
KDH212,222,TRH213,223..4D..GL..(GCC,GEN) |
1 | ||
| 79955B - COVER, NO.2 SEAT FRONT BRACKET, RH | ||||
| C6359-90200 |
KDH212,TRH213..LHD..5F..GL;KDH202,203,222,LH202,222,TRH203,223..LHD..(12S,13S,16S)..(GCC,GEN) |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79968-26010 |
TRH203..RHD;KDH202..MA,TH;KDH222,TRH223..GL..SA;KDH202,LH202..RHD..15S;KDH202,TRH203..LHD..12S;KDH203,LH202,222..12S,16S;KDH222,TRH223..ARL,GCC,GEN;KDH202,212,223,TRH213..(HRF,SMRF)..4D..(09S,10S,11S,12S,14S)..(ARL,GEN,SA,VN) |
1 | ||
| Common parts | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||

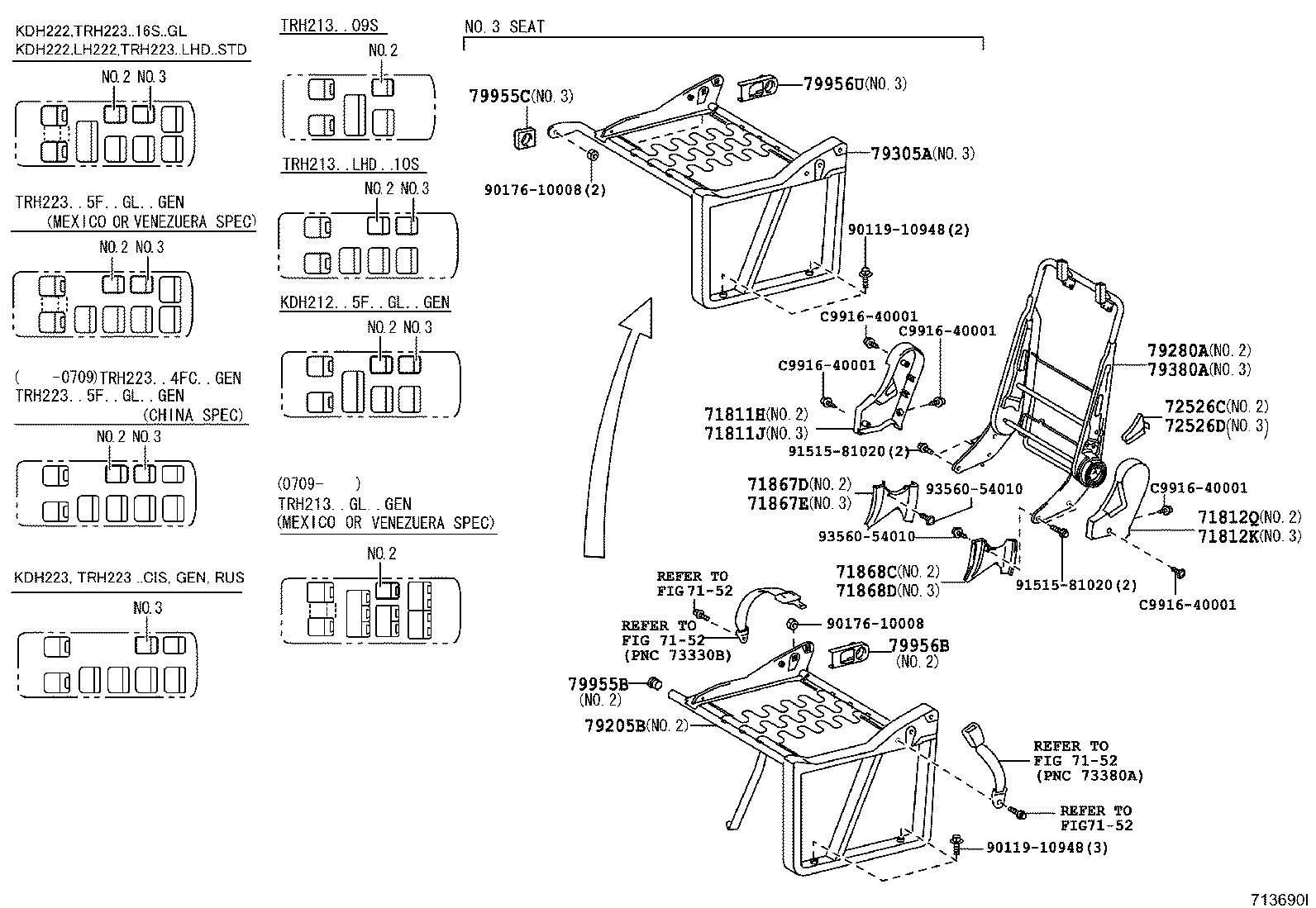

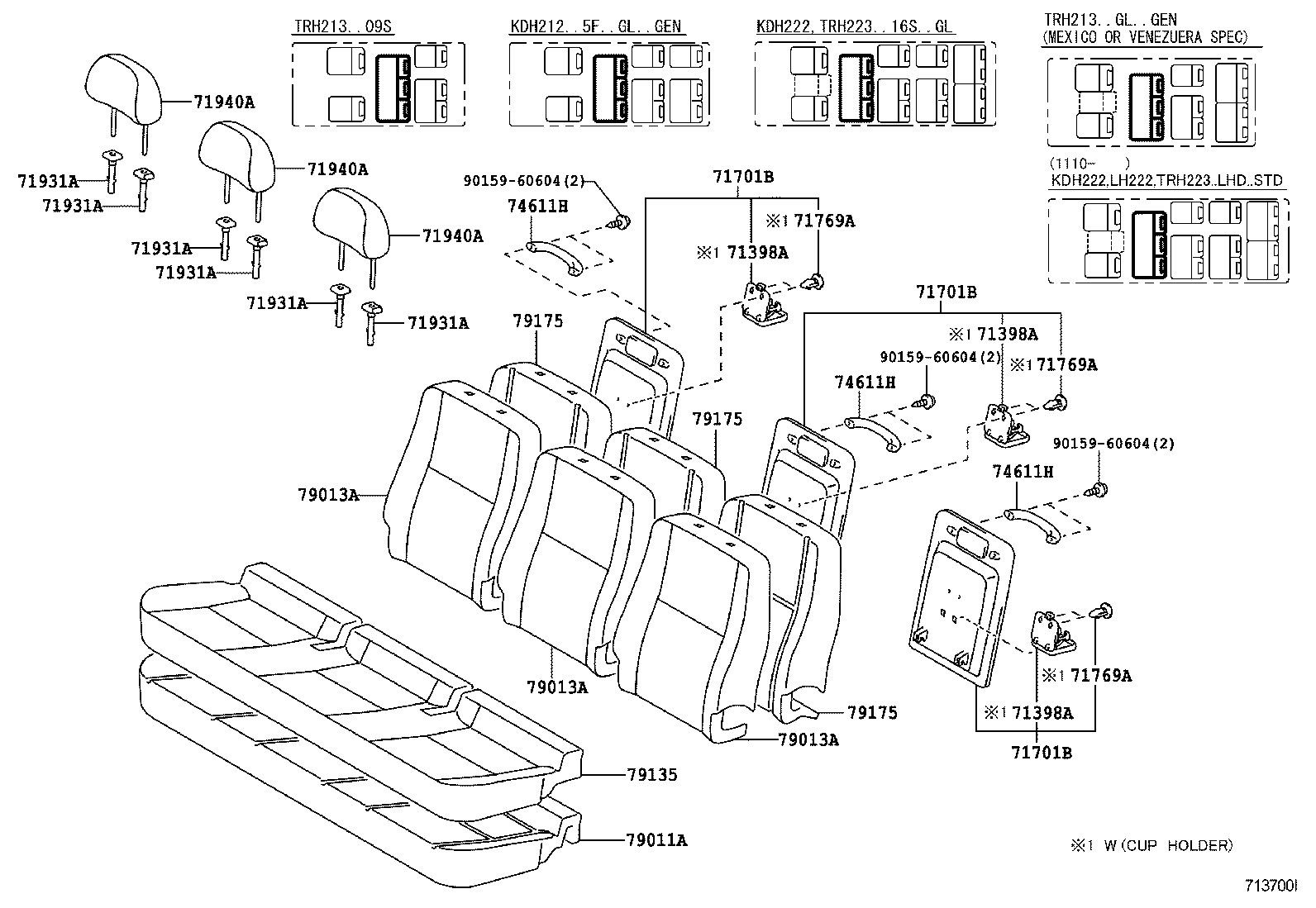

ILLUST NO. 1 OF 2(0501- )4D..09S,10S,11S,16S..GL..GCC,GEN ; (0505-0709)09S ; (1110- )KDH222,LH
LHD REAR(3 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B2 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B2 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B2 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79022-0L020B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79032-26110B2 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-0L040B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26A20B6 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL GRAY,TRIM1# |
3 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-0L040B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26A20B6 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL GRAY,TRIM1# |
3 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-0L040B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26A20B6 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL GRAY,TRIM1# |
3 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79345-26060 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26280 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
3 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26280 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
3 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26280 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
3 | ||
| Common parts | ||||
| 90159-60604 | ||||
ILLUST NO. 1 OF 2(0501- )4D..09S,11S,16S..GL ; (0709- )TRH213..GL..GEN ; (1110- )KDH222,LH2
LHD REAR(1 & 2 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 66990-28040B1 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-26030B0 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10132B1 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B8 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71931-42020B8 |
TRH213..09S W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
6 | ||
| 71930-52030B4 |
TRH213..09S W(LOCK)&W(BUTTON),GRAY,TRIM1# |
6 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B2 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B2 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-26360B2 |
TRH213..09S GRAY,TRIM1# |
6 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 74611H - GRIP, ASSIST | ||||
| 74611-20030P2 |
TRH213..09S GRAY,TRIM1# |
3 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79022-0L020B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79032-26110B2 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-0L040B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26A20B6 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL GRAY,TRIM1# |
3 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-0L040B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26A20B6 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL GRAY,TRIM1# |
3 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79011-0L020B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79011-26A90B1 |
KDH222,TRH213,223..4D..GL..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 79011-26C10B0 |
TRH213..09S GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-0L020B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79022-26200B1 |
TRH213..09S GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-26A20B3 |
KDH222,TRH213,223..4D..GL..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 79013-0L030B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26C20B2 |
TRH213..09S GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-0L030B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26C20B2 |
TRH213..09S GRAY,TRIM1# |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-0L030B0 |
TRH213..5F VIETNAM SPEC,GRAY,TRIM1# |
1 | ||
| 79013-26C20B2 |
TRH213..09S GRAY,TRIM1# |
2 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79345-26060 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26280 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
3 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-26280 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
3 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79135-26310 |
KDH212,222,TRH213,223..4D..GL..(GCC,GEN) |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79245-26040 |
KDH212,222,223,TRH213,223..4D..(09S,11S,12S,16S)..GL..(GCC,GEN,RUS) |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79175-26280 |
KDH222..ARL;KDH212,222,TRH213,223..4D..GL..(GCC,GEN,SA) |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79175-26280 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
2 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79175-26280 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
2 | ||
| Common parts | ||||
| 90159-60604 | ||||
ILLUST NO. 2 OF 2(0501- )4D..09S,10S,11S,16S..GL..GCC,GEN ; (0505-0709)09S ; (1110- )KDH222,LH
LHD REAR(3 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26280 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26270 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 71813C - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
2 | ||
| 71813C - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
2 | ||
| 71814C - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26030 |
KDH212,TRH213..(09S,11S)..5F NO.2 |
1 | ||
| 71814-26020 |
KDH212,TRH213..(09S,11S)..5F NO.1 |
1 | ||
| 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH212,223,TRH213..4D..(09S,10S,11S,14S);TRH223..(12S,13S,14S,15S)..(ARL,CIS,GEN,TH) GRAY,TRIM1# |
1 | ||
| 71868B - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH212,223,TRH213..4D..(09S,10S,11S,14S);TRH223..(12S,13S,14S,15S)..(ARL,CIS,GEN,TH) GRAY,TRIM1# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26100 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-26090 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-26040B0 |
KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH212,223,TRH213..4D..(09S,10S,11S,14S);TRH223..(12S,13S,14S,15S)..(ARL,CIS,GEN,TH) GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79306-26140 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79290-26040 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79280-26080 |
KDH222,TRH223..(14S,16S)..GL;KDH212,222,TRH213..4D..(09S,11S,14S)..(ARL,GEN) |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79290-26020 |
KDH212,222,223,TRH213,223..4D..GL..(CIS,GCC,GEN,RUS) |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79967-26010 |
KDH202..15S..GEN;KDH202..LHD..12S;KDH202..GCC,MA,TH;KDH203,LH202,212,TRH203..10S,12S,15S;KDH212,222,TRH213,223..(09S,10S,11S,14S)..5F..GL;KDH202,222,223,LH222,TRH223..HRF..(ARL,CIS,GCC,GEN,RUS) |
1 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79968-26010 |
KDH202..15S..GEN;KDH202..LHD..12S;KDH202..GCC,MA,TH;KDH203,LH202,212,TRH203..10S,12S,15S;KDH212,222,TRH213,223..(09S,10S,11S,14S)..5F..GL;KDH202,222,223,LH222,TRH223..HRF..(ARL,CIS,GCC,GEN,RUS) |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(0501- )4D..09S,11S,16S..GL ; (0709- )TRH213..GL..GEN ; (1110- )KDH222,LH2
LHD REAR(2 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26280 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 71811L - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26280 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26270 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 71812N - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26270 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 71813C - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
2 | ||
| 71813D - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26020 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 71814C - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26030 |
KDH212,TRH213..(09S,11S)..5F NO.2 |
1 | ||
| 71814-26020 |
KDH212,TRH213..(09S,11S)..5F NO.1 |
1 | ||
| 71814E - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-26020 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH212,223,TRH213..4D..(09S,10S,11S,14S);TRH223..(12S,13S,14S,15S)..(ARL,CIS,GEN,TH) GRAY,TRIM1# |
1 | ||
| 71867F - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26060B0 |
TRH223..ARL,TH;KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH212,223,TRH213..4D..(09S,10S,11S,14S) GRAY,TRIM1# |
1 | ||
| 71868B - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH212,223,TRH213..4D..(09S,10S,11S,14S);TRH223..(12S,13S,14S,15S)..(ARL,CIS,GEN,TH) GRAY,TRIM1# |
1 | ||
| 71868E - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26040B0 |
TRH223..ARL,TH;KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH212,223,TRH213..4D..(09S,10S,11S,14S) GRAY,TRIM1# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-26090 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-26090 |
KDH212,222,TRH213,223..(09S,11S,16S)..5F..GL |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-26040B0 |
KDH222..GL..GCC;KDH222..ARL,SA,TH;TRH223..(14S,16S)..GL;KDH212,223,TRH213..4D..(09S,10S,11S,14S);TRH223..(12S,13S,14S,15S)..(ARL,CIS,GEN,TH) GRAY,TRIM1# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26030B0 |
KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) GRAY,TRIM1#,FRONT SEAT |
1 | ||
| 72526-26040B0 |
KDH212,222,TRH213,223..5F..GL..(GCC,GEN,VN) GRAY,TRIM1#,REAR SEAT |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79306-26140 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79290-26040 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79290-26020 |
KDH212,222,223,TRH213,223..4D..GL..(CIS,GCC,GEN,RUS) |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-26150 |
KDH212,222,223,TRH213,223..4D..(09S,11S,12S,16S)..GL..(GCC,GEN,RUS) |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-26080 |
KDH212,222,TRH213,223..4D..(09S,11S,16S)..GL |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79290-26020 |
KDH212,222,223,TRH213,223..4D..(09S,11S,12S,16S)..GL..(GCC,GEN,RUS) |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79967-26010 |
KDH202..15S..GEN;KDH202..LHD..12S;KDH202..GCC,MA,TH;KDH203,LH202,212,TRH203..10S,12S,15S;KDH212,222,TRH213,223..(09S,10S,11S,14S)..5F..GL;KDH202,222,223,LH222,TRH223..HRF..(ARL,CIS,GCC,GEN,RUS) |
1 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 79967-26010 |
TRH203..4FC;TRH213..09S;TRH213..GL..VN;KDH212,LH212..(10S,11S)..5F..GEN;KDH202,203,222,223,LH202,222,TRH203,223..LHD..(12S,16S)..(GCC,GEN,RUS) |
1 | ||
| 79956T - COVER, REAR SEAT LEG SIDE | ||||
| 79968-26010 |
KDH202..15S..GEN;KDH202..LHD..12S;KDH202..GCC,MA,TH;KDH203,LH202,212,TRH203..10S,12S,15S;KDH212,222,TRH213,223..(09S,10S,11S,14S)..5F..GL;KDH202,222,223,LH222,TRH223..HRF..(ARL,CIS,GCC,GEN,RUS) |
1 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79968-26010 |
TRH203..4FC;KDH222,TRH223..GL..SA;KDH202,TRH213..LHD..(09S,12S);KDH202,TRH213..(10S,12S)..(MA,SA,TH,VN);KDH203,212,LH202,212,TRH203..(10S,11S,12S)..5F;KDH202,222,223,LH222,TRH223..HRF..(12S,14S,16S)..(ARL,GCC,GEN,RUS) |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90119-10948 | ||||
| 90176-10008 | ||||
| 91515-81020 | ||||
| 93560-54010 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
