TRH213L-JHMNK (2005)

Toyota Hiace

Production May 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )TRH20#,213 ; (1110- )KDH201..SP..06S ; (1205- )KDH201,203..LHD

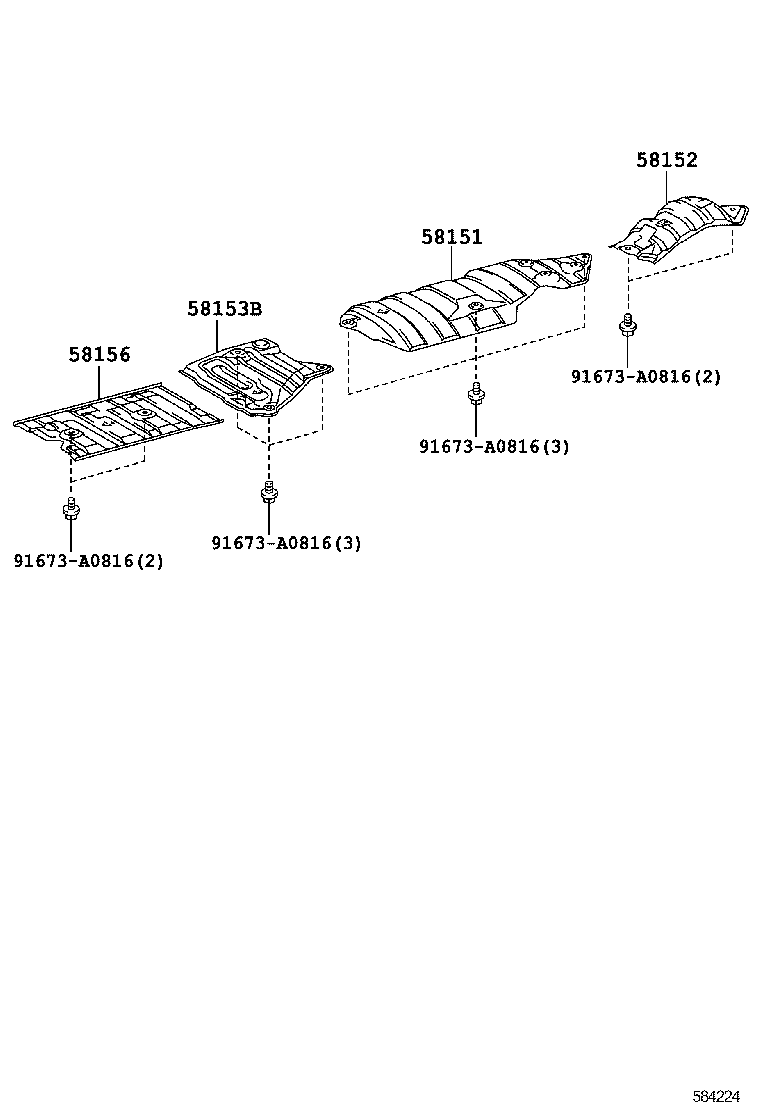

Click highlighted areas on diagram

diagram 58151 58152 58153B 58156 91673A0816 91673A0816 91673A0816 91673A0816
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-26100

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-26040

KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#

 1
58153B - INSULATOR, FLOOR HEAT, NO.3
58153-26040

TRH20#,213,22#

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-26030

TRH20#,213,22#

 1
Common parts
91673-A0816
