TRH213L-JHMNK (2005)

Toyota Hiace

Production May 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0709)5F

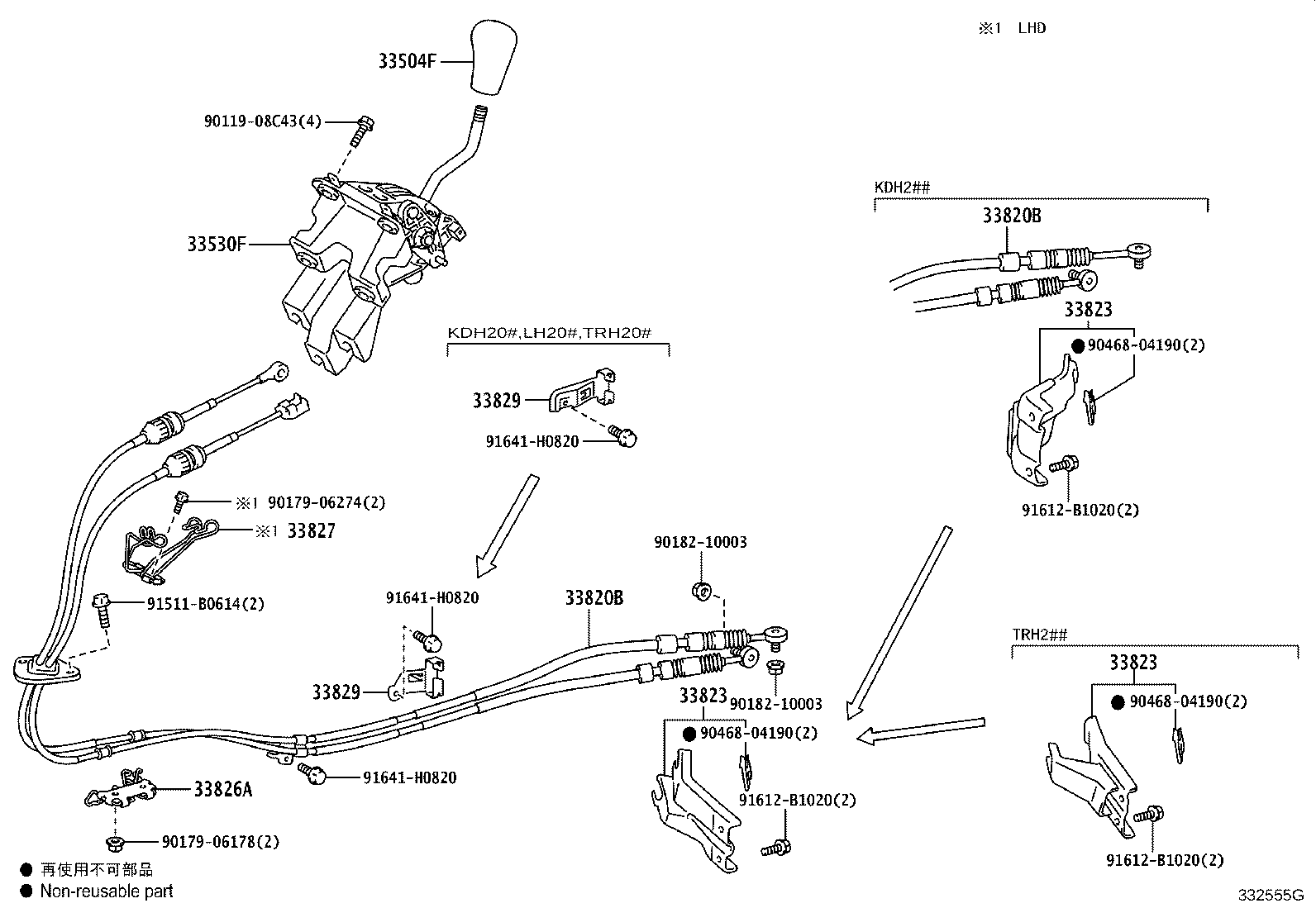

Click highlighted areas on diagram

diagram 33504F 33530F 33820B 33820B 33823 33823 33823 33826A 33827 33829 33829 9011908C43 9017906178 9017906274 9018210003 9018210003 9046804190 9046804190 9046804190 91511B0614 91612B1020 91612B1020 91612B1020 91641H0820 91641H0820 91641H0820
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12180B7

KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F

DK.GRAY,TRIM1#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-26240

KDH20#,212,220,222,223,TRH201,203,213,22#..LHD..5F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-26371

TRH213,22#..LHD..5F

 1
33820-26370

TRH213,22#..LHD..5F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-26371

TRH213,22#..LHD..5F

 1
33820-26370

TRH213,22#..LHD..5F

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-26020

TRH201,203,213,22#..5F

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-26020

TRH201,203,213,22#..5F

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33804-26020

TRH201,203,213,22#..5F

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-26050

KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-26020

KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD..5F

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26100

KDH212,22#,LH212,222,TRH213,22#..5F

 1
33829-26101

KDH212,22#,LH212,222,TRH213,22#..5F

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26100

KDH212,22#,LH212,222,TRH213,22#..5F

 1
33829-26101

KDH212,22#,LH212,222,TRH213,22#..5F

 1
Common parts
90119-08C43
90179-06178
90179-06274
90182-10003
90468-04190
91511-B0614
91612-B1020
91641-H0820
