TRH213L-JHMNK (2005)

Toyota Hiace

Production May 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2TRFE..5F

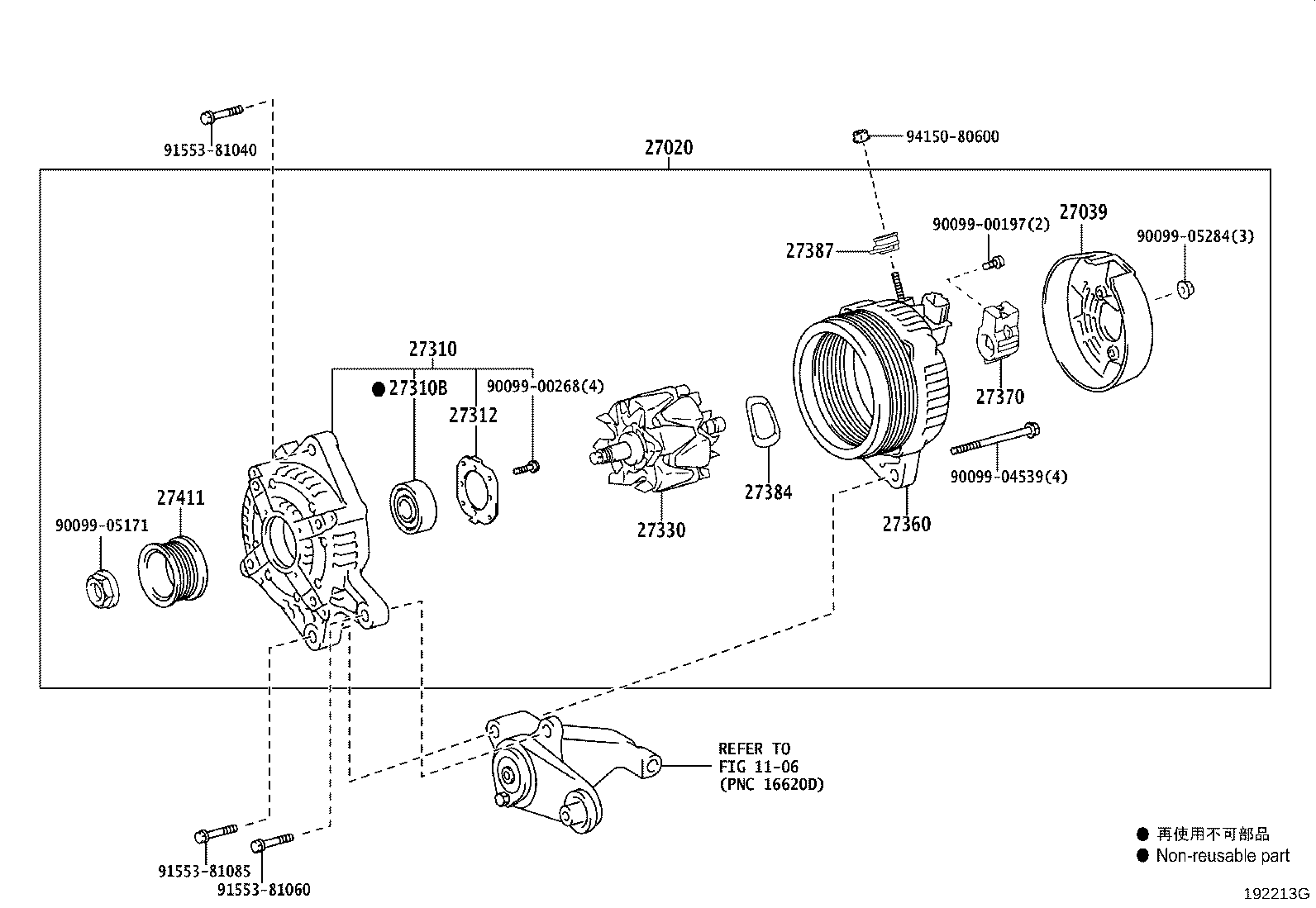

Click highlighted areas on diagram

12V 130A

diagram 1106 27020 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27411 9009900197 9009900268 9009904539 9009905171 9009905284 9155381040 9155381060 9155381085 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-75350

2TRFE..TRH201,203,213,22#..5F

12V 130A

 1
27039 - COVER, ALTERNATOR REAR END
27039-27060

2TRFE..TRH20#,213,22#..5F

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-75270

1TRFE,2TRFE..TRH20#,213,22#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

1KDFTV,2KDFTV,2TRFE..KDH20#,212,22#,TRH20#,213,22#

 1
27312 - PLATE, RETAINER
27312-72100

1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,212,22#,TRH20#,213,22#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-33090

2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202,212..TH,VN;1KDFTV,1TRFE,2TRFE..KDH201,203,221,223,TRH20#,213,22#

 1
27360 - COIL ASSY, ALTERNATOR
27360-75300

2TRFE..TRH201,203,213,22#..03S,06S,09S,10S,11S,12S,14S,15S,16S

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,212,22#,TRH20#,213,22#

 1
27384 - WASHER
27384-50030

1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,212,22#,TRH20#,213,22#

 1
27387 - INSULATOR, TERMINAL
27387-20130

1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,212,22#,TRH20#,213,22#

 1
27411 - PULLEY, ALTERNATOR
27411-31210

2TRFE..TRH201,203,213,22#..5F

 1
Common parts
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
91553-81040
91553-81060
91553-81085
94150-80600
