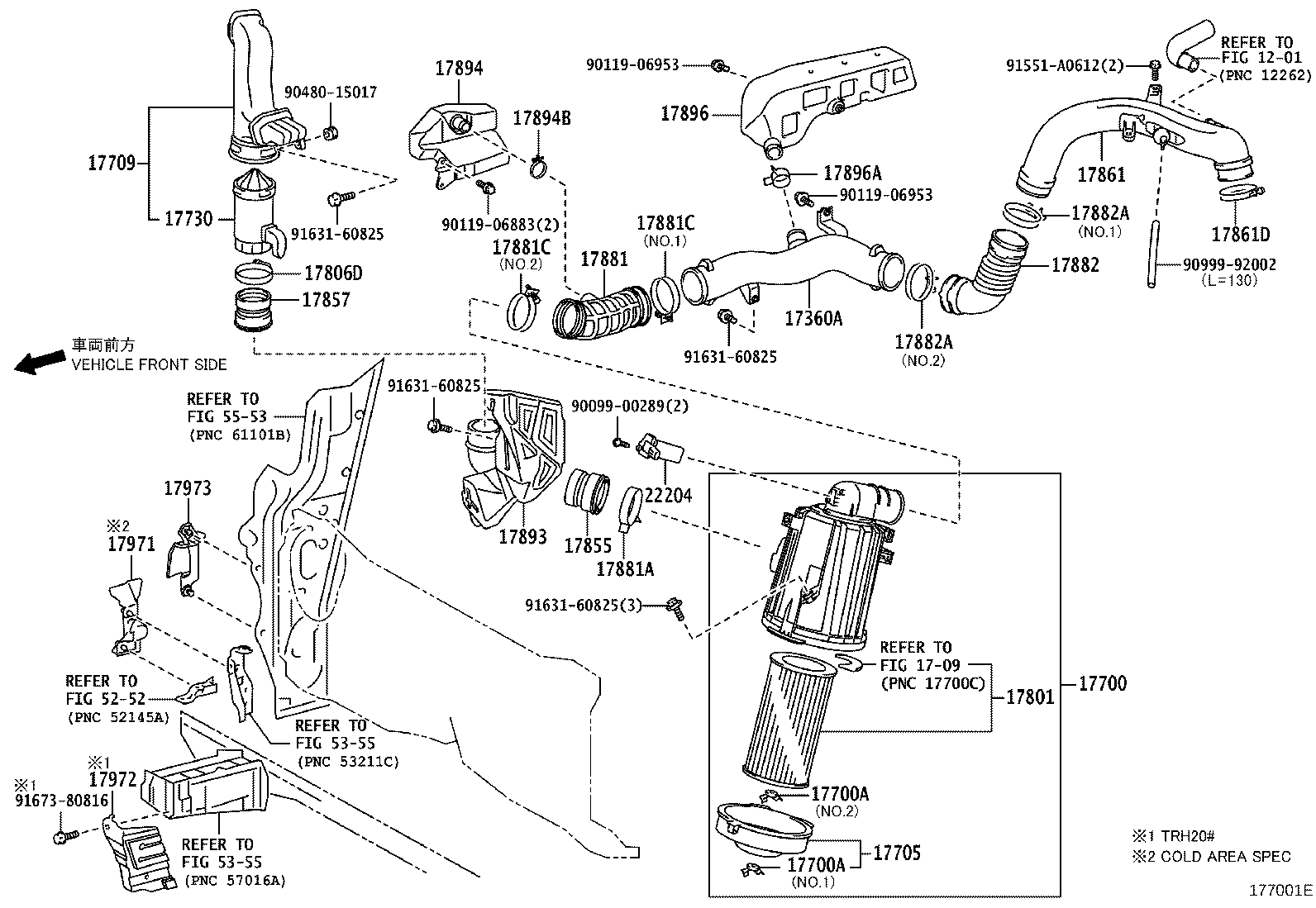

TRH213L-JHMNK (2005)
Toyota Hiace
(0501-1008)2TRFE ; (1008- )2TRFE..TRH213..4FC..GCC ; (1008- )2TRFE..TRH213,22
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17360A - TUBE ASSY, AIR | ||||
| 17360-75050 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17360-75050 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17360-75050 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75460 |
2TRFE..TRH20#,213,22# |
1 | ||
| 17700-75460 |
2TRFE..TRH20#,213,22# |
1 | ||
| 17700-75460 |
2TRFE..TRH20#,213,22# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH201..4D..SP..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC |
1 | ||
| 90175-08008 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH201..4D..SP..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC |
1 | ||
| 90175-08008 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH201..4D..SP..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH201..4D..SP..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC |
1 | ||
| 90175-08008 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH201..4D..SP..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC |
1 | ||
| 90175-08008 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH201..4D..SP..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75310 |
2TRFE..TRH20#,213,22# |
1 | ||
| 17705-75310 |
2TRFE..TRH20#,213,22# |
1 | ||
| 17705-75310 |
2TRFE..TRH20#,213,22# |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-30011 |
2TRFE..TRH20#,213..(03S,06S,09S,11S,12S,15S)..(ARL,GCC,GEN,MA,SA) |
1 | ||
| 17709-30011 |
2TRFE..TRH20#,213..(03S,06S,09S,11S,12S,15S)..(ARL,GCC,GEN,MA,SA) |
1 | ||
| 17709-30011 |
2TRFE..TRH20#,213..(03S,06S,09S,11S,12S,15S)..(ARL,GCC,GEN,MA,SA) |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17730-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17730-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-75010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17801-75010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17801-75010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17806D - CLAMP(FOR AIR CLEANER PIPE) | ||||
| 90460-92002 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 90460-92002 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 90460-92002 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17855 - GASKET, AIR INLET DUCT, NO.1 | ||||
| 17855-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17855-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17855-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17857 - GASKET, AIR INLET DUCT, NO.2 | ||||
| 17857-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17857-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17857-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-75110 |
2TRFE..TRH20#,213,22# |
1 | ||
| 17861-75110 |
2TRFE..TRH20#,213,22# |
1 | ||
| 17861-75110 |
2TRFE..TRH20#,213,22# |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 96111-10800 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 96111-10800 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 96111-10800 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-30080 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17881-30080 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17881-30080 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-78001 |
2TRFE..TRH213,223..09S,11S,15S;2TRFE..TRH203,213,223..4FC..GCC NO.1 |
1 | ||
| 90466-78001 |
2TRFE..TRH213,223..09S,11S,15S;2TRFE..TRH203,213,223..4FC..GCC NO.1 |
1 | ||
| 90466-78001 |
2TRFE..TRH213,223..09S,11S,15S;2TRFE..TRH203,213,223..4FC..GCC NO.1 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-75120 |
2TRFE..TRH213,22# |
1 | ||
| 17882-75120 |
2TRFE..TRH213,22# |
1 | ||
| 17882-75120 |
2TRFE..TRH213,22# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 96111-10800 |
2TRFE..TRH20#,213,22# NO.1 & NO.2 |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30030 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH213,223..09S,11S,13S,15S;2TRFE..TRH201,213..(SMRF,SRF)..4D..(03S,10S)..GEN |
1 | ||
| 17893-30030 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH213,223..09S,11S,13S,15S;2TRFE..TRH201,213..(SMRF,SRF)..4D..(03S,10S)..GEN |
1 | ||
| 17893-30030 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH213,223..09S,11S,13S,15S;2TRFE..TRH201,213..(SMRF,SRF)..4D..(03S,10S)..GEN |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17894-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17894-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10380 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 96111-10380 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 96111-10380 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-75010 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 17896-75010 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 17896-75010 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90467-37005 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 90467-37005 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 90467-37005 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 17973 - INLET, COOL AIR, NO.3 | ||||
| 17973-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17973-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 17973-30010 |
2TRFE..TRH203..12S..GEN;2TRFE..TRH213..09S,11S,15S;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH203,213,223..4FC..GCC;2TRFE..TRH201,223..RHD..(03S,15S)..(GEN,TH) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 22204-75030 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 22204-75030 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06883 | ||||
| 90119-06953 | ||||
| 90480-15017 | ||||
| 90999-92002 | ||||
| 91551-A0612 | ||||
| 91631-60825 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1709 | ||||
| 5252 | ||||
| 5355 | ||||
| 5553 | ||||
