TRH213L-JHMNK (2005)
Toyota Hiace
(0501- )1TRFE,2TRFE

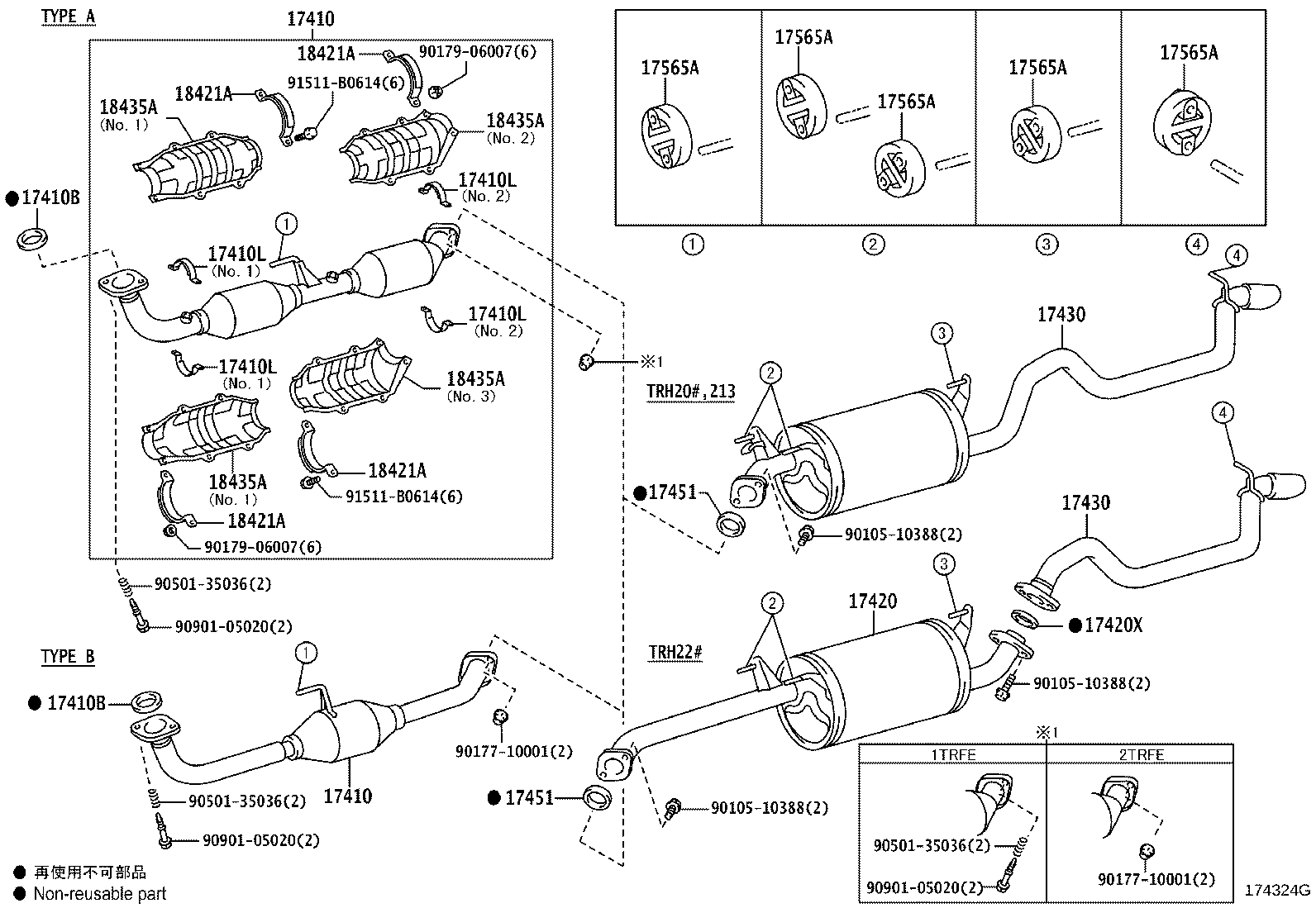

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-75450 |
2TRFE..TRH213..(09S,11S)..GEN;2TRFE..TRH203,213,223..4FC..GCC TYPE A:REFER ILLUST. |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-75450 |
2TRFE..TRH213..(09S,11S)..GEN;2TRFE..TRH203,213,223..4FC..GCC TYPE A:REFER ILLUST. |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-22070 |
1KDFTV..KDH221..5D..GEN;1TRFE,2TRFE..TRH20#,213,22#;1KDFTV..KDH201,203,223..RUS,TH |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-22070 |
1KDFTV..KDH221..5D..GEN;1TRFE,2TRFE..TRH20#,213,22#;1KDFTV..KDH201,203,223..RUS,TH |
1 | ||
| 17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT) | ||||
| 17541-75030 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.1 |
2 | ||
| 17541-75040 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.2 |
2 | ||
| 17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT) | ||||
| 17541-75030 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.1 |
2 | ||
| 17541-75040 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.2 |
2 | ||
| 17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT) | ||||
| 17541-75030 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.1 |
2 | ||
| 17541-75040 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.2 |
2 | ||
| 17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT) | ||||
| 17541-75030 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.1 |
2 | ||
| 17541-75040 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.2 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-75750 |
2TRFE..TRH213 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-75750 |
2TRFE..TRH213 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06054 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06054 |
2TRFE..TRH201,203,213,22# |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22# |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22# |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22# |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22# |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
2KDFTV..KDH202..STD..TH;1KDFTV..KDH201..RHD..03S;2KDFTV..KDH202..GCC,GEN,MA;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH200,212,22#,LH20#,212,222,TRH20#,213,22# |
5 | ||
| 18421A - STAY, CONVERTER PROTECTOR, LH | ||||
| 18421-75020 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
4 | ||
| 18421A - STAY, CONVERTER PROTECTOR, LH | ||||
| 18421-75020 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
4 | ||
| 18421A - STAY, CONVERTER PROTECTOR, LH | ||||
| 18421-75020 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
4 | ||
| 18421A - STAY, CONVERTER PROTECTOR, LH | ||||
| 18421-75020 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
4 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18445-75030 |
2TRFE..TRH213..GCC,VN;1TRFE,2TRFE..TRH200,201..SP..4FC..GEN;2TRFE..TRH201,213,221..SG..(03S,06S,09S);2TRFE..TRH203,213..RHD..(HRF,SMRF)..(10S,11S,12S,15S);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.3 |
1 | ||
| 18435-75050 |
2TRFE..TRH213..GCC,VN;1TRFE,2TRFE..TRH200,201..SP..4FC..GEN;2TRFE..TRH201,213,221..SG..(03S,06S,09S);2TRFE..TRH203,213..RHD..(HRF,SMRF)..(10S,11S,12S,15S);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.1 |
2 | ||
| 18435-75060 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.2 |
1 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18445-75030 |
2TRFE..TRH213..GCC,VN;1TRFE,2TRFE..TRH200,201..SP..4FC..GEN;2TRFE..TRH201,213,221..SG..(03S,06S,09S);2TRFE..TRH203,213..RHD..(HRF,SMRF)..(10S,11S,12S,15S);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.3 |
1 | ||
| 18435-75050 |
2TRFE..TRH213..GCC,VN;1TRFE,2TRFE..TRH200,201..SP..4FC..GEN;2TRFE..TRH201,213,221..SG..(03S,06S,09S);2TRFE..TRH203,213..RHD..(HRF,SMRF)..(10S,11S,12S,15S);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.1 |
2 | ||
| 18435-75060 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.2 |
1 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18445-75030 |
2TRFE..TRH213..GCC,VN;1TRFE,2TRFE..TRH200,201..SP..4FC..GEN;2TRFE..TRH201,213,221..SG..(03S,06S,09S);2TRFE..TRH203,213..RHD..(HRF,SMRF)..(10S,11S,12S,15S);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.3 |
1 | ||
| 18435-75050 |
2TRFE..TRH213..GCC,VN;1TRFE,2TRFE..TRH200,201..SP..4FC..GEN;2TRFE..TRH201,213,221..SG..(03S,06S,09S);2TRFE..TRH203,213..RHD..(HRF,SMRF)..(10S,11S,12S,15S);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.1 |
2 | ||
| 18435-75060 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.2 |
1 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18445-75030 |
2TRFE..TRH213..GCC,VN;1TRFE,2TRFE..TRH200,201..SP..4FC..GEN;2TRFE..TRH201,213,221..SG..(03S,06S,09S);2TRFE..TRH203,213..RHD..(HRF,SMRF)..(10S,11S,12S,15S);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.3 |
1 | ||
| 18435-75050 |
2TRFE..TRH213..GCC,VN;1TRFE,2TRFE..TRH200,201..SP..4FC..GEN;2TRFE..TRH201,213,221..SG..(03S,06S,09S);2TRFE..TRH203,213..RHD..(HRF,SMRF)..(10S,11S,12S,15S);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.1 |
2 | ||
| 18435-75060 |
2TRFE..TRH213..STD..(GCC,VN);1TRFE,2TRFE..TRH200,201,213..06S,09S,10S,11S,15S;2TRFE..TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) NO.2 |
1 | ||
| Common parts | ||||
| 90105-10388 | ||||
| 90177-10001 | ||||
| 90179-06007 | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 91511-B0614 | ||||
