TRH213L-JHMNK (2005)

Toyota Hiace

Production May 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2TRFE

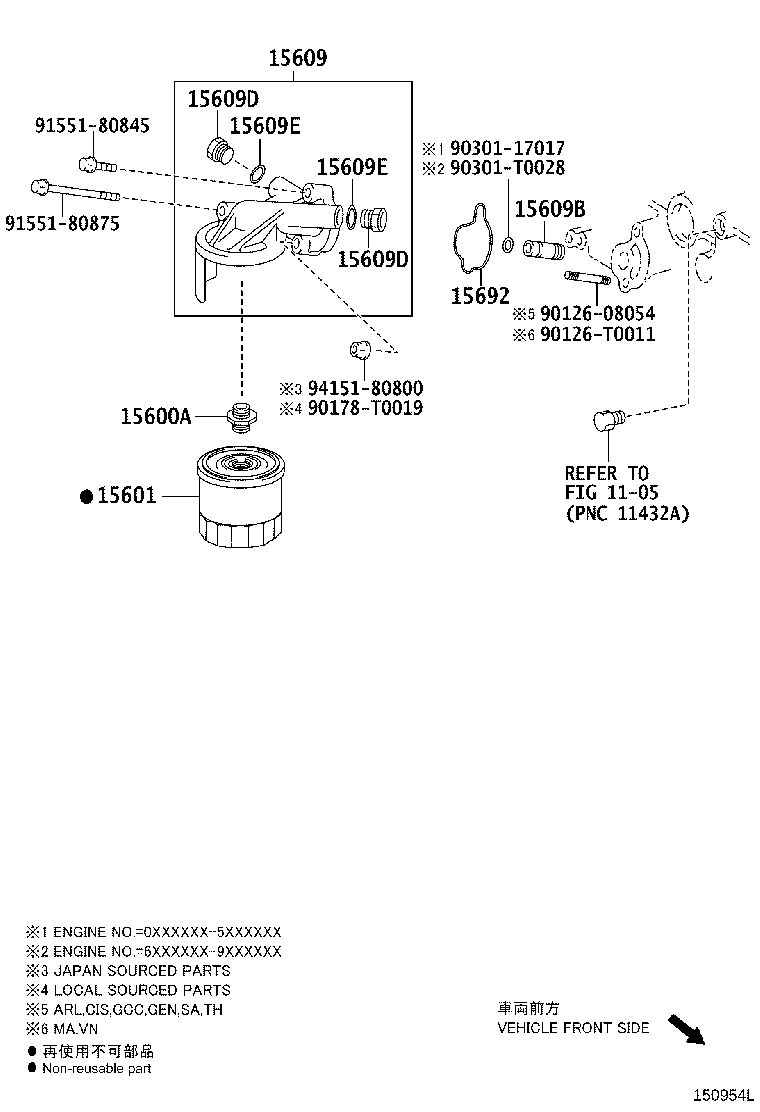

Click highlighted areas on diagram

diagram 1105 15600A 15601 15609 15609B 15609D 15609D 15609E 15609E 15692 9012608054 90126T0011 90178T0019 9030117017 90301T0028 9155180845 9155180875 9415180800
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19015

2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH

 1
15601 - FILTER SUB-ASSY, OIL
90915-20003

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-75070

2TRFE..TRH201,203,213,22#

 1
15609B - UNION(FOR OIL FILTER BRACKET)
90404-19017

2TRFE..TRH201,203,213,22#..ARL,CIS,GCC,GEN,SA,TH

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-22002

2TRFE..TRH201,203,213,22#

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-22002

2TRFE..TRH201,203,213,22#

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-22011

2TRFE..TRH201,203,213,22#

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-22011

2TRFE..TRH201,203,213,22#

 2
15692 - GASKET, OIL FILTER BRACKET
15692-75011

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
Common parts
90126-08054
90126-T0011
90178-T0019
90301-17017
90301-T0028
91551-80845
91551-80875
94151-80800
Linked diagrams
1105
