TRH213L-JHMNK (2005)
Toyota Hiace

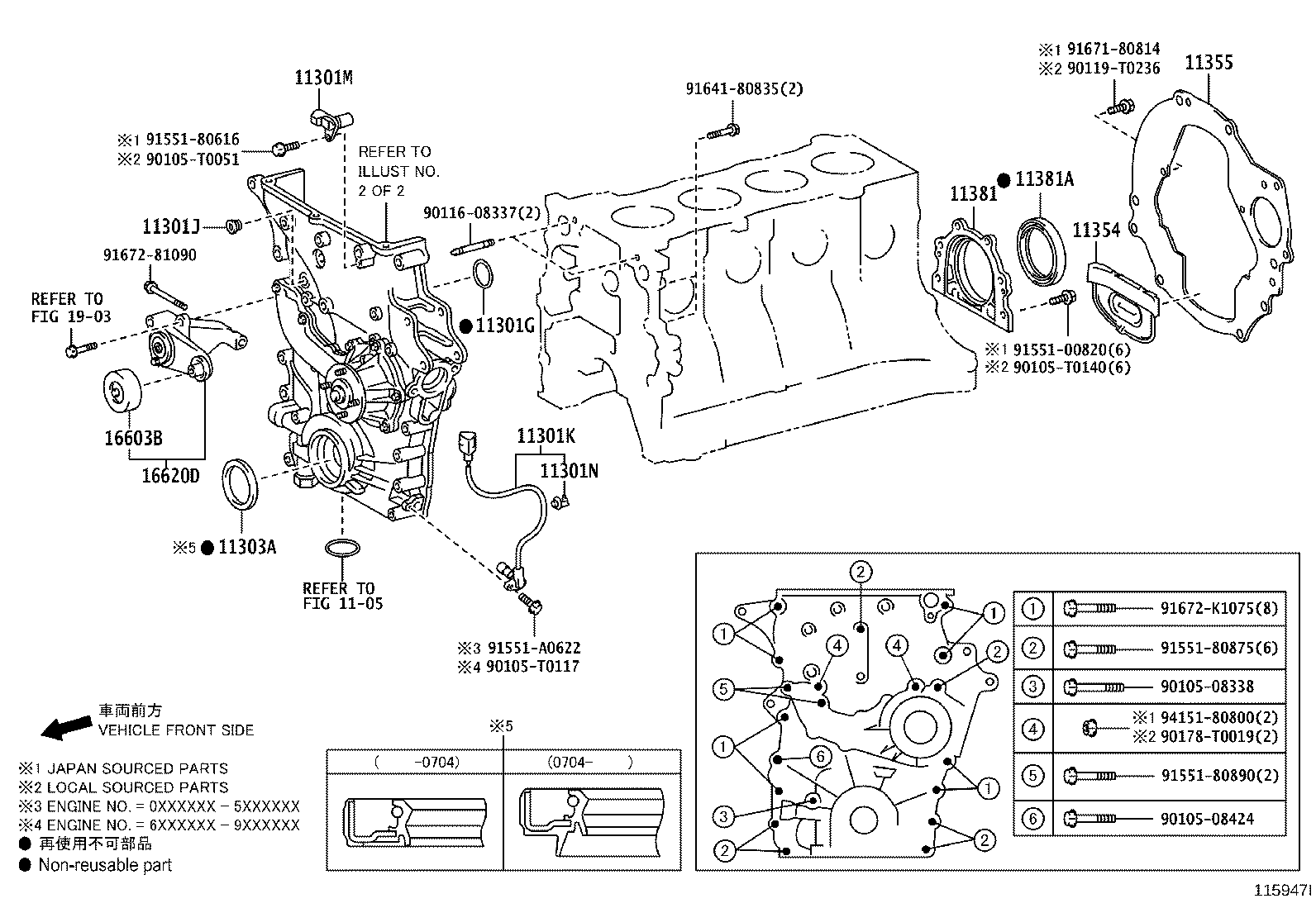

ILLUST NO. 1 OF 2(0501- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) | ||||
| 90301-25014 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH223..GL..SA;1TRFE,2TRFE..TRH200,201,221;2TRFE..TRH223..ARL,CIS,GCC,GEN,TH;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) | ||||
| 90341-16022 |
2TRFE..TRH223..GL..SA;2TRFE..TRH223..ARL,CIS,GCC,GEN,TH;1TRFE,2TRFE..TRH20#,213,221..ARL,GCC,GEN,SA,TH |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05059 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 11301M - SENSOR, CAM POSITION | ||||
| 90919-05036 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 11301N - CLAMP | ||||
| 90469-07018 |
1TRFE,2TRFE..TRH20#,213,22# |
1 | ||
| 11303A - SEAL, OIL(FOR CRANKSHAFT FRONT) | ||||
| 90311-48020 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) REFER TO ILLUST. |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-75030 |
2TRFE..TRH20#,213,22# |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-75021 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-88005 |
2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16603B - PULLEY SUB-ASSY, IDLER | ||||
| 16603-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| 16620D - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-75010 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90105-08338 | ||||
| 90105-08424 | ||||
| 90105-T0051 | ||||
| 90105-T0117 | ||||
| 90105-T0140 | ||||
| 90116-08337 | ||||
| 90119-T0236 | ||||
| 90178-T0019 | ||||
| 91551-00820 | ||||
| 91551-80616 | ||||
| 91551-80875 | ||||
| 91551-80890 | ||||
| 91551-A0622 | ||||
| 91641-80835 | ||||
| 91671-80814 | ||||
| 91672-81090 | ||||
| 91672-K1075 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1903 | ||||

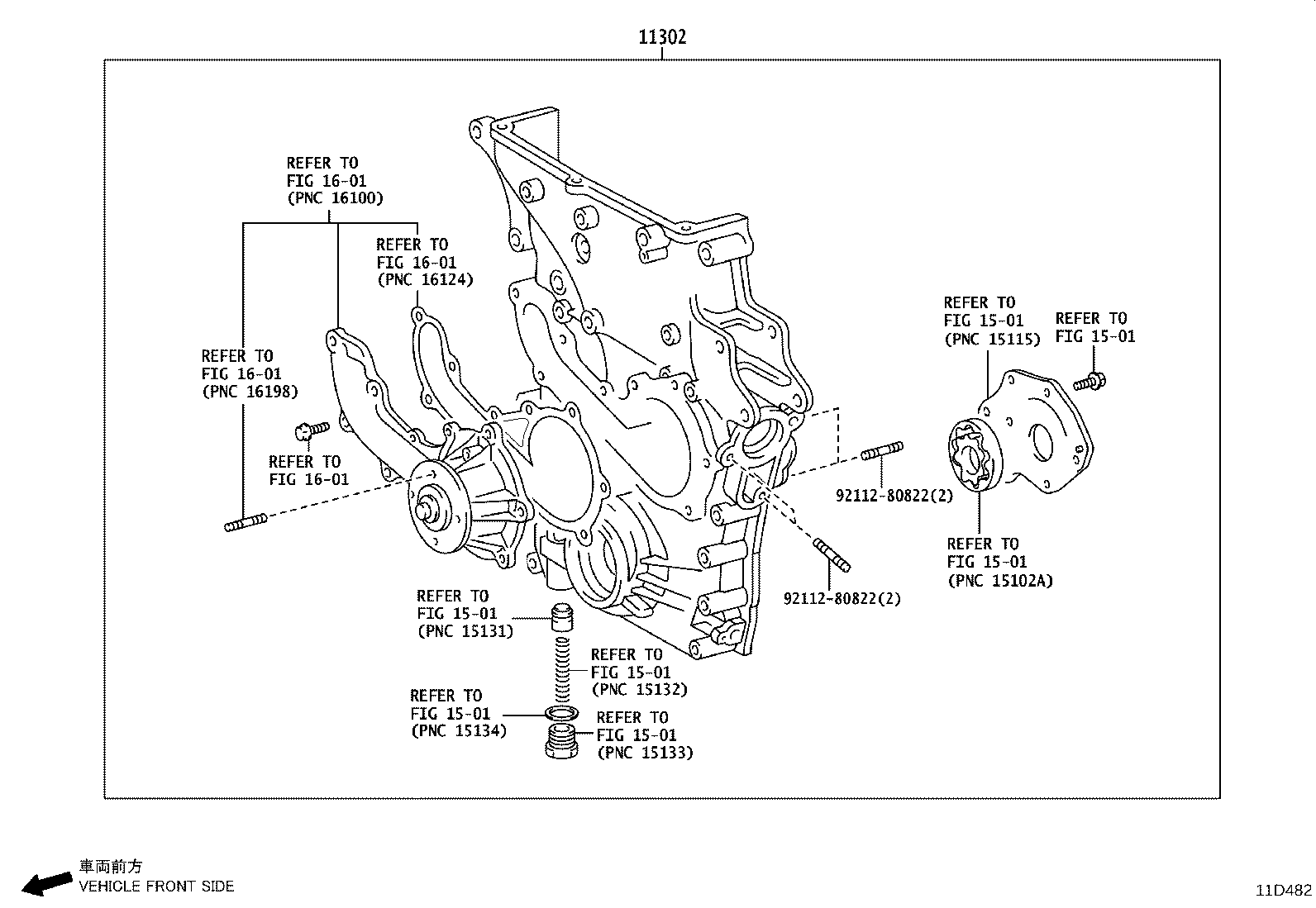

ILLUST NO. 2 OF 2(0501- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-75070 |
2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 92112-80822 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 1601 | ||||
