TRH213L-JHMNK (2005)

Toyota Hiace

Production May 2005 - Sep 2007
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-1008)2TRFE..ARL,CIS,GCC,GEN,SA,TH ; (0501-1106)2TRFE..TRH213..VN ; (0501-1106

Click highlighted areas on diagram

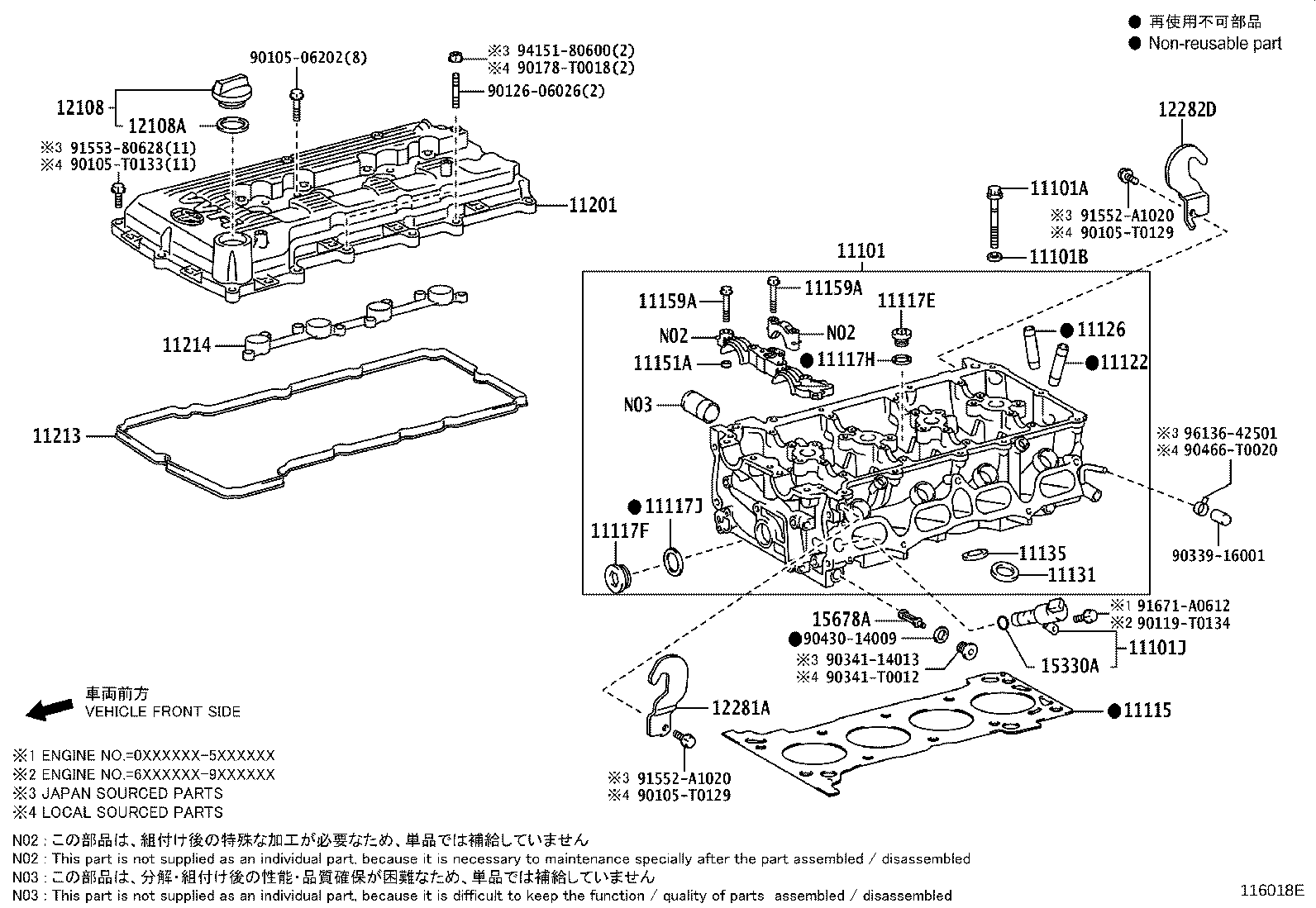

diagram 11101 11101A 11101B 11101J 11115 11117E 11117F 11117H 11117J 11122 11126 11131 11135 11151A 11159A 11159A 11201 11213 11214 12108 12108A 12281A 12282D 15330A 15678A 9010506202 90105T0129 90105T0129 90105T0133 90119T0134 9012606026 90178T0018 9033916001 9034114013 90341T0012 9043014009 90466T0020 91552A1020 91552A1020 9155380628 91671A0612 9415180600 9613642501
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-75150

2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN)

*271

 1
11101-75150

2TRFE..TRH201,221..ARL;2TRFE..TRH201,221..SG..03S;2TRFE..TRH201,213,223..(06S,09S,10S,11S,13S,14S)..(ARL,GEN)

*271

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02091

2TRFE..TRH20#,213,22#

 10
90910-02091

2TRFE..TRH20#,213,22#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11034

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 10
90201-11034

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 10
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-75010

2TRFE..TRH213..VN;2TRFE..TRH203..12S;2TRFE..TRH201..4D..SP..GEN;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH213..(09S,11S,15S)..(GEN,SA)

 1
15330-75010

2TRFE..TRH213..VN;2TRFE..TRH203..12S;2TRFE..TRH201..4D..SP..GEN;2TRFE..TRH201..SP..4FC..GEN;2TRFE..TRH213..(09S,11S,15S)..(GEN,SA)

 1
11115 - GASKET, CYLINDER HEAD
11115-75050

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
11115-75050

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-20002

1TRFE,2TRFE..TRH20#,213,22#

 3
90341-20002

1TRFE,2TRFE..TRH20#,213,22#

 3
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-32002

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
90341-32002

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
11117H - GASKET(FOR WATER HOLE)
90430-20004

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 3
90430-20004

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 3
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33001

2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#

 1
90430-33001

2TRFE..TRH203..SRF;2TRFE..TRH201,213,22#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-75020

1TRFE,2TRFE..TRH20#,213,22#

STD

 8
11122-75020

1TRFE,2TRFE..TRH20#,213,22#

STD

 8
11123-75020

1TRFE,2TRFE..TRH20#,213,22#

O/S 0.05

 8
11123-75020

1TRFE,2TRFE..TRH20#,213,22#

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-75020

1TRFE,2TRFE..TRH20#,213,22#

STD

 8
11122-75020

1TRFE,2TRFE..TRH20#,213,22#

STD

 8
11123-75020

1TRFE,2TRFE..TRH20#,213,22#

O/S 0.05

 8
11123-75020

1TRFE,2TRFE..TRH20#,213,22#

O/S 0.05

 8
11131 - SEAT, INTAKE VALVE
11131-75080

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

STD

 8
11131-75080

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

STD

 8
11132-75080

2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S

O/S 0.03

 8
11132-75080

2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S

O/S 0.03

 8
11135 - SEAT, EXHAUST VALVE
11135-75100

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

STD

 8
11135-75100

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH201,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

STD

 8
11136-75100

2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S

O/S 0.03

 8
11136-75100

2TRFE..TRH201,203,213,221;2TRFE..TRH223..12S,13S,14S,16S

O/S 0.03

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-10006

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

L=7,OD=10

 2
90253-10006

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

L=7,OD=10

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07013

1TRFE,2TRFE..TRH20#,213,22#

 20
90119-07013

1TRFE,2TRFE..TRH20#,213,22#

 20
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07013

1TRFE,2TRFE..TRH20#,213,22#

 20
90119-07013

1TRFE,2TRFE..TRH20#,213,22#

 20
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-75051

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
11201-75051

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-75040

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
11213-75040

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-75010

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
11214-75010

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
12180-21010

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
90430-37140

2TRFE..TRH201,22#;2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
12281A - HANGER, ENGINE, NO.1
12281-75050

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
12281-75050

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
12282D - HANGER, ENGINE, NO.2
12281-75050

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
12281-75050

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

1TRFE,2TRFE..TRH20#,213,22#

 1
90099-14137

1TRFE,2TRFE..TRH20#,213,22#

 1
15678A - FILTER, OIL CONTROL VALVE
15678-21010

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
15678-21010

2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)

 1
Common parts
90105-06202
90105-T0129
90105-T0133
90119-T0134
90126-06026
90178-T0018
90339-16001
90341-14013
90341-T0012
90430-14009
90466-T0020
91552-A1020
91553-80628
91671-A0612
94151-80600
96136-42501
