TRH213L-JDMNKU (2007)

Toyota Hiace

Production Sep 2007 - May 2012
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501-1008)KDH200..RHD..03S..5F..GEN,MA,SA,TH ;(0501- )KDH200..5F..ARL ; (0501-

Click highlighted areas on diagram

FRONT:SINGLE A/C

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88474 886882F260 886882F280 886882F290 886882F300 886882F310 886882F320 88711 88712 88715A 88716A 88716B 88717A 887182F110 887182F120 887182F120 887182F120 887182F140 887182F180 887182F250 887182F330 887182F340 887182F350 88719A 9009120512 9009120512 9009120512 9009120512 9009120619 9009914119 9009914120 9009914121 9009914122 90105T0193 90105T0193 90105T0193 90105T0193 90105T0194 9155380614 9155380614 9155380614 9155380614 9155380616 9155380622 9155380622 9155380625 9155380625 9155380810 9155380810 9155380814
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

KDH222,TRH223..GL..SA;KDH200,201,TRH201..SP..06S;TRH200,203..RHD..(06S,12S);KDH200,212,TRH213..STD..(MA,VN);TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH202,203,222,223..(12S,14S)..(ARL,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

KDH222,TRH223..GL..SA;KDH200,201,TRH201..SP..06S;TRH200,203..RHD..(06S,12S);KDH200,212,TRH213..STD..(MA,VN);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

KDH222,TRH223..GL..SA;KDH200,201,TRH201..SP..06S;TRH200,203..RHD..(06S,12S);KDH200,212,TRH213..STD..(MA,VN);TRH223..(12S,13S,14S)..(ARL,CIS,GEN);KDH202,203,222,223..(12S,14S)..(ARL,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

KDH222,TRH223..GL..SA;KDH200,201,TRH201..SP..06S;TRH200,203..RHD..(06S,12S);KDH200,212,TRH213..STD..(MA,VN);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-26120

TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH200,201,TRH201..SP..06S;KDH212,223,TRH200,213..06S,09S,10S,11S,12S,14S;KDH212,222,TRH213,223..(12S,14S,16S)..(ARL,CIS,VN)

 1
88474 - DRYER, COOLER
88474-17010

TRH223..4FC..GL;KDH222,TRH223..GL..SA;TRH200,203..RHD..(06S,12S);KDH200,201,TRH201..SP..06S;KDH200,212,TRH213..STD..(MA,VN);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F140

TRH213,223..09S,10S,11S,12S,13S,14S

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F160

TRH213,223..09S,10S,11S,12S,13S,14S

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26400

TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,223,TRH213..09S,10S,11S,14S;KDH212,222,TRH213,223..(12S,14S,16S)..(ARL,CIS,VN)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-2F640

KDH212,222,TRH213,223..09S,10S,11S,12S,13S,14S

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2N140

KDH222,TRH223..GL..SA;KDH212,222,TRH213..STD..(ARL,VN);KDH212,223,TRH213..09S,10S,11S,14S;TRH223..(12S,13S,14S)..(ARL,CIS,GEN)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2F760

TRH213..10S

VIETNAM SPEC

 1
88717-2F760

TRH213..VN;TRH223..12S,13S

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020

KDH202..MA,TH;KDH200..SP..06S;KDH202..HRF..GEN;TRH201..SP..4FC..GEN;KDH212,222,TRH213..STD..(ARL,VN);TRH203,213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,MA,TH,VN)

 1
Common parts
88688-2F260
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88718-2F110
88718-2F120
88718-2F140
88718-2F180
88718-2F250
88718-2F330
88718-2F340
88718-2F350
90091-20512
90091-20619
90099-14119
90099-14120
90099-14121
90099-14122
90105-T0193
90105-T0194
91553-80614
91553-80616
91553-80622
91553-80625
91553-80810
91553-80814
Linked diagrams
8714
8719

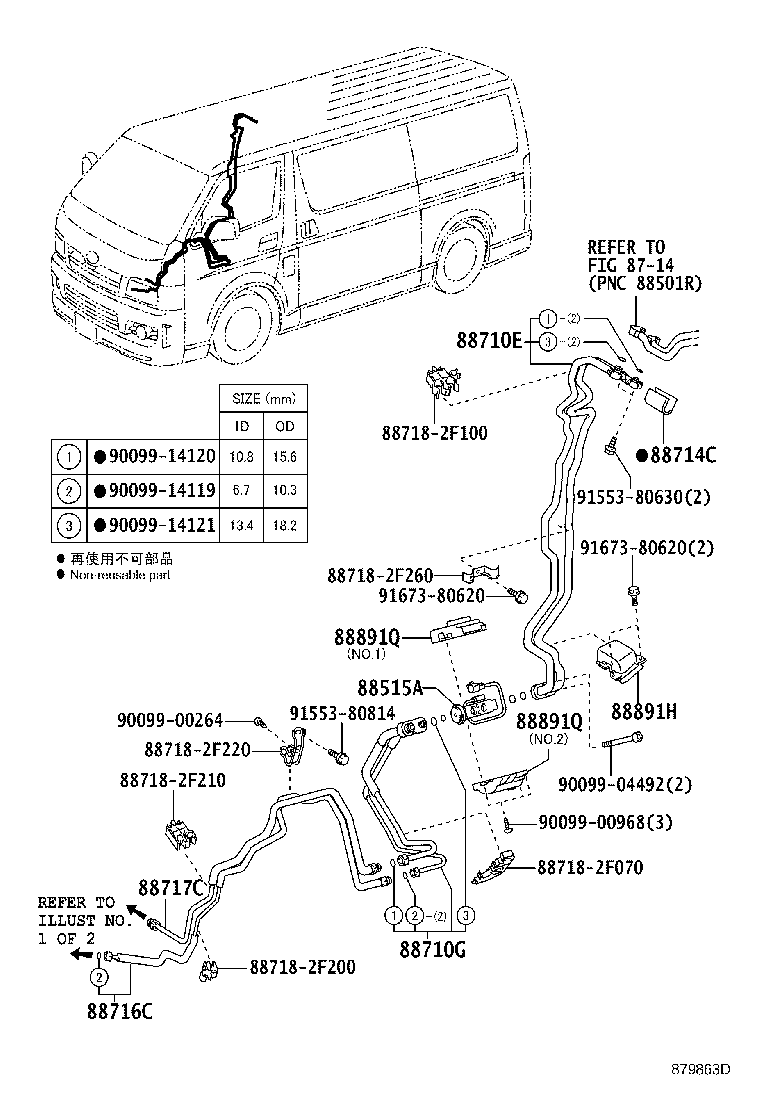

ILLUST NO. 2 OF 2(0709- )TRH213..LHD..GL

Click highlighted areas on diagram

REAR

diagram 8714 88515A 88710E 88710G 88714C 88716C 88717C 887182F070 887182F100 887182F200 887182F210 887182F220 887182F260 88891H 88891Q 88891Q 9009900264 9009900968 9009904492 9009914119 9009914120 9009914121 9155380630 9155380814 9167380620 9167380620
Part # Description Qty Price
88515A - VALVE, COOLER EXPANSION
88515-26090

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-2F850

TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,223,TRH213..09S,10S,11S,12S,14S;KDH212,222,TRH213,223..(12S,14S,16S)..(ARL,CIS,VN)

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-26050

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2N170

TRH213..STD..VN;TRH223..4FC..GL;TRH213,223..(09S,10S,11S,14S)..GL;KDH222,TRH200,223..(06S,12S,14S)..(ARL,CIS,GEN)

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88715-26451

TRH213..STD..VN;TRH223..4FC..GL;TRH213,223..(09S,10S,11S,14S)..GL;KDH222,TRH200,223..(06S,12S,14S)..(ARL,CIS,GEN)

 1
88891H - COVER, COOLER, NO.1
88891-26250

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

 1
88891Q - COVER, COOLER, NO.2
88891-26270

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

NO.1

 1
88891-26280

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

NO.2

 1
88891Q - COVER, COOLER, NO.2
88891-26270

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

NO.1

 1
88891-26280

KDH201..SP..06S;TRH223..4FC..GL;KDH222,TRH223..GL..SA;KDH212,TRH213..STD..VN;TRH200,203..RHD..(06S,12S);KDH202,203,222,223,TRH223..(12S,14S)..(ARL,CIS,MA,RUS,TH);KDH202,212,TRH213..(HRF,SMRF)..(09S,10S,11S,12S)..(GEN,SA,TH,VN)

NO.2

 1
Common parts
88718-2F070
88718-2F100
88718-2F200
88718-2F210
88718-2F220
88718-2F260
90099-00264
90099-00968
90099-04492
90099-14119
90099-14120
90099-14121
91553-80630
91553-80814
91673-80620
Linked diagrams
8714
