Toyota Hiace TRH203 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
US
HIACE
TRH203L-RDMDK (2005)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

TRH203L-RDMDK (2005)

Toyota Hiace

Production Jan 2005 - Aug 2010

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501- )KDH222,TRH223..GL..SA ; (0501- )TRH223..RHD..5F..ARL,GEN ; (0501-

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26830	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26830	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26820	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
Common parts
87121-26130
87121-26140
87124-26481
90099-00275
90466-18001
91553-80818
Linked diagrams
8712

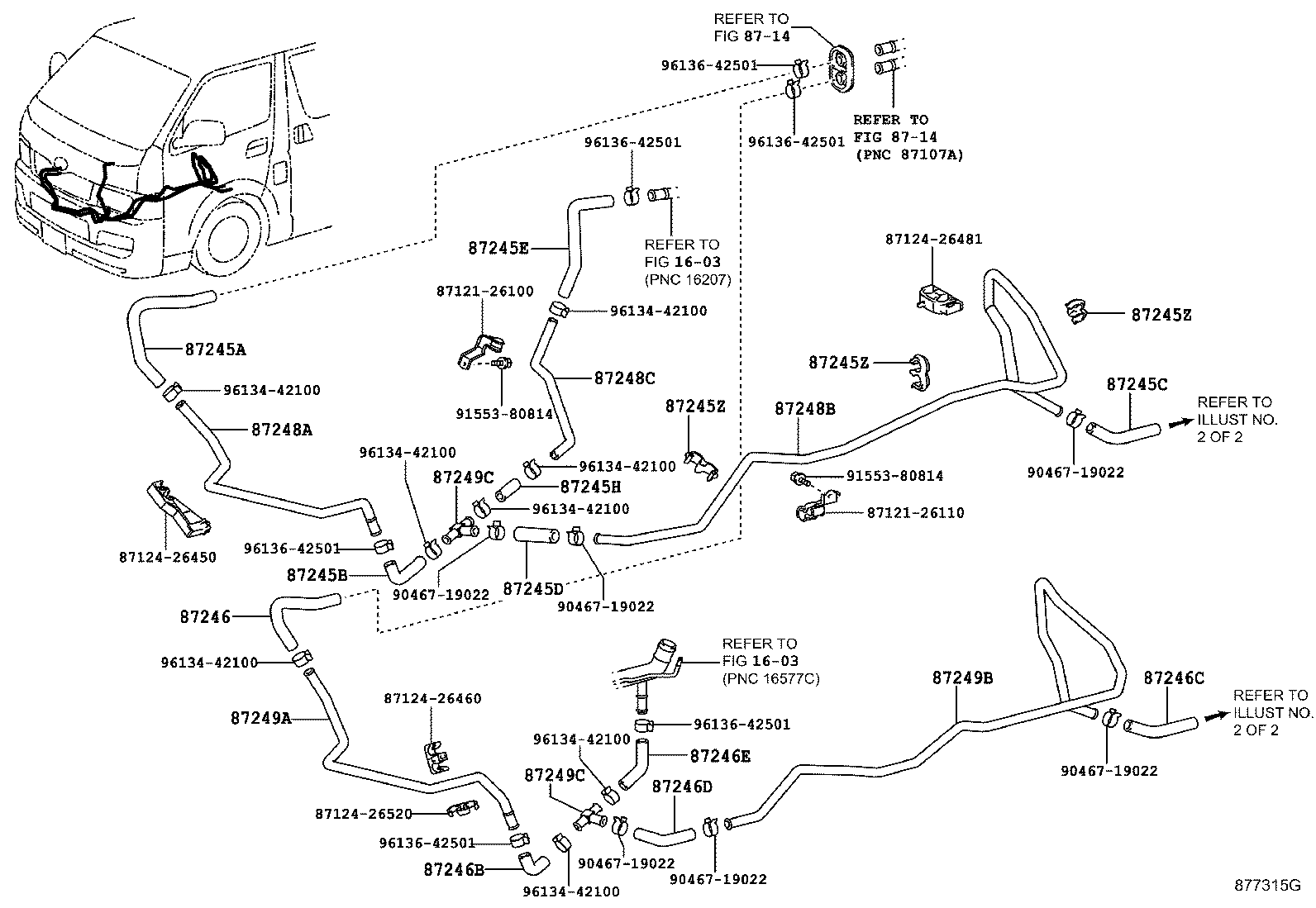

ILLUST NO. 1 OF 2(0501-0709)KDH202..4FC ; (0501- )KDH202,203..LHD..5F..GEN

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26B00	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C00	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B40	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26C00	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN *H,L=220,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
99556-20300	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245D - HOSE, HEATER WATER, INLET D
99556-20200	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN *H,L=60,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B60	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B60	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C10	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245H - HOSE, HEATER WATER, INLET H
99556-30100	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90464-00558	KDH202..15S..GEN;KDH202,203..LHD..12S FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 08/2011	3
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90464-00558	KDH202..15S..GEN;KDH202,203..LHD..12S FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 08/2011	3
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90464-00558	KDH202..15S..GEN;KDH202,203..LHD..12S FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 08/2011	3
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C80	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B50	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26C20	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
99556-20220	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN *H,L=220,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B70	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B70	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248A - PIPE, HEATER WATER INLET, A
87248-26420	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87248B - PIPE, HEATER WATER INLET, B
87248-26460	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26570	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26480	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248C - PIPE, HEATER WATER INLET, C
87248-26540	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26490	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26470	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 07/2011	2
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 07/2011	2
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

ILLUST NO. 1 OF 2(0501- )TRH201,203..LHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26B00	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C00	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B40	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26C00	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B60	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B60	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C10	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C80	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B50	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26C20	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B70	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B70	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248A - PIPE, HEATER WATER INLET, A
87248-26420	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87248B - PIPE, HEATER WATER INLET, B
87248-26460	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26570	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26480	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26490	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26470	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

ILLUST NO. 1 OF 2(0501- )TRH203..LHD..GEN

Click highlighted areas on diagram

FRONT:W(REAR HEATER)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26B00	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C00	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B40	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26C00	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN *H,L=220,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
99556-20300	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B60	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B60	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C10	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C80	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B50	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26C20	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN *H,L=210,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
99556-20220	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN *H,L=220,FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B70	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B70	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248A - PIPE, HEATER WATER INLET, A
87248-26420	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87248B - PIPE, HEATER WATER INLET, B
87248-26460	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26570	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26480	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26490	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26470	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

ILLUST NO. 1 OF 2(0501- )TRH223..GL..SA ; (0501- )TRH223..14S,16S..ARL,GCC,GEN ; (0501- )TR

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26B00	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B00	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B40	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C00	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26C00	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B40	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B40	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26C00	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C00	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26C10	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B60	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B60	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B60	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B60	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C10	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C10	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B10	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B10	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B50	TRH201..06S..GCC;LH20#,TRH203..SRF;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C80	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26C80	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B50	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B50	LH202;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26C20	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26C20	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26C30	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26C30	KDH222..GL..GCC;KDH202..15S..GEN;KDH202,203,222..LHD..(12S,16S)..5F..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 10/2013	1
87245-26B70	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B70	TRH223..5F..GEN;TRH223..GL..GCC;TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87245-26B70	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87245-26B70	TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248A - PIPE, HEATER WATER INLET, A
87248-26420	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26420	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87248B - PIPE, HEATER WATER INLET, B
87248-26460	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26460	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26570	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26570	KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26480	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26480	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26430	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26430	KDH200,202,LH20#,TRH201,203..LHD FRONT HEATER-WITH	01/2005 - 12/2013	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26490	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26490	TRH203..SRF;TRH201..06S..GCC;TRH201..03S..(GCC,GEN) FRONT HEATER-WITH	01/2005 - 12/2013	1
87248-26470	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26470	TRH203..LHD..GEN FRONT HEATER-WITH&REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

ILLUST NO. 2 OF 2(0501-0709)KDH202..4FC ; (0501- )KDH202,203,LH202,TRH203..LHD..12S..5F

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26830	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248J - PIPE, HEATER WATER INLET, J
87248-26720	KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2999	1
87248-26720	TRH203..SRF..12S REAR HEATER-WITH(FLOOR SET)	01/2005 - 08/2010	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87249G - PIPE, HEATER WATER OUTLET, G
87248-26730	TRH203..SRF..12S REAR HEATER-WITH(FLOOR SET)	01/2005 - 08/2010	1
87248-26730	KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2999	1
Common parts
87121-26150
87124-26481
87124-26530
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

ILLUST NO. 2 OF 2(0501- )TRH223..LHD..STD..GEN ; (0501- )KDH222,223,LH222..LHD..GEN,RUS ; (050

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26830	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26830	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248J - PIPE, HEATER WATER INLET, J
87248-26720	KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2999	1
87248-26720	KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2999	1
87248-26720	TRH203..SRF..12S REAR HEATER-WITH(FLOOR SET)	01/2005 - 08/2010	1
87248-26720	TRH203..SRF..12S REAR HEATER-WITH(FLOOR SET)	01/2005 - 08/2010	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26820	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87248-26820	KDH202,203,LH202,TRH203..LHD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2013	1
87249G - PIPE, HEATER WATER OUTLET, G
87248-26730	TRH203..SRF..12S REAR HEATER-WITH(FLOOR SET)	01/2005 - 08/2010	1
87248-26730	TRH203..SRF..12S REAR HEATER-WITH(FLOOR SET)	01/2005 - 08/2010	1
87248-26730	KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2999	1
87248-26730	KDH222,TRH223..16S..GL;KDH202,203,222,LH202,222,TRH223..LHD..(12S,16S)..5F..STD..GEN REAR HEATER-WITH(FLOOR SET)	01/2005 - 12/2999	1
Common parts
87121-26150
87124-26481
87124-26530
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712

TRH203L-RDMDK (2005)

ILLUST NO. 2 OF 2(0501- )KDH222,TRH223..GL..SA ; (0501- )TRH223..RHD..5F..ARL,GEN ; (0501-

ILLUST NO. 1 OF 2(0501-0709)KDH202..4FC ; (0501- )KDH202,203..LHD..5F..GEN

ILLUST NO. 1 OF 2(0501- )TRH201,203..LHD

ILLUST NO. 1 OF 2(0501- )TRH203..LHD..GEN

ILLUST NO. 1 OF 2(0501- )TRH223..GL..SA ; (0501- )TRH223..14S,16S..ARL,GCC,GEN ; (0501- )TR

ILLUST NO. 2 OF 2(0501-0709)KDH202..4FC ; (0501- )KDH202,203,LH202,TRH203..LHD..12S..5F

ILLUST NO. 2 OF 2(0501- )TRH223..LHD..STD..GEN ; (0501- )KDH222,223,LH222..LHD..GEN,RUS ; (050

Part Price Details
