TRH201R-SRPDK (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH202..GL..GEN ; (0501- )KDH200,201,LH200,TRH201..SRF

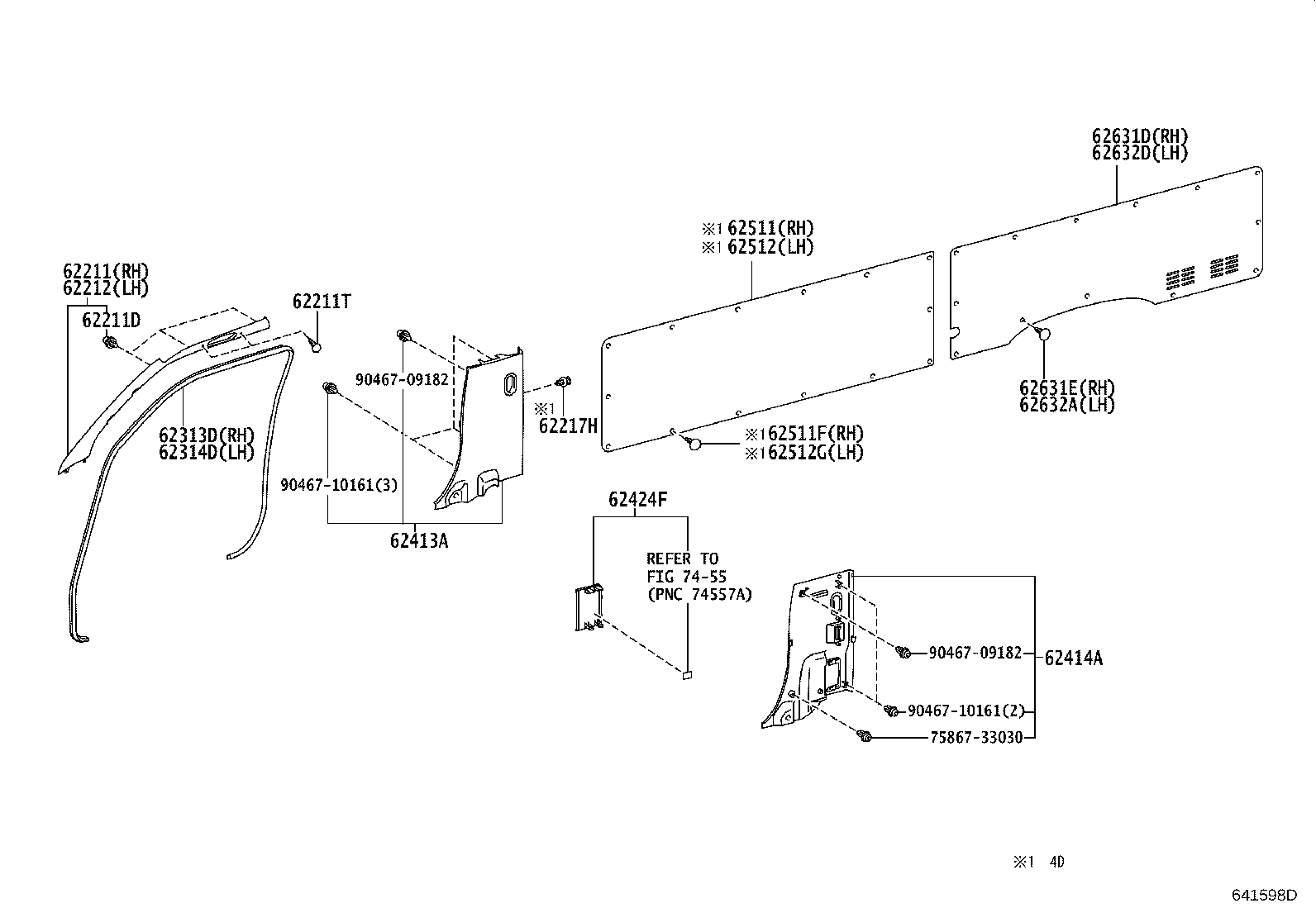

Click highlighted areas on diagram

CENTER PILLOR GARNISH = LOWER ONLY

diagram 62211 62211D 62211T 62212 62217H 62313D 62314D 62413A 62414A 62424F 62511 62511F 62512 62512G 62631D 62631E 62632A 62632D 7455 7586733030 9046709182 9046709182 9046710161 9046710161
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-26050B0

KDH200..06S..GCC;LH200,TRH201..SRF;KDH200..03S..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62210-26052B0

KDH201..03S;KDH201,TRH201..SG..06S;KDH200,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62210-26051B0

KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..GCC,GEN,SA,TH

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62210-26041B0

KDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)

LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH

AIR CONDITIONER-DUAL AIR CONDITIONER

 2
90467-10161

KDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)

 6
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-06177B5

KDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)

LT.GRAY,TRIM1#

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-26030B0

KDH200,LH200..03S..GEN;TRH201..SRF..(ARL,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62220-26031B0

KDH201,TRH201..SG..06S..GEN;KDH200,201,LH200,TRH201..SP..03S..(ARL,GEN,TH)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62220-26032B0

KDH201..03S;KDH201,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..SP..03S..(ARL,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62220-26021B0

KDH201,202,203,TRH201..SRF..SG..GEN;KDH201,TRH201..SP..03S..(ARL,GEN,TH);KDH200,LH20#,TRH203..SRF..(ARL,GEN,MA,TH)

LT.GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0

KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S

BLACK,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0

KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S

BLACK,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26200B1

KDH200,LH200..LHD..4D;KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE),GRAY,TRIM1#

 1
62413-26210B1

TRH221..ARL,GEN,SA;KDH201,TRH201..SG..GEN;KDH201,TRH201..5D..03S..GEN;KDH200,220,221,LH200..5D..(ARL,GEN,SA);KDH200,202,222,LH20#,222,TRH203,223..LHD..4D..STD

GRAY,TRIM1#

 1
62413-26220B1

KDH200,LH200..LHD..4D;KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62413-26230B1

TRH201..SG..06S..GEN;TRH201..5D..03S..GEN;KDH200,LH200..LHD..4D;KDH200,220,LH200,TRH221..5D..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62413-26210B0

KDH201,TRH201..SG..GEN;KDH220,221,TRH221..ARL,GEN,SA;KDH200,201,LH200,TRH201..5D..03S..GEN;KDH200,202,203,222,LH20#,222,TRH203,223..LHD..4D..STD

DK.GRAY,TRIM1#

 1
62413-26200B0

KDH200,LH200..LHD..4D;KDH201,TRH201..SG..06S..GEN;KDH200,201,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE),DK.GRAY,TRIM1#

 1
62413-26220B0

TRH201..SG..06S..GEN;KDH200,LH200..LHD..4D;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62413-26230B0

TRH201..SG..06S..GEN;KDH200,LH200..LHD..4D;KDH200,220,LH200,TRH201,221..5D..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26260B1

KDH220;KDH200..LHD..5D..GEN;TRH201..SG..06S..GEN;KDH200,LH200..RHD..(ARL,GEN,SA);TRH201,221..SP..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62414-26220B1

KDH200..LHD..5D..GEN;KDH201,203,220,221..03S,14S;TRH223..RHD..STD..(GEN,SA,TH);TRH201,221..SP..03S..(ARL,GEN,SA);KDH201,202,TRH201..RHD..SRF..SG..GEN;KDH200,222,LH20#,222,TRH203..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
62414-26250B1

KDH200..LHD..5D..GEN;TRH201..SP..03S..GEN;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,LH200..RHD..03S..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62414-26210B1

KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE),GRAY,TRIM1#

 1
62414-26420B0

KDH200..LHD..5D..GEN;TRH201..SG..06S..GEN;KDH200,LH200..RHD..(GEN,SA);KDH220,TRH201,221..SP..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62414-26250B0

LH200..RHD;KDH200..RHD..4D..GEN;KDH201..03S..(GEN,TH);KDH201,TRH201..SG..06S..GEN;KDH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62414-26420B1

KDH201,220,221..03S;KDH200..LHD..5D..GEN;KDH201,TRH201..SG..06S..GEN;KDH200,LH200..RHD..(GEN,SA,TH);TRH201,221..SP..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26030B1

KDH212..4FC;TRH223..RHD;TRH223..12S,13S;TRH223..LHD..STD;KDH222..STD..GCC;KDH212..10S,15S,16S;KDH222..ARL,GEN,SA,TH;KDH20#,220,221,223,LH20#,212,222,TRH20#,213,221..03S,06S,10S,11S,12S,14S,15S,16S

GRAY,TRIM1#

 1
62424-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

DK.GRAY,TRIM1#

 1
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26230

KDH200,201,LH200,TRH200,201..SRF

 1
62631E - RETAINER, QUATER TRIM
67771-26230E0

KDH201..06S;TRH201..SG..4FC;TRH201..06S..5F..GEN

CREAM YELLOW,TRIM1#

 13
67771-26230E0

KDH201,TRH200,201..06S..GEN

CREAM YELLOW,TRIM1#

 1
67771-26230E0

KDH201,TRH201..SG..06S..GEN

REAR SEAT-WITHOUT,CREAM YELLOW,TRIM1#

 13
62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD)
67771-26230E0

KDH201..06S;TRH201..SG..4FC;TRH201..06S..5F..GEN

CREAM YELLOW,TRIM1#

 13
67771-26230E0

KDH201,TRH200,201..06S..GEN

CREAM YELLOW,TRIM1#

 1
67771-26230E0

KDH201,TRH201..SG..06S..GEN

REAR SEAT-WITHOUT,CREAM YELLOW,TRIM1#

 13
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26650

KDH200,TRH201..SG..GEN

 1
62632-26300

KDH200,TRH201..SG..GEN

REAR SEAT-WITHOUT

 1
Common parts
75867-33030
90467-09182
90467-10161
Linked diagrams
7455

(0501- )KDH200,202,203,LH20#,TRH201,203..SRF..ARL,GCC,GEN ; (0602-0709)KDH202..S

Click highlighted areas on diagram

W(DUAL AIR CONDITIONER)

diagram 5851 6151 6151 62211 62211D 62212 62217H 62217J 62313D 62314D 62411 62412 62413A 62414A 62424F 62511 62511F 62512 62512G 62631D 62631E 62632A 62632D 64383B 7152 7455 7586733030 8715 8715 8715 8715 9018305016 9046709182 9046709182 9046709182 9046710161 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-26050B0

KDH200..06S..GCC;LH200,TRH201..SRF;KDH200..03S..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62210-26052B0

KDH201..03S;KDH201,TRH201..SG..06S;KDH200,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62210-26051B0

KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..GCC,GEN,SA,TH

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62210-26041B0

KDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)

LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH

AIR CONDITIONER-DUAL AIR CONDITIONER

 2
90467-10161

KDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)

 6
62212 - GARNISH, FRONT PILLAR, LH
62220-26030B0

KDH200,LH200..03S..GEN;TRH201..SRF..(ARL,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62220-26031B0

KDH201,TRH201..SG..06S..GEN;KDH200,201,LH200,TRH201..SP..03S..(ARL,GEN,TH)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62220-26032B0

KDH201..03S;KDH201,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..SP..03S..(ARL,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62220-26021B0

KDH201,202,203,TRH201..SRF..SG..GEN;KDH201,TRH201..SP..03S..(ARL,GEN,TH);KDH200,LH20#,TRH203..SRF..(ARL,GEN,MA,TH)

LT.GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0

KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S

BLACK,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0

KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S

BLACK,TRIM1#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-26070B0

KDH200,LH200..LHD..4D;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62410-26070B0

KDH200,LH200..5D;KDH200,LH200..LHD..4D;KDH201,TRH201..SG..06S;KDH201,TRH201..5D..03S

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-26050B0

KDH200..LHD..5D;KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..RHD..(ARL,GEN,SA,TH)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62420-26050B0

KDH200..LHD..5D..GEN;KDH200,LH200..RHD..03S..GEN;KDH200,201,TRH201..SG..06S..GEN;KDH201,TRH201..SP..03S..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26200B1

KDH200,LH200..LHD..4D;KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE),GRAY,TRIM1#

 1
62413-26210B1

TRH221..ARL,GEN,SA;KDH201,TRH201..SG..GEN;KDH201,TRH201..5D..03S..GEN;KDH200,220,221,LH200..5D..(ARL,GEN,SA);KDH200,202,222,LH20#,222,TRH203,223..LHD..4D..STD

GRAY,TRIM1#

 1
62413-26220B1

KDH200,LH200..LHD..4D;KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62413-26230B1

TRH201..SG..06S..GEN;TRH201..5D..03S..GEN;KDH200,LH200..LHD..4D;KDH200,220,LH200,TRH221..5D..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62413-26210B0

KDH201,TRH201..SG..GEN;KDH220,221,TRH221..ARL,GEN,SA;KDH200,201,LH200,TRH201..5D..03S..GEN;KDH200,202,203,222,LH20#,222,TRH203,223..LHD..4D..STD

DK.GRAY,TRIM1#

 1
62413-26200B0

KDH200,LH200..LHD..4D;KDH201,TRH201..SG..06S..GEN;KDH200,201,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE),DK.GRAY,TRIM1#

 1
62413-26220B0

TRH201..SG..06S..GEN;KDH200,LH200..LHD..4D;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62413-26230B0

TRH201..SG..06S..GEN;KDH200,LH200..LHD..4D;KDH200,220,LH200,TRH201,221..5D..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26260B1

KDH220;KDH200..LHD..5D..GEN;TRH201..SG..06S..GEN;KDH200,LH200..RHD..(ARL,GEN,SA);TRH201,221..SP..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62414-26220B1

KDH200..LHD..5D..GEN;KDH201,203,220,221..03S,14S;TRH223..RHD..STD..(GEN,SA,TH);TRH201,221..SP..03S..(ARL,GEN,SA);KDH201,202,TRH201..RHD..SRF..SG..GEN;KDH200,222,LH20#,222,TRH203..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
62414-26250B1

KDH200..LHD..5D..GEN;TRH201..SP..03S..GEN;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,LH200..RHD..03S..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62414-26210B1

KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE),GRAY,TRIM1#

 1
62414-26420B0

KDH200..LHD..5D..GEN;TRH201..SG..06S..GEN;KDH200,LH200..RHD..(GEN,SA);KDH220,TRH201,221..SP..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62414-26250B0

LH200..RHD;KDH200..RHD..4D..GEN;KDH201..03S..(GEN,TH);KDH201,TRH201..SG..06S..GEN;KDH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62414-26420B1

KDH201,220,221..03S;KDH200..LHD..5D..GEN;KDH201,TRH201..SG..06S..GEN;KDH200,LH200..RHD..(GEN,SA,TH);TRH201,221..SP..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26030B1

KDH212..4FC;TRH223..RHD;TRH223..12S,13S;TRH223..LHD..STD;KDH222..STD..GCC;KDH212..10S,15S,16S;KDH222..ARL,GEN,SA,TH;KDH20#,220,221,223,LH20#,212,222,TRH20#,213,221..03S,06S,10S,11S,12S,14S,15S,16S

GRAY,TRIM1#

 1
62424-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

DK.GRAY,TRIM1#

 1
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26230

KDH200,201,LH200,TRH200,201..SRF

 1
62631E - RETAINER, QUATER TRIM
67771-26230E0

KDH201..06S;TRH201..SG..4FC;TRH201..06S..5F..GEN

CREAM YELLOW,TRIM1#

 13
67771-26230E0

KDH201,TRH200,201..06S..GEN

CREAM YELLOW,TRIM1#

 1
67771-26230E0

KDH201,TRH201..SG..06S..GEN

REAR SEAT-WITHOUT,CREAM YELLOW,TRIM1#

 13
62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD)
67771-26230E0

KDH201..06S;TRH201..SG..4FC;TRH201..06S..5F..GEN

CREAM YELLOW,TRIM1#

 13
67771-26230E0

KDH201,TRH200,201..06S..GEN

CREAM YELLOW,TRIM1#

 1
67771-26230E0

KDH201,TRH201..SG..06S..GEN

REAR SEAT-WITHOUT,CREAM YELLOW,TRIM1#

 13
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26650

KDH200,TRH201..SG..GEN

 1
62632-26300

KDH200,TRH201..SG..GEN

REAR SEAT-WITHOUT

 1
Common parts
75867-33030
90183-05016
90467-09182
90467-10161
Linked diagrams
5851
6151
7152
7455
8715

(0501- )KDH200,201,LH200,TRH200,201..5D

Click highlighted areas on diagram

W(DUAL AIR CONDITIONER)

diagram 5851 6151 6151 62211 62211D 62212 62313D 62314D 62411 62412 62413A 62414A 62424F 62631D 62631E 62632A 62632D 7452 7455 7586733030 9046709182 9046709182 9046709182 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-26050B0

KDH200..06S..GCC;LH200,TRH201..SRF;KDH200..03S..(GCC,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62210-26052B0

KDH201..03S;KDH201,TRH201..SG..06S;KDH200,LH200,TRH201..SP..03S..(ARL,GCC,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62210-26051B0

KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..GCC,GEN,SA,TH

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62210-26041B0

KDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)

LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..ARL,GCC,GEN,SA,TH

AIR CONDITIONER-DUAL AIR CONDITIONER

 2
90467-10161

KDH201,TRH201..SP..03S;KDH200,LH20#,TRH203..SRF;KDH201,202,203,TRH201..SRF..SG..(GCC,GEN)

 6
62212 - GARNISH, FRONT PILLAR, LH
62220-26030B0

KDH200,LH200..03S..GEN;TRH201..SRF..(ARL,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62220-26031B0

KDH201,TRH201..SG..06S..GEN;KDH200,201,LH200,TRH201..SP..03S..(ARL,GEN,TH)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62220-26032B0

KDH201..03S;KDH201,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..SP..03S..(ARL,GEN)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62220-26021B0

KDH201,202,203,TRH201..SRF..SG..GEN;KDH201,TRH201..SP..03S..(ARL,GEN,TH);KDH200,LH20#,TRH203..SRF..(ARL,GEN,MA,TH)

LT.GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0

KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S

BLACK,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0

KDH212,222..4D..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S

BLACK,TRIM1#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-26070B0

KDH200,LH200..LHD..4D;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62410-26070B0

KDH200,LH200..5D;KDH200,LH200..LHD..4D;KDH201,TRH201..SG..06S;KDH201,TRH201..5D..03S

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-26050B0

KDH200..LHD..5D;KDH201,TRH201..SG..06S;KDH201,TRH201..SP..03S;KDH200,LH200..RHD..(ARL,GEN,SA,TH)

AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62420-26050B0

KDH200..LHD..5D..GEN;KDH200,LH200..RHD..03S..GEN;KDH200,201,TRH201..SG..06S..GEN;KDH201,TRH201..SP..03S..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26200B1

KDH200,LH200..LHD..4D;KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE),GRAY,TRIM1#

 1
62413-26210B1

TRH221..ARL,GEN,SA;KDH201,TRH201..SG..GEN;KDH201,TRH201..5D..03S..GEN;KDH200,220,221,LH200..5D..(ARL,GEN,SA);KDH200,202,222,LH20#,222,TRH203,223..LHD..4D..STD

GRAY,TRIM1#

 1
62413-26220B1

KDH200,LH200..LHD..4D;KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62413-26230B1

TRH201..SG..06S..GEN;TRH201..5D..03S..GEN;KDH200,LH200..LHD..4D;KDH200,220,LH200,TRH221..5D..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62413-26210B0

KDH201,TRH201..SG..GEN;KDH220,221,TRH221..ARL,GEN,SA;KDH200,201,LH200,TRH201..5D..03S..GEN;KDH200,202,203,222,LH20#,222,TRH203,223..LHD..4D..STD

DK.GRAY,TRIM1#

 1
62413-26200B0

KDH200,LH200..LHD..4D;KDH201,TRH201..SG..06S..GEN;KDH200,201,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE),DK.GRAY,TRIM1#

 1
62413-26220B0

TRH201..SG..06S..GEN;KDH200,LH200..LHD..4D;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62413-26230B0

TRH201..SG..06S..GEN;KDH200,LH200..LHD..4D;KDH200,220,LH200,TRH201,221..5D..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26260B1

KDH220;KDH200..LHD..5D..GEN;TRH201..SG..06S..GEN;KDH200,LH200..RHD..(ARL,GEN,SA);TRH201,221..SP..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62414-26220B1

KDH200..LHD..5D..GEN;KDH201,203,220,221..03S,14S;TRH223..RHD..STD..(GEN,SA,TH);TRH201,221..SP..03S..(ARL,GEN,SA);KDH201,202,TRH201..RHD..SRF..SG..GEN;KDH200,222,LH20#,222,TRH203..RHD..(03S,06S,15S,16S)

GRAY,TRIM1#

 1
62414-26250B1

KDH200..LHD..5D..GEN;TRH201..SP..03S..GEN;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,LH200..RHD..03S..(GEN,TH)

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62414-26210B1

KDH200,TRH201..SG..06S..GEN;KDH200,LH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE),GRAY,TRIM1#

 1
62414-26420B0

KDH200..LHD..5D..GEN;TRH201..SG..06S..GEN;KDH200,LH200..RHD..(GEN,SA);KDH220,TRH201,221..SP..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,GRAY,TRIM1#

 1
62414-26250B0

LH200..RHD;KDH200..RHD..4D..GEN;KDH201..03S..(GEN,TH);KDH201,TRH201..SG..06S..GEN;KDH200,TRH201..5D..03S..GEN

ROOM SEPARATOR-WITH(PIPE:FIXED TYPE)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62414-26420B1

KDH201,220,221..03S;KDH200..LHD..5D..GEN;KDH201,TRH201..SG..06S..GEN;KDH200,LH200..RHD..(GEN,SA,TH);TRH201,221..SP..03S..(ARL,GEN,SA)

AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#

 1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26030B1

KDH212..4FC;TRH223..RHD;TRH223..12S,13S;TRH223..LHD..STD;KDH222..STD..GCC;KDH212..10S,15S,16S;KDH222..ARL,GEN,SA,TH;KDH20#,220,221,223,LH20#,212,222,TRH20#,213,221..03S,06S,10S,11S,12S,14S,15S,16S

GRAY,TRIM1#

 1
62424-26030B0

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

DK.GRAY,TRIM1#

 1
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26230

KDH200,201,LH200,TRH200,201..SRF

 1
62631E - RETAINER, QUATER TRIM
67771-26230E0

KDH201..06S;TRH201..SG..4FC;TRH201..06S..5F..GEN

CREAM YELLOW,TRIM1#

 13
67771-26230E0

KDH201,TRH200,201..06S..GEN

CREAM YELLOW,TRIM1#

 1
67771-26230E0

KDH201,TRH201..SG..06S..GEN

REAR SEAT-WITHOUT,CREAM YELLOW,TRIM1#

 13
62632A - RETAINER(FOR QUARTER INSIDE TRIM BOARD)
67771-26230E0

KDH201..06S;TRH201..SG..4FC;TRH201..06S..5F..GEN

CREAM YELLOW,TRIM1#

 13
67771-26230E0

KDH201,TRH200,201..06S..GEN

CREAM YELLOW,TRIM1#

 1
67771-26230E0

KDH201,TRH201..SG..06S..GEN

REAR SEAT-WITHOUT,CREAM YELLOW,TRIM1#

 13
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26650

KDH200,TRH201..SG..GEN

 1
62632-26300

KDH200,TRH201..SG..GEN

REAR SEAT-WITHOUT

 1
Common parts
75867-33030
90467-09182
90467-10161
Linked diagrams
5851
6151
7452
7455
