KDH222R-LEMDYQ (2005)
Toyota Hiace
(0501- )KDH22#,LH222,TRH223..RHD..4D
RH

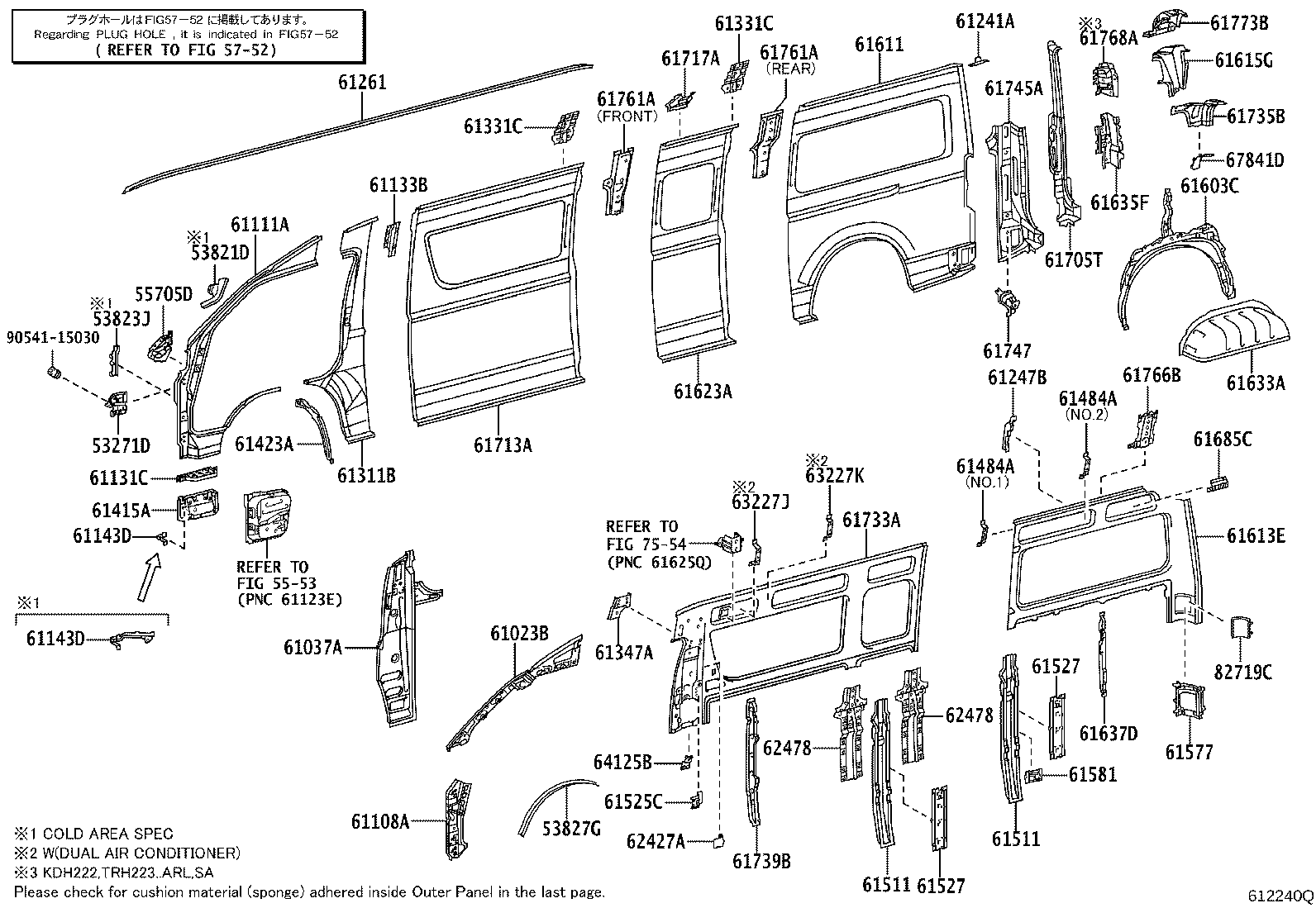

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271D - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-26021 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26200 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-26040 |
KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH201,203,213,223..RHD..4D |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61131-26110 |
KDH221,222,TRH221..ARL;KDH220..RHD..(ARL,GEN) |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-26080 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-26010 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26010 |
TRH213..GL..VN;TRH213..LHD..(09S,16S);TRH213..RHD..(10S,11S,16S);KDH212,222..(10S,11S,14S,16S)..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,22#..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26010 |
TRH213..GL..VN;TRH213..LHD..(09S,16S);TRH213..RHD..(10S,11S,16S);KDH212,222..(10S,11S,14S,16S)..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,22#..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 61241A - GUSSET, ROOF SIDE RAIL, REAR RH | ||||
| 61241-26030 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-26020 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
5 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-26060 |
KDH22#,LH222,TRH22# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-26070 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
1 | ||
| 61331C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER RH | ||||
| 61331-26010 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
2 | ||
| 61331C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER RH | ||||
| 61331-26010 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
2 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-26040 |
KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH201,203,213,223..RHD..4D |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-26020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26110 |
KDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS NO.1 |
1 | ||
| 61481-26100 |
KDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS NO.2 |
4 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26110 |
KDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS NO.1 |
1 | ||
| 61481-26100 |
KDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS NO.2 |
4 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-26070 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
2 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-26070 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
2 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-26030 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
2 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-26030 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
2 | ||
| 61577 - PLATE, CAB REAR PILLAR, LOWER RH | ||||
| 61071-26100 |
KDH212..4FC;KDH212,222,TRH223..GL..SA;KDH223,TRH213..10S,11S,12S,14S;KDH222,TRH223..(12S,13S,14S)..(ARL,CIS,GEN) |
1 | ||
| 61577-26020 |
KDH222,TRH223..16S..GL;KDH222..STD..(GCC,GEN,SA);TRH223..STD..(GCC,GEN,SA,TH);KDH20#,220,221,LH20#,212,222,TRH20#,221;KDH212,223,TRH213..4D..(09S,11S,15S,16S) |
1 | ||
| 61581 - BRACKET, REAR SEAT, NO.1 | ||||
| 61581-26040 |
KDH222..ARL |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61605-26340 |
KDH222,TRH223..5F..ARL SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER |
1 | ||
| 61605-26340 |
KDH222,TRH223..5F..ARL SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER |
1 | ||
| 61605-26490 |
KDH222,223,TRH223..14S |
1 | ||
| 61605-26350 |
KDH222,223..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-26490 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26D40 |
KDH222..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&AIR CONDITIONER-WITHOUT&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 61613-26D30 |
KDH222,TRH223..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 61613-26F40 |
KDH222,223..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 61613-26F30 |
KDH222,223,TRH223..ARL |
1 | ||
| 61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH | ||||
| 61615-26160 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-26090 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-26050 |
KDH222,223..ARL;TRH223..5F..ARL NEW ZEALAND SPEC |
1 | ||
| 61603-26030 |
KDH212..4FC;TRH213,223..11S,14S,15S,16S;KDH202,223,LH202,TRH203..RHD..(14S,15S,16S);KDH212,222,LH212,222..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN) |
1 | ||
| 61635F - REINFORCEMENT, QUARTER PANEL, UPR RH | ||||
| 61635-26050 |
KDH222,TRH223..16S..GL;KDH222..STD..(GCC,GEN,SA);TRH223..STD..(GCC,GEN,SA,TH);KDH20#,220,221,LH20#,212,222,TRH20#,221;KDH212,223,TRH213..4D..(09S,11S,15S,16S) |
1 | ||
| 61635-26040 |
KDH212..4FC;KDH212,222,TRH223..GL..SA;KDH223,TRH213..10S,11S,12S,14S;KDH222,TRH223..(12S,13S,14S)..(ARL,CIS,GEN) |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26020 |
KDH222..ARL |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26290 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-26010 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-26070 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-26110 |
KDH222,TRH223..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 61733-26160 |
KDH222..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&AIR CONDITIONER-WITHOUT&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 61733-26170 |
KDH222,223..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 61733-26120 |
KDH222,223,TRH223..ARL |
1 | ||
| 61735B - EXTENSION, QUARTER PANEL, INNER RH | ||||
| 61735-26A70 |
KDH222..STD..(ARL,GCC,GEN,SA);KDH220,221,223,LH222,TRH22#..STD |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26040 |
KDH222..RHD..(ARL,GEN,SA);KDH202,203,212,223,LH202,212,222,TRH203,213,223..RHD..4D |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26050 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-26020 |
KDH200,22#,TRH201,22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26090 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D FRONT |
1 | ||
| 61761-26110 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D REAR |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26090 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D FRONT |
1 | ||
| 61761-26110 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D REAR |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-26040 |
KDH222,TRH223..GL..SA;KDH222,223,TRH223..(12S,13S,14S)..(ARL,CIS,GEN,RUS) |
1 | ||
| 61768A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61801-26010 |
KDH222..ARL |
1 | ||
| 61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH | ||||
| 61773-26150 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 62427A - BRACKET, CENTER PILLAR GARNISH, RH | ||||
| 62427-26050 |
KDH222..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&AIR CONDITIONER-WITHOUT&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 62427-26050 |
KDH202..HRF..GEN;KDH222,TRH203,223..HRF..(12S,14S)..(ARL,GEN,MA);KDH202,203,212,223,TRH213..(12S,14S,15S)..(ARL,MA,SA,TH) |
2 | ||
| 62427-26050 |
KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 62427-26050 |
KDH202..RHD..SRF..GEN;KDH222,TRH223..RHD..STD..(GEN,SA);KDH200,201,203,220,221,LH20#,222,TRH201,203..RHD..4D..(03S,14S,15S,16S) |
1 | ||
| 62478 - PATCH, CENTER PILLAR, RH | ||||
| 62478-26040 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
2 | ||
| 62478 - PATCH, CENTER PILLAR, RH | ||||
| 62478-26040 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..4D |
2 | ||
| 63227J - BRACKET, ROOF HEADLINING, FR RH NO.4 | ||||
| 63227-26030 |
KDH222..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&AIR CONDITIONER-WITHOUT&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 63227-26030 |
KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-26050 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 67841D - COVER, QUARTER SERVICE HOLE, RH | ||||
| 67841-26040B0 |
KDH222..ARL AIR CONDITIONER-WITHOUT,LT.GRAY,TRIM1# |
1 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26030B0 |
KDH222,LH212,TRH223..STD..(GCC,GEN,SA,TH);KDH20#,212,220,221,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
| 7554 | ||||
(0501- )KDH22#,LH222,TRH223..RHD..4D
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53272B - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-26011 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26050 |
TRH201..SP..03S;KDH200,201,222,TRH201..SG..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH203,213,22#..03S,09S,10S,11S,12S,13S,14S,15S,16S |
1 | ||
| 58336G - PLATE, FLOOR SIDE, FR LH | ||||
| 58336-26040 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH222..RHD..(ARL,GEN,SA);KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH | ||||
| 58448-26010B0 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# LT.GRAY,TRIM1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26160 |
TRH221..SP..(ARL,GEN);KDH220,221,222,LH222..ARL,GEN;KDH223,TRH223..ARL,CIS,GEN,RUS,TH |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-26010 |
KDH200..ARL;KDH220..RHD..(ARL,GEN);KDH222..RHD..(ARL,GEN,SA);KDH200,212,TRH201..5D..(06S,11S);KDH201,202,203,212,223,LH202,212,222,TRH200,203,213,223..RHD..(06S,10S,11S,12S,14S,15S,16S) |
1 | ||
| 61084B - BRACE SUB-ASSY, ROOF SIDE INNER, FR LH | ||||
| 61084-26080 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61132-26160 |
TRH223..RHD;KDH222..STD..GCC;TRH223..LHD..STD;KDH222..ARL,GEN,SA,TH;KDH220,221,223,LH222,TRH221 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-26120 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
TRH213..GL..VN;TRH213..LHD..(09S,16S);TRH213..RHD..(10S,11S,16S);KDH212,222..(10S,11S,14S,16S)..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,22#..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
TRH213..GL..VN;TRH213..LHD..(09S,16S);TRH213..RHD..(10S,11S,16S);KDH212,222..(10S,11S,14S,16S)..(ARL,GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,22#..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-26030 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26380 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61242A - GUSSET, ROOF SIDE RAIL, REAR LH | ||||
| 61242-26020 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-26040 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61247-26020 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
3 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61214-26060 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-26050 |
KDH22#,LH222,TRH22# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26150 |
KDH22#,TRH22#..5F..ARL POWER DOOR LOCK-WITHOUT |
1 | ||
| 61312-26140 |
KDH222,TRH223..GL..SA;KDH222,TRH223..(14S,15S)..(ARL,TH);KDH220,221,223,TRH221..RHD..(ARL,GEN,TH) |
1 | ||
| 61332C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER LH | ||||
| 61332-26020 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26390 |
KDH222,TRH223..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 61344-26380 |
KDH222,TRH223..GL..SA;KDH222,223,TRH223..ARL |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61386-26020 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26050 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-26020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61461 - PANEL, ROCKER, OUTER LH | ||||
| 61461-26010 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61481 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.1 | ||||
| 61482-26050 |
KDH222,TRH223..GL..SA;KDH222,223,TRH223..ARL |
1 | ||
| 61482 - BRACKET, ROOF SIDE RAIL REINFORCE, NO.2 | ||||
| 61481-26050 |
KDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS |
1 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26110 |
KDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS NO.1 |
1 | ||
| 61481-26100 |
KDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS NO.2 |
4 | ||
| 61484A - BRACKET, ROOF SIDE RAIL REINFORCE, NO.4 | ||||
| 61481-26110 |
KDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS NO.1 |
1 | ||
| 61481-26100 |
KDH222,TRH223..GL;KDH222,223,TRH223..ARL,RUS NO.2 |
4 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61491-26010 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH222..RHD..(ARL,GEN,SA);KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61503-26030 |
TRH201..SRF;KDH200..LHD..5D;KDH212,TRH221..5D;KDH222..RHD..(ARL,GEN,SA);KDH201,220,221,223,TRH200..ARL,GEN,SA,TH;KDH200,202,203,212,LH20#,212,222,TRH203,213,223..RHD |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-26050 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61512D - PILLAR, QUARTER LOCK, LH | ||||
| 61512-26030 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61528 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH | ||||
| 61528-26040 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA);KDH200,202,203,212,LH20#,212,TRH201,203,213..LHD..4D |
1 | ||
| 61578A - PLATE, CAB REAR PILLAR, LOWER LH | ||||
| 61578-26030 |
KDH222,TRH223..16S..GL;KDH222..STD..(GCC,GEN,SA);TRH223..STD..(GCC,GEN,SA,TH);KDH20#,220,221,LH20#,212,222,TRH20#,221;KDH212,223,TRH213..4D..(09S,11S,15S,16S) |
1 | ||
| 61072-26140 |
KDH212..4FC;KDH212,222,TRH223..GL..SA;KDH223,TRH213..10S,11S,12S,14S;KDH222,TRH223..(12S,13S,14S)..(ARL,CIS,GEN) |
1 | ||
| 61582B - BRACKET, REAR SEAT, NO.2 LH | ||||
| 61581-26040 |
KDH222..ARL |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61606-26640 |
KDH222,TRH223..5F..ARL SOUTH AFRICA SPEC&COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER |
1 | ||
| 61606-26400 |
KDH222,TRH223..5F..ARL SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER |
1 | ||
| 61606-26400 |
KDH222,TRH223..5F..ARL SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER |
1 | ||
| 61606-26640 |
KDH222,TRH223..5F..ARL SOUTH AFRICA SPEC&COLD AREA SPEC&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER |
1 | ||
| 61606-26650 |
KDH222,TRH223..5F..ARL SOUTH AFRICA SPEC&COLD AREA SPEC |
1 | ||
| 61606-26630 |
KDH222..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&COLD AREA SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 61606-26410 |
KDH222,223..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 61606-26560 |
KDH222,223,TRH223..14S |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26630 |
TRH223..RHD..GEN;KDH220,222..SG..(03S,14S)..(ARL,GEN) COLD AREA SPEC |
1 | ||
| 61612-26560 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..SG |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26E30 |
KDH222,TRH223..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 61614-26E40 |
KDH222..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&AIR CONDITIONER-WITHOUT&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 61614-26C80 |
KDH222,223,TRH223..ARL |
1 | ||
| 61614-26C90 |
KDH222,223..ARL;TRH223..5F..ARL NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS) |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-26090 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-26040 |
KDH222..RHD..(ARL,GEN,SA);KDH220,221,223,LH222,TRH223..RHD..SG |
1 | ||
| 61624-26070 |
TRH223..RHD..GEN;KDH220,222..SG..(03S,14S)..(ARL,GEN) COLD AREA SPEC |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-26050 |
KDH222,223..ARL;TRH223..5F..ARL NEW ZEALAND SPEC |
1 | ||
| 61604-26020 |
KDH212..4FC;KDH202,LH202,TRH203..LHD..15S;KDH223,TRH213,223..11S,14S,15S,16S;KDH212,222,LH212,222..(14S,15S,16S)..(ARL,GCC,GEN,SA,VN) |
1 | ||
| 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH | ||||
| 61636-26030 |
KDH212..4FC;KDH212,222,TRH223..GL..SA;KDH223,TRH213..10S,11S,12S,14S;KDH222,TRH223..(12S,13S,14S)..(ARL,CIS,GEN) |
1 | ||
| 61636-26040 |
KDH222,TRH223..16S..GL;KDH222..STD..(GCC,GEN,SA);TRH223..STD..(GCC,GEN,SA,TH);KDH20#,220,221,LH20#,212,222,TRH20#,221;KDH212,223,TRH213..4D..(09S,11S,15S,16S) |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26020 |
KDH222..ARL |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26280 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-26050 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26040 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61736B - EXTENSION, QUARTER PANEL, INNER LH | ||||
| 61736-26A70 |
KDH222..STD..(ARL,GCC,GEN,SA);KDH220,221,223,LH222,TRH22#..STD |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26040 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 61748E - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-26010 |
KDH200,22#,TRH201,22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61761-26100 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-26020 |
KDH222..ARL |
1 | ||
| 61769A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61802-26010 |
KDH222..ARL |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-26150 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 61791B - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-26010B0 |
KDH222..ARL AIR CONDITIONER-WITHOUT,LT.GRAY,TRIM1# |
1 | ||
| 62479 - PATCH, CENTER PILLAR, LH | ||||
| 62479-26050 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 63228G - BRACKET, ROOF HEADLINING, FRONT LH | ||||
| 63228-26050 |
KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 67162 - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH | ||||
| 67162-26020 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 67842D - COVER, QUARTER SERVICE HOLE, LH | ||||
| 67842-26040B0 |
KDH222..ARL AIR CONDITIONER-WITHOUT,LT.GRAY,TRIM1# |
1 | ||
| 68345B - COVER, SLIDE DOOR CENTER RAIL, RH | ||||
| 68345-26020 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..4D..(03S,12S,14S,15S,16S) |
1 | ||
| 74624 - REINFORCEMENT, RR ASSIST GRIP, LH | ||||
| 74624-26060 |
KDH222,TRH223..ARL;KDH222,TRH223..GL..SA;KDH212,223,TRH213..RHD..(10S,14S) UPPER |
1 | ||
| 74623-26050 |
KDH222,TRH223..ARL;KDH222,TRH223..GL..SA;KDH212,223,TRH213..RHD..(10S,14S) LOWER |
1 | ||
| 74624 - REINFORCEMENT, RR ASSIST GRIP, LH | ||||
| 74624-26060 |
KDH222,TRH223..ARL;KDH222,TRH223..GL..SA;KDH212,223,TRH213..RHD..(10S,14S) UPPER |
1 | ||
| 74623-26050 |
KDH222,TRH223..ARL;KDH222,TRH223..GL..SA;KDH212,223,TRH213..RHD..(10S,14S) LOWER |
1 | ||
| 74624A - REINFORCEMENT, REAR ASSIST GRIP, LH | ||||
| 74624-26030 |
LH222,TRH223..RHD;KDH222..RHD..(ARL,GEN,SA);KDH212,223,TRH213..(10S,14S,16S)..(ARL,SA,TH) LOWER |
1 | ||
| 74624-26050 |
LH222,TRH223..RHD;KDH222..RHD..(ARL,GEN,SA);KDH212,223,TRH213..(10S,14S,16S)..(ARL,SA,TH) UPPER |
1 | ||
| 74624A - REINFORCEMENT, REAR ASSIST GRIP, LH | ||||
| 74624-26030 |
LH222,TRH223..RHD;KDH222..RHD..(ARL,GEN,SA);KDH212,223,TRH213..(10S,14S,16S)..(ARL,SA,TH) LOWER |
1 | ||
| 74624-26050 |
LH222,TRH223..RHD;KDH222..RHD..(ARL,GEN,SA);KDH212,223,TRH213..(10S,14S,16S)..(ARL,SA,TH) UPPER |
1 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82719D - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26040B0 |
KDH222,LH212,TRH223..STD..(GCC,GEN,SA,TH);KDH20#,212,220,221,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90269-03002 | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#
CUSHION MATERIAL (SPONGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61667-26310 | ||||
| 61667-26320 | ||||
| 61667-26330 | ||||
| 61667-26340 | ||||
| 61667-26350 | ||||
| 61667-26360 | ||||
| 61667-26390 | ||||
| 61667-26400 | ||||
| 61667-26420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
