KDH222R-LEMDYQ (2005)
Toyota Hiace
ILLUST NO. 1 OF 3(0501-0709)2KDFTV..KDH220,222..RHD..ARL,GEN ; (0709-0902)2KDFTV..KDH222..TH

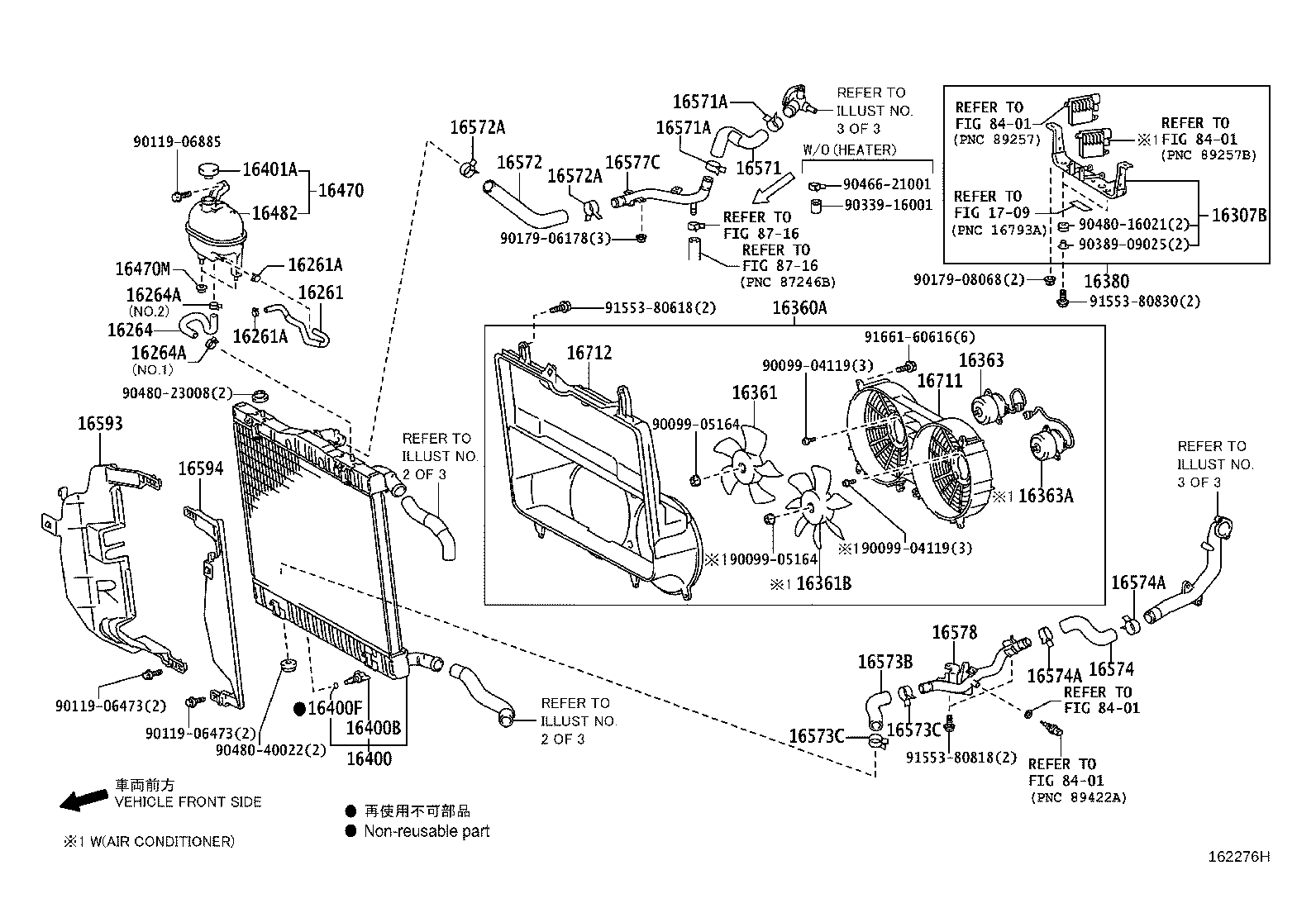

MAIN RADIATOR,W(INTERCOOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75170 |
1KDFTV,2KDFTV..KDH212,22#..RHD L=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75110 |
1KDFTV,2KDFTV..KDH212,22#..RHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75020 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16307-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75030 |
2KDFTV..KDH200..SP..06S;2KDFTV..KDH212,222..11S,14S |
1 | ||
| 16360-75021 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-75030 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75021 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16380-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16380-75022 |
2KDFTV..KDH222..ARL;2KDFTV..KDH200..SP..06S |
1 | ||
| 16380-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30160 |
1KDFTV,2KDFTV..KDH20#,212,22#..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# PNC 16401A=TYPE A |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-30070 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-30060 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16572-75270 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16573-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16577-30030 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-30010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2KDFTV..KDH20#,212,22# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16712-75120 |
2KDFTV..KDH20#,212,22# |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90339-16001 | ||||
| 90389-09025 | ||||
| 90466-21001 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 3(0501-0902)2KDFTV..KDH220..SP..5F ; (0501-0902)2KDFTV..KDH222..LHD..GEN ; (0501-090
MAIN RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75170 |
1KDFTV,2KDFTV..KDH212,22#..RHD L=59 |
1 | ||
| 16261-75170 |
1KDFTV,2KDFTV..KDH212,22#..RHD L=59 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75170 |
1KDFTV,2KDFTV..KDH212,22#..RHD L=59 |
1 | ||
| 16261-75170 |
1KDFTV,2KDFTV..KDH212,22#..RHD L=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75110 |
1KDFTV,2KDFTV..KDH212,22#..RHD |
1 | ||
| 16264-75110 |
1KDFTV,2KDFTV..KDH212,22#..RHD |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75110 |
1KDFTV,2KDFTV..KDH212,22#..RHD |
1 | ||
| 16264-75110 |
1KDFTV,2KDFTV..KDH212,22#..RHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16267-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75020 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16307-75020 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16307-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75020 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75030 |
2KDFTV..KDH200..SP..06S;2KDFTV..KDH212,222..11S,14S |
1 | ||
| 16360-75030 |
2KDFTV..KDH200..SP..06S;2KDFTV..KDH212,222..11S,14S |
1 | ||
| 16360-75021 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75021 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16361-75030 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16361-75040 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16363-20390 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-75030 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16363-75030 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75021 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16380-75021 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16380-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16380-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16380-75022 |
2KDFTV..KDH222..ARL;2KDFTV..KDH200..SP..06S |
1 | ||
| 16380-75022 |
2KDFTV..KDH222..ARL;2KDFTV..KDH200..SP..06S |
1 | ||
| 16380-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16380-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30160 |
1KDFTV,2KDFTV..KDH20#,212,22#..5F |
1 | ||
| 16400-30160 |
1KDFTV,2KDFTV..KDH20#,212,22#..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16401-75120 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# PNC 16401A=TYPE A |
1 | ||
| 16470-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# PNC 16401A=TYPE A |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16480-75070 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-30070 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16571-30070 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-30060 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16572-30060 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16572-75270 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16572-75270 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-30060 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16572-30060 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16572-75270 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16572-75270 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16573-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16573-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16573-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16574-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16577-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16577-30030 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16577-30030 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-30010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16578-30010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16593-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16594-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2KDFTV..KDH20#,212,22# |
1 | ||
| 16711-75230 |
2KDFTV..KDH20#,212,22# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16712-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16712-75120 |
2KDFTV..KDH20#,212,22# |
1 | ||
| 16712-75120 |
2KDFTV..KDH20#,212,22# |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90339-16001 | ||||
| 90381-08002 | ||||
| 90389-09025 | ||||
| 90464-00906 | ||||
| 90466-21001 | ||||
| 90480-16016 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8716 | ||||

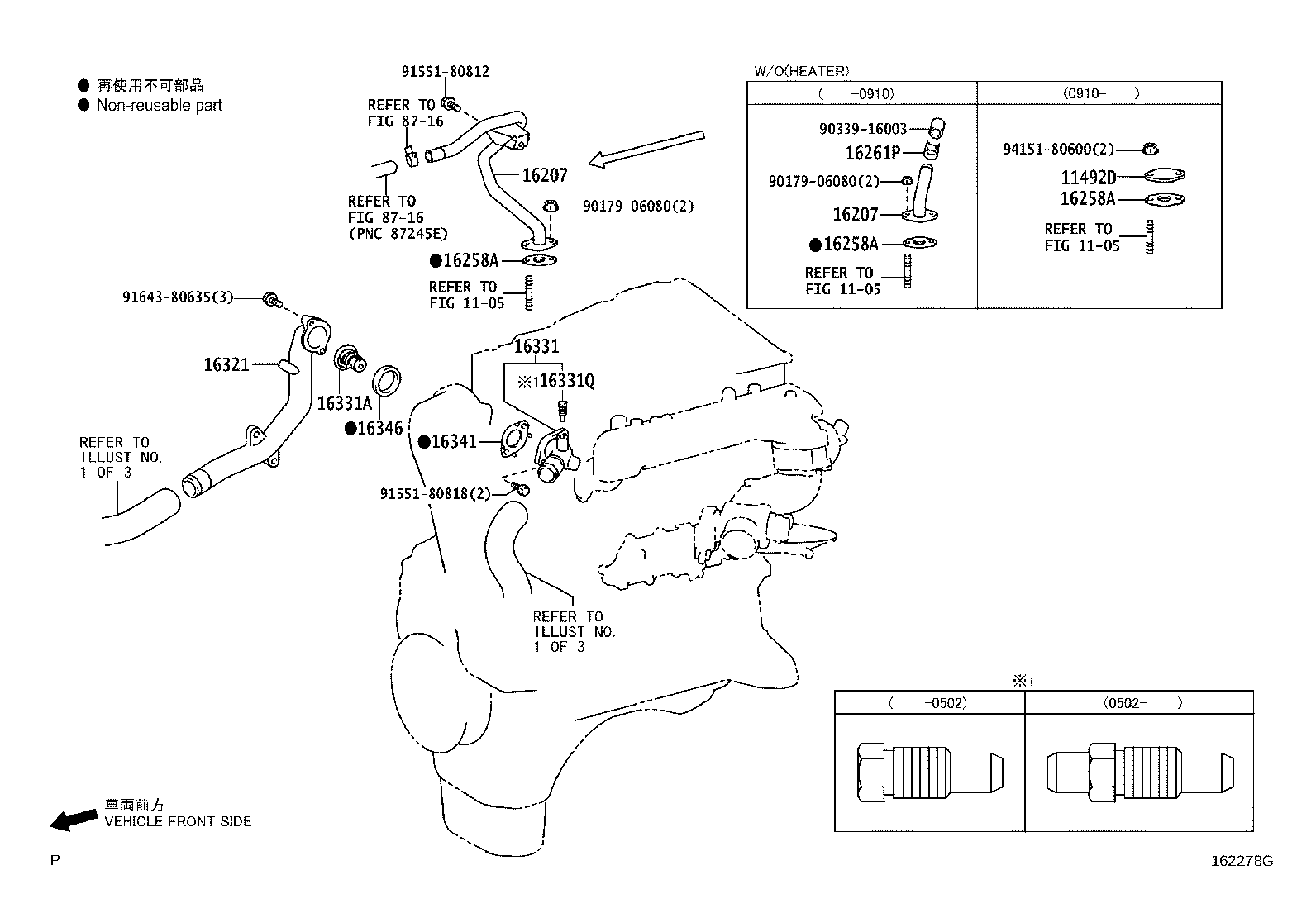

ILLUST NO. 3 OF 3(0501-0709)2KDFTV..KDH220,222..RHD..ARL,GEN ; (0709- )2KDFTV..KDH222..TH
W(INTERCOOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30080 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90910-09087 |
2KDFTV..KDH20#,22# |
1 | ||
| 90910-09133 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) (J) |
1 | ||
| 16346-0K010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,220,221,223..ARL,GCC,GEN,RUS,SA,TH (L) |
1 | ||
| Common parts | ||||
| 90179-06080 | ||||
| 90339-16003 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 3 OF 3(0501- )2KDFTV..KDH200,202,212 ; (0501- )2KDFTV..KDH220..SP..5F ; (0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16027-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16027-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30080 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA |
1 | ||
| 16331-30080 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90910-09087 |
2KDFTV..KDH20#,22# |
1 | ||
| 90910-09087 |
2KDFTV..KDH20#,22# |
1 | ||
| 90910-09133 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
1 | ||
| 90910-09133 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16341-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) (J) |
1 | ||
| 16346-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) (J) |
1 | ||
| 16346-0K010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,220,221,223..ARL,GCC,GEN,RUS,SA,TH (L) |
1 | ||
| 16346-0K010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,220,221,223..ARL,GCC,GEN,RUS,SA,TH (L) |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-27010 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16347-27010 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-27010 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16347-27010 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90179-06080 | ||||
| 90339-16003 | ||||
| 91511-B0610 | ||||
| 91511-B0812 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 3 OF 3(0501- )2KDFTV..KDH222..5F..ARL,GCC ; (0709-)2KDFTV..KDH222..RHD..STD..GEN,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16027-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16027-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30060 |
2KDFTV..KDH22#..03S,14S |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16207-30080 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16258-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284-30050 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 90467-13073 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30080 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA |
1 | ||
| 16331-30080 |
2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90910-09087 |
2KDFTV..KDH20#,22# |
1 | ||
| 90910-09087 |
2KDFTV..KDH20#,22# |
1 | ||
| 90910-09133 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
1 | ||
| 90910-09133 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16341-30020 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) (J) |
1 | ||
| 16346-67010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03S,06S,10S,11S,12S,14S,15S)..(ARL,GCC,GEN,RUS,SA,TH) (J) |
1 | ||
| 16346-0K010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,220,221,223..ARL,GCC,GEN,RUS,SA,TH (L) |
1 | ||
| 16346-0K010 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,220,221,223..ARL,GCC,GEN,RUS,SA,TH (L) |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-27010 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16347-27010 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-27010 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16347-27010 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90179-06080 | ||||
| 90339-16003 | ||||
| 91511-B0610 | ||||
| 91511-B0812 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0501- )2TRFE..TRH213..STD..VN ; (0501- )2TRFE..TRH223..5F..GCC ; (0501- )
W/O(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75170 |
1KDFTV,2KDFTV..KDH212,22#..RHD L=59 |
1 | ||
| 16261-75170 |
1KDFTV,2KDFTV..KDH212,22#..RHD L=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75110 |
1KDFTV,2KDFTV..KDH212,22#..RHD |
1 | ||
| 16264-75110 |
1KDFTV,2KDFTV..KDH212,22#..RHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75020 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16307-75020 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16307-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75020 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75030 |
2KDFTV..KDH200..SP..06S;2KDFTV..KDH212,222..11S,14S |
1 | ||
| 16360-75030 |
2KDFTV..KDH200..SP..06S;2KDFTV..KDH212,222..11S,14S |
1 | ||
| 16360-75021 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75021 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16361-75030 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16363-20390 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75021 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16380-75021 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16380-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16380-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16380-75022 |
2KDFTV..KDH222..ARL;2KDFTV..KDH200..SP..06S |
1 | ||
| 16380-75022 |
2KDFTV..KDH222..ARL;2KDFTV..KDH200..SP..06S |
1 | ||
| 16380-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16380-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30160 |
1KDFTV,2KDFTV..KDH20#,212,22#..5F |
1 | ||
| 16400-30160 |
1KDFTV,2KDFTV..KDH20#,212,22#..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30160 |
1KDFTV,2KDFTV..KDH20#,212,22#..5F |
1 | ||
| 16400-30160 |
1KDFTV,2KDFTV..KDH20#,212,22#..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16401-75120 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# PNC 16401A=TYPE A |
1 | ||
| 16470-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# PNC 16401A=TYPE A |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16480-75070 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16573-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16573-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16573-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16574-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16577-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16577-30030 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16577-30030 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-30010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16578-30010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16593-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16594-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2KDFTV..KDH20#,212,22# |
1 | ||
| 16711-75230 |
2KDFTV..KDH20#,212,22# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16712-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16712-75120 |
2KDFTV..KDH20#,212,22# |
1 | ||
| 16712-75120 |
2KDFTV..KDH20#,212,22# |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90467-20011 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80614 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91631-J0620 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0501- )2TRFE..TRH223..GL..SA ; (0501- )2TRFE..TRH201,203,213,221 ; (0501-
W(AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75170 |
1KDFTV,2KDFTV..KDH212,22#..RHD L=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75110 |
1KDFTV,2KDFTV..KDH212,22#..RHD |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.2 |
1 | ||
| 90467-20011 |
1KDFTV,2KDFTV..KDH20#,212,22# NO.1 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-75020 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16307-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16307-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-75020 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16360-75030 |
2KDFTV..KDH200..SP..06S;2KDFTV..KDH212,222..11S,14S |
1 | ||
| 16360-75021 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16361 - FAN | ||||
| 16361-75030 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-75040 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-20390 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16363-20390 |
2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH200,201..SP..06S;2KDFTV..KDH202,212..(HRF,SMRF)..(10S,11S,12S)..(GEN,SA);1KDFTV,2KDFTV..KDH202,222,223..(12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 16380 - BRACKET ASSY, FAN | ||||
| 16380-75021 |
2KDFTV..KDH20#..MA;2KDFTV..KDH200..SP..06S;2KDFTV..KDH202,212,222..(HRF,SMRF)..(11S,12S,14S) |
1 | ||
| 16380-75010 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16380-75022 |
2KDFTV..KDH222..ARL;2KDFTV..KDH200..SP..06S |
1 | ||
| 16380-75011 |
2KDFTV..KDH222..ARL AIR CONDITIONER-WITHOUT |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30160 |
1KDFTV,2KDFTV..KDH20#,212,22#..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-30160 |
1KDFTV,2KDFTV..KDH20#,212,22#..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-75120 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# PNC 16401A=TYPE A |
1 | ||
| 16470M - GROMMET | ||||
| 90480-15023 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16573-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-41007 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-30020 |
2KDFTV..KDH22#..5F..ARL SOUTH AFRICA SPEC |
1 | ||
| 16577-30030 |
2KDFTV..KDH222..ARL,TH;2KDFTV..KDH220..RHD..(ARL,GEN) |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-30010 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-75010 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75230 |
2KDFTV..KDH20#,212,22# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75121 |
1KDFTV,2KDFTV..KDH20#,212,22# |
1 | ||
| 16712-75120 |
2KDFTV..KDH20#,212,22# |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06473 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08068 | ||||
| 90389-09025 | ||||
| 90467-20011 | ||||
| 90480-16021 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 91553-80618 | ||||
| 91553-80818 | ||||
| 91553-80830 | ||||
| 91631-J0620 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0501- )2TRFE..TRH203..12S..GEN ; (0501- )2TRFE..TRH201..4D..SP..GEN ; (0501-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90179-08087 | ||||
| 90412-08004 | ||||
| 91551-00820 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(0501-1107)2TRFE..TRH201..5D..5F ; (0501-1107)2TRFE..TRH201..SG..4FC ; (0501-1107)2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-67011 |
2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA) (J) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16321-0K010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH202..4FC;2KDFTV..KDH220..RHD..(ARL,GEN);2KDFTV..KDH202..RHD..SRF..12S..GEN;1KDFTV,2KDFTV..KDH201,212,221,223..03S,06S,12S,14S,15S;1KDFTV,2KDFTV..KDH200,203,222..(06S,12S,14S)..(ARL,GCC,GEN) (L) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| 90916-03118 |
2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90179-08087 | ||||
| 90412-08004 | ||||
| 91551-00820 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 3(0501-1008)1KDFTV,2KDFTV
SUB RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361C - FAN NO.2 | ||||
| 16361-30040 |
2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN |
1 | ||
| 16363C - MOTOR, COOLING FAN, NO.3 | ||||
| 16363-30010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN |
1 | ||
| 16370 - FAN ASSY, W/MOTOR, NO.2 | ||||
| 16370-30010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN |
1 | ||
| 16420 - RADIATOR ASSY, SUB | ||||
| 16510-30010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN |
1 | ||
| 16511A - BRACKET, SUB-RADIATOR | ||||
| 16511-30010 |
2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16576 - HOSE, RADIATOR, NO.6 | ||||
| 16576-30020 |
1KDFTV,2KDFTV..KDH212,22# |
1 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34006 |
1KDFTV,2KDFTV..KDH20#,212,22# |
2 | ||
| 16711A - SHROUD, FAN, NO.2 | ||||
| 16711-30050 |
2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN |
1 | ||
| Common parts | ||||
| 16519-30010 | ||||
| 16529-30010 | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90480-23008 | ||||
| 91553-80618 | ||||
| 91631-60825 | ||||
| 91673-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
