KDH222L-LEMDYV (2005)

Toyota Hiace

Production Jan 2005 - Dec 2013
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501- )KDH222,TRH223..GL..SA ; (0501- )TRH223..RHD..5F..ARL,GEN ; (0501-

Click highlighted areas on diagram

REAR

diagram 8712 8712126130 8712126140 8712426481 8712426481 87248F 87249F 9009900275 9009900275 9046618001 9046618001 9046618001 9046618001 9155380818 9155380818
Part # Description Qty Price
Common parts
87121-26130
87121-26140
87124-26481
90099-00275
90466-18001
91553-80818
Linked diagrams
8712

ILLUST NO. 1 OF 2(0501- )KDH222..GL..GCC ; (0501- )KDH222..LHD..GEN ; (0501- )KDH222..STD..

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8712126100 8712426450 8712426460 8712426520 8714 8714 87245A 87245B 87245E 87246 87246B 87248A 87248B 87249A 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87245-26B20

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26B80

LH212,222,TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26B80

LH212,222,TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26C00

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26C00

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60

TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26B60

TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26C10

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26C10

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26D10

LH212,222..16S

FRONT HEATER-WITH

 1
87245-26D10

LH212,222..16S

FRONT HEATER-WITH

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87245-26B30

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B90

LH212,222,TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26B90

LH212,222,TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26C80

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26C80

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87248-26440

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26520

TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87248-26520

TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87248-26570

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87248-26570

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87248-26840

LH212,222..16S

FRONT HEATER-WITH

 1
87248-26840

LH212,222..16S

FRONT HEATER-WITH

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87248-26450

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
Common parts
87121-26100
87124-26450
87124-26460
87124-26520
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

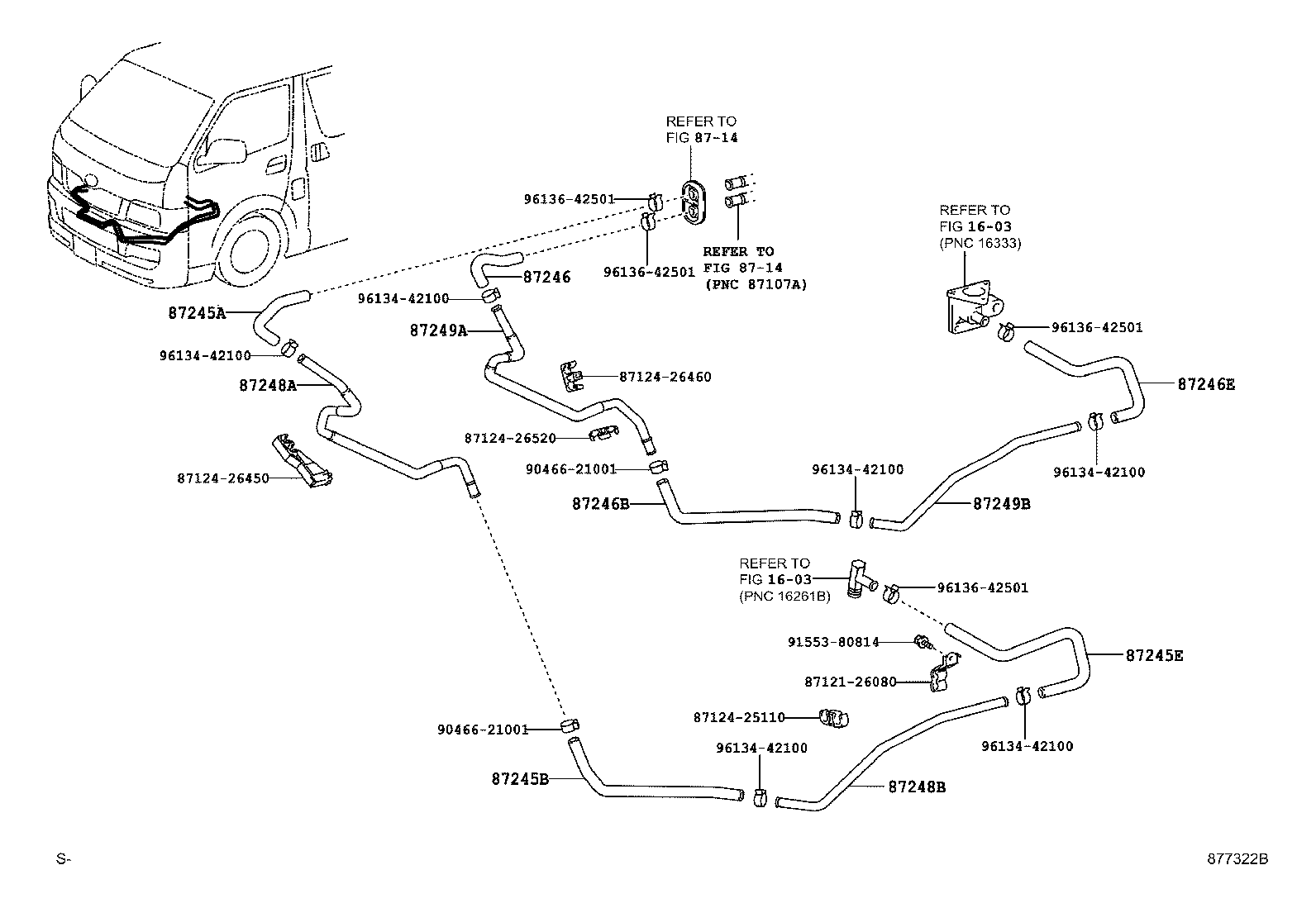

ILLUST NO. 1 OF 2(0501- )LH212,222

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8712126080 8712425110 8712426450 8712426460 8712426520 8714 8714 87245A 87245B 87245E 87246 87246B 87246E 87248A 87248B 87249A 87249B 9046621001 9046621001 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26B80

LH212,222,TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26C00

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60

TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26C10

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87245-26D10

LH212,222..16S

FRONT HEATER-WITH

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B90

LH212,222,TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26C80

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH201..06S..GCC;TRH201,22#..(03S,16S)..(GCC,GEN);TRH203,213..(SMRF,SRF)..(09S,12S,15S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87245-26D20

LH212,222..16S

FRONT HEATER-WITH

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26520

TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87248-26570

KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..(GCC,GEN);KDH201,202,203,220,222..LHD..(03S,12S,16S)

FRONT HEATER-WITH

 1
87248-26840

LH212,222..16S

FRONT HEATER-WITH

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

KDH212..GCC;KDH212..RHD..GEN;KDH220,222,TRH221..LHD;LH212,222,TRH213,223..09S,16S

FRONT HEATER-WITH

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26530

TRH213,22#..(03S,09S,16S)..(GCC,GEN,VN)

FRONT HEATER-WITH

 1
87248-26630

LH20#,212,222..03S,12S,15S,16S

FRONT HEATER-WITH

 1
Common parts
87121-26080
87124-25110
87124-26450
87124-26460
87124-26520
90466-21001
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

ILLUST NO. 2 OF 2(0501- )TRH223..LHD..STD..GEN ; (0501- )KDH222,223,LH222..LHD..GEN,RUS ; (050

Click highlighted areas on diagram

REAR

diagram 8712 8712126150 8712126150 8712426481 8712426481 8712426530 87248F 87248J 87249F 87249G 9046400558 9046618001 9046618001 9046618001 9046618001 9046719022 9046719022 9046719022 9046719022 9155380818 9155380818 9955620200 9955620200
Part # Description Qty Price
Common parts
87121-26150
87124-26481
87124-26530
90464-00558
90466-18001
90467-19022
91553-80818
99556-20200
Linked diagrams
8712
