KDH222L-LEMDYV (2005)
Toyota Hiace

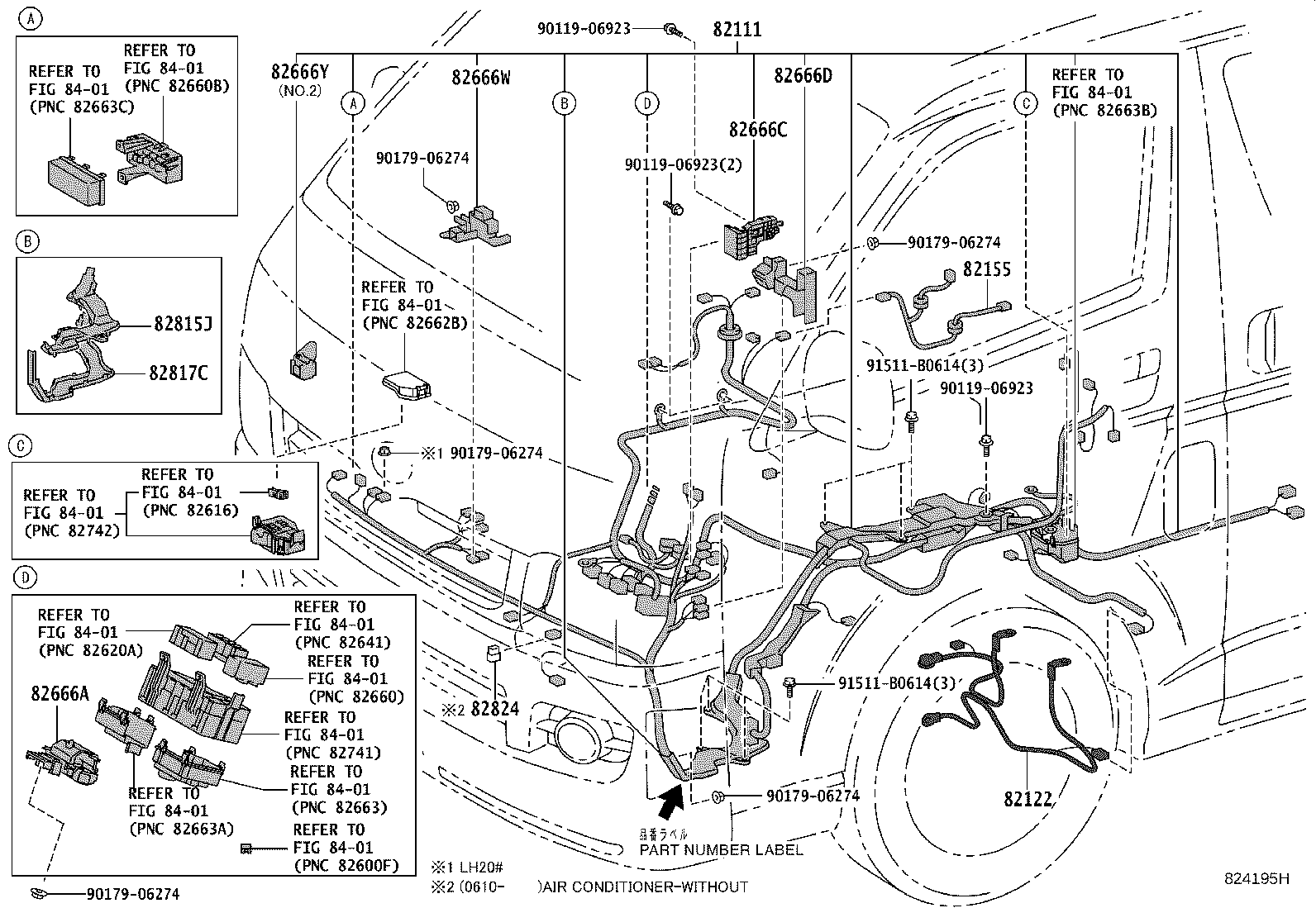

ILLUST NO. 1 OF11(0501- )KDH20#,212,220,222,223..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-26J10 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J00 |
LH212,222..LHD |
1 | ||
| 82111-26J20 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J20 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J30 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J30 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F80 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G30 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26K80 |
KDH212,222..LHD..16S |
1 | ||
| 82111-26K90 |
TRH213,22#..LHD..(03S,16S) |
1 | ||
| 82111-26J11 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J21 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J01 |
LH212,222..LHD |
1 | ||
| 82111-26J31 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J21 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J31 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G31 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K91 |
TRH213,22#..LHD..(03S,16S) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F81 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26F91 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26F91 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J22 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J22 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J32 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J32 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J12 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J02 |
LH212,222..LHD |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26K81 |
KDH212,220,222..LHD..(03S,16S)..(GCC,GEN) |
1 | ||
| 82111-26G32 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K92 |
TRH213,22#..LHD..(03S,16S)..(GCC,GEN) |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26F82 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G33 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K93 |
TRH213,22#..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26K82 |
KDH212,220,222..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J03 |
LH212,222..LHD |
1 | ||
| 82111-26J23 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J23 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J33 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J33 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F83 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K94 |
TRH213,22#..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G34 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26K83 |
KDH212,220,222..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F84 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G35 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J04 |
LH212,222..LHD |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K84 |
KDH212,220,222..LHD..STD |
1 | ||
| 82111-26K95 |
TRH213,22#..LHD..STD |
1 | ||
| 82111-26J00 |
LH212,222..LHD PART NUMBER LABEL=82111-26J00 |
1 | ||
| 82111-26J30 |
LH212,222..LHD PART NUMBER LABEL=82111-26J30 |
1 | ||
| 82111-26J20 |
LH212,222..LHD PART NUMBER LABEL=82111-26J20 |
1 | ||
| 82111-26J10 |
LH212,222..LHD PART NUMBER LABEL=82111-26J10 |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26G00 |
1 | ||
| 82111-26F80 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26F80 |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26F90 |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26G10 |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26G10 |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26F90 |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26G00 |
1 | ||
| 82111-26G30 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G30 |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G50 |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G70 |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G50 |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G90 |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G70 |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G90 |
1 | ||
| 82111-26K80 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26K80 |
1 | ||
| 82111-26K90 |
TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26K90 |
1 | ||
| 82111-26J01 |
LH212,222..LHD PART NUMBER LABEL=82111-26J01 |
1 | ||
| 82111-26J21 |
LH212,222..LHD PART NUMBER LABEL=82111-26J21 |
1 | ||
| 82111-26J31 |
LH212,222..LHD PART NUMBER LABEL=82111-26J31 |
1 | ||
| 82111-26J11 |
LH212,222..LHD PART NUMBER LABEL=82111-26J11 |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G51 |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G51 |
1 | ||
| 82111-26G31 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G31 |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G71 |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G71 |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G91 |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G91 |
1 | ||
| 82111-26K91 |
TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26K91 |
1 | ||
| 82111-26F81 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26F81 |
1 | ||
| 82111-26F91 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26F91 |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G01 |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26G11 |
1 | ||
| 82111-26F91 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26F91 |
1 | ||
| 82111-26J22 |
LH212,222..LHD PART NUMBER LABEL=82111-26J22 |
1 | ||
| 82111-26J32 |
LH212,222..LHD PART NUMBER LABEL=82111-26J32 |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26G01 |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G11 |
1 | ||
| 82111-26J12 |
LH212,222..LHD PART NUMBER LABEL=82111-26J12 |
1 | ||
| 82111-26J02 |
LH212,222..LHD PART NUMBER LABEL=82111-26J02 |
1 | ||
| 82111-26K81 |
KDH212,220,222..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26K81 |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G52 |
1 | ||
| 82111-26G32 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G32 |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G72 |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G72 |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G52 |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G92 |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G92 |
1 | ||
| 82111-26K92 |
TRH213,22#..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26K92 |
1 | ||
| 82111-26F82 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26F82 |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G12 |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G02 |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G02 |
1 | ||
| 82111-26G33 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G33 |
1 | ||
| 82111-26K93 |
TRH213,22#..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K93 |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G73 |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G12 |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G73 |
1 | ||
| 82111-26K82 |
KDH212,220,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K82 |
1 | ||
| 82111-26J23 |
LH212,222..LHD PART NUMBER LABEL=82111-26J23 |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G93 |
1 | ||
| 82111-26J03 |
LH212,222..LHD PART NUMBER LABEL=82111-26J03 |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G93 |
1 | ||
| 82111-26J33 |
LH212,222..LHD PART NUMBER LABEL=82111-26J33 |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G13 |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G03 |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G13 |
1 | ||
| 82111-26F83 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26F83 |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G74 |
1 | ||
| 82111-26G34 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G34 |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G74 |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G03 |
1 | ||
| 82111-26K94 |
TRH213,22#..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K94 |
1 | ||
| 82111-26K83 |
KDH212,220,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K83 |
1 | ||
| 82111-26F84 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G35 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUALAIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUALAIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J04 |
LH212,222..LHD |
1 | ||
| 82111-26K95 |
TRH213,22#..LHD..STD |
1 | ||
| 82111-26K84 |
KDH212,220,222..LHD..STD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26700 |
LH212,222..16S COLD AREA SPEC |
1 | ||
| 82122-26640 |
KDH212,220..5F;KDH222..GL..SA;KDH222..5F..(ARL,GCC,GEN) |
1 | ||
| 82122-26690 |
LH212,222 |
1 | ||
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-26080 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82155-26070 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD |
1 | ||
| 82155-26071 |
KDH222,LH222,TRH223..LHD..STD |
1 | ||
| 82155-26081 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82155-26082 |
KDH222,LH222,TRH223..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-26220 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26430 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26470 |
KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-26480 |
TRH223..4FC..GEN;TRH213,223..LHD..5F..(CIS,GCC,GEN);KDH212,220,222,LH212,222,TRH221..LHD |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26200 |
KDH200,202..LHD..(03S,12S,15S)..5F;TRH203,213..LHD..(10S,15S,16S)..(GCC,GEN);KDH201,203,212,220,222,223,LH20#,212,222,TRH201,22#..LHD..(03S,06S,11S,12S,13S,15S,16S)..(CIS,GCC,GEN,RUS) NO.2 |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26200 |
KDH200,202..LHD..(03S,12S,15S)..5F;TRH203,213..LHD..(10S,15S,16S)..(GCC,GEN);KDH201,203,212,220,222,223,LH20#,212,222,TRH201,22#..LHD..(03S,06S,11S,12S,13S,15S,16S)..(CIS,GCC,GEN,RUS) NO.2 |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26200 |
KDH200,202..LHD..(03S,12S,15S)..5F;TRH203,213..LHD..(10S,15S,16S)..(GCC,GEN);KDH201,203,212,220,222,223,LH20#,212,222,TRH201,22#..LHD..(03S,06S,11S,12S,13S,15S,16S)..(CIS,GCC,GEN,RUS) NO.2 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26510 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26C40 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-26100 |
TRH223..16S..GL;KDH212,222,LH212,222..16S..(GCC,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82824-26100 |
TRH223..16S..GL;TRH201..4D..SP..GEN;KDH202,TRH203..LHD..12S..5F;KDH201,202,212,222..SG..(06S,15S,16S)..(GCC,GEN,TH);KDH200,201,203,220,221,LH20#,212,222..(03S,12S,14S,15S,16S)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 82821-26300 |
KDH201..SG;KDH201..03S;KDH200,202,203,212,220,221,222,LH20#,212,222..STD..(ARL,GCC,GEN,SA) |
1 | ||
| 82821-26300 |
KDH212,222,LH212,222..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82824-26100 |
TRH213,22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91553-80814 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF11(0501- )LH20#,212,222..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-26J10 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J00 |
LH212,222..LHD |
1 | ||
| 82111-26J20 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J20 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J30 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J30 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F80 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G30 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26K80 |
KDH212,222..LHD..16S |
1 | ||
| 82111-26K90 |
TRH213,22#..LHD..(03S,16S) |
1 | ||
| 82111-26J11 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J21 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J01 |
LH212,222..LHD |
1 | ||
| 82111-26J31 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J21 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J31 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G31 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K91 |
TRH213,22#..LHD..(03S,16S) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F81 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26F91 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26F91 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J22 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J22 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J32 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J32 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J12 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J02 |
LH212,222..LHD |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26K81 |
KDH212,220,222..LHD..(03S,16S)..(GCC,GEN) |
1 | ||
| 82111-26G32 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K92 |
TRH213,22#..LHD..(03S,16S)..(GCC,GEN) |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26F82 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G33 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K93 |
TRH213,22#..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26K82 |
KDH212,220,222..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J03 |
LH212,222..LHD |
1 | ||
| 82111-26J23 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J23 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J33 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J33 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F83 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K94 |
TRH213,22#..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G34 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26K83 |
KDH212,220,222..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F84 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G35 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J04 |
LH212,222..LHD |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K84 |
KDH212,220,222..LHD..STD |
1 | ||
| 82111-26K95 |
TRH213,22#..LHD..STD |
1 | ||
| 82111-26J00 |
LH212,222..LHD PART NUMBER LABEL=82111-26J00 |
1 | ||
| 82111-26J30 |
LH212,222..LHD PART NUMBER LABEL=82111-26J30 |
1 | ||
| 82111-26J20 |
LH212,222..LHD PART NUMBER LABEL=82111-26J20 |
1 | ||
| 82111-26J10 |
LH212,222..LHD PART NUMBER LABEL=82111-26J10 |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26G00 |
1 | ||
| 82111-26F80 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26F80 |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26F90 |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26G10 |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26G10 |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26F90 |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26G00 |
1 | ||
| 82111-26G30 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G30 |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G50 |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G70 |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G50 |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G90 |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G70 |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G90 |
1 | ||
| 82111-26K80 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26K80 |
1 | ||
| 82111-26K90 |
TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26K90 |
1 | ||
| 82111-26J01 |
LH212,222..LHD PART NUMBER LABEL=82111-26J01 |
1 | ||
| 82111-26J21 |
LH212,222..LHD PART NUMBER LABEL=82111-26J21 |
1 | ||
| 82111-26J31 |
LH212,222..LHD PART NUMBER LABEL=82111-26J31 |
1 | ||
| 82111-26J11 |
LH212,222..LHD PART NUMBER LABEL=82111-26J11 |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G51 |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G51 |
1 | ||
| 82111-26G31 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G31 |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G71 |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G71 |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G91 |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G91 |
1 | ||
| 82111-26K91 |
TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26K91 |
1 | ||
| 82111-26F81 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26F81 |
1 | ||
| 82111-26F91 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26F91 |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G01 |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26G11 |
1 | ||
| 82111-26F91 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26F91 |
1 | ||
| 82111-26J22 |
LH212,222..LHD PART NUMBER LABEL=82111-26J22 |
1 | ||
| 82111-26J32 |
LH212,222..LHD PART NUMBER LABEL=82111-26J32 |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26G01 |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G11 |
1 | ||
| 82111-26J12 |
LH212,222..LHD PART NUMBER LABEL=82111-26J12 |
1 | ||
| 82111-26J02 |
LH212,222..LHD PART NUMBER LABEL=82111-26J02 |
1 | ||
| 82111-26K81 |
KDH212,220,222..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26K81 |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G52 |
1 | ||
| 82111-26G32 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G32 |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G72 |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G72 |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G52 |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G92 |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G92 |
1 | ||
| 82111-26K92 |
TRH213,22#..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26K92 |
1 | ||
| 82111-26F82 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26F82 |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G12 |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G02 |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G02 |
1 | ||
| 82111-26G33 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G33 |
1 | ||
| 82111-26K93 |
TRH213,22#..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K93 |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G73 |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G12 |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G73 |
1 | ||
| 82111-26K82 |
KDH212,220,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K82 |
1 | ||
| 82111-26J23 |
LH212,222..LHD PART NUMBER LABEL=82111-26J23 |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G93 |
1 | ||
| 82111-26J03 |
LH212,222..LHD PART NUMBER LABEL=82111-26J03 |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G93 |
1 | ||
| 82111-26J33 |
LH212,222..LHD PART NUMBER LABEL=82111-26J33 |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G13 |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G03 |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G13 |
1 | ||
| 82111-26F83 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26F83 |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G74 |
1 | ||
| 82111-26G34 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G34 |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G74 |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G03 |
1 | ||
| 82111-26K94 |
TRH213,22#..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K94 |
1 | ||
| 82111-26K83 |
KDH212,220,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K83 |
1 | ||
| 82111-26F84 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G35 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUALAIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUALAIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J04 |
LH212,222..LHD |
1 | ||
| 82111-26K95 |
TRH213,22#..LHD..STD |
1 | ||
| 82111-26K84 |
KDH212,220,222..LHD..STD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26700 |
LH212,222..16S COLD AREA SPEC |
1 | ||
| 82122-26640 |
KDH212,220..5F;KDH222..GL..SA;KDH222..5F..(ARL,GCC,GEN) |
1 | ||
| 82122-26690 |
LH212,222 |
1 | ||
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-26080 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82155-26070 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD |
1 | ||
| 82155-26071 |
KDH222,LH222,TRH223..LHD..STD |
1 | ||
| 82155-26081 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82155-26082 |
KDH222,LH222,TRH223..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-26220 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26430 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26470 |
KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-26480 |
TRH223..4FC..GEN;TRH213,223..LHD..5F..(CIS,GCC,GEN);KDH212,220,222,LH212,222,TRH221..LHD |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26200 |
KDH200,202..LHD..(03S,12S,15S)..5F;TRH203,213..LHD..(10S,15S,16S)..(GCC,GEN);KDH201,203,212,220,222,223,LH20#,212,222,TRH201,22#..LHD..(03S,06S,11S,12S,13S,15S,16S)..(CIS,GCC,GEN,RUS) NO.2 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26510 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26C40 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-26100 |
TRH223..16S..GL;KDH212,222,LH212,222..16S..(GCC,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82824-26100 |
TRH223..16S..GL;TRH201..4D..SP..GEN;KDH202,TRH203..LHD..12S..5F;KDH201,202,212,222..SG..(06S,15S,16S)..(GCC,GEN,TH);KDH200,201,203,220,221,LH20#,212,222..(03S,12S,14S,15S,16S)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 82821-26300 |
KDH201..SG;KDH201..03S;KDH200,202,203,212,220,221,222,LH20#,212,222..STD..(ARL,GCC,GEN,SA) |
1 | ||
| 82821-26300 |
KDH212,222,LH212,222..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82824-26100 |
TRH213,22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF11(0501- )TRH201,203,213,22#..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-26J10 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J00 |
LH212,222..LHD |
1 | ||
| 82111-26J20 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J20 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J30 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J30 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F80 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G30 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26K80 |
KDH212,222..LHD..16S |
1 | ||
| 82111-26K90 |
TRH213,22#..LHD..(03S,16S) |
1 | ||
| 82111-26J11 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J21 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J01 |
LH212,222..LHD |
1 | ||
| 82111-26J31 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J21 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J31 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J12 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G31 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K91 |
TRH213,22#..LHD..(03S,16S) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F81 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26F91 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26F91 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J22 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J22 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J32 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J32 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J02 |
LH212,222..LHD |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26K81 |
KDH212,220,222..LHD..(03S,16S)..(GCC,GEN) |
1 | ||
| 82111-26G32 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K92 |
TRH213,22#..LHD..(03S,16S)..(GCC,GEN) |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26F82 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G33 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K93 |
TRH213,22#..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26K82 |
KDH212,220,222..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J03 |
LH212,222..LHD |
1 | ||
| 82111-26J23 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J23 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J33 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J33 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F83 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K94 |
TRH213,22#..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G34 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26K83 |
KDH212,220,222..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F84 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G35 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J04 |
LH212,222..LHD |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K84 |
KDH212,220,222..LHD..STD |
1 | ||
| 82111-26K95 |
TRH213,22#..LHD..STD |
1 | ||
| 82111-26J00 |
LH212,222..LHD PART NUMBER LABEL=82111-26J00 |
1 | ||
| 82111-26J30 |
LH212,222..LHD PART NUMBER LABEL=82111-26J30 |
1 | ||
| 82111-26J20 |
LH212,222..LHD PART NUMBER LABEL=82111-26J20 |
1 | ||
| 82111-26J10 |
LH212,222..LHD PART NUMBER LABEL=82111-26J10 |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26G00 |
1 | ||
| 82111-26F80 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26F80 |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26F90 |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26G10 |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26G10 |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26F90 |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26G00 |
1 | ||
| 82111-26G30 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G30 |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G50 |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G70 |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G50 |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G90 |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G70 |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G90 |
1 | ||
| 82111-26K80 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26K80 |
1 | ||
| 82111-26K90 |
TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26K90 |
1 | ||
| 82111-26J01 |
LH212,222..LHD PART NUMBER LABEL=82111-26J01 |
1 | ||
| 82111-26J21 |
LH212,222..LHD PART NUMBER LABEL=82111-26J21 |
1 | ||
| 82111-26J31 |
LH212,222..LHD PART NUMBER LABEL=82111-26J31 |
1 | ||
| 82111-26J11 |
LH212,222..LHD PART NUMBER LABEL=82111-26J11 |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G51 |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G51 |
1 | ||
| 82111-26G31 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G31 |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G71 |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G71 |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G91 |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G91 |
1 | ||
| 82111-26K91 |
TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26K91 |
1 | ||
| 82111-26F81 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26F81 |
1 | ||
| 82111-26F91 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26F91 |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G01 |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26G11 |
1 | ||
| 82111-26F91 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26F91 |
1 | ||
| 82111-26J22 |
LH212,222..LHD PART NUMBER LABEL=82111-26J22 |
1 | ||
| 82111-26J32 |
LH212,222..LHD PART NUMBER LABEL=82111-26J32 |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26G01 |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G11 |
1 | ||
| 82111-26J12 |
LH212,222..LHD PART NUMBER LABEL=82111-26J12 |
1 | ||
| 82111-26J02 |
LH212,222..LHD PART NUMBER LABEL=82111-26J02 |
1 | ||
| 82111-26K81 |
KDH212,220,222..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26K81 |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G52 |
1 | ||
| 82111-26G32 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G32 |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G72 |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G72 |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G52 |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G92 |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G92 |
1 | ||
| 82111-26K92 |
TRH213,22#..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26K92 |
1 | ||
| 82111-26F82 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26F82 |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G12 |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G02 |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G02 |
1 | ||
| 82111-26G33 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G33 |
1 | ||
| 82111-26K93 |
TRH213,22#..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K93 |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G73 |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G12 |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G73 |
1 | ||
| 82111-26K82 |
KDH212,220,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K82 |
1 | ||
| 82111-26J23 |
LH212,222..LHD PART NUMBER LABEL=82111-26J23 |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G93 |
1 | ||
| 82111-26J03 |
LH212,222..LHD PART NUMBER LABEL=82111-26J03 |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G93 |
1 | ||
| 82111-26J33 |
LH212,222..LHD PART NUMBER LABEL=82111-26J33 |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G13 |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G03 |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G13 |
1 | ||
| 82111-26F83 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26F83 |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G74 |
1 | ||
| 82111-26G34 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G34 |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G74 |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G03 |
1 | ||
| 82111-26K94 |
TRH213,22#..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K94 |
1 | ||
| 82111-26K83 |
KDH212,220,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K83 |
1 | ||
| 82111-26F84 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G35 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUALAIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUALAIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J04 |
LH212,222..LHD |
1 | ||
| 82111-26K95 |
TRH213,22#..LHD..STD |
1 | ||
| 82111-26K84 |
KDH212,220,222..LHD..STD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26700 |
LH212,222..16S COLD AREA SPEC |
1 | ||
| 82122-26640 |
KDH212,220..5F;KDH222..GL..SA;KDH222..5F..(ARL,GCC,GEN) |
1 | ||
| 82122-26690 |
LH212,222 |
1 | ||
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-26080 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82155-26070 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD |
1 | ||
| 82155-26071 |
KDH222,LH222,TRH223..LHD..STD |
1 | ||
| 82155-26081 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82155-26082 |
KDH222,LH222,TRH223..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-26220 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26430 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26470 |
KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-26480 |
TRH223..4FC..GEN;TRH213,223..LHD..5F..(CIS,GCC,GEN);KDH212,220,222,LH212,222,TRH221..LHD |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26200 |
KDH200,202..LHD..(03S,12S,15S)..5F;TRH203,213..LHD..(10S,15S,16S)..(GCC,GEN);KDH201,203,212,220,222,223,LH20#,212,222,TRH201,22#..LHD..(03S,06S,11S,12S,13S,15S,16S)..(CIS,GCC,GEN,RUS) NO.2 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26510 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26C40 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-26100 |
TRH223..16S..GL;KDH212,222,LH212,222..16S..(GCC,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82824-26100 |
TRH223..16S..GL;TRH201..4D..SP..GEN;KDH202,TRH203..LHD..12S..5F;KDH201,202,212,222..SG..(06S,15S,16S)..(GCC,GEN,TH);KDH200,201,203,220,221,LH20#,212,222..(03S,12S,14S,15S,16S)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 82821-26300 |
KDH201..SG;KDH201..03S;KDH200,202,203,212,220,221,222,LH20#,212,222..STD..(ARL,GCC,GEN,SA) |
1 | ||
| 82821-26300 |
KDH212,222,LH212,222..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82824-26100 |
TRH213,22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91552-81018 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF11(0501- )KDH20#,212,22#
ENGINE & FLOOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26D80 |
KDH212..GCC;KDH220,222..LHD;KDH212..RHD..GEN |
1 | ||
| 82121-26C11 |
TRH213,22#..GCC,SA,VN |
1 | ||
| 82121-26C40 |
LH212,222 |
1 | ||
| 82121-26D81 |
KDH212,220,222..(03S,16S)..(GCC,GEN) |
1 | ||
| 82122A - WIRE, ENGINE, NO.2 | ||||
| 82122-26710 |
KDH20#,212,220,221..5F;KDH222,223..5F..(ARL,GCC,GEN,RUS,SA) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-26130 |
KDH222..LHD..GEN;KDH220..SP..(GEN,SA);KDH212..RHD..(10S,16S);KDH212,222..(14S,16S)..(GCC,SA) BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82123-26131 |
KDH222..GL;KDH222..LHD..STD;KDH212,220..03S,10S,16S BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82123-26130 |
LH212,222..16S BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82123-26131 |
LH212,222 BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26150 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-26160 |
LH20#,212,222..03S,12S,15S,16S BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82124-26160 |
KDH220..SP..(GEN,SA);KDH212..RHD..(10S,16S);KDH212,222..(14S,16S)..(GCC,SA);KDH200,202..(03S,15S)..5F..(GEN,MA,SA);KDH201,202,203,222..LHD..(03S,12S,16S)..5F..GEN BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82124-26161 |
LH20#,212,222 BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82712-26280 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 90105-T0065 | ||||
| 90119-06098 | ||||
| 90119-06923 | ||||
| 90119-08103 | ||||
| 90178-T0036 | ||||
| 90179-04030 | ||||
| 90179-06274 | ||||
| 90189-04024 | ||||
| 90189-T0001 | ||||
| 91552-81018 | ||||
| 91553-80812 | ||||
ILLUST NO. 2 OF11(0501- )LH20#,212,222
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26D80 |
KDH212..GCC;KDH220,222..LHD;KDH212..RHD..GEN |
1 | ||
| 82121-26C11 |
TRH213,22#..GCC,SA,VN |
1 | ||
| 82121-26C40 |
LH212,222 |
1 | ||
| 82121-26D81 |
KDH212,220,222..(03S,16S)..(GCC,GEN) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-26130 |
KDH222..LHD..GEN;KDH220..SP..(GEN,SA);KDH212..RHD..(10S,16S);KDH212,222..(14S,16S)..(GCC,SA) BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82123-26131 |
KDH222..GL;KDH222..LHD..STD;KDH212,220..03S,10S,16S BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82123-26130 |
LH212,222..16S BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82123-26131 |
LH212,222 BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26150 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-26160 |
LH20#,212,222..03S,12S,15S,16S BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82124-26160 |
KDH220..SP..(GEN,SA);KDH212..RHD..(10S,16S);KDH212,222..(14S,16S)..(GCC,SA);KDH200,202..(03S,15S)..5F..(GEN,MA,SA);KDH201,202,203,222..LHD..(03S,12S,16S)..5F..GEN BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82124-26161 |
LH20#,212,222 BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-26480 |
KDH223,TRH223..(12S,16S)..GL;KDH221,TRH221..5D..(GCC,GEN);TRH223..STD..(GCC,GEN,SA,TH);TRH213..(11S,16S)..(GCC,GEN,TH);KDH212,220,222,LH212,222..ARL,GCC,GEN,SA,VN |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82712-26280 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26D30 |
KDH201..TH;KDH201,223..LHD;TRH201..06S..GCC;TRH201..SP..(GCC,GEN);TRH223..(12S,16S)..GL;TRH223..STD..(GCC,GEN,SA,TH);KDH221,TRH221..5D..(GCC,GEN);KDH222,TRH203..ARL,GCC,GEN,SA;TRH213..(11S,16S)..(GCC,GEN,TH);KDH200,202,203,212,220,LH20#,212,222,TRH200..03S,06S,10S,11S,12S,15S,16S |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26B60 |
KDH20#,212,22# |
1 | ||
| 82817-26C10 |
LH20#,212,222 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26A50 |
LH20#,212,222 |
1 | ||
| 82817-26B70 |
KDH201,203,212,220,221,223;KDH200..03S..5F..(GCC,GEN);KDH200,202..LHD..(06S,12S)..5F;KDH202,222..(14S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 8281AL - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26B90 |
KDH223,TRH223..(12S,16S)..GL;KDH221,TRH221..5D..(GCC,GEN);TRH223..STD..(GCC,GEN,SA,TH);TRH213..(11S,16S)..(GCC,GEN,TH);KDH212,220,222,LH212,222..ARL,GCC,GEN,SA,VN |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90119-08103 | ||||
| 90179-06274 | ||||
| 91621-40814 | ||||
ILLUST NO. 2 OF11(0501- )TRH20#,213,22#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26D80 |
KDH212..GCC;KDH220,222..LHD;KDH212..RHD..GEN |
1 | ||
| 82121-26C11 |
TRH213,22#..GCC,SA,VN |
1 | ||
| 82121-26C40 |
LH212,222 |
1 | ||
| 82121-26D81 |
KDH212,220,222..(03S,16S)..(GCC,GEN) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-26130 |
KDH222..LHD..GEN;KDH220..SP..(GEN,SA);KDH212..RHD..(10S,16S);KDH212,222..(14S,16S)..(GCC,SA) BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82123-26131 |
KDH222..GL;KDH222..LHD..STD;KDH212,220..03S,10S,16S BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82123-26130 |
LH212,222..16S BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82123-26131 |
LH212,222 BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26150 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-26160 |
LH20#,212,222..03S,12S,15S,16S BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82124-26160 |
KDH220..SP..(GEN,SA);KDH212..RHD..(10S,16S);KDH212,222..(14S,16S)..(GCC,SA);KDH200,202..(03S,15S)..5F..(GEN,MA,SA);KDH201,202,203,222..LHD..(03S,12S,16S)..5F..GEN BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82124-26161 |
LH20#,212,222 BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-26190 |
TRH20#,213,22# |
1 | ||
| 82219-35050 |
TRH20#,213,22# |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-26480 |
KDH223,TRH223..(12S,16S)..GL;KDH221,TRH221..5D..(GCC,GEN);TRH223..STD..(GCC,GEN,SA,TH);TRH213..(11S,16S)..(GCC,GEN,TH);KDH212,220,222,LH212,222..ARL,GCC,GEN,SA,VN |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26460 |
KDH200..4FC..ARL;KDH200..06S..4FC;KDH200..03S..(GCC,GEN);KDH20#..LHD..(06S,12S);KDH202,212,22#..03S,11S,14S,15S,16S |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26470 |
KDH20#,212,22# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82712-26280 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82712-26280 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26D30 |
KDH201..TH;KDH201,223..LHD;TRH201..06S..GCC;TRH201..SP..(GCC,GEN);TRH223..(12S,16S)..GL;TRH223..STD..(GCC,GEN,SA,TH);KDH221,TRH221..5D..(GCC,GEN);KDH222,TRH203..ARL,GCC,GEN,SA;TRH213..(11S,16S)..(GCC,GEN,TH);KDH200,202,203,212,220,LH20#,212,222,TRH200..03S,06S,10S,11S,12S,15S,16S |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26A50 |
LH20#,212,222 |
1 | ||
| 82817-26B70 |
KDH201,203,212,220,221,223;KDH200..03S..5F..(GCC,GEN);KDH200,202..LHD..(06S,12S)..5F;KDH202,222..(14S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26B80 |
KDH20#,212,22# |
1 | ||
| 8281AL - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26B90 |
KDH223,TRH223..(12S,16S)..GL;KDH221,TRH221..5D..(GCC,GEN);TRH223..STD..(GCC,GEN,SA,TH);TRH213..(11S,16S)..(GCC,GEN,TH);KDH212,220,222,LH212,222..ARL,GCC,GEN,SA,VN |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90119-08103 | ||||
| 90179-06274 | ||||
| 91553-80812 | ||||
| 91673-80612 | ||||
| 91673-80814 | ||||
ILLUST NO. 3 OF11(0501- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-26J10 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J00 |
LH212,222..LHD |
1 | ||
| 82111-26J20 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J20 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J30 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J30 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F80 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G30 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26K80 |
KDH212,222..LHD..16S |
1 | ||
| 82111-26K90 |
TRH213,22#..LHD..(03S,16S) |
1 | ||
| 82111-26J11 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26J21 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J01 |
LH212,222..LHD |
1 | ||
| 82111-26J31 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J21 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J31 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G31 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J12 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K91 |
TRH213,22#..LHD..(03S,16S) |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F81 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26F91 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26F91 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J22 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J22 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J32 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J32 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J02 |
LH212,222..LHD |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26K81 |
KDH212,220,222..LHD..(03S,16S)..(GCC,GEN) |
1 | ||
| 82111-26G32 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K92 |
TRH213,22#..LHD..(03S,16S)..(GCC,GEN) |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26F82 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G33 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K93 |
TRH213,22#..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26K82 |
KDH212,220,222..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J03 |
LH212,222..LHD |
1 | ||
| 82111-26J23 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J23 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J33 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J33 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F83 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K94 |
TRH213,22#..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G34 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26K83 |
KDH212,220,222..LHD..STD..(GCC,GEN) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26F84 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G35 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J04 |
LH212,222..LHD |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26K84 |
KDH212,220,222..LHD..STD |
1 | ||
| 82111-26K95 |
TRH213,22#..LHD..STD |
1 | ||
| 82111-26J00 |
LH212,222..LHD PART NUMBER LABEL=82111-26J00 |
1 | ||
| 82111-26J30 |
LH212,222..LHD PART NUMBER LABEL=82111-26J30 |
1 | ||
| 82111-26J20 |
LH212,222..LHD PART NUMBER LABEL=82111-26J20 |
1 | ||
| 82111-26J10 |
LH212,222..LHD PART NUMBER LABEL=82111-26J10 |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26G00 |
1 | ||
| 82111-26F80 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26F80 |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26F90 |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26G10 |
1 | ||
| 82111-26G10 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26G10 |
1 | ||
| 82111-26F90 |
KDH212,222..LHD..5F PART NUMBER LABEL=82111-26F90 |
1 | ||
| 82111-26G00 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26G00 |
1 | ||
| 82111-26G30 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G30 |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G50 |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G70 |
1 | ||
| 82111-26G50 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G50 |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G90 |
1 | ||
| 82111-26G70 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G70 |
1 | ||
| 82111-26G90 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G90 |
1 | ||
| 82111-26K80 |
KDH212,222..LHD..16S PART NUMBER LABEL=82111-26K80 |
1 | ||
| 82111-26K90 |
TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26K90 |
1 | ||
| 82111-26J01 |
LH212,222..LHD PART NUMBER LABEL=82111-26J01 |
1 | ||
| 82111-26J21 |
LH212,222..LHD PART NUMBER LABEL=82111-26J21 |
1 | ||
| 82111-26J31 |
LH212,222..LHD PART NUMBER LABEL=82111-26J31 |
1 | ||
| 82111-26J11 |
LH212,222..LHD PART NUMBER LABEL=82111-26J11 |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G51 |
1 | ||
| 82111-26G51 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G51 |
1 | ||
| 82111-26G31 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G31 |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G71 |
1 | ||
| 82111-26G71 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G71 |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..(GCC,GEN) PART NUMBER LABEL=82111-26G91 |
1 | ||
| 82111-26G91 |
TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82111-26G91 |
1 | ||
| 82111-26K91 |
TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26K91 |
1 | ||
| 82111-26F81 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26F81 |
1 | ||
| 82111-26F91 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26F91 |
1 | ||
| 82111-26G01 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G01 |
1 | ||
| 82111-26G11 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26G11 |
1 | ||
| 82111-26F91 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26F91 |
1 | ||
| 82111-26J22 |
LH212,222..LHD PART NUMBER LABEL=82111-26J22 |
1 | ||
| 82111-26J32 |
LH212,222..LHD PART NUMBER LABEL=82111-26J32 |
1 | ||
| 82111-26G01 |
KDH212,222..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82111-26G01 |
1 | ||
| 82111-26G11 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G11 |
1 | ||
| 82111-26J12 |
LH212,222..LHD PART NUMBER LABEL=82111-26J12 |
1 | ||
| 82111-26J02 |
LH212,222..LHD PART NUMBER LABEL=82111-26J02 |
1 | ||
| 82111-26K81 |
KDH212,220,222..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26K81 |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G52 |
1 | ||
| 82111-26G32 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G32 |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G72 |
1 | ||
| 82111-26G72 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G72 |
1 | ||
| 82111-26G52 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G52 |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..SG..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26G92 |
1 | ||
| 82111-26G92 |
TRH213,22#..LHD..(GCC,GEN,VN) PART NUMBER LABEL=82111-26G92 |
1 | ||
| 82111-26K92 |
TRH213,22#..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82111-26K92 |
1 | ||
| 82111-26F82 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26F82 |
1 | ||
| 82111-26G12 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G12 |
1 | ||
| 82111-26G02 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G02 |
1 | ||
| 82111-26G02 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G02 |
1 | ||
| 82111-26G33 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G33 |
1 | ||
| 82111-26K93 |
TRH213,22#..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K93 |
1 | ||
| 82111-26G73 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G73 |
1 | ||
| 82111-26G12 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G12 |
1 | ||
| 82111-26G73 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G73 |
1 | ||
| 82111-26K82 |
KDH212,220,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K82 |
1 | ||
| 82111-26J23 |
LH212,222..LHD PART NUMBER LABEL=82111-26J23 |
1 | ||
| 82111-26G93 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G93 |
1 | ||
| 82111-26J03 |
LH212,222..LHD PART NUMBER LABEL=82111-26J03 |
1 | ||
| 82111-26G93 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G93 |
1 | ||
| 82111-26J33 |
LH212,222..LHD PART NUMBER LABEL=82111-26J33 |
1 | ||
| 82111-26G13 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G13 |
1 | ||
| 82111-26G03 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G03 |
1 | ||
| 82111-26G13 |
KDH212,220,222..LHD..5F PART NUMBER LABEL=82111-26G13 |
1 | ||
| 82111-26F83 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26F83 |
1 | ||
| 82111-26G74 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82111-26G74 |
1 | ||
| 82111-26G34 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G34 |
1 | ||
| 82111-26G74 |
TRH213,22#..LHD..SG..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G74 |
1 | ||
| 82111-26G03 |
KDH212,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26G03 |
1 | ||
| 82111-26K94 |
TRH213,22#..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K94 |
1 | ||
| 82111-26K83 |
KDH212,220,222..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82111-26K83 |
1 | ||
| 82111-26F84 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G35 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82111-26G14 |
KDH212,220,222..LHD..5F ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26G14 |
KDH212,222..LHD..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUALAIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,222..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G04 |
KDH212,220,222..LHD..5F SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..(03S,16S) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J24 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G94 |
TRH213,22#..LHD..SG..STD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&AIR CONDITIONER-DUALAIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26G75 |
TRH213,22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82111-26J34 |
LH212,222..LHD ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);ABS(ANTI-LOCK BRAKE SYSTEM)-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82111-26J04 |
LH212,222..LHD |
1 | ||
| 82111-26K95 |
TRH213,22#..LHD..STD |
1 | ||
| 82111-26K84 |
KDH212,220,222..LHD..STD |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-26510 |
KDH222,TRH223..GCC WIRELESS DOOR LOCK-WITH |
1 | ||
| 82141-26510 |
KDH212,222,TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26510 |
KDH212,222,TRH213,22#..LHD..(03S,16S) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26510 |
KDH222,TRH223..GCC WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26510 |
KDH222,TRH223..GCC WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26510 |
KDH222,TRH223..GCC WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26510 |
KDH222,TRH223..GCC WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26510 |
KDH212,222,TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26510 |
KDH222,TRH223..GCC WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26510 |
KDH212,222,TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26510 |
KDH212,222,TRH213,22#..LHD..SG..(03S,16S) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26550 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26540 |
LH212,222..LHD |
1 | ||
| 82141-26550 |
LH212,222..LHD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26550 |
LH212,222..LHD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26550 |
LH212,222..LHD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26550 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26500 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..(03S,16S)..(GCC,GEN) |
1 | ||
| 82141-26511 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..(03S,16S)..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26511 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..(03S,16S)..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..GCC WIRELESS DOOR LOCK-WITH |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..GCC WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..GCC WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..GCC WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..GCC WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..GCC WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..LHD..16S..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26551 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26541 |
LH212,222..LHD |
1 | ||
| 82141-26551 |
LH212,222..LHD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26551 |
LH212,222..LHD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26551 |
LH212,222..LHD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26551 |
LH212,222..LHD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26501 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) |
1 | ||
| 82141-26512 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26512 |
KDH212,222,TRH213,223..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26512 |
KDH212,222,TRH213,223..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26512 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26512 |
KDH212,222,TRH213,223..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26552 |
LH212,222..LHD |
1 | ||
| 82141-26840 |
KDH212,222,TRH213,223..GCC WIRELESS DOOR LOCK-WITH |
1 | ||
| 82141-26840 |
KDH212,222,TRH213,223..STD..GCC WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26840 |
KDH212,222,TRH213,223..STD..GCC WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26840 |
KDH212,222,TRH213,223..STD..GCC WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26840 |
KDH212,222,TRH213,223..STD..GCC WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26840 |
KDH212,222,TRH213,223..STD..GCC WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26513 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26513 |
KDH212,222,TRH213,223..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26502 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) |
1 | ||
| 82141-26513 |
KDH212,222,TRH213,223..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26513 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26513 |
KDH212,222,TRH213,223..LHD..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26503 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD |
1 | ||
| 82141-26514 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26514 |
KDH212,222,TRH213,223..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26514 |
KDH212,222,TRH213,223..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26514 |
KDH212,222,TRH213,223..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26514 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26553 |
LH212,222..LHD |
1 | ||
| 82141-26841 |
KDH212,222,TRH213,223..STD..GCC POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26841 |
KDH212,222,TRH213,223..STD..GCC POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82141-26841 |
KDH212,222,TRH213,223..STD..GCC POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26841 |
KDH212,222,TRH213,223..STD..GCC POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82141-26841 |
KDH212,222,TRH213,223..STD..GCC POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26841 |
KDH212,222,TRH213,223..STD..GCC POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH |
1 | ||
| 82141-26510 |
KDH212,222,TRH213,22#..LHD..SG..(03S,16S) PART NUMBER LABEL=82141-26510 |
1 | ||
| 82141-26550 |
LH212,222..LHD PART NUMBER LABEL=82141-26550 |
1 | ||
| 82141-26540 |
LH212,222..LHD PART NUMBER LABEL=82141-26540 |
1 | ||
| 82141-26510 |
KDH222,TRH223..GCC PART NUMBER LABEL=82141-26510 |
1 | ||
| 82141-26510 |
KDH212,222,TRH213,22#..LHD..(03S,16S) PART NUMBER LABEL=82141-26510 |
1 | ||
| 82141-26500 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82141-26500 |
1 | ||
| 82141-26511 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..(03S,16S)..(GCC,GEN) PART NUMBER LABEL=82141-26511 |
1 | ||
| 82141-26541 |
LH212,222..LHD PART NUMBER LABEL=82141-26541 |
1 | ||
| 82141-26551 |
LH212,222..LHD PART NUMBER LABEL=82141-26551 |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..GCC PART NUMBER LABEL=82141-26511 |
1 | ||
| 82141-26511 |
KDH212,222,TRH213,223..LHD..16S..(GCC,GEN) PART NUMBER LABEL=82141-26511 |
1 | ||
| 82141-26512 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82141-26512 |
1 | ||
| 82141-26512 |
KDH212,222,TRH213,223..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82141-26512 |
1 | ||
| 82141-26501 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82141-26501 |
1 | ||
| 82141-26840 |
KDH212,222,TRH213,223..GCC PART NUMBER LABEL=82141-26840 |
1 | ||
| 82141-26552 |
LH212,222..LHD PART NUMBER LABEL=82141-26552 |
1 | ||
| 82141-26502 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82141-26502 |
1 | ||
| 82141-26513 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82141-26513 |
1 | ||
| 82141-26840 |
KDH212,222,TRH213,223..STD..GCC PART NUMBER LABEL=82141-26840 |
1 | ||
| 82141-26513 |
KDH212,222,TRH213,223..LHD..STD..(GCC,GEN) PART NUMBER LABEL=82141-26513 |
1 | ||
| 82141-26503 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD |
1 | ||
| 82141-26553 |
LH212,222..LHD |
1 | ||
| 82141-26514 |
TRH221..LHD..SP;KDH212,220,222,TRH213,223..LHD..STD SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26514 |
KDH212,222,TRH213,223..LHD..STD AIR CONDITIONER-DUAL AIR CONDITIONER;AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIRBAG-WITH(DRIVER SEAT SIDE ONLY);AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82141-26841 |
KDH212,222,TRH213,223..STD..GCC POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH;POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&AIRCONDITIONER-DUAL AIR CONDITIONER;POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&AIR CONDITIONER-DUAL AIR CONDITIONER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE);POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY);POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&WIRELESS DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-26111 |
KDH222,TRH22#..GCC SAUDI ARABIA SPEC |
1 | ||
| 82142-26111 |
KDH212,222,TRH213,22#..GCC HEADLAMP LEVELING DEVICE-WITH |
1 | ||
| 82142-26100 |
TRH223..GL..GCC;TRH223..LHD..STD;TRH213..LHD..(09S,16S);KDH212,220,222,LH212,222,TRH221..LHD..(03S,10S,16S) |
1 | ||
| 82142-26101 |
TRH223..GCC;TRH213..GL..VN;TRH223..LHD..STD..GEN;KDH212,220,222,LH212,222,TRH213,221..LHD..(03S,16S) |
1 | ||
| 82142-26112 |
KDH212,222,TRH213,22#..GCC HEADLAMP LEVELING DEVICE-WITH |
1 | ||
| 82142-26102 |
TRH223..GCC;TRH223..LHD..STD..GEN;KDH212,220,222,LH212,222,TRH213,221..LHD..(03S,16S) |
1 | ||
| 82142-26113 |
KDH212,222,TRH213,22#..GCC HEADLAMP LEVELING DEVICE-WITH |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-26021 |
LH212..LHD;KDH212..5F..(GCC,GEN);KDH201..RHD..(ARL,GEN);KDH220,222,LH222,TRH213,22#..(03S,14S,16S)..(ARL,GCC,GEN,TH);KDH200,202,203,221,223,LH20#,TRH20#..(03S,06S,12S,14S,15S)..STD SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82143-26020 |
KDH202..STD..TH;TRH223..16S..GL;KDH222,TRH223..STD;KDH222,TRH213..GL..(GCC,VN);KDH200,201,203,220,221,223,LH20#,212,222,TRH20#,221;KDH202,212,TRH213..4D..(09S,11S,12S,15S,16S)..(GCC,GEN,MA,SA,VN) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-26060 |
TRH213,223;KDH212,220,222,TRH221..ARL,GCC,GEN,SA,VN;KDH20#,221,223,LH20#,212,222,TRH20#..ARL,GCC,GEN,MA,RUS,TH |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26860 |
KDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-26070 |
KDH200,202..LHD..(03S,12S,15S)..5F;TRH203,213..LHD..(10S,15S,16S)..(GCC,GEN);KDH201,203,212,220,222,223,LH20#,212,222,TRH201,22#..LHD..(03S,06S,11S,12S,13S,15S,16S)..(CIS,GCC,GEN,RUS) |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
LH20#..LHD;TRH213,223;KDH212,220,222,TRH221..ARL,GCC,GEN,SA,VN;KDH20#,221,223,LH212,222,TRH20#..ARL,GCC,GEN,MA,RUS,TH |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF11(0501- )
FRONT DOOR & HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP | ||||
| 82020-26411 |
KDH212,222..LHD |
1 | ||
| 82020-26430 |
LH212,222..LHD |
1 | ||
| 82020-26412 |
KDH212,220,222..LHD |
1 | ||
| 82020-26413 |
KDH212,220,222..LHD |
1 | ||
| 82020-26421 |
TRH213,22#..LHD |
1 | ||
| 82020-26431 |
LH212,222..LHD |
1 | ||
| 82020-26730 |
TRH213..GL..VN;TRH213,22#..LHD..(03S,12S,16S)..5F |
1 | ||
| 82020-26432 |
LH212,222..LHD |
1 | ||
| 82020-26414 |
KDH212,220,222..LHD |
1 | ||
| 82020-26415 |
KDH212,220,222..LHD |
1 | ||
| 82020-26424 |
TRH213,22#..LHD..(03S,12S,16S) |
1 | ||
| 82020-26433 |
LH212,222..LHD |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26550 |
KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82151-26520 |
TRH203..GCC,MA;KDH202..HRF..MA;TRH203..SRF..GEN;KDH220..SP..(GEN,SA);TRH223..STD..(GCC,GEN,SA);KDH202..SRF..STD..(GCC,GEN,TH);KDH200,222,TRH201..LHD..(06S,16S)..STD;KDH200,212,LH20#,212,222,TRH201,213,221..(03S,10S,12S,15S,16S)..STD..(GCC,GEN,SA,TH,VN) POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82151-26510 |
KDH201..TH;KDH201..LHD;TRH223..16S..STD;KDH220..SP..(GEN,SA);KDH200,222,TRH201..LHD..(06S,16S)..STD;KDH200,202,203,212,LH20#,212,222,TRH201,203,213,221..(03S,10S,12S,15S,16S)..STD..(GCC,GEN,MA,SA,TH,VN) |
1 | ||
| 82151-26551 |
KDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26510 |
KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82152-26511 |
KDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD..STD POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82152-26480 |
KDH201..LHD;KDH202..HRF..MA;TRH203..SRF..GEN;TRH223..16S..STD;KDH220..SP..(GEN,SA);KDH201,TRH203..GCC,MA,TH;KDH202..SRF..STD..(GCC,GEN,TH);KDH200,222,TRH201..LHD..(06S,16S)..STD;KDH200,203,212,LH20#,212,222,TRH201,213,221..(03S,10S,12S,15S,16S)..STD..(GCC,GEN,SA,TH,VN) POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH) |
1 | ||
| 82152-26420 |
KDH201..TH;KDH201..LHD;TRH223..16S..STD;KDH220..SP..(GEN,SA);KDH200,222,TRH201..LHD..(06S,16S)..STD;KDH200,202,203,212,LH20#,212,222,TRH201,203,213,221..(03S,10S,12S,15S,16S)..STD..(GCC,GEN,MA,SA,TH,VN) |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-26500 |
KDH222..LHD |
1 | ||
| 82666-26500 |
TRH213..LHD..5F;KDH20#,212,220,223,LH20#,212,222,TRH201,203,22#..LHD |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-26310 |
KDH222..LHD |
1 | ||
| 82666-26310 |
KDH222..RHD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-26320 |
KDH222..RHD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82666-26320 |
KDH222..LHD |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-26230 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-26250 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26620 |
TRH213..5F..GCC;TRH213..GEN,SA,TH,VN;KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,22# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26610 |
KDH222..RHD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82815-26610 |
KDH222..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26B30 |
TRH213..5F..GCC;TRH213..GEN,SA,TH,VN;KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,22# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B20 |
KDH222..LHD |
1 | ||
| 82817-26B20 |
KDH222..RHD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-26080 |
KDH201..LHD;TRH223..LHD..GL;LH20#,TRH213,223..RHD;TRH223..4FC..STD..GCC;KDH200,201,TRH201..ARL;TRH213..5F..STD..(GCC,VN);KDH223,TRH221..ARL,RUS,SA,TH;KDH201,222..SG..(ARL,GCC,GEN,SA);KDH200,TRH201,213..SG..(06S,09S,10S)..(GEN,VN);KDH203,212,220,221,LH212,222,TRH200..03S,06S,10S,11S,12S,15S,16S |
1 | ||
| Common parts | ||||
| 82711-26370 | ||||
| 90105-T0194 | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 6 OF11(0501- )
BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-26360 |
KDH22#,LH222,TRH22# |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-26430 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26110 |
KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH220,221,TRH221;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);TRH223..(12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH212,223,LH212,222..4D..(ARL,GCC,GEN,RUS,SA,VN) REAR WINDOW WIPER-WITH(INTERMITTENT),LH |
1 | ||
| 82186-26100 |
KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH220,221,TRH221;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);TRH223..(12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH212,223,LH212,222..4D..(ARL,GCC,GEN,RUS,SA,VN) REAR WINDOW WIPER-WITH(INTERMITTENT),RH |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26110 |
KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH220,221,TRH221;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);TRH223..(12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH212,223,LH212,222..4D..(ARL,GCC,GEN,RUS,SA,VN) REAR WINDOW WIPER-WITH(INTERMITTENT),LH |
1 | ||
| 82186-26100 |
KDH222..ARL,GCC;TRH213..RHD..5F;KDH222..LHD..GEN;KDH220,221,TRH221;KDH222,TRH223..GL..SA;TRH213..LHD..(09S,16S);TRH223..(12S,14S,16S)..(ARL,CIS,GCC,GEN);KDH212,223,LH212,222..4D..(ARL,GCC,GEN,RUS,SA,VN) REAR WINDOW WIPER-WITH(INTERMITTENT),RH |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-26280 |
KDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH221,TRH221..GCC,GEN,SA;KDH220,LH222,TRH223..(03S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 82188-26270 |
KDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH221,TRH221..GCC,GEN,SA;KDH220,LH222,TRH223..(03S,16S)..STD HIGH MOUNT STOP LAMP-WITH(LED) |
1 | ||
| 82188-26290 |
KDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH221,TRH221..GCC,GEN,SA;KDH220,LH222,TRH223..(03S,16S)..STD REAR WINDOW WIPER-WITH(INTERMITTENT)&HIGH MOUNT STOP LAMP-WITH(LED) |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-26400 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82819C - GROMMET, WIRING HARNESS | ||||
| 82819-26610 |
KDH221..5D;KDH222..LHD..STD;KDH220..SP..(GEN,SA);TRH223..STD..(ARL,GCC,GEN);KDH223,LH222,TRH201,221..HRF |
1 | ||
| 82819-26611 |
KDH222,TRH223..STD..(ARL,GCC,GEN);KDH220,221,223,LH222,TRH201,221..HRF..(ARL,GCC,GEN,SA) |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 7 OF11(0501- )KDH203,221..RHD..03S,12S ; (0501-)KDH220,222,223,LH222,TRH22#
FLOOR,LUGGAGE & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-26620 |
KDH212..5F;TRH213..RHD..5F;TRH213..LHD..(09S,16S);KDH20#,22#,LH20#,212,222,TRH20#,22#..(03S,06S,10S,12S,14S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) |
1 | ||
| 82164-26720 |
KDH22#,LH222,TRH22#..03S,14S,15S,16S ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82164-26721 |
KDH221..4FC..GEN;KDH220,222,LH222,TRH22#..(03S,16S)..(GCC,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-26C30 |
KDH220,222,LH222,TRH22#..LHD..STD |
1 | ||
| 82171-26C31 |
KDH220,222,LH222,TRH22#..LHD..STD |
1 | ||
| 82171-26C30 |
KDH220,222,LH222,TRH22#..LHD..STD PART NUMBER LABEL=82171-26C30 |
1 | ||
| 82171-26C31 |
KDH220,222,LH222,TRH22#..LHD..STD PART NUMBER LABEL=82171-26C31 |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-26210 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER |
1 | ||
| 82172-26200 |
KDH221..5D;KDH220..SP..(GEN,SA);KDH222,LH222,TRH22#..(03S,15S,16S)..STD |
1 | ||
| 82172-26210 |
KDH222,TRH223..5F..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER |
1 | ||
| 82172-26210 |
KDH222,TRH223..5F..STD..GCC AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER |
1 | ||
| 82172-26211 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER |
1 | ||
| 82172-26211 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER |
1 | ||
| 82172-26201 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-26220 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-26060 |
KDH220,221..5D;KDH223,TRH221..03S,12S,14S;KDH222,LH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-26140 |
KDH222,TRH223..5F..STD..GCC WIRELESS DOOR LOCK-WITH&AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER |
1 | ||
| 82183-26130 |
KDH222,TRH223..5F..STD..GCC AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER |
1 | ||
| 82183-26170 |
KDH212,TRH213..GCC;KDH200,202,203,222,LH20#,212,222,TRH20#,22#..LHD..4D..STD |
1 | ||
| 82183-26140 |
KDH222,TRH223..GCC WIRELESS DOOR LOCK-WITH |
1 | ||
| 82183-26140 |
KDH222,TRH223..STD..GCC WIRELESS DOOR LOCK-WITH&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER |
1 | ||
| 82183-26130 |
KDH222,LH222,TRH223..LHD..STD AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER |
1 | ||
| 82183-26140 |
KDH222,TRH223..5F..STD..GCC WIRELESS DOOR LOCK-WITH&AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER |
1 | ||
| 82183-26130 |
KDH222,TRH223..5F..STD..GCC AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER |
1 | ||
| 82183-26131 |
KDH222,LH222,TRH223..LHD..STD AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER |
1 | ||
| 82183-26141 |
KDH222,TRH223..GCC WIRELESS DOOR LOCK-WITH |
1 | ||
| 82183-26131 |
KDH222,LH222,TRH223..LHD..STD AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER |
1 | ||
| 82183-26141 |
KDH222,TRH223..STD..GCC WIRELESS DOOR LOCK-WITH&AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER |
1 | ||
| 82183-26171 |
KDH200,202,203,212,222,LH20#,212,222,TRH201,203,213,22#..LHD..4D..STD |
1 | ||
| 82183-26141 |
KDH222,TRH223..STD..GCC WIRELESS DOOR LOCK-WITH&AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-26011 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82413-26020 |
TRH20#,213,22# |
1 | ||
| 82413-26010 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 82413-26021 |
TRH20#,213,22# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26410 |
TRH203..12S;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;TRH203,213..LHD..(15S,16S)..(GCC,GEN);KDH200,201,220,221,LH200,TRH200,201..5D;KDH200,202,203,212,LH20#,212,222,TRH201..LHD..4D..STD;KDH202,212,223,TRH213,221..(HRF,SMRF)..(03S,09S,10S,11S,12S,14S)..(ARL,GCC,GEN,MA,RUS,SA,TH) |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26410 |
TRH203..12S;KDH222,TRH223..LHD..GEN;KDH222,TRH223..ARL,CIS,GCC,SA;TRH203,213..LHD..(15S,16S)..(GCC,GEN);KDH200,201,220,221,LH200,TRH200,201..5D;KDH200,202,203,212,LH20#,212,222,TRH201..LHD..4D..STD;KDH202,212,223,TRH213,221..(HRF,SMRF)..(03S,09S,10S,11S,12S,14S)..(ARL,GCC,GEN,MA,RUS,SA,TH) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-26390 |
KDH202..STD..TH;KDH202..GCC,GEN,MA;TRH213..GCC,GEN,SA,TH;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,22# |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-26370 |
KDH221..5D;KDH223,TRH22#;KDH220..SP..(GEN,SA);KDH222,LH222..GCC,GEN,SA NO.1 |
1 | ||
| Common parts | ||||
| 90105-T0198 | ||||
| 90119-06923 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 8 OF11(0501- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-26070 |
KDH212..GCC;KDH222..LHD..STD BATTERY-80D26R X 2(55AH X 2) |
1 | ||
| 82167-26070 |
LH212,222..LHD..16S BATTERY-85D26R X 2(55AH X 2) |
1 | ||
| 82167-26070 |
KDH212,220,222,LH212,222,TRH213,22#..LHD..STD FRONT SEAT SLIDE-*DRS:225MM & *PAS:225MM |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-26040 |
TRH213..4FC;TRH213..5F..GCC;KDH212,222,TRH22#..GCC |
1 | ||
ILLUST NO. 9 OF11(0501- )
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-26150 | ||||
| 82712-26290 | ||||
| 82712-26320 | ||||
| 82712-26391 | ||||
| 82715-26A10 | ||||
| 82715-26A20 | ||||
| 82715-26A30 | ||||
| 82715-26A70 | ||||
| 82715-26B00 | ||||
| 82715-26B50 | ||||
| 82715-26B60 | ||||
| 82715-26D70 | ||||
| 82715-26D80 | ||||
| 82715-26D90 | ||||
| 82715-26E10 | ||||
| 82715-26E11 | ||||
| 82715-26G00 | ||||
| 82715-26G01 | ||||
| 82715-26G30 | ||||
| 82715-26G50 | ||||
| 82729-26341 | ||||
| 90119-08C20 | ||||
| 90119-T0206 | ||||
| 90159-50327 | ||||
| 90159-T0042 | ||||
| 91511-B0614 | ||||
| 91552-81018 | ||||
| 91553-80812 | ||||
| 91553-80814 | ||||
| 91553-80818 | ||||
| 91673-80820 | ||||
ILLUST NO.10 OF11(0501- )
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-34310 | ||||
| 82715-25850 | ||||
| 82715-25A30 | ||||
| 82715-26A00 | ||||
| 82715-26A40 | ||||
| 82715-26A50 | ||||
| 82715-26B40 | ||||
| 82715-26B70 | ||||
| 82715-26B90 | ||||
| 82715-26C00 | ||||
| 82715-26C10 | ||||
| 82715-26C30 | ||||
| 82715-26C50 | ||||
| 82715-26C60 | ||||
| 82715-26C70 | ||||
| 82715-26D40 | ||||
| 82715-26E30 | ||||
| 82715-26E40 | ||||
| 82715-26E70 | ||||
| 82715-26E80 | ||||
| 82715-26E90 | ||||
| 82715-26F10 | ||||
| 82715-26F50 | ||||
| 82715-26G10 | ||||
| 82715-26G80 | ||||
| 82715-26G81 | ||||
| 82715-28430 | ||||
| 82715-89119 | ||||
| 82729-26130 | ||||
| 82729-26170 | ||||
| 90119-06375 | ||||
| 90119-08A96 | ||||
| 90179-06274 | ||||
| 91511-80616 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91553-80810 | ||||
| 91611-B0610 | ||||
| 91671-A0612 | ||||
| 91673-80612 | ||||
ILLUST NO.11 OF11(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-48450 | ||||
| 90980-10619 | ||||
| 90980-10803 | ||||
| 90980-10819 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11096 | ||||
| 90980-11156 | ||||
| 90980-11246 | ||||
| 90980-11314 | ||||
| 90980-11395 | ||||
| 90980-11918 | ||||
| 90980-12113 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12790 | ||||
ILLUST NO. 5 OF11(0610- )TRH213..4FC..GL ; (0904- )KDH223..4FC ; (1008- )TRH223..ARL ; (100
REAR DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06196 | ||||
| 90119-06923 | ||||
| 91553-80614 | ||||
ILLUST NO. 2 OF11(0501- )KDH20#,212,22#
ENGINE & FLOOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-26450 |
KDH20#,212,22# |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-26480 |
KDH223,TRH223..(12S,16S)..GL;KDH221,TRH221..5D..(GCC,GEN);TRH223..STD..(GCC,GEN,SA,TH);TRH213..(11S,16S)..(GCC,GEN,TH);KDH212,220,222,LH212,222..ARL,GCC,GEN,SA,VN |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26460 |
KDH200..4FC..ARL;KDH200..06S..4FC;KDH200..03S..(GCC,GEN);KDH20#..LHD..(06S,12S);KDH202,212,22#..03S,11S,14S,15S,16S |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26470 |
KDH20#,212,22# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26D30 |
KDH201..TH;KDH201,223..LHD;TRH201..06S..GCC;TRH201..SP..(GCC,GEN);TRH223..(12S,16S)..GL;TRH223..STD..(GCC,GEN,SA,TH);KDH221,TRH221..5D..(GCC,GEN);KDH222,TRH203..ARL,GCC,GEN,SA;TRH213..(11S,16S)..(GCC,GEN,TH);KDH200,202,203,212,220,LH20#,212,222,TRH200..03S,06S,10S,11S,12S,15S,16S |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26B60 |
KDH20#,212,22# |
1 | ||
| 82817-26C10 |
LH20#,212,222 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26A50 |
LH20#,212,222 |
1 | ||
| 82817-26B70 |
KDH201,203,212,220,221,223;KDH200..03S..5F..(GCC,GEN);KDH200,202..LHD..(06S,12S)..5F;KDH202,222..(14S,15S,16S)..(ARL,GCC,GEN,SA) |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26B80 |
KDH20#,212,22# |
1 | ||
| 8281AL - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26B90 |
KDH223,TRH223..(12S,16S)..GL;KDH221,TRH221..5D..(GCC,GEN);TRH223..STD..(GCC,GEN,SA,TH);TRH213..(11S,16S)..(GCC,GEN,TH);KDH212,220,222,LH212,222..ARL,GCC,GEN,SA,VN |
1 | ||
| 8281AP - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-26C00 |
KDH201..TH;KDH201,223..LHD;KDH221..5D..GEN;KDH222..ARL,GCC,GEN,SA;KDH200,202,203,212,220..03S,06S,10S,11S,12S,15S,16S |
1 | ||
| Common parts | ||||
| 90105-T0065 | ||||
| 90105-T0121 | ||||
| 91551-80825 | ||||
| 91553-80812 | ||||
| 91673-80612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
