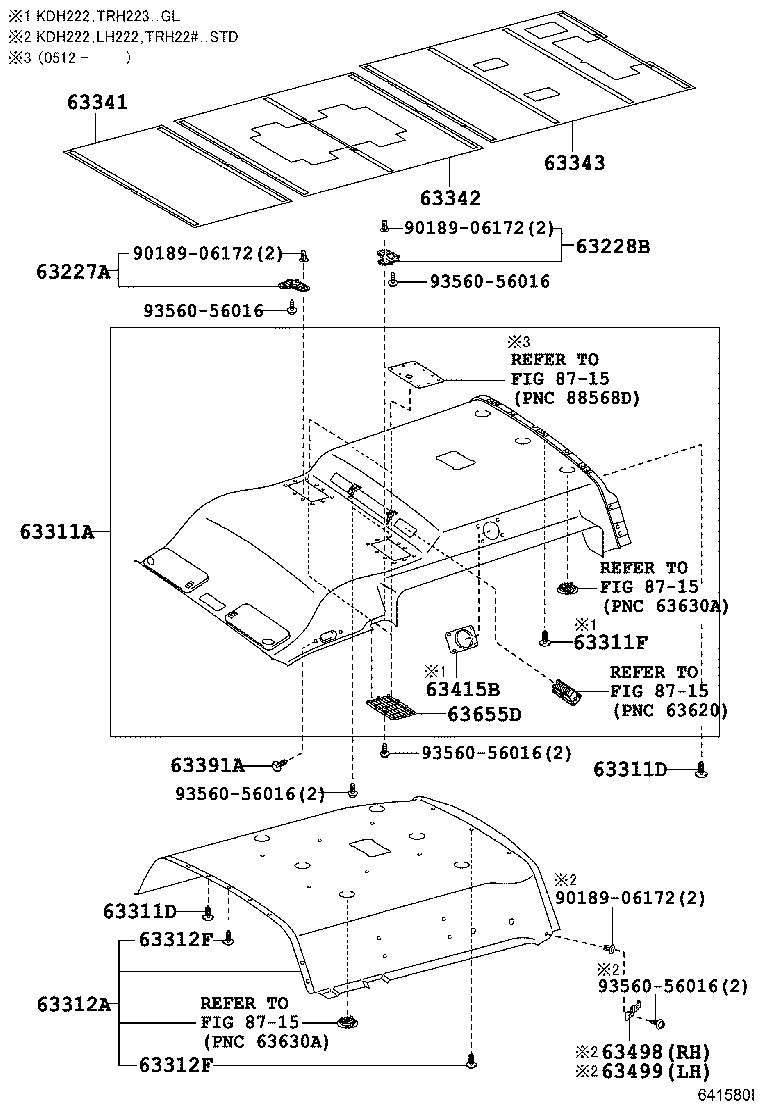

KDH222L-LEMDYV (2005)
Toyota Hiace
(0501-0611)KDH222,223,LH222,TRH22#..SG
W(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63227A - BRACKET, ROOF HEADLINING, FRONT RH | ||||
| 63227-26130 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63227-26130 |
KDH222,LH222,TRH22#..SG..5F..(GCC,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63228B - BRACKET, ROOF HEADLINING, FRONT LH | ||||
| 63228-26060 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63228-26060 |
KDH222,LH222,TRH22#..SG..5F..(GCC,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26C20B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C20B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C21B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63310-26C21B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A30B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221 LT.GRAY,TRIM1# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-26210B1 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26200B1 |
KDH222,LH222,TRH223..16S..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63320-26211B1 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26201B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26211B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
1 | ||
| 63312-26200B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
4 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26200 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63341-26200 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63341-26200 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26140 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63342-26140 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63342-26140 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-26110 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63343-26110 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63343-26110 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH201..SP..06S;KDH223,TRH200,223;KDH202,220,221,222,LH222,TRH201,203,221..HRF..(ARL,GCC,GEN,MA,SA) LT.GRAY,TRIM1# |
2 | ||
| 63498 - BRACKET, ROOF HEADLINING, REAR RH | ||||
| 63743-26040 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63743-26040 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63743-26040 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63499 - BRACKET, ROOF HEADLINING, REAR LH | ||||
| 63744-26040 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63744-26040 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63744-26040 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH222,LH222,TRH22#..SG..5F..(GCC,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655-26020B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655-26030B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26030B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26040B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26030B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1#,RH |
1 | ||
| Common parts | ||||
| 90189-06172 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(0501- )KDH22#,LH222,TRH22#..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 63399-26030 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
27 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63310K - CLIP | ||||
| 63399-26070B0 |
TRH223..STD..(GCC,GEN,SA,TH);KDH220,221,222,LH222,TRH221..(03S,16S)..STD LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
32 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26C20B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C20B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C21B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63310-26C21B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A30B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221 LT.GRAY,TRIM1# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-26210B1 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26200B1 |
KDH222,LH222,TRH223..16S..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63320-26211B1 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26201B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26211B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
1 | ||
| 63312-26200B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63313A - HEADLINING, ROOF, NO.3 | ||||
| 63313-26150B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63314A - HEADLINING, ROOF, NO.4 | ||||
| 63314-26060B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63375C - RETAINER, ROOF HEADLINING SUPPORT, CENTER | ||||
| 63375-26120B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
2 | ||
| 63375C - RETAINER, ROOF HEADLINING SUPPORT, CENTER | ||||
| 63375-26120B0 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
2 | ||
| 63375D - MOULDING, ROOF HEADLINING | ||||
| 63375-26110B0 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LT.GRAY,TRIM1# |
1 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH201..SP..06S;KDH223,TRH200,223;KDH202,220,221,222,LH222,TRH201,203,221..HRF..(ARL,GCC,GEN,MA,SA) LT.GRAY,TRIM1# |
2 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26040 |
KDH220,221,222,LH222,TRH201,22#..HRF..(03S,16S)..STD..(ARL,GCC,GEN,SA) |
3 | ||

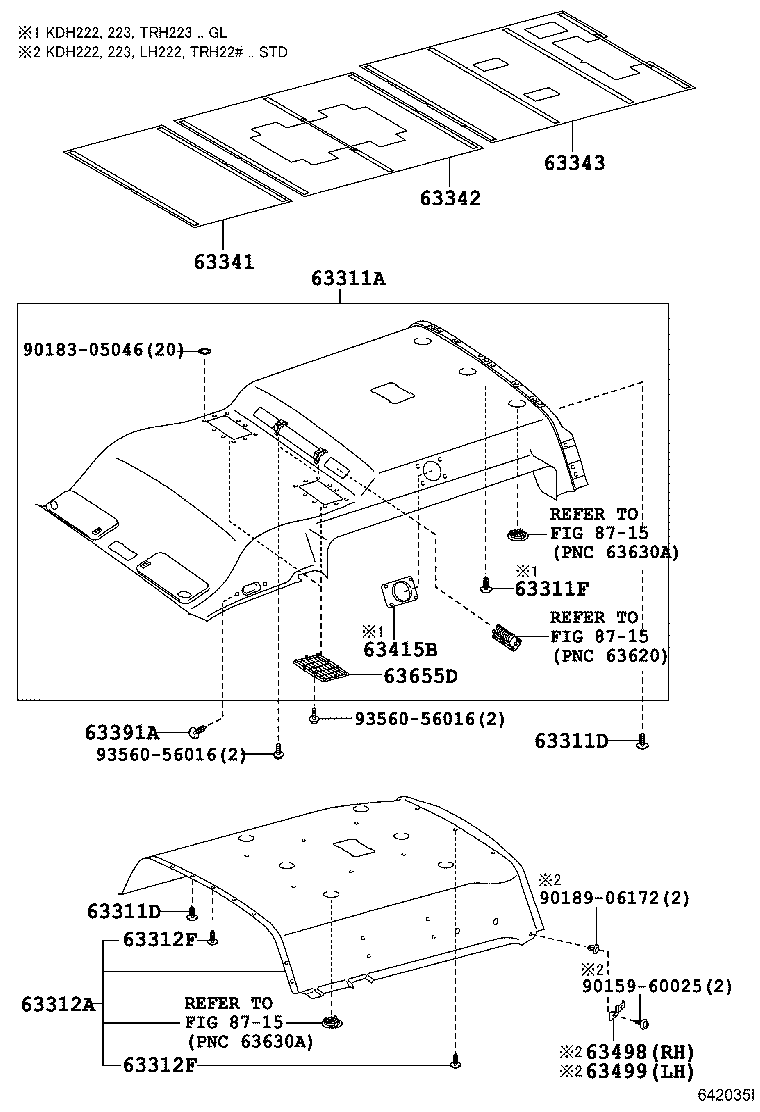

(0611-0709)KDH222,223,LH222,TRH22#..SG
W(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26C20B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C20B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C21B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63310-26C21B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A30B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221 LT.GRAY,TRIM1# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-26210B1 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26200B1 |
KDH222,LH222,TRH223..16S..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63320-26211B1 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26201B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26211B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
1 | ||
| 63312-26200B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
4 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26200 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63341-26200 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63341-26200 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26140 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63342-26140 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63342-26140 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-26110 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63343-26110 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63343-26110 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH201..SP..06S;KDH223,TRH200,223;KDH202,220,221,222,LH222,TRH201,203,221..HRF..(ARL,GCC,GEN,MA,SA) LT.GRAY,TRIM1# |
2 | ||
| 63498 - BRACKET, ROOF HEADLINING, REAR RH | ||||
| 63743-26040 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63743-26040 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63743-26040 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63499 - BRACKET, ROOF HEADLINING, REAR LH | ||||
| 63744-26040 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63744-26040 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63744-26040 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH222,LH222,TRH22#..SG..5F..(GCC,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655-26020B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655-26030B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26030B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26040B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26030B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1#,RH |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90183-05046 | ||||
| 90189-06172 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

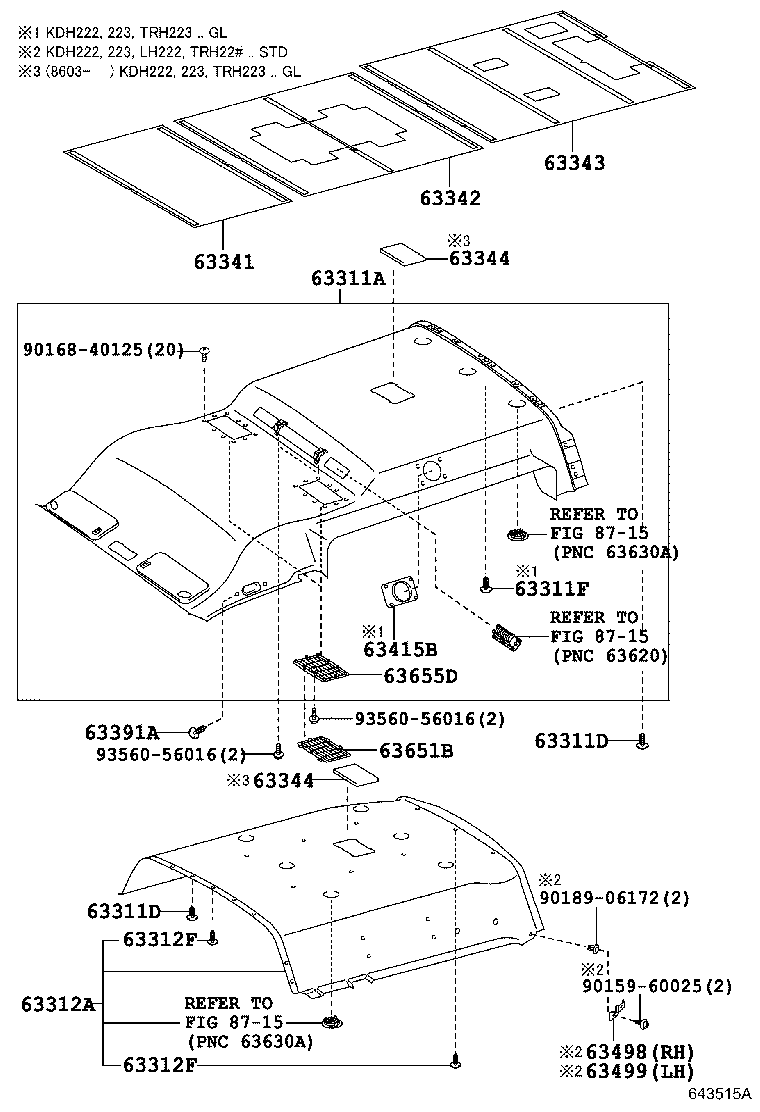

(0709- )KDH222,223,LH222,TRH22#..SG
W(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26C20B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C20B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C21B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63310-26C21B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH22#..LHD..SG..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26C22B1 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26A30B1 |
KDH220,221,LH222,TRH221;KDH222,TRH223..STD..(GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
38 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
34 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
32 | ||
| 63399-26050B0 |
KDH202..MA,TH;KDH201..SP..06S;KDH222,TRH223..STD..(GCC,GEN,SA);KDH203,221,TRH200,203..RHD..(03S,06S,12S);KDH202,220,LH222,TRH221..HRF..(ARL,GCC,GEN,SA) LT.GRAY,TRIM1# |
4 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH223..RHD;TRH223..CIS;TRH223..LHD..4FC;KDH222..STD..GCC;KDH222..ARL,GEN,SA;TRH223..LHD..5F..STD;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221 LT.GRAY,TRIM1# |
1 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-26210B1 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26200B1 |
KDH222,LH222,TRH223..16S..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LIGHT GRAY,TRIM1# |
1 | ||
| 63320-26211B1 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26201B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
1 | ||
| 63320-26211B1 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
1 | ||
| 63312-26200B1 |
KDH220,221,222,LH222,TRH22#..(03S,16S)..STD..(ARL,GCC,GEN,SA) LIGHT GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
4 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..(15S,16S)..STD AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26200 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63341-26200 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63341-26200 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26140 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63342-26140 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63342-26140 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-26110 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63343-26110 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63343-26110 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH201..SP..06S;KDH223,TRH200,223;KDH202,220,221,222,LH222,TRH201,203,221..HRF..(ARL,GCC,GEN,MA,SA) LT.GRAY,TRIM1# |
2 | ||
| 63498 - BRACKET, ROOF HEADLINING, REAR RH | ||||
| 63743-26040 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63743-26040 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63743-26040 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63499 - BRACKET, ROOF HEADLINING, REAR LH | ||||
| 63744-26040 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT |
1 | ||
| 63744-26040 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63744-26040 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63650-26010B0 |
TRH213..4FC..GCC;KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH222,LH222,TRH22#..SG..5F..(GCC,GEN,TH) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655-26020B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1# |
2 | ||
| 63655-26030B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH222..LHD..STD;LH222,TRH223..16S..STD AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26030B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,RH |
1 | ||
| 63655-26040B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26040B0 |
KDH222,LH222,TRH22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#,LH |
1 | ||
| 63655-26030B0 |
KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER&REAR SEAT-WITHOUT,LT.GRAY,TRIM1#,RH |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90168-40125 | ||||
| 90189-06172 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
