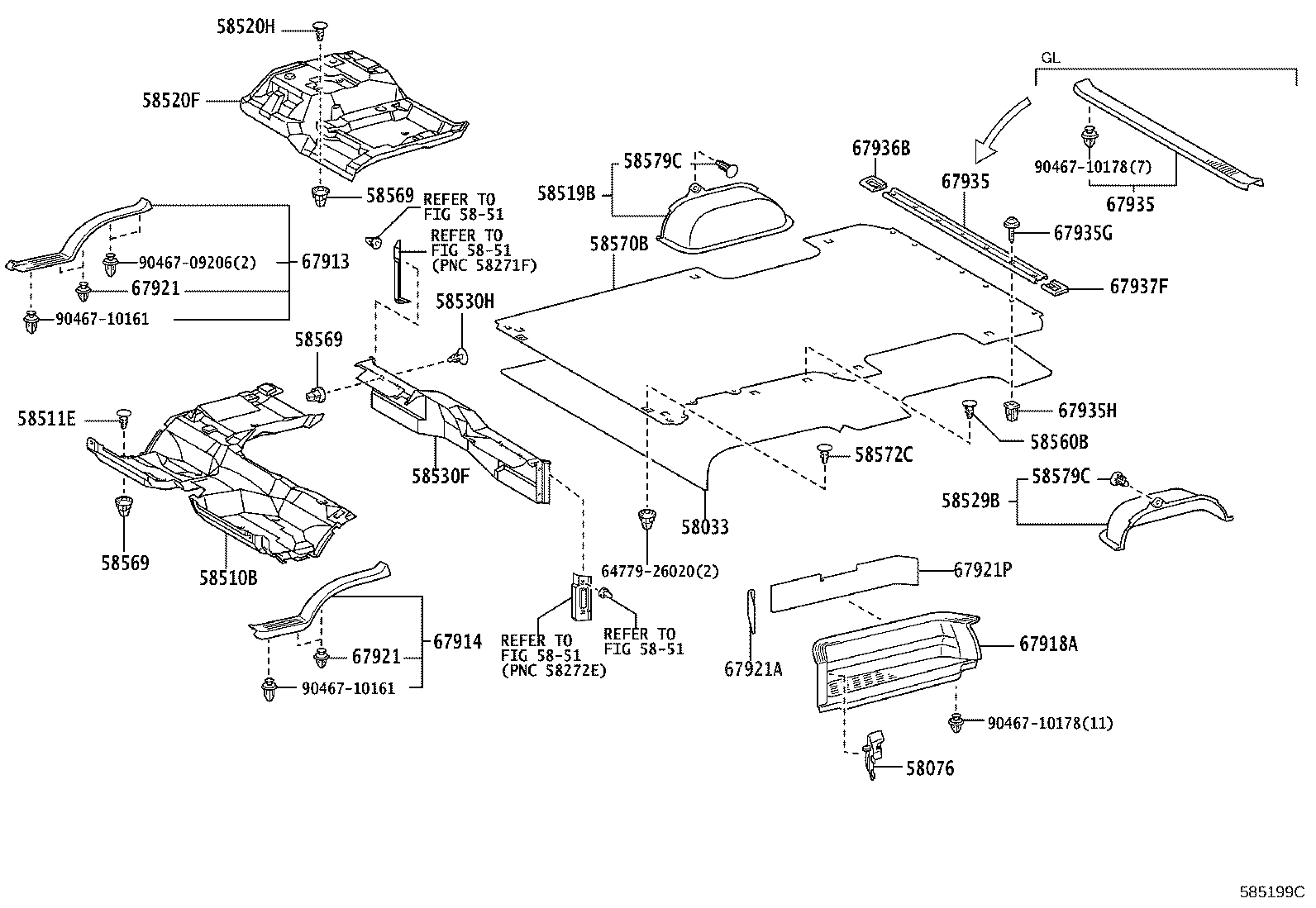

KDH222L-LEMDYV (2005)
Toyota Hiace
(0501- )KDH200,202,212,222,LH20#,212,222,TRH201,203,213,22#..LHD..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58033 - BOARD SUB-ASSY, REAR FLOOR | ||||
| 58033-26310 |
KDH222,LH222,TRH223..LHD..16S |
1 | ||
| 58033-26310 |
KDH222,LH222,TRH223..LHD..5F..STD AMBURANCE BASE |
1 | ||
| 58076 - COVER SUB-ASSY, JACK BOX HOLE | ||||
| 58076-26020B0 |
KDH222,LH222,TRH223..LHD;KDH212,LH212,TRH213..(09S,10S,11S)..5F..GEN MD.GRAY,TRIM1# |
1 | ||
| 58076-26020B1 |
KDH222,LH222,TRH223..LHD;KDH212,TRH213..GL..(GEN,TH,VN) DK.GRAY,TRIM1#,RH |
1 | ||
| 58076-26020B0 |
KDH222,LH222,TRH223..LHD;KDH212,LH212,TRH213..(09S,10S,11S)..5F..GEN MD.GRAY,TRIM1#,RH |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26B50B0 |
TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH212,220,222,LH212,222,TRH22#..LHD..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26B51B3 |
TRH213,223..LHD..(12S,16S);KDH212,220,222,223,LH212,222,TRH221..LHD..5F DK.GRAY,TRIM1# |
1 | ||
| 58510-26B50B3 |
TRH213..GL..VN;TRH213,223..LHD..(12S,16S);KDH212,220,222,223,LH212,222,TRH221..LHD..5F DK.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
10 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-26340B0 |
KDH212,222,TRH213,223..STD..GCC SAUDI ARABIA SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26370B0 |
KDH212,220,222,LH212,222,TRH213,22#..LHD..(03S,09S,16S) MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26370B0 |
KDH222,TRH223..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26340B3 |
KDH212,222,TRH213,223..GCC SAUDI ARABIA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 58520-26370B2 |
KDH222,TRH223..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE,DK.GRAY,TRIM1# |
1 | ||
| 58520-26370B2 |
KDH212,220,222,LH212,222,TRH213,22#..LHD..(03S,16S) DK.GRAY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
2 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26D80B0 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26D80B0 |
KDH222,TRH223..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26C40B0 |
LH212,222,TRH213,22#..LHD..SG..(03S,09S,16S) MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26E90B0 |
KDH212,222..LHD..16S MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26F00B0 |
KDH212,222..STD..GCC SAUDI ARABIA SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26E90B0 |
KDH222..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26C40B2 |
KDH222,TRH223..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 58530-26C60B3 |
KDH212,222,TRH213,223..GCC SAUDI ARABIA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 58530-26C40B2 |
KDH212,222,LH212,222,TRH213,22#..LHD..SG..(03S,16S) DK.GRAY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
9 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-07198C0 |
KDH222..LHD..STD;LH222,TRH223..16S..5F..STD AMBURANCE BASE,BLACK |
6 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58517-26C00B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26C00B0 |
KDH222,LH222,TRH223..LHD..STD MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26C01B0 |
KDH222,LH222,TRH223..LHD..STD MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26C01B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26C01B2 |
KDH222,LH222,TRH223..LHD..5F..STD AMBURANCE BASE,DK.GRAY,TRIM1# |
1 | ||
| 58517-26C01B2 |
KDH222,LH222,TRH223..LHD..STD DK.GRAY,TRIM1# |
1 | ||
| 58517-26K30B0 |
KDH222,LH222,TRH223..LHD..STD REAR HEADREST-FIXED:13,DK.GRAY,TRIM1# |
1 | ||
| 58572C - CLIP, REAR FLOOR MAT SET | ||||
| 64726-26010B0 |
KDH200,TRH201..SA;KDH212,220,221,TRH201,221..4D..SG;KDH200,201,202,222,223,LH202,212,222,TRH20#,213,223..06S,09S,10S,12S,13S,14S,15S,16S MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH202,222..LHD..(12S,16S)..STD;LH202,212,TRH203..(SMRF,SRF)..(10S,12S,15S);KDH202,LH222,TRH223..(15S,16S)..STD..(GCC,GEN) AMBURANCE BASE,MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH222..LHD..STD;KDH202,LH202,222,TRH203,223..5F..STD..(GCC,GEN) AMBURANCE BASE,DK.GRAY,TRIM1# |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26080B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26061B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67914-26060B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67914-26061B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-26060B0 |
KDH222,LH222,TRH223..LHD;KDH212,LH212,TRH213..(09S,10S,11S)..(GEN,TH,VN) MD.GRAY,TRIM1# |
1 | ||
| 67917-26060B1 |
KDH222,LH222,TRH223..LHD;KDH212,223,TRH213..GL..(GEN,RUS,TH,VN) DK.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-26060B0 |
KDH222,LH222,TRH223..LHD;KDH212,LH212,TRH213..(09S,10S,11S)..(GEN,TH,VN) MD.GRAY,TRIM1# |
1 | ||
| 67917-26060B1 |
KDH222,LH222,TRH223..LHD;KDH212,223,TRH213..GL..(GEN,RUS,TH,VN) DK.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26130 |
KDH212,22#,LH212,222,TRH213,22#..STD |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26130 |
KDH212,22#,LH212,222,TRH213,22#..STD |
1 | ||
| 67935G - SCREW, BACK DOOR SCUFF PLATE | ||||
| 93560-56014 |
KDH222..STD..(ARL,GCC,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..STD |
7 | ||
| 67935H - GROMMET, BACK DOOR SCUFF PLATE | ||||
| 90189-06057 |
KDH222..STD..(ARL,GCC,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..STD |
7 | ||
| 67936B - COVER, BACK DOOR SCUFF SIDE, RH | ||||
| 67936-26040B0 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67936-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937F - COVER, BACK DOOR SCUFF SIDE, LH | ||||
| 67937-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937-26040B0 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10178 | ||||
| 93560-56014 | ||||
| Linked diagrams | ||||
| 5851 | ||||
(0610- )LH222,TRH223..RHD ; (0610- )KDH212,222,223,TRH213..10S,14S,16S..ARL,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58033 - BOARD SUB-ASSY, REAR FLOOR | ||||
| 58033-26310 |
KDH222,LH222,TRH223..LHD..16S |
1 | ||
| 58033-26310 |
KDH222,LH222,TRH223..LHD..5F..STD AMBURANCE BASE |
1 | ||
| 58076 - COVER SUB-ASSY, JACK BOX HOLE | ||||
| 58076-26020B0 |
KDH222,LH222,TRH223..LHD;KDH212,LH212,TRH213..(09S,10S,11S)..5F..GEN MD.GRAY,TRIM1# |
1 | ||
| 58076-26020B1 |
KDH222,LH222,TRH223..LHD;KDH212,TRH213..GL..(GEN,TH,VN) DK.GRAY,TRIM1#,RH |
1 | ||
| 58076-26020B0 |
KDH222,LH222,TRH223..LHD;KDH212,LH212,TRH213..(09S,10S,11S)..5F..GEN MD.GRAY,TRIM1#,RH |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26B50B0 |
TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH212,220,222,LH212,222,TRH22#..LHD..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26B51B3 |
TRH213,223..LHD..(12S,16S);KDH212,220,222,223,LH212,222,TRH221..LHD..5F DK.GRAY,TRIM1# |
1 | ||
| 58510-26B50B3 |
TRH213..GL..VN;TRH213,223..LHD..(12S,16S);KDH212,220,222,223,LH212,222,TRH221..LHD..5F DK.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
10 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-26340B0 |
KDH212,222,TRH213,223..STD..GCC SAUDI ARABIA SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26370B0 |
KDH212,220,222,LH212,222,TRH213,22#..LHD..(03S,09S,16S) MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26370B0 |
KDH222,TRH223..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26340B3 |
KDH212,222,TRH213,223..GCC SAUDI ARABIA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 58520-26370B2 |
KDH222,TRH223..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE,DK.GRAY,TRIM1# |
1 | ||
| 58520-26370B2 |
KDH212,220,222,LH212,222,TRH213,22#..LHD..(03S,16S) DK.GRAY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
2 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26D80B0 |
LH212..10S;KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26D80B0 |
KDH222,TRH223..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26C40B0 |
LH212,222,TRH213,22#..LHD..SG..(03S,09S,16S) MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26E90B0 |
KDH212,222..LHD..16S MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26F00B0 |
KDH212,222..STD..GCC SAUDI ARABIA SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26E90B0 |
KDH222..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26C40B2 |
KDH222,TRH223..STD..GCC SAUDI ARABIA SPEC&AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 58530-26C60B3 |
KDH212,222,TRH213,223..GCC SAUDI ARABIA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 58530-26C40B2 |
KDH212,222,LH212,222,TRH213,22#..LHD..SG..(03S,16S) DK.GRAY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
9 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-07198C0 |
KDH222..LHD..STD;LH222,TRH223..16S..5F..STD AMBURANCE BASE,BLACK |
6 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58517-26C00B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26C00B0 |
KDH222,LH222,TRH223..LHD..STD MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26C01B0 |
KDH222,LH222,TRH223..LHD..STD MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26C01B0 |
KDH222,LH222,TRH223..LHD..STD AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26C01B2 |
KDH222,LH222,TRH223..LHD..5F..STD AMBURANCE BASE,DK.GRAY,TRIM1# |
1 | ||
| 58517-26C01B2 |
KDH222,LH222,TRH223..LHD..STD DK.GRAY,TRIM1# |
1 | ||
| 58517-26K30B0 |
KDH222,LH222,TRH223..LHD..STD REAR HEADREST-FIXED:13,DK.GRAY,TRIM1# |
1 | ||
| 58572C - CLIP, REAR FLOOR MAT SET | ||||
| 64726-26010B0 |
KDH200,TRH201..SA;KDH212,220,221,TRH201,221..4D..SG;KDH200,201,202,222,223,LH202,212,222,TRH20#,213,223..06S,09S,10S,12S,13S,14S,15S,16S MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH202,222..LHD..(12S,16S)..STD;LH202,212,TRH203..(SMRF,SRF)..(10S,12S,15S);KDH202,LH222,TRH223..(15S,16S)..STD..(GCC,GEN) AMBURANCE BASE,MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH222..LHD..STD;KDH202,LH202,222,TRH203,223..5F..STD..(GCC,GEN) AMBURANCE BASE,DK.GRAY,TRIM1# |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26080B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26061B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67914-26060B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67914-26061B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26130 |
KDH212,22#,LH212,222,TRH213,22#..STD |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26130 |
KDH212,22#,LH212,222,TRH213,22#..STD |
1 | ||
| 67935G - SCREW, BACK DOOR SCUFF PLATE | ||||
| 93560-56014 |
KDH222..STD..(ARL,GCC,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..STD |
7 | ||
| 67935H - GROMMET, BACK DOOR SCUFF PLATE | ||||
| 90189-06057 |
KDH222..STD..(ARL,GCC,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..STD |
7 | ||
| 67936B - COVER, BACK DOOR SCUFF SIDE, RH | ||||
| 67936-26040B0 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67936-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937F - COVER, BACK DOOR SCUFF SIDE, LH | ||||
| 67937-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937-26040B0 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||
| 90467-10178 | ||||
| Linked diagrams | ||||
| 5851 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
