KDH221R-MFMDY (2010)
Toyota Hiace

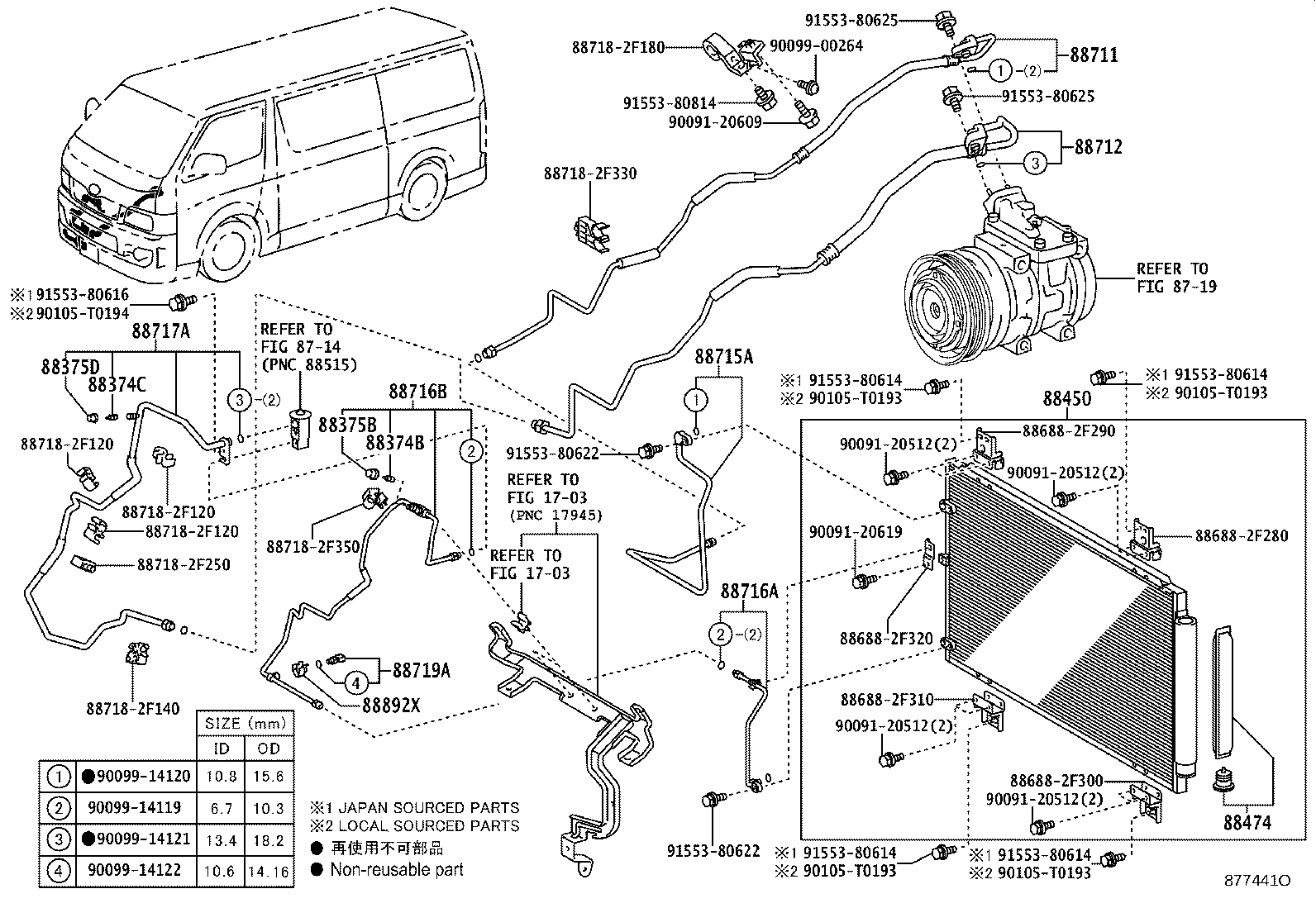

ILLUST NO. 1 OF 2(0501- )KDH220,221..RHD..ARL,GEN
FRONT:SINGLE A/C,W(INTER COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KDH220,221,TRH221;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88374-30010 |
KDH201,220,221..03S;TRH221..SP..(ARL,GEN,SA);KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KDH201,220,221..03S;KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201,221..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88374-30010 |
KDH220,221;TRH221..SG;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201,221..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88375-30280 |
KDH220,221,TRH221;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88375-30280 |
KDH201,220,221..03S;TRH221..SP..(ARL,GEN,SA);KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
KDH201,220,221..03S;KDH200,201,TRH201..SG..06S..GEN;KDH200,TRH201,221..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88375-30290 |
KDH220,221,TRH221..ARL,GEN,SA;KDH200,201,TRH201..SG..06S..GEN;KDH200,201,TRH201..RHD..03S..(ARL,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-26120 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88450-26120 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88450-26120 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474-17010 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88474-17010 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2F140 |
TRH213,22#..SG..(03S,16S)..GEN AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2F160 |
TRH213,22#..SG..(03S,16S)..GEN AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26400 |
KDH220,221,TRH221 AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88715-26400 |
KDH220,221;TRH221..SP AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88715-26400 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-2F620 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2N140 |
KDH220,221,TRH221 AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88716-2N140 |
KDH220,221;TRH221..SP..(ARL,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2F670 |
KDH220,221;TRH221..RHD AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88717-2F700 |
KDH220,221;TRH221..RHD AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KDH201,221..03S;TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,220..SP..03S..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88719-40020 |
TRH201..SP..03S;KDH201,TRH201..SG;KDH201,221,TRH221..03S;KDH200,220..SP..03S..(GCC,GEN,SA) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
KDH200,TRH201..SG;KDH200,220,TRH201,221..03S AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88892-50120 |
KDH200,TRH201..SG;KDH200,220,TRH201,221..03S AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-2F280 | ||||
| 88688-2F290 | ||||
| 88688-2F300 | ||||
| 88688-2F310 | ||||
| 88688-2F320 | ||||
| 88718-2F120 | ||||
| 88718-2F140 | ||||
| 88718-2F180 | ||||
| 88718-2F250 | ||||
| 88718-2F330 | ||||
| 88718-2F350 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-T0193 | ||||
| 90105-T0194 | ||||
| 91553-80614 | ||||
| 91553-80616 | ||||
| 91553-80622 | ||||
| 91553-80625 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 8714 | ||||
| 8719 | ||||
