KDH221R-MFMDY (2010)
Toyota Hiace

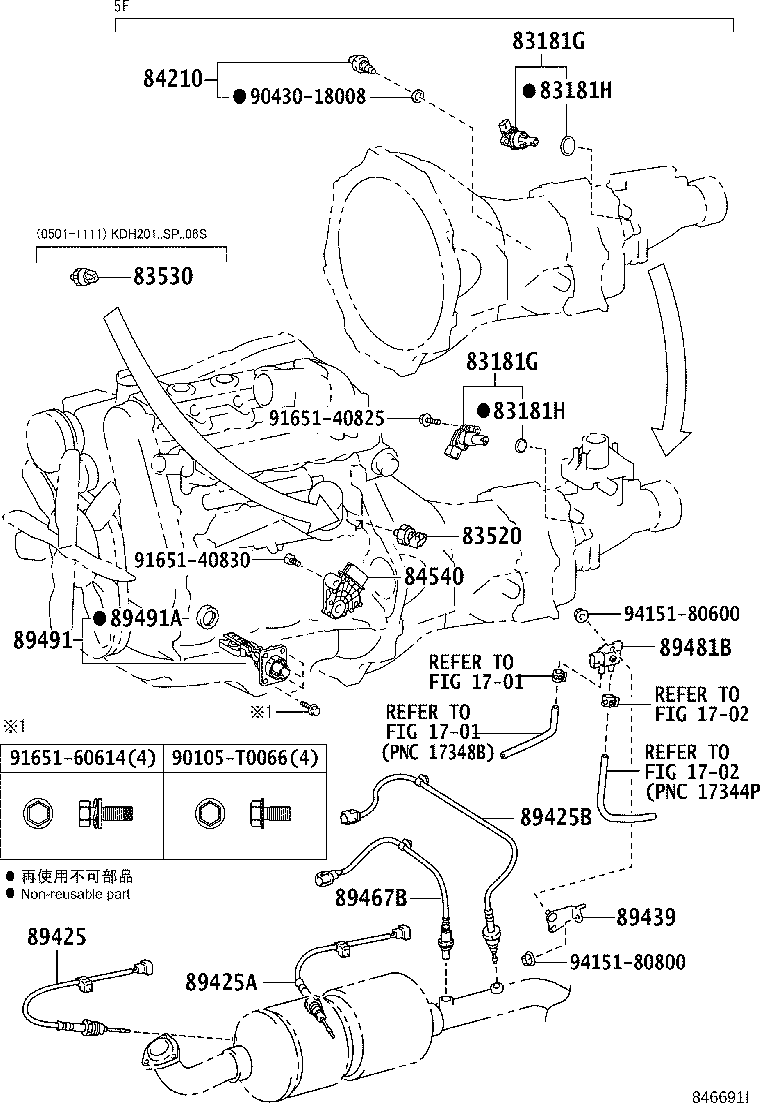

ILLUST NO. 1 OF 7(0501- )KDH20#,212,22#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-24060 |
KDH222,223..5F..(ARL,GCC,GEN,RUS,SA);KDH20#,212,220,221,TRH201,203,213,22#..5F |
1 | ||
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-24060 |
KDH222,223..5F..(ARL,GCC,GEN,RUS,SA);KDH20#,212,220,221,TRH201,203,213,22#..5F |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
KDH20#,212,220,221,TRH201,203,22#..5F;KDH222,223,TRH213..5F..(ARL,GCC,GEN,RUS,SA) |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
KDH20#,212,220,221,TRH201,203,22#..5F;KDH222,223,TRH213..5F..(ARL,GCC,GEN,RUS,SA) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KDH200,212,22#;KDH202..STD..TH;KDH201..RHD..03S;KDH202..GCC,GEN,MA;KDH201,203..RHD..SG |
1 | ||
| 83530-28020 |
TRH203..5F;TRH200,201,221;TRH213,223..5F..GCC;TRH213,223..ARL,CIS,GEN,SA,TH,VN DENSO |
1 | ||
| 83530-60020 |
TRH203..5F;TRH200,201,221;TRH213,223..5F..GCC;TRH213,223..ARL,CIS,GEN,SA,TH,VN YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
TRH223..5F;KDH202..GCC,TH;TRH203..GCC,MA;KDH202..HRF..MA;KDH202..15S..GEN;TRH203..SRF..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH200,222..(03S,14S,16S)..5F..(GCC,GEN,MA,SA,TH);KDH201,203,212,221,223,TRH201,213,221..(03S,06S,10S,11S,14S,16S)..5F |
1 | ||
| 84210-12040 |
KDH201..LHD;KDH200..5F..ARL;KDH201,223..RUS,TH;KDH221..5D..5F..GEN;KDH222..14S..5F..STD;KDH202..RHD..SRF..12S..(GEN,MA);KDH202,220,TRH203..RHD..HRF..5F..(ARL,GEN);KDH200,203,212,TRH213..(06S,09S,12S,15S)..5F |
1 | ||
| 84210-12040 |
KDH222..16S;KDH222..GL..SA;KDH221..5F..ARL;KDH201,203,223..RHD..5F..(ARL,GEN);KDH200,202,212,220,TRH20#,213,22#..5F |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-26020 |
TRH201,221..ARL;TRH201..SP..4FC..GEN;TRH223..5F..(ARL,TH);TRH203,213,223..4FC..(ARL,GCC);TRH201,213,221..SG..(03S,06S,09S,11S)..(GEN,TH) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26170 |
KDH200,212,22#;KDH202..STD..TH;KDH201..RHD..03S;KDH202..GCC,GEN,MA;KDH201,203..RHD..SG |
1 | ||
| 89491-25030 |
TRH203..5F;TRH200,201,221;TRH213,223..5F..GCC;TRH213,223..ARL,CIS,GEN,SA,TH,VN |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDH221..5D;TRH201..SG..4FC;TRH203..15S..GEN;TRH201,203..4D..(ARL,GCC,MA,SA);TRH213..(10S,16S)..(GCC,GEN,SA);KDH202,TRH213..(HRF,SMRF)..(MA,TH);KDH212..(10S,11S,16S)..(GCC,GEN,SA);KDH220,TRH201..5D..5F..(GCC,GEN,SA);KDH202,TRH201..LHD..SG..(03S,12S)..5F;KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA);KDH201,203,223,LH20#,212,222,TRH200,22#..03S,06S,12S,13S,14S,15S,16S |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90430-18008 | ||||
| 91651-40825 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1702 | ||||
ILLUST NO. 1 OF 7(0501- )TRH20#,213,22#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-24060 |
KDH222,223..5F..(ARL,GCC,GEN,RUS,SA);KDH20#,212,220,221,TRH201,203,213,22#..5F |
1 | ||
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-24060 |
KDH222,223..5F..(ARL,GCC,GEN,RUS,SA);KDH20#,212,220,221,TRH201,203,213,22#..5F |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
KDH20#,212,220,221,TRH201,203,22#..5F;KDH222,223,TRH213..5F..(ARL,GCC,GEN,RUS,SA) |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
KDH20#,212,220,221,TRH201,203,22#..5F;KDH222,223,TRH213..5F..(ARL,GCC,GEN,RUS,SA) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KDH200,212,22#;KDH202..STD..TH;KDH201..RHD..03S;KDH202..GCC,GEN,MA;KDH201,203..RHD..SG |
1 | ||
| 83530-28020 |
TRH203..5F;TRH200,201,221;TRH213,223..5F..GCC;TRH213,223..ARL,CIS,GEN,SA,TH,VN DENSO |
1 | ||
| 83530-60020 |
TRH203..5F;TRH200,201,221;TRH213,223..5F..GCC;TRH213,223..ARL,CIS,GEN,SA,TH,VN YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
TRH223..5F;KDH202..GCC,TH;TRH203..GCC,MA;KDH202..HRF..MA;KDH202..15S..GEN;TRH203..SRF..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH200,222..(03S,14S,16S)..5F..(GCC,GEN,MA,SA,TH);KDH201,203,212,221,223,TRH201,213,221..(03S,06S,10S,11S,14S,16S)..5F |
1 | ||
| 84210-12040 |
KDH201..LHD;KDH200..5F..ARL;KDH201,223..RUS,TH;KDH221..5D..5F..GEN;KDH222..14S..5F..STD;KDH202..RHD..SRF..12S..(GEN,MA);KDH202,220,TRH203..RHD..HRF..5F..(ARL,GEN);KDH200,203,212,TRH213..(06S,09S,12S,15S)..5F |
1 | ||
| 84210-12040 |
KDH222..16S;KDH222..GL..SA;KDH221..5F..ARL;KDH201,203,223..RHD..5F..(ARL,GEN);KDH200,202,212,220,TRH20#,213,22#..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-26130 |
TRH201,221..SG..03S |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-26020 |
TRH201,221..ARL;TRH201..SP..4FC..GEN;TRH223..5F..(ARL,TH);TRH203,213,223..4FC..(ARL,GCC);TRH201,213,221..SG..(03S,06S,09S,11S)..(GEN,TH) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26170 |
KDH200,212,22#;KDH202..STD..TH;KDH201..RHD..03S;KDH202..GCC,GEN,MA;KDH201,203..RHD..SG |
1 | ||
| 89491-25030 |
TRH203..5F;TRH200,201,221;TRH213,223..5F..GCC;TRH213,223..ARL,CIS,GEN,SA,TH,VN |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDH221..5D;TRH201..SG..4FC;TRH203..15S..GEN;TRH201,203..4D..(ARL,GCC,MA,SA);TRH213..(10S,16S)..(GCC,GEN,SA);KDH202,TRH213..(HRF,SMRF)..(MA,TH);KDH212..(10S,11S,16S)..(GCC,GEN,SA);KDH220,TRH201..5D..5F..(GCC,GEN,SA);KDH202,TRH201..LHD..SG..(03S,12S)..5F;KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA);KDH201,203,223,LH20#,212,222,TRH200,22#..03S,06S,12S,13S,14S,15S,16S |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 82715-26E60 | ||||
| 82715-26F30 | ||||
| 84549-71011 | ||||
| 90105-T0004 | ||||
| 90105-T0066 | ||||
| 90430-18008 | ||||
| 91551-80612 | ||||
| 91551-80830 | ||||
| 91619-61216 | ||||
| 91651-40628 | ||||
| 91651-40825 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||

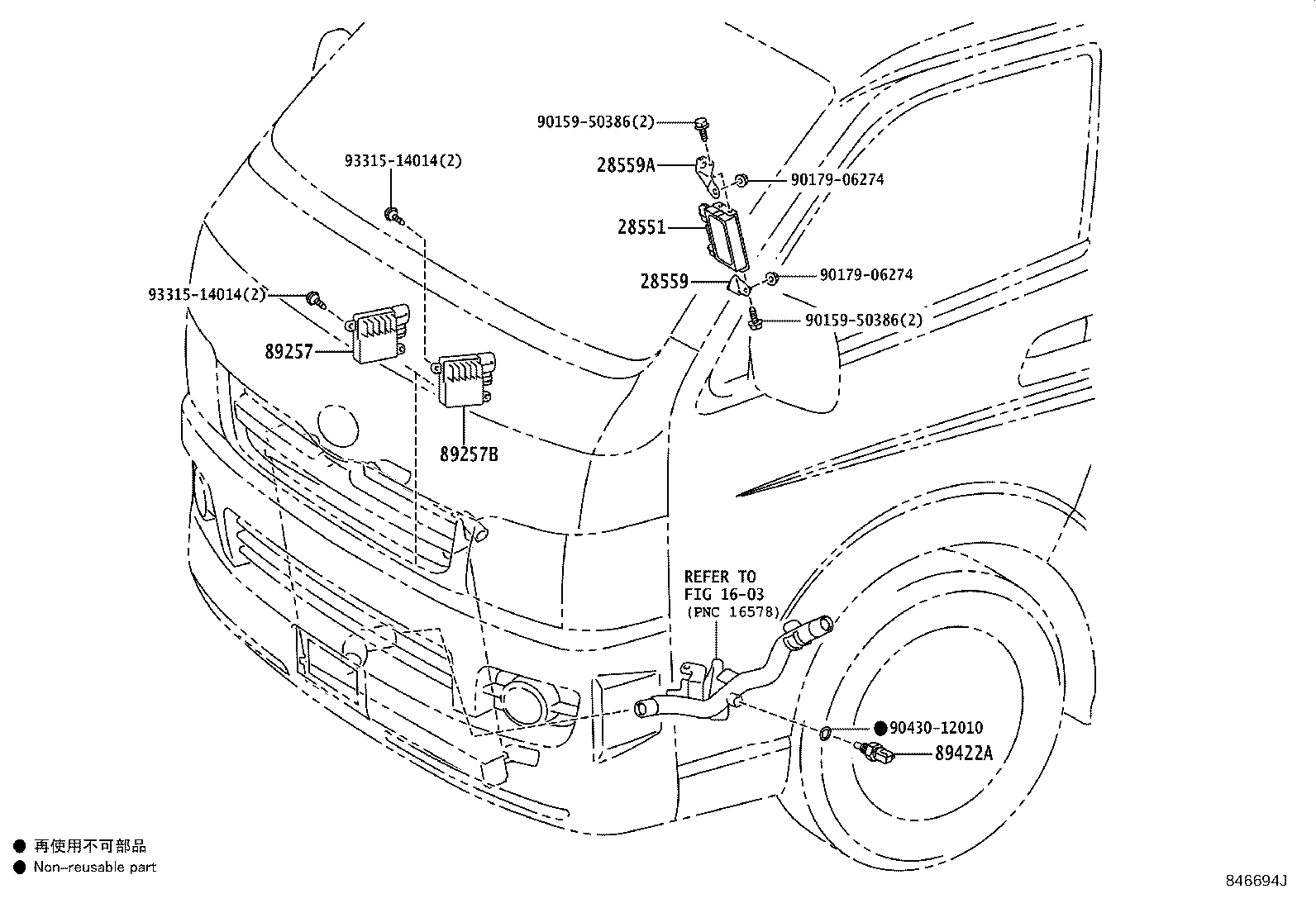

ILLUST NO. 2 OF 7(0501- )KDH20#,212,22#
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
TRH201,213,22#;KDH200..5F..ARL;KDH202..STD..TH;KDH200,202..4D..4FC;KDH202..RHD..SRF..12S..(GEN,MA);KDH202,220..RHD..HRF..(ARL,GEN);KDH200,222,TRH200..(06S,14S)..(ARL,GCC,GEN);KDH212,221,LH212,TRH203..4D..(03S,10S,12S,15S)..STD |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 90179-06274 | ||||
| 90430-12010 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 1603 | ||||
ILLUST NO. 2 OF 7(0501- )TRH20#,213,22#
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
TRH201,213,22#;KDH200..5F..ARL;KDH202..STD..TH;KDH200,202..4D..4FC;KDH202..RHD..SRF..12S..(GEN,MA);KDH202,220..RHD..HRF..(ARL,GEN);KDH200,222,TRH200..(06S,14S)..(ARL,GCC,GEN);KDH212,221,LH212,TRH203..4D..(03S,10S,12S,15S)..STD |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| Common parts | ||||
| 90430-12010 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 1603 | ||||

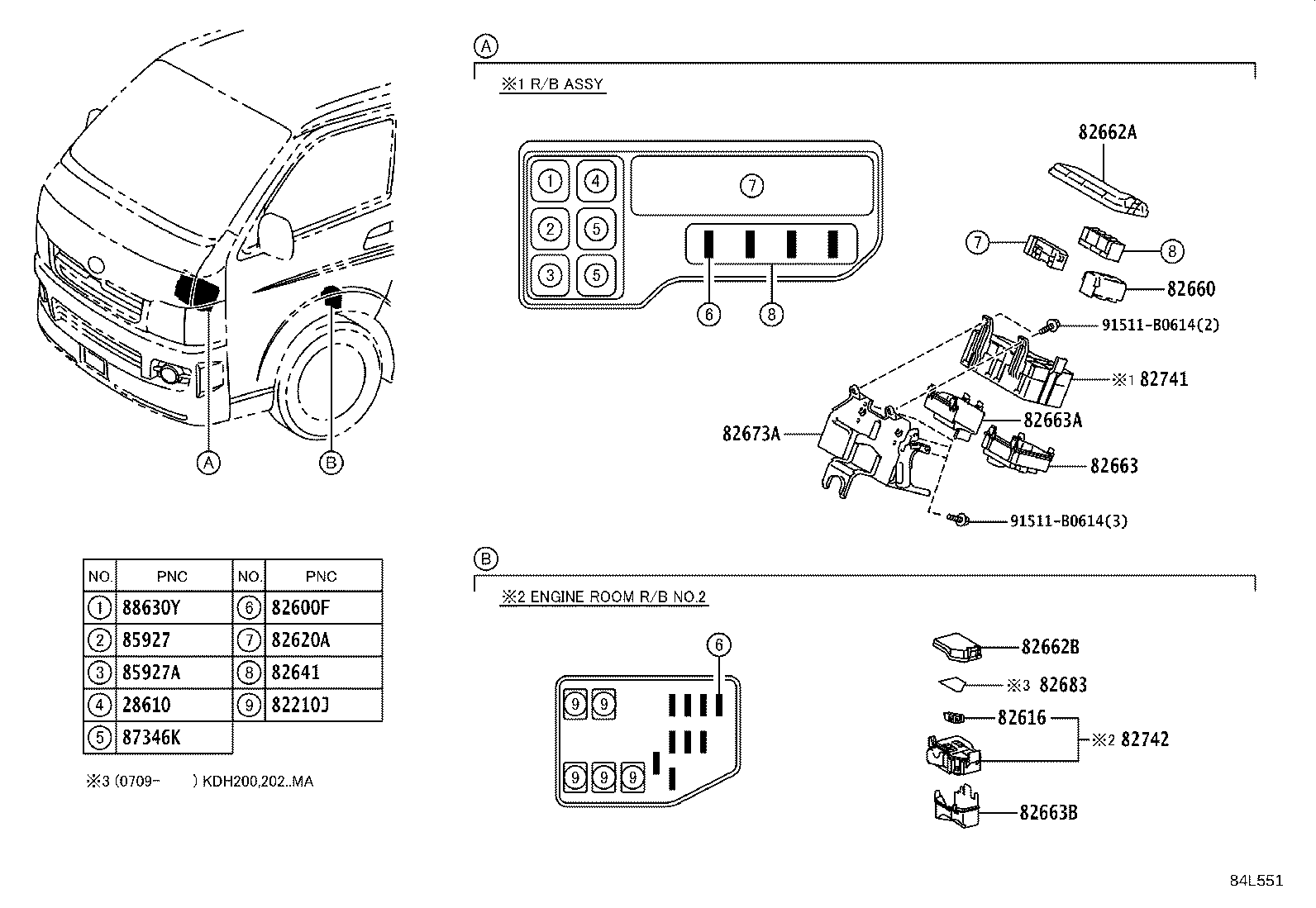

ILLUST NO. 4 OF 7(0501- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
2TRFE..TRH223;2TRFE..TRH203..GCC,MA;2TRFE..TRH201..SG..4FC;2KDFTV..KDH202..HRF..MA;2TRFE..TRH201..4FC..ARL;2TRFE..TRH203..SRF..GEN;2KDFTV..KDH202..15S..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2TRFE..TRH201,213..(03S,06S,10S,16S)..5F;2KDFTV,2TRFE..KDH202,TRH213..(11S,12S,15S)..(GCC,TH);2KDFTV,5LE..KDH200,222,LH202..(03S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH);1KDFTV,2KDFTV,5LE,2TRFE..KDH201,203,212,221,223,LH200,212,222,TRH221..03S,06S,10S,11S,14S,16S |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
KDH202..STD..TH;KDH202..GCC,GEN,MA;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08281 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
TRH213..GL..VN;KDH212,222..5F..(GCC,GEN,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH,VN) 40A,TERM.:FEMALE,GRN,ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 90982-08295 |
KDH221..5D..GEN;LH20#,212,222..LHD;KDH201..SP..(GEN,TH);KDH203,223..GEN,RUS,TH;TRH203,213,223..4FC..GCC;TRH201..RHD..SP..(GEN,SA);KDH200,202,TRH200..RHD..SRF;KDH222,TRH203..RHD..STD..(ARL,GEN,SA);KDH202,212,220,TRH213,223..RHD..(HRF,SMRF)..(03S,11S,12S,15S,16S)..(ARL,GEN,TH) 30A,TERM.:FEMALE,PNK,MARK 58V |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08281 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
TRH213..GL..VN;KDH212,222..5F..(GCC,GEN,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH,VN) 40A,TERM.:FEMALE,GRN,ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 90982-08295 |
KDH221..5D..GEN;LH20#,212,222..LHD;KDH201..SP..(GEN,TH);KDH203,223..GEN,RUS,TH;TRH203,213,223..4FC..GCC;TRH201..RHD..SP..(GEN,SA);KDH200,202,TRH200..RHD..SRF;KDH222,TRH203..RHD..STD..(ARL,GEN,SA);KDH202,212,220,TRH213,223..RHD..(HRF,SMRF)..(03S,11S,12S,15S,16S)..(ARL,GEN,TH) 30A,TERM.:FEMALE,PNK,MARK 58V |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90080-82050 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82051 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 10A,MINI FUSE,RED |
1 | ||
| 90080-82053 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82054 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82052 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82055 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90080-82050 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82051 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 10A,MINI FUSE,RED |
1 | ||
| 90080-82053 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82054 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82052 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82055 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90080-82050 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82051 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 10A,MINI FUSE,RED |
1 | ||
| 90080-82053 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82054 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82052 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82055 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 25A,MINI FUSE |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26260 |
KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..RHD |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-26440 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 82662-26302 |
TRH20#,213,22# |
1 | ||
| 82662-26300 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82662-26303 |
TRH20#,213,22# |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-26160 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-26030 |
TRH201,221..SG..03S SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 82730-26040 |
TRH201,221..SG..03S |
1 | ||
| 82730-26030 |
TRH201,221..SG..03S SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 82730-26030 |
KDH221..5D..GEN;KDH222,TRH213..TH |
1 | ||
| 82730-26060 |
KDH222,TRH22#..ARL,TH;KDH222,TRH223..GL..SA;KDH212,221,223,TRH213..RHD..(03S,10S,11S,14S) |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-20180 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49045 |
KDH202..HRF..GEN;KDH202..SRF..(GCC,GEN,MA);KDH201,TRH213..ARL,GCC,GEN,SA,TH;KDH200,203,212,22#,LH20#,212,222,TRH20#,22#..ARL,CIS,GCC,GEN,RUS,SA |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KDH202..HRF..GEN;KDH202..SRF..(GCC,GEN,MA);KDH201,TRH213..ARL,GCC,GEN,SA,TH;KDH200,203,212,22#,LH20#,212,222,TRH20#,22#..ARL,CIS,GCC,GEN,RUS,SA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
KDH202..STD..TH;KDH202..GCC,GEN,MA;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
KDH202..STD..TH;KDH202..GCC,GEN,MA;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
KDH200,201..SG;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 90987-02028 |
KDH200,201..SG;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
ILLUST NO. 5 OF 7(0501- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26110 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90010-01099 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD 14V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-26090 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 84730-26090 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01039 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH 14V0.91W,W(GREEN CAP,AIR CONDITIONER-DUAL AIR CONDITIONER,NIGHT ILLUMINATION |
1 | ||
| 90010-01103 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) 14V 0.63W,AIR CONDITIONER-DUAL AIR CONDITIONER,FOR ON INDICATOR |
1 | ||
| 90010-01103 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH 14V 0.63W,AIR CONDITIONER-DUAL AIR CONDITIONER,FOR ON INDICATOR |
1 | ||
| 90010-01039 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) 14V0.91W,W(GREEN CAP,AIR CONDITIONER-DUAL AIR CONDITIONER,NIGHT ILLUMINATION |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01039 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH 14V0.91W,W(GREEN CAP,AIR CONDITIONER-DUAL AIR CONDITIONER,NIGHT ILLUMINATION |
1 | ||
| 90010-01103 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) 14V 0.63W,AIR CONDITIONER-DUAL AIR CONDITIONER,FOR ON INDICATOR |
1 | ||
| 90010-01103 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH 14V 0.63W,AIR CONDITIONER-DUAL AIR CONDITIONER,FOR ON INDICATOR |
1 | ||
| 90010-01039 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) 14V0.91W,W(GREEN CAP,AIR CONDITIONER-DUAL AIR CONDITIONER,NIGHT ILLUMINATION |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
TRH223..5F..GL..GEN;KDH220..RHD..(ARL,GEN);KDH200,201,TRH201,221..ARL;KDH200,201,TRH201..SG..06S..GEN;KDH212,221,222,223,TRH223..(03S,11S,14S)..(ARL,GEN) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-60030 |
KDH221..GEN |
1 | ||
| 84930-60030 |
KDH200..ARL;KDH200..SG..GEN;KDH22#..03S,14S POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84930-60030 |
KDH200..ARL;KDH200..SG..GEN;KDH22#..03S,14S |
1 | ||
| 84930-60030 |
KDH221..5D;TRH201..ARL;KDH201,TRH201..SG..06S..GEN;KDH201,203,223,TRH22#..RHD..(03S,14S)..(ARL,GEN) |
1 | ||
| 84930-60030 |
KDH221..GEN POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84930-60030 |
KDH221..5D;TRH201..ARL;KDH201,TRH201..SG..06S..GEN;KDH201,203,223,TRH22#..RHD..(03S,14S)..(ARL,GEN) POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90010-01039 |
KDH200..ARL;KDH200..SG..GEN;KDH22#..03S,14S 14V0.91W,W(GREEN CAP,POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 90010-01039 |
KDH221..GEN 14V0.91W,W(GREEN CAP,POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 90010-01039 |
KDH221..GEN 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01039 |
KDH200..ARL;KDH200..SG..GEN;KDH22#..03S,14S 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01039 |
KDH221..5D;TRH201..ARL;KDH201,TRH201..SG..06S..GEN;KDH201,203,223,TRH22#..RHD..(03S,14S)..(ARL,GEN) 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01039 |
KDH221..5D;TRH201..ARL;KDH201,TRH201..SG..06S..GEN;KDH201,203,223,TRH22#..RHD..(03S,14S)..(ARL,GEN) 14V0.91W,W(GREEN CAP,POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-28050 |
KDH200..ARL;KDH22#..03S,14S;KDH200..06S..GEN |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 6 OF 7(0501- )RHD
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-32220 |
KDH202..RHD..STD;TRH223..RHD..(14S,16S);KDH200,201,222,223,TRH201..RHD..SG..(06S,14S);KDH200,201,203,212,220,221,LH20#,212,222,TRH201,203,213,221..RHD..(03S,10S,12S,14S,15S,16S) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52041 |
KDH201,TRH201..SP..(GCC,GEN);TRH201,213..LHD..SG..(03S,06S,10S);KDH212,TRH213..(09S,11S,15S,16S)..5F;KDH200,202,203,220,222,LH20#,212,222,TRH203,22#..CIS,GCC,GEN,MA,TH SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 84306-52041 |
KDH201,212..5D..SG;KDH221,TRH213..RHD..(03S,10S,11S);KDH200,201,212,220,222,223,TRH201,22#..(03S,10S,14S)..(ARL,SA) |
1 | ||
| 84306-52041 |
KDH201,TRH201..SP..(GCC,GEN);TRH201,213..LHD..SG..(03S,06S,10S);KDH212,TRH213..(09S,11S,15S,16S)..5F;KDH200,202,203,220,222,LH20#,212,222,TRH203,22#..CIS,GCC,GEN,MA,TH SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-52010 |
KDH201,203..LHD;TRH201..LHD..SG;TRH201..SP..(GCC,GEN);TRH213..(09S,15S,16S)..(GCC,GEN,SA);KDH212,TRH223..4D..(11S,15S,16S)..(GCC,GEN,SA,VN);KDH200,202,220,222,LH20#,212,222,TRH203,221..GCC,GEN,MA,TH |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26470 |
KDH201..ARL,TH;KDH222,TRH223..GL..SA;TRH223..RHD..(ARL,GEN);KDH200,202..RHD..(03S,12S,15S)..STD;KDH200,201,222,TRH201..SG..(06S,14S)..(ARL,GEN);KDH212,220,221,223,LH20#,212,222,TRH201,203,213,221..RHD..(03S,10S,12S,14S,15S,16S)..(ARL,GEN,MA,SA) REAR WINDOW WIPER-WITH(INTERMITTENT) |
1 | ||
| 84652-26600 |
KDH201..ARL,TH;KDH200,222..RHD..(03S,14S);KDH200,201,202,TRH201..RHD..SG..STD;KDH212,220,221,223,LH20#,212,222,TRH201,203,213,22#..RHD..(03S,10S,12S,14S,15S,16S)..(ARL,GEN,MA,SA) |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(0501- )
DOOR,ROOF,FLOOR,SEAT & LAGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26010 |
KDH200,201,212,220,221,LH200,TRH200,201,213,221..5D |
2 | ||
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26010 |
KDH200,201,212,220,221,LH200,TRH200,201,213,221..5D |
2 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-26430 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 83320-26420 |
TRH20#,213,22# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
KDH200,201,212,220,221,LH200,TRH200,201,213,221..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
KDH200,201,212,220,221,LH200,TRH200,201,213,221..5D |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26110 |
KDH200..06S..GEN;KDH201,220,221,TRH201,221..RHD..5D..(ARL,GEN) |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26110 |
KDH200..06S..GEN;KDH201,220,221,TRH201,221..RHD..5D..(ARL,GEN) |
2 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-26080 |
KDH200..06S..GEN;KDH201,220,221,TRH200,201,221..RHD..5D..(ARL,GEN) |
2 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-26080 |
KDH200..06S..GEN;KDH201,220,221,TRH200,201,221..RHD..5D..(ARL,GEN) |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
KDH200,TRH201..ARL;KDH200,201,TRH201..SG..06S..GEN;KDH201,203,22#,TRH22#..RHD..(03S,14S)..(ARL,GEN) POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84810-12080 |
KDH201..LHD;KDH202..HRF..MA;TRH203..SRF..GEN;TRH223..16S..STD;KDH220..SP..(GEN,SA);KDH201,TRH203..GCC,MA,TH;KDH202..SRF..STD..(GCC,GEN,TH);KDH200,222,TRH201..LHD..(06S,16S)..STD;KDH200,203,212,LH20#,212,222,TRH201,213,221..(03S,10S,12S,15S,16S)..STD..(GCC,GEN,SA,TH,VN) POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
KDH200,TRH201..ARL;KDH200,201,TRH201..SG..06S..GEN;KDH201,203,22#,TRH22#..RHD..(03S,14S)..(ARL,GEN) POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84810-12080 |
KDH201..LHD;KDH202..HRF..MA;TRH203..SRF..GEN;TRH223..16S..STD;KDH220..SP..(GEN,SA);KDH201,TRH203..GCC,MA,TH;KDH202..SRF..STD..(GCC,GEN,TH);KDH200,222,TRH201..LHD..(06S,16S)..STD;KDH200,203,212,LH20#,212,222,TRH201,213,221..(03S,10S,12S,15S,16S)..STD..(GCC,GEN,SA,TH,VN) POWER DOOR LOCK-W(DRIVER&PASSENGER W/KEY ACTION SWITCH)&POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26201 |
KDH200,TRH201..ARL;KDH200,201,TRH201..SG..06S..GEN;KDH201,203,22#,TRH22#..RHD..(03S,14S)..(ARL,GEN) POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26201 |
KDH200,TRH201..ARL;KDH200,201,TRH201..SG..06S..GEN;KDH201,203,22#,TRH22#..RHD..(03S,14S)..(ARL,GEN) POWER WINDOW-WITH(DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 91551-80610 | ||||
| 91631-B0614 | ||||
ILLUST NO. 3 OF 7(0501- )KDH20#,212,22#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-27010 |
1KDFTV..KDH201..RHD..03S;1KDFTV..KDH201,203..RHD..SG;1KDFTV,2KDFTV,5LE..KDH200,202,212,22#,LH20#,212,222 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08281 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
TRH213..GL..VN;KDH212,222..5F..(GCC,GEN,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH,VN) 40A,TERM.:FEMALE,GRN,ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 90982-08295 |
KDH221..5D..GEN;LH20#,212,222..LHD;KDH201..SP..(GEN,TH);KDH203,223..GEN,RUS,TH;TRH203,213,223..4FC..GCC;TRH201..RHD..SP..(GEN,SA);KDH200,202,TRH200..RHD..SRF;KDH222,TRH203..RHD..STD..(ARL,GEN,SA);KDH202,212,220,TRH213,223..RHD..(HRF,SMRF)..(03S,11S,12S,15S,16S)..(ARL,GEN,TH) 30A,TERM.:FEMALE,PNK,MARK 58V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
KDH222,TRH223..ARL,CIS,GCC,GEN,SA;KDH201,203,223..(03S,12S)..(RUS,TH);KDH200,202,212,220,LH20#,212,222,TRH20#,213,221 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26450 |
TRH20#,213,22# |
1 | ||
| 82620-26440 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-71010 |
TRH20#,213,22# |
1 | ||
| 82641-71020 |
KDH201,203..LHD;KDH221..5D..5F..GEN;KDH221,222..(03S,16S)..(ARL,TH) |
1 | ||
| 82641-47020 |
KDH221..ARL;KDH221..5F..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82641-47020 |
KDH221..ARL;KDH221..5F..GEN |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-26240 |
TRH20#,213,22# NO.1 |
1 | ||
| 82660-26290 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
2 | ||
| 82660-26270 |
TRH20#,213,22# NO.2 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26290 |
TRH20#,213,22# |
1 | ||
| 82662-26271 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 82662-26270 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 82662-26291 |
TRH201,221;TRH203..5F;TRH213,223..5F..GCC;TRH213,223..ARL,CIS,GEN,SA,TH,VN |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26280 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26140 |
TRH20#,213,22# |
1 | ||
| 82663-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26130 |
TRH20#,213,22# |
1 | ||
| 82663-26100 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-26090 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-26050 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82673-26060 |
TRH20#,213,22# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82741-26030 |
TRH20#,213,22# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-26020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02025 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 90987-02025 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-02025 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-T2002 |
TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-T2002 |
KDH212,222,LH212,222,TRH213,22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-T2002 |
TRH201..SP..03S;KDH201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
KDH212,222,223,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-04010 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-T2003 |
TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER,(L) |
1 | ||
| 90987-04010 |
TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER,(J) |
1 | ||
| 90987-04010 |
KDH212,222,LH212,222,TRH213,22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,(J) |
1 | ||
| 90987-T2003 |
KDH212,222,LH212,222,TRH213,22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,(L) |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
ILLUST NO. 3 OF 7(0501- )TRH20#,213,22#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08281 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
TRH213..GL..VN;KDH212,222..5F..(GCC,GEN,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..(03S,06S,12S,14S,15S,16S)..(ARL,GCC,GEN,TH,VN) 40A,TERM.:FEMALE,GRN,ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 90982-08295 |
KDH221..5D..GEN;LH20#,212,222..LHD;KDH201..SP..(GEN,TH);KDH203,223..GEN,RUS,TH;TRH203,213,223..4FC..GCC;TRH201..RHD..SP..(GEN,SA);KDH200,202,TRH200..RHD..SRF;KDH222,TRH203..RHD..STD..(ARL,GEN,SA);KDH202,212,220,TRH213,223..RHD..(HRF,SMRF)..(03S,11S,12S,15S,16S)..(ARL,GEN,TH) 30A,TERM.:FEMALE,PNK,MARK 58V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
KDH222,TRH223..ARL,CIS,GCC,GEN,SA;KDH201,203,223..(03S,12S)..(RUS,TH);KDH200,202,212,220,LH20#,212,222,TRH20#,213,221 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26450 |
TRH20#,213,22# |
1 | ||
| 82620-26440 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-71010 |
TRH20#,213,22# |
1 | ||
| 82641-71020 |
KDH201,203..LHD;KDH221..5D..5F..GEN;KDH221,222..(03S,16S)..(ARL,TH) |
1 | ||
| 82641-47020 |
KDH221..ARL;KDH221..5F..GEN ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 82641-47020 |
KDH221..ARL;KDH221..5F..GEN |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-26240 |
TRH20#,213,22# NO.1 |
1 | ||
| 82660-26290 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
2 | ||
| 82660-26270 |
TRH20#,213,22# NO.2 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-26240 |
TRH20#,213,22# NO.1 |
1 | ||
| 82660-26290 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
2 | ||
| 82660-26270 |
TRH20#,213,22# NO.2 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26290 |
TRH20#,213,22# |
1 | ||
| 82662-26271 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 82662-26270 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 82662-26291 |
TRH201,221;TRH203..5F;TRH213,223..5F..GCC;TRH213,223..ARL,CIS,GEN,SA,TH,VN |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26280 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26140 |
TRH20#,213,22# |
1 | ||
| 82663-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26130 |
TRH20#,213,22# |
1 | ||
| 82663-26100 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-26090 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-26050 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82673-26060 |
TRH20#,213,22# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222 |
1 | ||
| 82741-26030 |
TRH20#,213,22# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-26020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02025 |
TRH201..SP..03S;KDH200,201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 90987-02025 |
TRH201,221..SP..03S;KDH200,201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-02025 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-T2002 |
TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-T2002 |
KDH212,222,LH212,222,TRH213,22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-T2002 |
TRH201..SP..03S;KDH201,TRH201..SG;KDH200,201,220,221,LH200,TRH221..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
KDH212,222,223,LH212,222,TRH213,22#..SG..(03S,10S,15S,16S)..STD..(GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-04010 |
KDH201,TRH201..SG..06S;KDH201,TRH201,221..SP..03S;KDH200,220,221,LH200..ARL,GCC,GEN,SA,TH AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 90987-T2003 |
TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER,(L) |
1 | ||
| 90987-04010 |
TRH201,221..SP..03S;KDH201,TRH201..SG..06S;KDH200,201,220,221,LH200..03S..(ARL,GCC,GEN,SA,TH) AIR CONDITIONER-DUAL AIR CONDITIONER,(J) |
1 | ||
| 90987-04010 |
KDH212,222,LH212,222,TRH213,22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,(J) |
1 | ||
| 90987-T2003 |
KDH212,222,LH212,222,TRH213,22#..SG..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER,(L) |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
