KDH221R-MFMDY (2010)
Toyota Hiace
ILLUST NO. 2 OF 2(0501- )KDH20#,212,22#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77207-26050 |
KDH22# |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77207-26050 |
KDH22# |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77207-26050 |
KDH22# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-26B20 |
TRH20#,213,22# |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-26130 |
KDH200..ARL;KDH22#..03S,14S;KDH200..06S..GEN |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-26130 |
KDH200..ARL;KDH22#..03S,14S;KDH200..06S..GEN |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95333-08020 |
KDH221..5D..GEN;KDH201,203,222,223..RUS,TH |
1 | ||
| 95333-08020 |
KDH222..RHD..GEN;KDH201,203,221,223 |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95333-08030 |
KDH222..RHD..GEN;KDH201,203,221,223 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-26670 |
TRH20#,213,22# |
1 | ||
| 77255-26700 |
KDH20#,212,22# |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-26050 |
KDH22# |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-26050 |
KDH22# |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-26050 |
KDH22# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-26010 |
KDH22# |
5 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-26010 |
TRH223;KDH201..LHD;KDH221..5D..GEN;KDH201,222..(03S,14S)..STD..(SA,TH);KDH203,223,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S |
5 | ||
| 77289-26010 |
KDH202..GCC,TH;KDH202..HRF..MA;KDH202..15S..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH200,222..(03S,14S,16S)..(GCC,GEN,MA,SA,TH);KDH201,203,212,221,223..03S,06S,10S,11S,14S,16S |
6 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-26010 |
TRH223;KDH201..LHD;KDH221..5D..GEN;KDH201,222..(03S,14S)..STD..(SA,TH);KDH203,223,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S |
5 | ||
| 77289-26010 |
KDH202..GCC,TH;KDH202..HRF..MA;KDH202..15S..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH200,222..(03S,14S,16S)..(GCC,GEN,MA,SA,TH);KDH201,203,212,221,223..03S,06S,10S,11S,14S,16S |
6 | ||
| 77433 - HOSE, FUEL MAIN, NO.1 | ||||
| 77433-26011 |
KDH20#,212,22# |
1 | ||
| 77433 - HOSE, FUEL MAIN, NO.1 | ||||
| 77433-26011 |
KDH20#,212,22# |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91673-80820 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| 96137-41901 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 2 OF 2(0501- )TRH20#,213,22#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-26B20 |
TRH20#,213,22# |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-26230 |
TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-26670 |
TRH20#,213,22# |
1 | ||
| 77255-26700 |
KDH20#,212,22# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77289-26020 |
TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-26010 |
TRH223;KDH201..LHD;KDH221..5D..GEN;KDH201,222..(03S,14S)..STD..(SA,TH);KDH203,223,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S |
5 | ||
| 77289-26010 |
KDH202..GCC,TH;KDH202..HRF..MA;KDH202..15S..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH200,222..(03S,14S,16S)..(GCC,GEN,MA,SA,TH);KDH201,203,212,221,223..03S,06S,10S,11S,14S,16S |
6 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-26091 |
TRH223..5F..GL..GEN;TRH201,221..5D..03S..GEN MEXICO SPEC |
1 | ||
| 77740-26091 |
TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-26120 |
TRH223..5F..GL..GEN;TRH201,221..5D..03S..GEN MEXICO SPEC |
1 | ||
| 77751-26120 |
TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
1 | ||
| Common parts | ||||
| 91673-80820 | ||||
| 95337-06017 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||

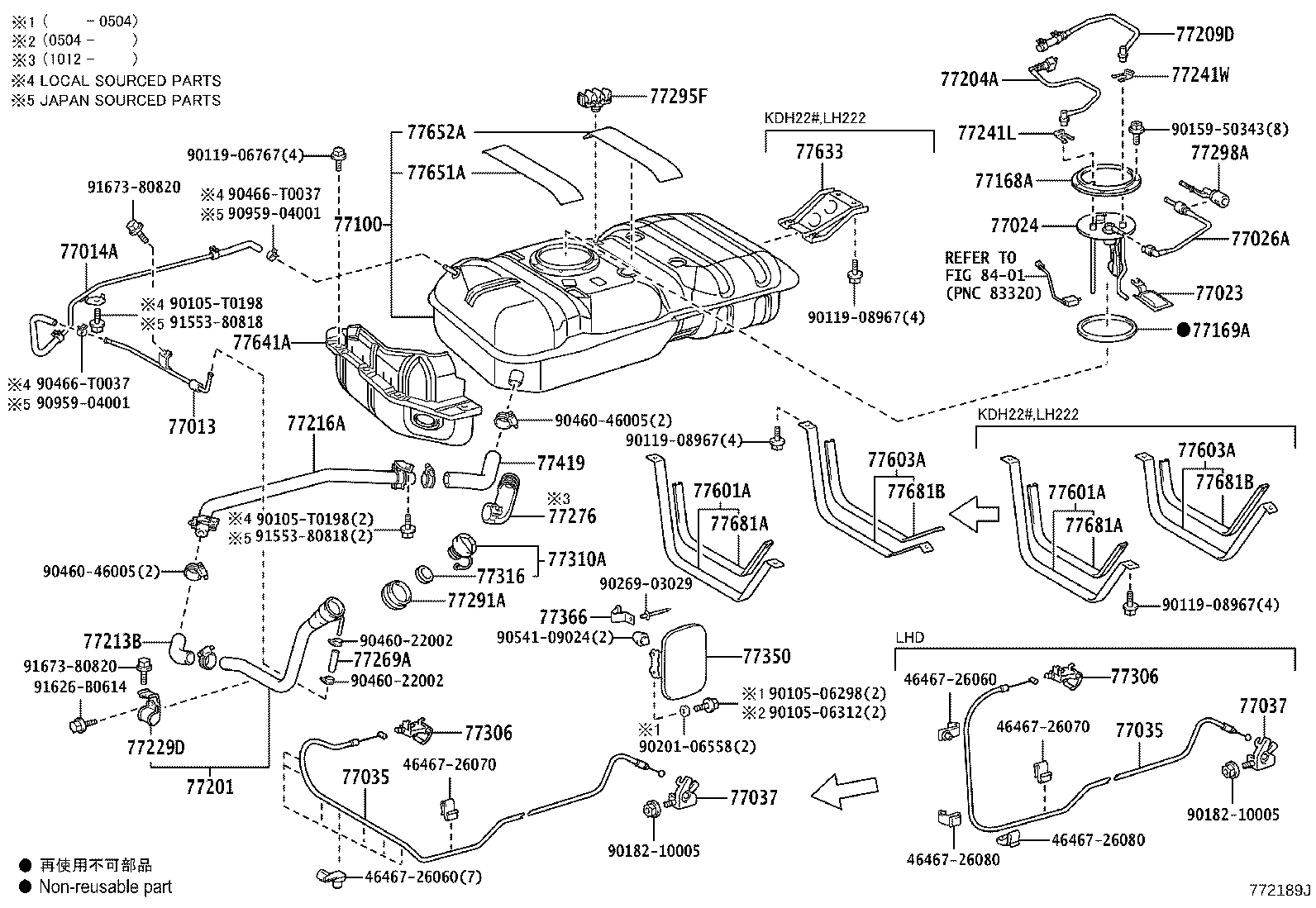

ILLUST NO. 1 OF 2(0501- )KDH22#,LH222
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-26120 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-26040 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60040 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT | ||||
| 77024-26010 |
TRH20#,213,22# |
1 | ||
| 77024-26020 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-26070 |
TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
1 | ||
| 77026-26080 |
TRH221..SP..GEN;TRH223..5F..GEN;KDH20#,212,22#,LH20#,212,222;TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-26150 |
KDH222..RHD..(ARL,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..RHD |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-26150 |
KDH222..RHD..(ARL,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..RHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-95D01 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-95D01 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26700 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 77001-26690 |
TRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);TRH20#,22#..03S,06S,12S,14S,15S,16S |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
TRH213..TH;TRH201..5D..5F;TRH201..SG..4FC;TRH213..10S,16S;TRH201,22#..HRF;TRH203..15S..GEN;TRH20#..4D..(ARL,GCC,MA,SA) |
1 | ||
| 77169-52010 |
TRH203..12S..GEN;TRH201..4D..SP..GEN;TRH201..SP..4FC..GEN;KDH20#,212,22#,LH20#,212,222;TRH213..(09S,11S,15S)..(GEN,SA) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-26250 |
TRH221..SP..GEN;TRH223..5F..GEN;TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN;KDH20#,212,22#,LH20#,212,222..GCC,GEN,MA,RUS,SA,TH,VN |
1 | ||
| 77201-26240 |
TRH213..STD..(GCC,VN);TRH200,201,213..06S,09S,10S,11S,15S;TRH201,203,22#..HRF..SG..(03S,12S,13S)..(GEN,MA);TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC,SA,TH) |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-26040 |
TRH20#,213,22# |
1 | ||
| 77204-26050 |
KDH20#,212,22# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-26150 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 77209-26140 |
TRH20#,213,22# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-26120 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77104-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 | ||||
| 77229-26020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77241L - TUBE, FUEL TANK SUCTION | ||||
| 77241-35450 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 77241-60320 |
TRH20#,213,22# |
2 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-26020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-26050 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52030 |
TRH221..SP..GEN;TRH223..5F..GEN;KDH20#,212,22#,LH20#,212,222;TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28050B1 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-28050B1 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
TRH20#,213,22# |
1 | ||
| 77300-60010 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 77419-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26100 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26100 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-26030 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-26030 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-26010 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-26040 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26080 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-26070 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 77681B - SEAT, FUEL TANK BAND | ||||
| 77616-36010 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 77681B - SEAT, FUEL TANK BAND | ||||
| 77616-36010 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 46467-26060 | ||||
| 46467-26070 | ||||
| 46467-26080 | ||||
| 90105-06298 | ||||
| 90105-06312 | ||||
| 90105-T0198 | ||||
| 90119-06767 | ||||
| 90119-08967 | ||||
| 90159-50343 | ||||
| 90182-10005 | ||||
| 90201-06558 | ||||
| 90269-03029 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90466-T0037 | ||||
| 90541-09024 | ||||
| 90959-04001 | ||||
| 91553-80818 | ||||
| 91626-B0614 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
