KDH221R-MFMDY (2010)
Toyota Hiace

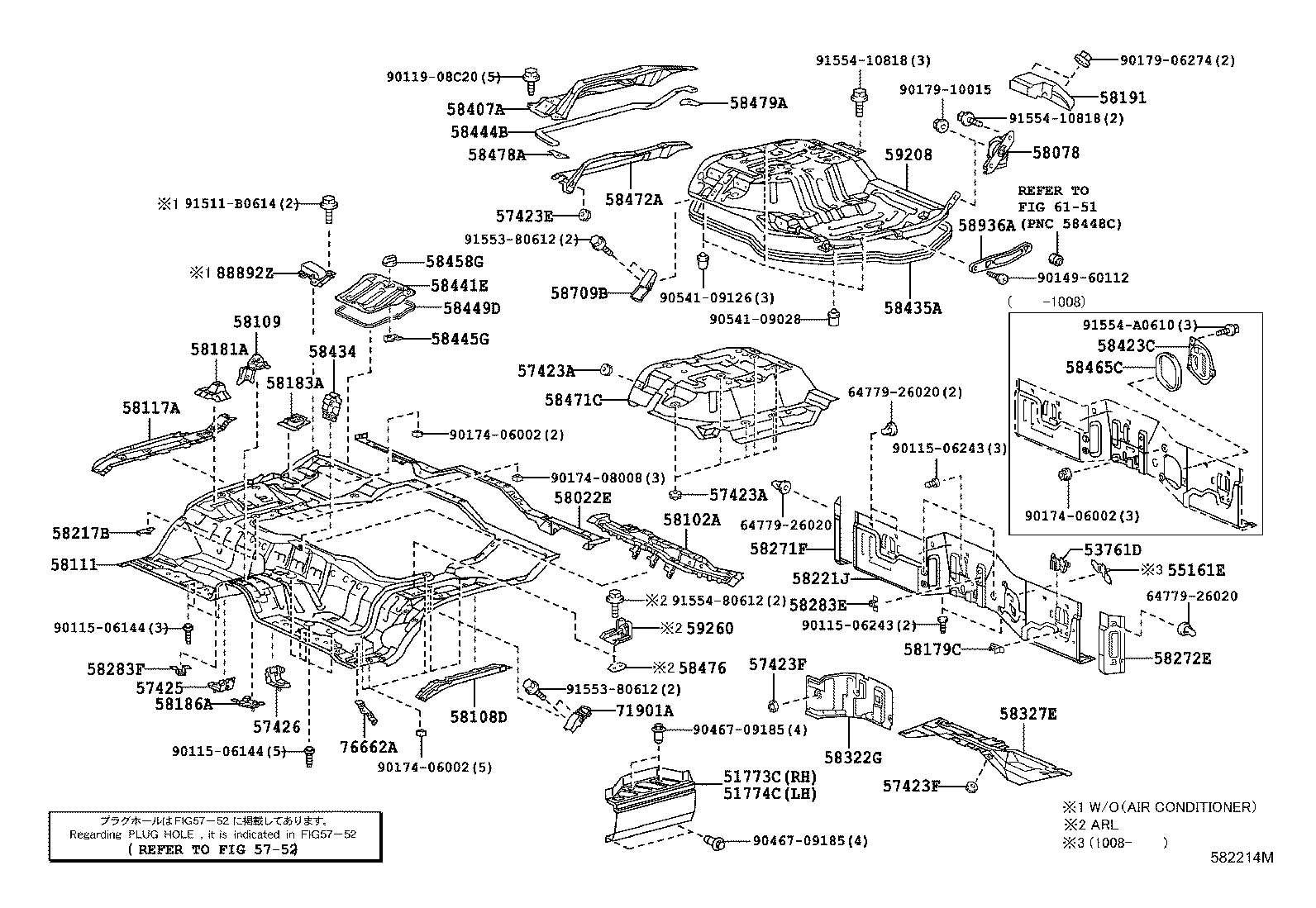

ILLUST NO. 1 OF 2(0501- )KDH212,22#,LH212,222,TRH213,22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-26020 |
KDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH20#,212,220,LH20#,212,222,TRH20#,213,22#..STD NO PAINT REQ. |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-26020 |
KDH222..LHD..GEN;KDH222..STD..(ARL,GCC);KDH20#,212,220,LH20#,212,222,TRH20#,213,22#..STD |
1 | ||
| 53761D - BRACKET, BATTERY CLAMP | ||||
| 53761-26020 |
KDH202..4FC;TRH201..SP..4FC..GEN;KDH200,212..4D..(ARL,GCC);KDH200,212,LH212..06S,10S,11S,15S;KDH202,212..RHD..(SMRF,SRF)..(12S,16S)..(GEN,MA);KDH202,22#,TRH203,213,22#..(HRF,SMRF)..(ARL,CIS,GCC,GEN,SA,TH,VN) |
1 | ||
| 57423A - CLAMP, FRONT FLOOR | ||||
| 57423-26010 |
KDH212,22#,LH212,222,TRH213,22# |
7 | ||
| 57423A - CLAMP, FRONT FLOOR | ||||
| 57423-26010 |
KDH212,22#,LH212,222,TRH213,22# |
7 | ||
| 57423E - CLAMP, FRONT FLOOR, NO.2 | ||||
| 57423-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 57423F - CLAMP, FRONT FLOOR, NO.3 | ||||
| 57423-26010 |
TRH223;TRH203..GCC,MA;TRH201..SG..4FC;KDH202..HRF..MA;KDH202..15S..GEN;TRH201..4FC..ARL;TRH203..SRF..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);TRH201,213..(03S,06S,10S,16S)..5F;KDH202,TRH213..(11S,12S,15S)..(GCC,TH);KDH200,222,LH202,212..(03S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH);KDH201,203,212,221,223,LH200,222,TRH221..03S,06S,10S,11S,14S,16S |
5 | ||
| 57423-26010 |
KDH200..ARL;KDH221..5D..GEN;KDH222..14S..STD;KDH201,223..RUS,TH;TRH201..SP..4FC..GEN;KDH201,LH212..LHD..(03S,10S);KDH202..RHD..SRF..12S..(GEN,MA);TRH213..(09S,11S,15S)..(GEN,SA);KDH200,203,212,TRH200..06S,12S,15S;KDH202,220,TRH203..RHD..HRF..(ARL,GEN);KDH202,TRH203,213,223..(12S,15S,16S)..4FC |
5 | ||
| 57423F - CLAMP, FRONT FLOOR, NO.3 | ||||
| 57423-26010 |
TRH223;TRH203..GCC,MA;TRH201..SG..4FC;KDH202..HRF..MA;KDH202..15S..GEN;TRH201..4FC..ARL;TRH203..SRF..GEN;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);TRH201,213..(03S,06S,10S,16S)..5F;KDH202,TRH213..(11S,12S,15S)..(GCC,TH);KDH200,222,LH202,212..(03S,12S,14S,15S,16S)..(GCC,GEN,MA,SA,TH);KDH201,203,212,221,223,LH200,222,TRH221..03S,06S,10S,11S,14S,16S |
5 | ||
| 57423-26010 |
KDH200..ARL;KDH221..5D..GEN;KDH222..14S..STD;KDH201,223..RUS,TH;TRH201..SP..4FC..GEN;KDH201,LH212..LHD..(03S,10S);KDH202..RHD..SRF..12S..(GEN,MA);TRH213..(09S,11S,15S)..(GEN,SA);KDH200,203,212,TRH200..06S,12S,15S;KDH202,220,TRH203..RHD..HRF..(ARL,GEN);KDH202,TRH203,213,223..(12S,15S,16S)..4FC |
5 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58022E - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-26290 |
KDH223;KDH212,220,221,222,LH212,222..ARL,GCC,GEN,SA,VN |
1 | ||
| 58022-26280 |
TRH213,221;TRH223..GL..SA;TRH223..ARL,CIS,GCC,GEN,TH |
1 | ||
| 58078 - BALANCER SUB-ASSY, ENGINE SERVICE HOLE COVER | ||||
| 58078-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-26210 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-26040 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-26010 |
KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..RHD |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-26B10 |
KDH220..5F..GEN;KDH222,LH212,222,TRH213,22#..CIS,GCC,GEN |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58179C - BRACKET, CLAMP FLOOR | ||||
| 58179-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58183A - RETAINER, SEAT RAIL, REAR RH | ||||
| 58105-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58186A - BRACKET, BRAKE TUBE SET | ||||
| 58186-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-26060 |
KDH222..RHD..(ARL,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..RHD |
1 | ||
| 58217B - PLATE, FRONT FLOOR | ||||
| 58217-26040 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58221J - PANEL, HEADER | ||||
| 58221-26740 |
TRH223..15S,16S;KDH212,220,221,222,LH212,222,TRH213,221..03S,09S,16S |
1 | ||
| 58271F - PLATE, FLOOR SIDE, REAR RH | ||||
| 58271-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58272E - PLATE, FLOOR SIDE, REAR LH | ||||
| 58272-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58283E - BRACKET, PARKING CABLE CLAMP, NO.5 | ||||
| 58283-95D00 |
TRH20#,213,22# |
1 | ||
| 58283-95D00 |
KDH200..ARL;KDH22#..03S,14S;KDH200..06S..GEN |
1 | ||
| 58283-95D00 |
KDH200..06S..GCC;KDH220..SP..(GEN,SA);KDH201,202,203,212,221,223;KDH200,222..(03S,14S,16S)..(GCC,GEN,MA,SA) |
1 | ||
| 58283F - BRACKET, PARKING CABLE CLAMP, NO.6 | ||||
| 58283-95D00 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58322G - INSULATOR, HEADER PANEL, NO.1 | ||||
| 58322-26030 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 58327E - INSULATOR, TRANSMISSION SERVICE HOLE COVER | ||||
| 58327-26080 |
KDH221..5D..GEN;TRH213,223..4FC..GCC;KDH220..RHD..(ARL,GEN);KDH222,LH212..(10S,14S)..STD;TRH213..(09S,11S,15S)..(GEN,SA);KDH212,223..(12S,15S,16S)..(RUS,SA,TH) |
1 | ||
| 58327-26080 |
TRH223;TRH213..TH;TRH213..10S,16S;KDH220..SP..(GEN,SA);KDH222,LH212..(14S,16S)..(GCC,GEN,SA,TH);KDH212,221,223,LH222,TRH221..03S,10S,11S,14S,16S |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-26150 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 58434 - HOOK, ENGINE SERVICE HOLE COVER | ||||
| 58434-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58435A - PACKING, ENGINE MAIN COVER | ||||
| 58435-26030 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 58441E - COVER, BATTERY SERVICE HOLE | ||||
| 58209-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-26020 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 58445G - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58449D - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-26020 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58458G - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58471C - SILENCER, ENGINE MAIN COVER | ||||
| 58471-26050 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 58472A - SILENCER, ENGINE SUB COVER | ||||
| 58472-26050 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 58478A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58478-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58479A - PACKING, ENGINE SUB COVER, NO.3 | ||||
| 58479-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-26010B1 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 59208 - COVER SUB-ASSY, ENGINE SERVIS HOLE MAIN | ||||
| 59208-26190 |
KDH220..SA;KDH212,221,222..RHD..(GEN,TH) |
1 | ||
| 59208-26190 |
KDH221,TRH221..RHD..5D..(GEN,SA);KDH220,LH212,222,TRH213,223..RHD..STD..GEN |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71902-26010 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..CIS,GCC,GEN,MA,RUS,SA,TH,VN |
1 | ||
| 76662A - BRACE, FRONT MUDGUARD, FRONT LH | ||||
| 76661-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 88892Z - COVER, COOLER | ||||
| 88891-26260 |
TRH203..SRF..12S;KDH200..03S..4FC..GEN;KDH221,TRH201..RHD..03S..GEN AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891-26260 |
TRH203..SRF..12S;KDH200..03S..4FC..GEN;KDH221,TRH201..RHD..03S..GEN |
1 | ||
| 88891-26260 |
KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH201,TRH201..SG..06S;TRH201..03S..(ARL,GCC,SA);KDH201,LH20#,TRH221..03S,12S,15S;KDH221,TRH201..5D..03S..(ARL,GEN);KDH200,202,TRH203..(03S,15S)..5F..(GCC,GEN,SA) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 88891-26260 |
KDH202..LHD..12S..5F;TRH201..03S..(ARL,GCC,SA);KDH222,TRH223..STD..(GCC,GEN,SA);KDH221,TRH201..5D..03S..(ARL,GEN);KDH200,220..SP..03S..5F..(GCC,GEN,MA,SA);KDH201,203,LH20#,212,222,TRH221..(03S,12S,14S,15S,16S)..STD;KDH201,202,212,TRH201,203,213..SG..(03S,06S,15S,16S)..(GCC,GEN) |
1 | ||
| 88891-26260 |
KDH212,222,LH212,222,TRH213,22#..SG..(03S,16S)..STD..(GCC,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90115-06144 | ||||
| 90115-06243 | ||||
| 90119-08C20 | ||||
| 90149-60112 | ||||
| 90174-06002 | ||||
| 90174-08008 | ||||
| 90179-06274 | ||||
| 90179-10015 | ||||
| 90467-09185 | ||||
| 90541-09028 | ||||
| 90541-09126 | ||||
| 91511-B0614 | ||||
| 91553-80612 | ||||
| 91554-10818 | ||||
| 91554-80612 | ||||
| 91554-A0610 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6151 | ||||

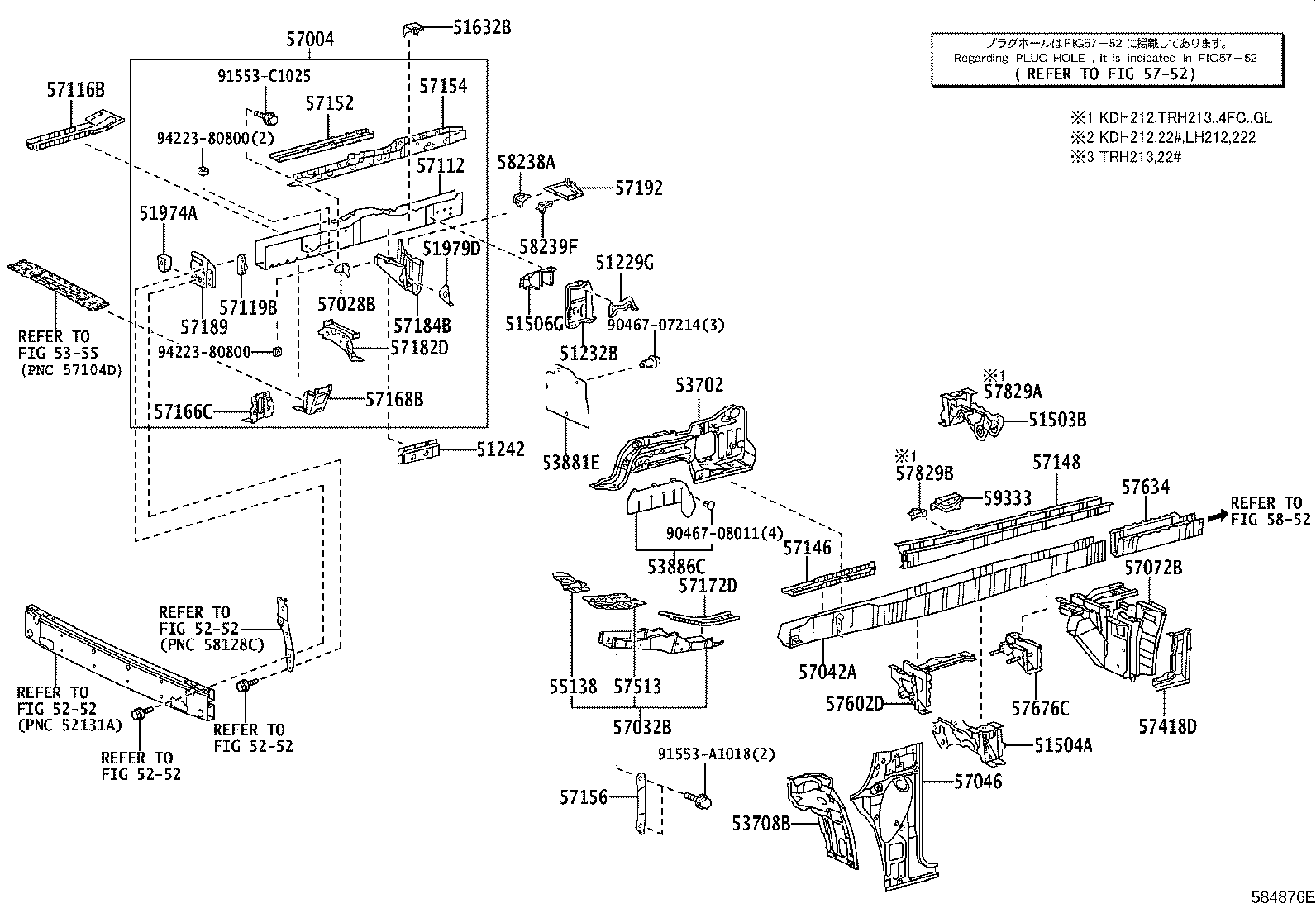

ILLUST NO. 2 OF 2(0501- )KDH212,22#,LH212,222,TRH213,22#
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51228E - PATCH, FRONT SUSPENSION MEMBER, RH | ||||
| 51228-26050 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51231D - BRACKET, FRONT SHOCK ABSORBER, RH | ||||
| 51231-26050 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51241A - REINFORCEMENT, FRONT SHOCK ABSORBER BRACKET, RH | ||||
| 51241-26050 |
KDH212,22#,LH212,222,TRH213,22# |
2 | ||
| 51503B - BRACE SUB-ASSY, LOWER ARM BRACKET, RH | ||||
| 51503-26040 |
TRH213..GCC,GEN,SA,TH;KDH202,203,TRH203..RHD;KDH202,TRH203..LHD..15S;KDH222,LH202..(14S,15S,16S)..(ARL,GCC,GEN,SA);KDH200,201,212,220,221,223,LH200,212,222,TRH200,201,22# |
1 | ||
| 51505G - SUPPORT SUB-ASSY, UPPER CONTROL ARM, RH | ||||
| 51505-26090 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51631B - STOPPER, FRONT SUSPENSION REBOUND, RH | ||||
| 51631-26060 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51969D - REINFORCEMENT, TRANSPORT HOOK MOUNTING, REAR RH | ||||
| 51969-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51974 - NUT, TRANSPORT HOOK, RH | ||||
| 51974-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-26080 |
TRH213,22# |
1 | ||
| 53701-26070 |
KDH22#,LH212,222 |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-26030 |
KDH212..GL;KDH212..RHD;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..ARL,CIS,GEN,MA |
1 | ||
| 53773D - BRACKET, AIR CLEANER MOUNTING | ||||
| 53773-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-26070 |
KDH20#,212,22#,LH20#,212,222 |
1 | ||
| 53885-26060 |
TRH20#,213,22# |
1 | ||
| 57003 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57003-26300 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-26010 |
KDH222..RHD..(ARL,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..RHD |
1 | ||
| 57041A - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH | ||||
| 57041-26050 |
KDH222..RHD..(ARL,GEN,SA);KDH212,220,221,223,LH212,222,TRH213,22#..RHD |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-26290 |
KDH200..06S..GEN;KDH201,TRH201..SG..06S..GEN;KDH201,220,221,TRH221..RHD..5D..03S..(ARL,GEN) |
1 | ||
| 57045-26310 |
KDH200..06S..GEN;KDH201,TRH201..SG..06S..GEN;KDH201,220,221,TRH221..RHD..5D..03S..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 57071B - HANGER SUB-ASSY, REAR SPRING, FRONT A RH | ||||
| 57071-26190 |
KDH220..SP..(GEN,SA);KDH202,TRH221..MA,SA,TH;KDH203,221,LH212,TRH203..RHD..(03S,12S,14S,16S);KDH202,212,TRH213..RHD..(HRF,SMRF)..STD..(GEN,SA) |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-26180 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57115-26040 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57127B - PLATE, FRONT SUSPENSION MEMBER MOUNTING, RH | ||||
| 57127-26100 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57145 - PLATE, FRONT SIDE MEMBER, CENTER RH | ||||
| 57055-26020 |
KDH22#,LH222,TRH213,22#..RHD |
1 | ||
| 57147 - PLATE, FRONT SIDE MEMBER, REAR RH | ||||
| 57147-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-26160 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-26090 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-26050 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57165B - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH | ||||
| 57165-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57171D - PLATE, FRONT SIDE MEMBER TO FLOOR, RH | ||||
| 57171-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57181D - EXTENSION, FRONT CROSSMEMBER, FRONT RH | ||||
| 57181-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57183A - EXTENSION, FRONT CROSSMEMBER, RR RH | ||||
| 57183-26040 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH | ||||
| 57188-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57191 - PLATE, FRONT SIDE MEMBER, OUTER REAR RH | ||||
| 57191-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57417D - REINFORCEMENT, FLOOR SIDE, INNER RH | ||||
| 57417-26030 |
TRH221;KDH220,221..5D;KDH222,223,LH222,TRH223..LHD |
1 | ||
| 57512 - REINFORCEMENT, FRONT FLOOR, RH | ||||
| 57511-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57633C - EXTENSION, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57633-26050 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 57675B - REINFORCEMENT, REAR FLOOR CROSS, NO.1 RH | ||||
| 57675-26020 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 90467-08011 | ||||
| 91553-A1018 | ||||
| 91553-C1025 | ||||
| 91661-60825 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5355 | ||||
| 5752 | ||||
| 5852 | ||||
ILLUST NO. 2 OF 2(0501- )KDH212,22#,LH212,222,TRH213,22#
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51229G - PATCH, FRONT SUSPENSION MEMBER, LH | ||||
| 51229-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51232B - BRACKET, FRONT SHOCK ABSORBER, LH | ||||
| 51232-26040 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51242 - REINFORCEMENT, FRONT SHOCK ABSORBER BRACKET, LH | ||||
| 51242-26010 |
KDH221..GEN |
1 | ||
| 51242-26010 |
KDH22#..03S,14S |
1 | ||
| 51242-26010 |
KDH221..5D;TRH213..TH;KDH223,TRH22#;KDH220..SP..(GEN,SA);TRH213..(10S,16S)..(GCC,GEN,SA);KDH212..(10S,11S,16S)..(GCC,GEN,SA);KDH222,LH212,222..(14S,16S)..(GCC,GEN,SA) |
1 | ||
| 51503B - BRACE SUB-ASSY, LOWER ARM BRACKET, RH | ||||
| 51503-26040 |
TRH213..GCC,GEN,SA,TH;KDH202,203,TRH203..RHD;KDH202,TRH203..LHD..15S;KDH222,LH202..(14S,15S,16S)..(ARL,GCC,GEN,SA);KDH200,201,212,220,221,223,LH200,212,222,TRH200,201,22# |
1 | ||
| 51504A - BRACE SUB-ASSY, LWR ARM BRACKET, LH | ||||
| 51504-26040 |
KDH202..15S;KDH202..LHD..12S;KDH203,222..ARL,GCC,GEN,SA;TRH203,213..(SMRF,SRF)..(GCC,GEN,SA,TH);KDH200,201,212,220,221,223,LH20#,212,222,TRH200,201,22# |
1 | ||
| 51506G - SUPPORT SUB-ASSY, UPR CONTROL ARM, LH | ||||
| 51506-26090 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51632B - STOPPER, FRONT SUSPENSION REBOUND, LH | ||||
| 51631-26060 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51974A - NUT, TRANSPORT HOOK, LH | ||||
| 51974-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 51979D - REINFORCEMENT, TRANSPORT HOOK MOUNTING, REAR LH | ||||
| 51979-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-26130 |
KDH223,TRH223;TRH213..10S,15S;KDH212..10S,11S,15S;KDH200,212,TRH201,213..(03S,16S)..(MA,SA,VN);KDH202,220,221,222,LH222,TRH203,221..HRF..(ARL,GCC,GEN,MA,SA) |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-26100 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53881E - MUDGUARD, FRONT | ||||
| 53881-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-26070 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 55138 - BRACE, DASH TO FRAME, LH | ||||
| 55138-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57004 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57004-26330 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-26020 |
KDH222..RHD..(ARL,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#..RHD |
1 | ||
| 57042A - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH | ||||
| 57042-26030 |
KDH222..RHD..(ARL,GEN,SA);KDH212,220,LH212,222,TRH213,22#..RHD;KDH20#,221,223,LH20#,TRH20#..ARL,GCC,GEN,MA,SA,TH |
1 | ||
| 57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26290 |
KDH202..GL..GEN;KDH200,TRH201..ARL;KDH200,TRH223..RHD..(06S,15S);KDH201,222,TRH201..RHD..SG..GEN;KDH201,203,220,221,TRH221..RHD..(03S,14S)..(ARL,GEN) |
1 | ||
| 57046-26310 |
KDH200..06S..GEN;KDH200,TRH201..ARL;KDH201,TRH201..SG..06S..GEN;KDH201,220,221,TRH221..RHD..03S..(ARL,GEN) AIR CONDITIONER-DUAL AIR CONDITIONER |
1 | ||
| 57072B - HANGER SUB-ASSY, REAR SPRING, FRONT A LH | ||||
| 57072-26160 |
TRH221..SA;KDH220..SP..(GEN,SA);TRH203,223..4FC..STD..GCC;KDH203,221..(03S,12S)..STD;KDH212,TRH213..STD..(GCC,VN);KDH200,LH200,212..LHD..4D..(03S,16S) |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-26170 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 57116B - PLATE, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57116-26030 |
KDH212,22#,LH212,222,TRH213,22# |
1 | ||
| 57119B - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57119-26040 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57148 - PLATE, FRONT SIDE MEMBER, REAR LH | ||||
| 57148-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-26180 |
KDH223,TRH213,223;KDH212,220,221,222,LH212,222,TRH221..ARL,GCC,GEN,SA,VN |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57154-26080 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57166C - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH | ||||
| 57166-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57172D - PLATE, FRONT SIDE MEMBER TO FLOOR, LH | ||||
| 57172-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57182D - EXTENSION, FRONT CROSSMEMBER, FRONT LH | ||||
| 57182-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57184B - EXTENSION, FRONT CROSSMEMBER, RR LH | ||||
| 57184-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57189 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH | ||||
| 57189-26030 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57192 - PLATE, FRONT SIDE MEMBER, OUTER REAR LH | ||||
| 57192-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57418D - REINFORCEMENT, FLOOR SIDE, INNER LH | ||||
| 57417-26030 |
TRH221..SP;LH222,TRH223..RHD;KDH220,221,223..STD;KDH222..RHD..(ARL,GEN,SA) |
1 | ||
| 57513 - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57512-26010 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 57602D - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-26030 |
TRH223..ARL;TRH223..GL..SA;KDH202,LH202,TRH203..RHD;TRH213..LHD..STD..(GEN,VN);TRH213..(10S,16S)..(GCC,SA);KDH212,LH212..LHD..STD..GEN;KDH212..(10S,16S)..(GCC,SA,VN);KDH200,201,203,22#,LH200,TRH201,221..03S,06S,14S |
1 | ||
| 57634 - EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57634-26010 |
KDH223,TRH223;KDH220,221,222,LH222,TRH221..ARL,GCC,GEN,SA |
1 | ||
| 57676C - REINFORCEMENT, REAR FLOOR CROSS, NO.1 LH | ||||
| 57676-26020 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
1 | ||
| 58238A - BRACKET, BRAKE TUBE CONNECTOR, NO.4 | ||||
| 58238-26010 |
KDH200..TH;KDH202..GL..TH;KDH201..SP..06S;KDH201,203..LHD;KDH221..5D..5F..GEN;TRH201..SP..06S..5F;KDH201,221,TRH201,223..ARL;KDH223,LH212,TRH221..RHD..(ARL,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 58239F - BRACKET, BRAKE TUBE CONNECTOR, NO.3 | ||||
| 58239-26010 |
KDH200..TH;KDH202..GL..TH;KDH201..SP..06S;KDH201,203..LHD;KDH221..5D..5F..GEN;TRH201..SP..06S..5F;KDH201,221,TRH201,223..ARL;KDH223,LH212,TRH221..RHD..(ARL,GEN) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| Common parts | ||||
| 90467-07214 | ||||
| 90467-08011 | ||||
| 91553-A1018 | ||||
| 91553-C1025 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5355 | ||||
| 5752 | ||||
| 5852 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
