KDH221R-MFMDY (2010)

Toyota Hiace

Production Aug 2010 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

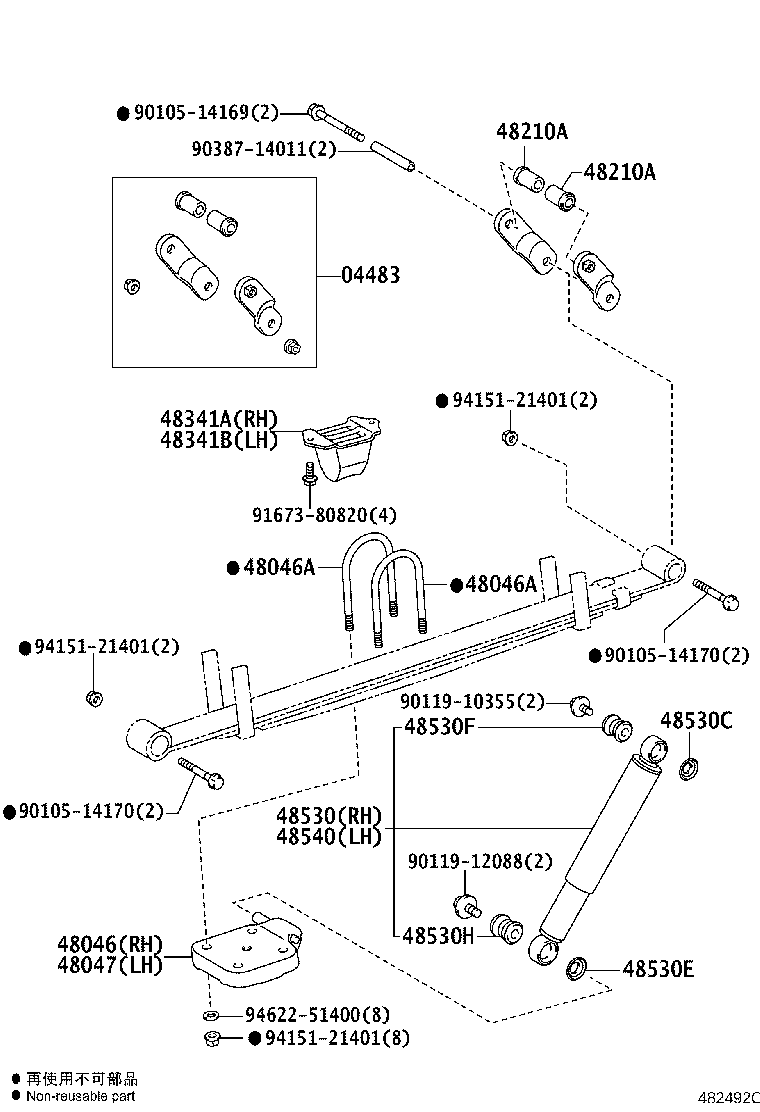

ILLUST NO. 1 OF 2(0501- )KDH220,221,TRH201,221

Click highlighted areas on diagram

diagram 04483 48046 48046A 48046A 48047 48210A 48210A 48341A 48341B 48530 48530C 48530E 48530F 48530H 48540 9010514169 9010514170 9010514170 9011910355 9011912088 9038714011 9167380820 9415121401 9415121401 9415121401 9462251400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-26140

KDH220,221,TRH201,221

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-26130

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14001

TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA)

L=170

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-14001

TRH201..5F;TRH201..SG..4FC;TRH201..4FC..ARL;KDH201,221,LH200,TRH221;KDH200,220..SP..03S..(GCC,GEN,MA,SA)

L=170

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-26130

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 4
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-26270

KDH220,221,TRH221

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-26270

KDH220,221,TRH221

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80725

KDH212..5F;KDH20#,220,221,LH20#,212,TRH20#,213,221..03S,06S,09S,10S,12S,14S,15S,16S

MARK 48531-26780

 1
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03011

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 2
48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
90385-16009

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 2
48530H - BUSH, REAR SHOCK ABSORBER
90385-19006

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80725

KDH212..5F;KDH20#,220,221,LH20#,212,TRH20#,213,221..03S,06S,09S,10S,12S,14S,15S,16S

MARK 48531-26780

 1
Common parts
90105-14169
90105-14170
90119-10355
90119-12088
90387-14011
91673-80820
94151-21401
94622-51400
