KDH221R-MFMDY (2010)

Toyota Hiace

Production Aug 2010 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )TRH213,22#..RHD

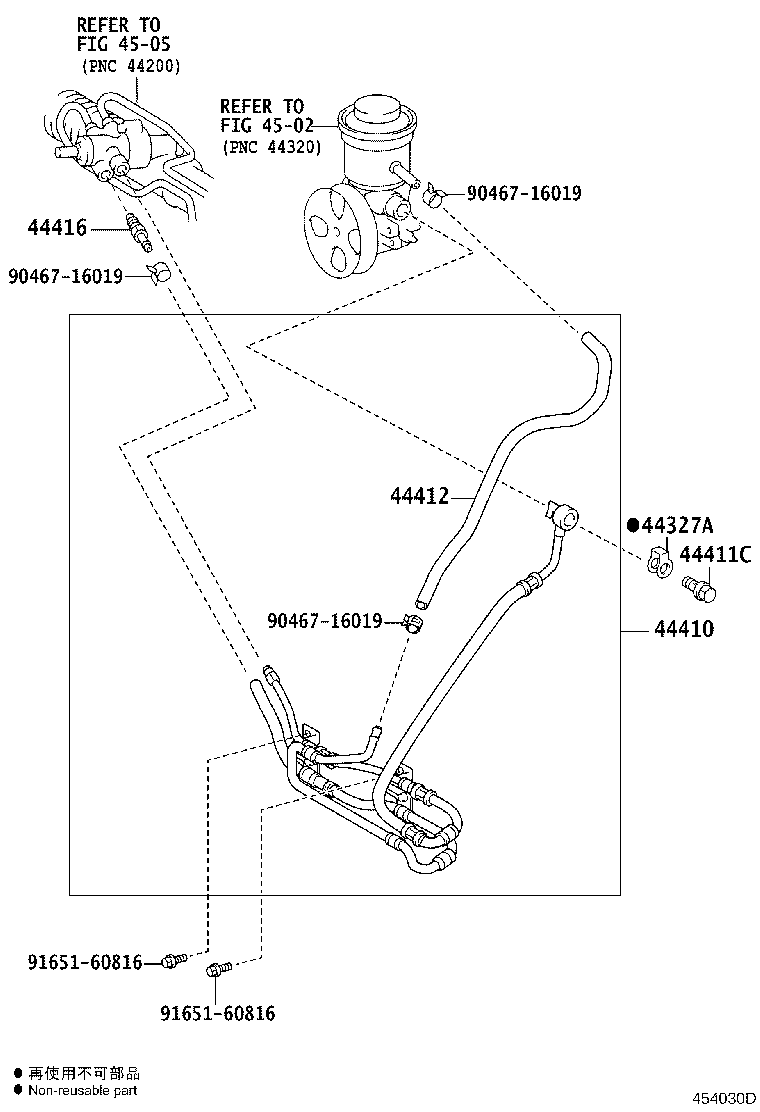

Click highlighted areas on diagram

diagram 44327A 44410 44411C 44412 44416 4502 4505 9046716019 9046716019 9046716019 9165160816 9165160816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26A60

KDH212,22#..RHD

 1
44410-26A30

TRH213,22#..RHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16014

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
44412 - HOSE, RETURN
44412-26410

KDH212,22#..RHD

 1
44412-26450

TRH213,22#;TRH20#..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26080

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
Common parts
90467-16019
91651-60816
Linked diagrams
4502
4505

(0501- )KDH212,22#..RHD

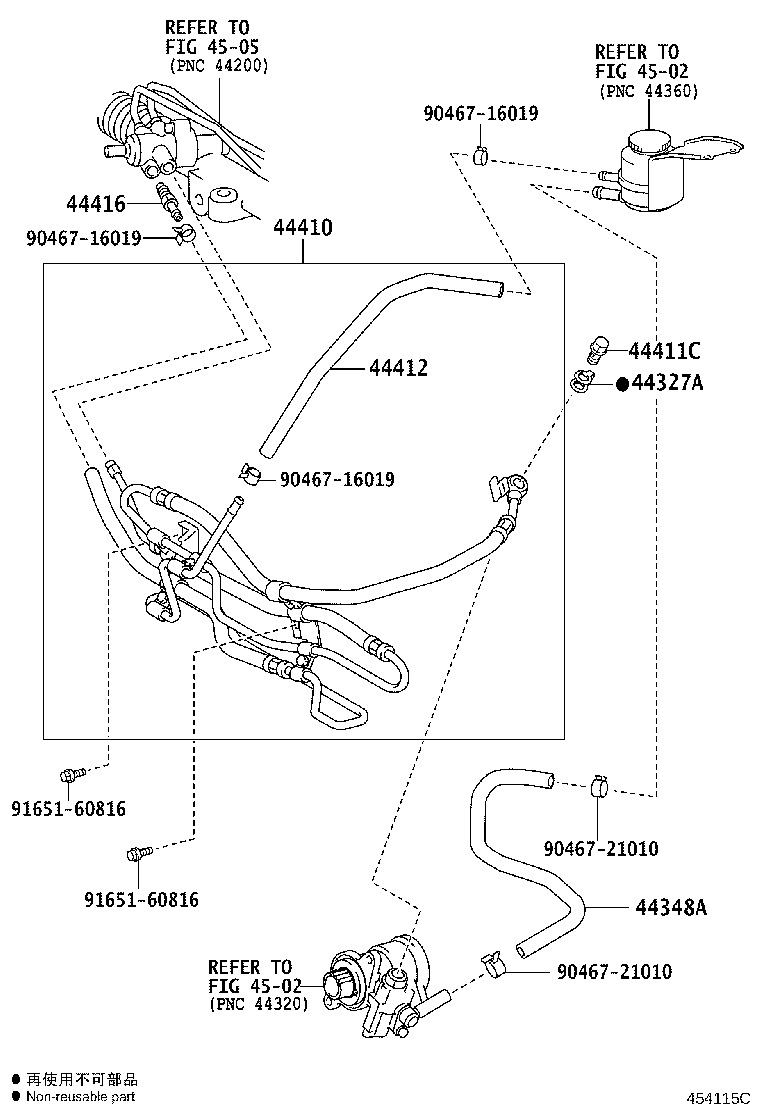

Click highlighted areas on diagram

diagram 44327A 44348A 44410 44411C 44412 44416 4502 4502 4505 9046716019 9046716019 9046716019 9046721010 9046721010 9165160816 9165160816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30040

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26230

KDH212,22#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26A60

KDH212,22#..RHD

 1
44410-26A30

TRH213,22#..RHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16014

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
44412 - HOSE, RETURN
44412-26410

KDH212,22#..RHD

 1
44412-26450

TRH213,22#;TRH20#..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26080

KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#

 1
Common parts
90467-16019
90467-21010
91651-60816
Linked diagrams
4502
4505
