KDH221R-MFMDY (2010)

Toyota Hiace

Production Aug 2010 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,

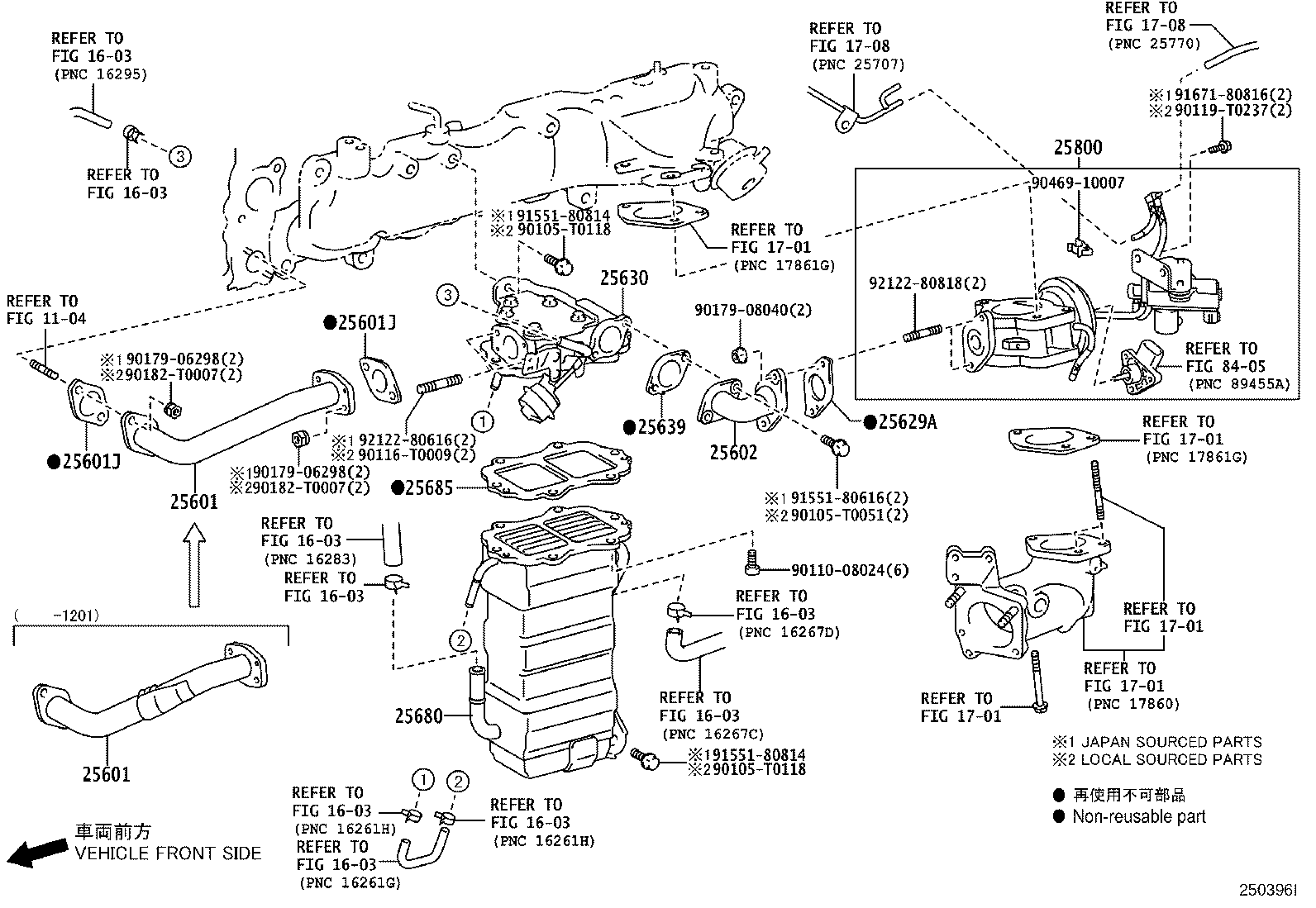

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 1603 1603 1603 1603 1603 1603 1701 1701 1701 1701 1701 1708 1708 25601 25601 25601J 25601J 25602 25629A 25630 25639 25680 25685 25800 8405 90105T0051 90105T0118 90105T0118 9011008024 90116T0009 90119T0237 9017906298 9017906298 9017908040 90182T0007 90182T0007 9046910007 9155180616 9155180814 9155180814 9167180816 9212280616 9212280818
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30090

1KDFTV..KDH201,203,221,223

 1
25601-30092

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
25601-30091

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30090

1KDFTV..KDH201,203,221,223

 1
25601-30092

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
25601-30091

1KDFTV..KDH201..SG;1KDFTV..KDH201,203,221,223..03S,12S,14S

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-30010

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
Common parts
90105-T0051
90105-T0118
90110-08024
90116-T0009
90119-T0237
90179-06298
90179-08040
90182-T0007
90469-10007
91551-80616
91551-80814
91671-80816
92122-80616
92122-80818
