KDH221R-MFMDY (2010)

Toyota Hiace

Production Aug 2010 - Dec 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1008-1110)1KDFTV ; (1110-1212)1KDFTV..KDH201,203..LHD ; (1110- )1KDFTV..KDH201,

Click highlighted areas on diagram

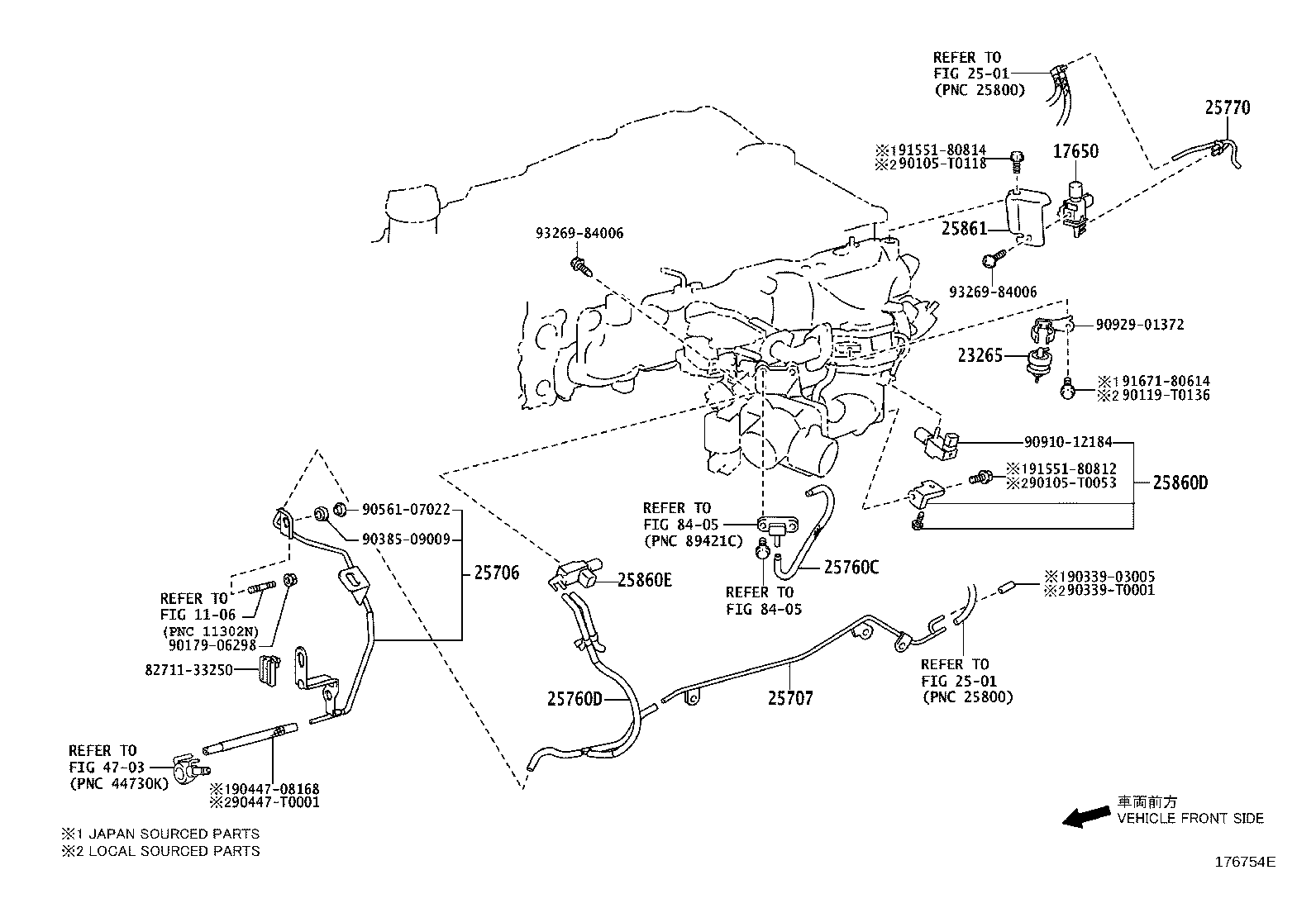

diagram 1106 17650 23265 2501 2501 25706 25707 25760C 25760D 25770 25860D 25860E 25861 4703 8271133250 8405 8405 90105T0053 90105T0118 90119T0136 9017906298 9033903005 90339T0001 9038509009 9044708168 90447T0001 9056107022 9091012184 9092901372 9155180812 9155180814 9167180614 9326984006 9326984006
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11038

1KDFTV..KDH201..TH;1KDFTV..KDH201..LHD;1KDFTV..KDH221..5D..GEN;2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,202,203,212,220,223..03S,06S,10S,11S,12S,15S,16S

 1
25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25760-30140

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-30050

1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)

 1
Common parts
82711-33250
90105-T0053
90105-T0118
90119-T0136
90179-06298
90339-03005
90339-T0001
90385-09009
90447-08168
90447-T0001
90561-07022
90910-12184
90929-01372
91551-80812
91551-80814
91671-80614
93269-84006
