KDH202R-REMDY (2005)
Toyota Hiace
(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#
FRONT RH(SPLIT TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A10B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-26B10B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71071-26A50B2 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71071-26A50B2 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71071-26B10B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71071-26A00B4 |
KDH201..SP..06S;KDH212,TRH213..GCC;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH220,222,LH212,222,TRH22#..STD..(GCC,GEN,TH);KDH200,212,LH20#,TRH203,213..RHD..(03S,06S,15S,16S)..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 71071-26A10B2 |
KDH200..TH;LH212..16S;KDH220..SP..GEN;KDH202,212,LH202,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-26A50B2 |
KDH201..SP..06S;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH200,212,220,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,15S,16S)..(GEN,TH) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71071-26B10B0 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71071-26A50B2 |
KDH201..SP..06S;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH200,212,220,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,15S,16S)..(GEN,TH) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71071-26B10B0 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71071-26A01B6 |
TRH201..SP..06S;KDH200,202,LH20#,TRH203..RHD..STD..(GEN,TH);KDH212,220,222,LH212,222,TRH213,22#..STD..(GCC,GEN,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26A51B4 |
TRH201..SP..06S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD..STD..(GEN,TH) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26A51B4 |
TRH201..SP..06S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD..STD..(GEN,TH) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26B10B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71071-26B10B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71071-26A10B3 |
TRH221..SP..GEN;KDH200,LH200..RHD..(GEN,TH);KDH212,220,LH212,TRH213..STD..GEN;KDH201,202,LH202,TRH203..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71071-26A10B3 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71071-26A10B3 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71071-26A51B4 |
TRH201..SP..06S;KDH200,202,LH20#,TRH203..RHD..STD..(GEN,TH);KDH212,220,222,LH212,222,TRH213,22#..5F..STD..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH200..TH;LH212..16S;KDH220..SP..GEN;KDH202,203,212,LH202,TRH203,213..RHD..(14S,15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH201,212,TRH213..ARL,GCC;TRH223..STD..(ARL,GCC,GEN,TH);KDH203,22#,LH212,222,TRH221..STD;KDH200,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH);KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN GRAY,TRIM1# |
1 | ||
| 71073-26A00B2 |
TRH221..SP..GEN;KDH200,LH200..RHD..(GEN,TH);KDH212,220,LH212,TRH213..STD..GEN;KDH201,202,203,LH202,TRH203..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71027-26041B4 |
KDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221..(03S,06S,14S,16S)..(ARL,GCC,GEN,SA) BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26A00B2 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71073-26A00B2 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26010 |
TRH201..SG..4FC;TRH201..4FC..ARL;TRH223..RHD..STD;KDH200,220..RHD..SP..03S..(GEN,SA,TH);KDH212,222,TRH201,213..RHD..(03S,06S,16S)..5F;KDH201,202,203,221,223,LH20#,212,222,TRH203,221..RHD..(03S,06S,14S,15S,16S) |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
4 | ||
| 90467-08188 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S) |
2 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC,BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26170 |
TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
KDH212,TRH213..GCC;KDH220,222,LH212,222,TRH22#..STD..(ARL,GCC,GEN,SA);KDH202,212,TRH213..RHD..(SMRF,SRF)..(12S,15S,16S)..(GEN,SA);KDH200,201,203,221,223,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH) |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B0 |
KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26010B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH202..RHD..15S SINGAPORE SPEC,RH SEAT |
1 | ||
| 72249-26020 |
KDH202..RHD..15S SINGAPORE SPEC,LH SEAT |
1 | ||
| 72249-26030 |
KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0501- )
FRONT RH(INTEGRATED TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A10B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-26B10B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71071-26A50B2 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71071-26A50B2 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71071-26B10B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71071-26A00B4 |
KDH201..SP..06S;KDH212,TRH213..GCC;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH220,222,LH212,222,TRH22#..STD..(GCC,GEN,TH);KDH200,212,LH20#,TRH203,213..RHD..(03S,06S,15S,16S)..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 71071-26A10B2 |
KDH200..TH;LH212..16S;KDH220..SP..GEN;KDH202,212,LH202,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-26A50B2 |
KDH201..SP..06S;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH200,212,220,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,15S,16S)..(GEN,TH) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71071-26B10B0 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71071-26A50B2 |
KDH201..SP..06S;TRH201..RHD..SP..GEN;KDH202..RHD..SRF..GEN;KDH200,212,220,222,LH20#,212,222,TRH203,213,223..RHD..(03S,06S,15S,16S)..(GEN,TH) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71071-26B10B0 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71071-26A01B6 |
TRH201..SP..06S;KDH200,202,LH20#,TRH203..RHD..STD..(GEN,TH);KDH212,220,222,LH212,222,TRH213,22#..STD..(GCC,GEN,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26A51B4 |
TRH201..SP..06S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD..STD..(GEN,TH) SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26A51B4 |
TRH201..SP..06S;KDH200,202,212,222,LH20#,212,222,TRH203,213,223..RHD..STD..(GEN,TH) SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26B10B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71071-26B10B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71071-26A10B3 |
TRH221..SP..GEN;KDH200,LH200..RHD..(GEN,TH);KDH212,220,LH212,TRH213..STD..GEN;KDH201,202,LH202,TRH203..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71071-26A10B3 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71071-26A10B3 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71071-26A51B4 |
TRH201..SP..06S;KDH200,202,LH20#,TRH203..RHD..STD..(GEN,TH);KDH212,220,222,LH212,222,TRH213,22#..5F..STD..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH200..TH;LH212..16S;KDH220..SP..GEN;KDH202,203,212,LH202,TRH203,213..RHD..(14S,15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH201,212,TRH213..ARL,GCC;TRH223..STD..(ARL,GCC,GEN,TH);KDH203,22#,LH212,222,TRH221..STD;KDH200,LH20#,TRH20#..RHD..SRF..(ARL,GEN,SA,TH);KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN GRAY,TRIM1# |
1 | ||
| 71073-26A00B2 |
TRH221..SP..GEN;KDH200,LH200..RHD..(GEN,TH);KDH212,220,LH212,TRH213..STD..GEN;KDH201,202,203,LH202,TRH203..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71027-26041B4 |
KDH201..06S;KDH201..ARL,TH;KDH222,TRH223..STD..(ARL,GCC,GEN);KDH200,202,LH20#,TRH201,203..RHD..STD..(ARL,GEN,SA,TH);KDH203,212,220,221,223,LH212,222,TRH200,213,221..(03S,06S,14S,16S)..(ARL,GCC,GEN,SA) BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26A00B2 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71073-26A00B2 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26010 |
TRH201..SG..4FC;TRH201..4FC..ARL;TRH223..RHD..STD;KDH200,220..RHD..SP..03S..(GEN,SA,TH);KDH212,222,TRH201,213..RHD..(03S,06S,16S)..5F;KDH201,202,203,221,223,LH20#,212,222,TRH203,221..RHD..(03S,06S,14S,15S,16S) |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
4 | ||
| 90467-08188 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S) |
2 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC,BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26170 |
TRH223..GL..GCC;KDH212..10S,11S,15S;KDH222,TRH213..5F..GL..(GCC,GEN);KDH202,212..RHD..(SMRF,SRF)..GEN;KDH220,222,223,LH212,222,TRH22#..ARL,CIS,GEN,RUS,SA;KDH200,201,203,221,LH20#,TRH20#,213..RHD..(03S,06S,10S,11S,14S,15S,16S)..(ARL,GEN,SA,TH) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
KDH212,TRH213..GCC;KDH220,222,LH212,222,TRH22#..STD..(ARL,GCC,GEN,SA);KDH202,212,TRH213..RHD..(SMRF,SRF)..(12S,15S,16S)..(GEN,SA);KDH200,201,203,221,223,LH20#,TRH20#..RHD..(03S,06S,14S,15S)..(ARL,GEN,SA,TH) |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B0 |
KDH212..GCC,VN;KDH212..RHD..GEN;KDH212..10S,11S,15S;KDH20#,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26010B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH202..RHD..15S SINGAPORE SPEC,RH SEAT |
1 | ||
| 72249-26020 |
KDH202..RHD..15S SINGAPORE SPEC,LH SEAT |
1 | ||
| 72249-26030 |
KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B0 |
KDH212..RHD..GEN;KDH212,TRH213..STD..VN;KDH222,TRH213,223..LHD..GL;KDH212,220..03S,10S,11S,15S;KDH20#,221,222,223,LH20#,212,222,TRH20#,213,22#..RHD GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||

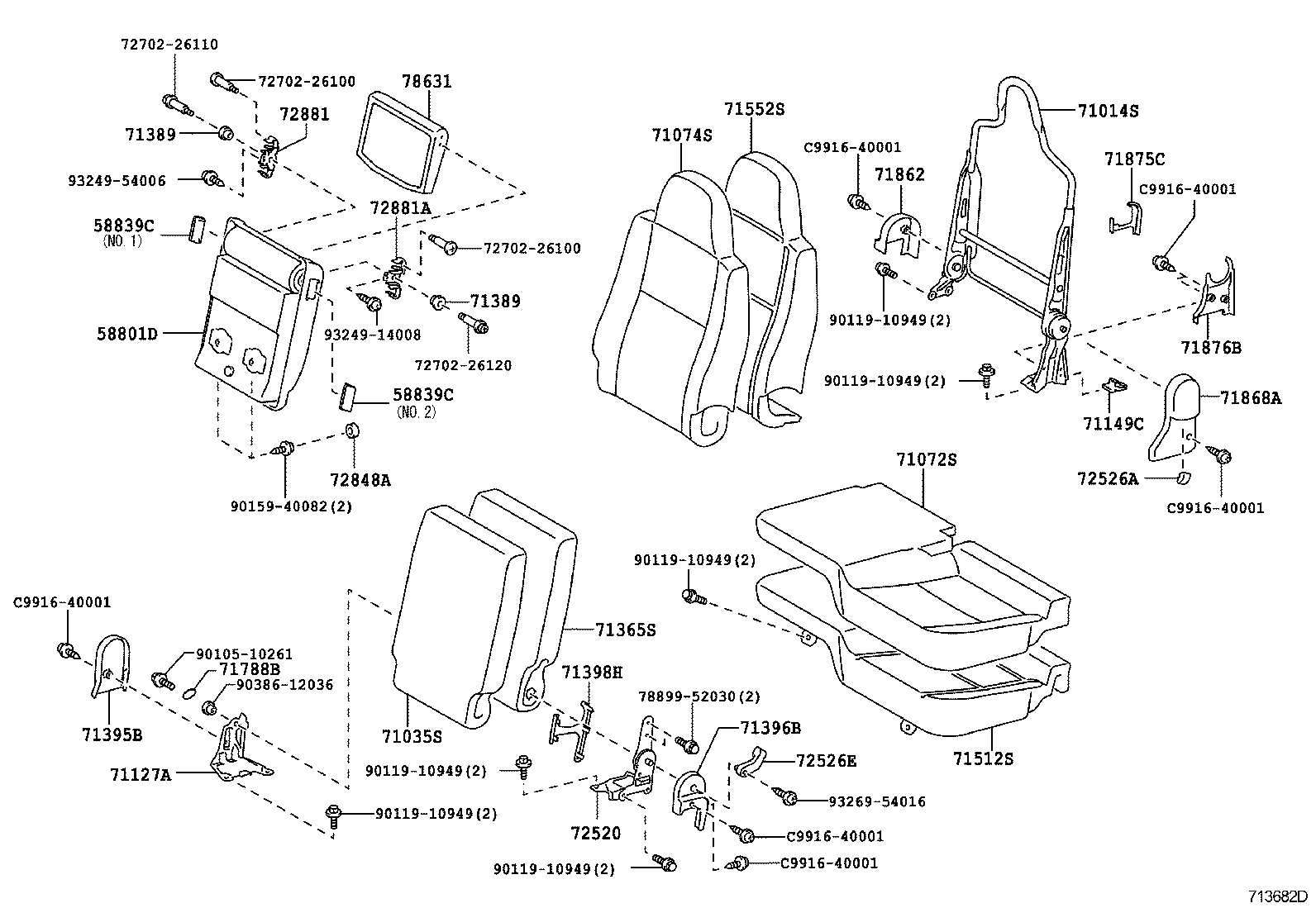

(0501-0610)RHD..03S,06S,12S,15S,16S
FRONT LH(2 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801D - BOX ASSY, CONSOLE | ||||
| 58801-26100B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| 58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE | ||||
| 58839-26040B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.1 |
1 | ||
| 58839-26050B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.2 |
1 | ||
| 58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE | ||||
| 58839-26040B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.1 |
1 | ||
| 58839-26050B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.2 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-26170 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-26210B2 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71095-26200B3 |
KDH201..ARL;KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN;KDH200,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71095-26210B2 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71095-26210B2 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71095-26201B5 |
KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71095-26210B3 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71095-26210B3 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71095-26210B3 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71095-26211B3 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71095-26202B5 |
KDH201..ARL,TH;KDH201,222,TRH223..RHD..(06S,16S)..GEN;KDH200,202,212,220,221,LH20#,212,222,TRH20#,213,221..RHD..STD..(ARL,GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71095-26211B3 |
KDH200,LH200..RHD..(GEN,TH);KDH201,202,212,LH202,212,TRH203,213..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71095-26211B3 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26740B4 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71072-26710B2 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-26700B2 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71072-26740B4 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26740B4 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26710B2 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26710B2 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26770B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26770B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-26770B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26880B0 |
KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71072-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26881B1 |
TRH201..RHD;KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH203,213,22#..RHD..(03S,15S,16S)..(GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26A00B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71072-26A00B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71072-26A00B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71072-26882B1 |
KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26A01B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71072-26A01B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71072-26A01B1 |
KDH200,LH200..RHD..(GEN,TH);KDH201,202,212,LH202,212,TRH203,213..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-26090B1 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 70169-26090B1 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 70169-26080B2 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 70169-26090B1 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71074-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 70169-26110B0 |
KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71074-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71074-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 70169-26111B1 |
KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71074-26A00B1 |
KDH200,LH200..RHD..(GEN,TH);KDH201,202,212,LH202,212,TRH203,213..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71074-26A00B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71074-26A00B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71377-26030 |
KDH200,201,202,LH20#,TRH20#..RHD |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71148-26010 |
KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71033-26020 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-26020 |
KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
2 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-26020 |
KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
2 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-26030B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-26010B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71396-26010B1 |
KDH222..TH;KDH200,201,202,LH20#,TRH20#..RHD DK.GRAY,TRIM1# |
1 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-26010B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71398-26010B1 |
KDH222..TH;KDH200,201,202,LH20#,TRH20#..RHD DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71502-26080 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71502-26110 |
KDH202..TH;KDH212,221,TRH213,221..RHD..(03S,16S)..(GEN,SA);KDH200,201,202,220,222,LH20#,212,222,TRH20#,223..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71551-26300 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) |
1 | ||
| 71788B - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-26010 |
KDH20#,22#,LH20#,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71862-26020B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71862-26030B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26030B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71868-26050B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71875-26030B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26050B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26020B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26050B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-26090 |
KDH202..GL..TH;TRH201..ARL,SA;TRH201..SG..4FC;TRH201..06S..5F..GEN;KDH202,222,TRH203..HRF..(MA,TH);KDH200..RHD..03S..5F..(GEN,MA,SA,TH);KDH201,202,LH20#,TRH203..RHD..(03S,06S,15S) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26010B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26030B0 |
KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) GRAY,TRIM1#,FRONT SEAT |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 90339-10001P8 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
2 | ||
| 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH | ||||
| 72881-26020 |
KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH | ||||
| 72881-26010 |
KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 78631 - TABLE, FRONT SEAT SIDE | ||||
| 78061-26030B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-26100 | ||||
| 72702-26110 | ||||
| 72702-26120 | ||||
| 78899-52030 | ||||
| 90105-10261 | ||||
| 90119-10949 | ||||
| 90159-40082 | ||||
| 90386-12036 | ||||
| 93249-14008 | ||||
| 93249-54006 | ||||
| 93269-54016 | ||||
| C9916-40001 | ||||
(0501- )KDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#
FRONT LH(INTEGRATED TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26740B4 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71072-26710B2 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-26700B2 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71072-26740B4 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26740B4 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26710B2 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26710B2 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26770B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26770B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-26770B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26880B0 |
KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71072-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26881B1 |
TRH201..RHD;KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH203,213,22#..RHD..(03S,15S,16S)..(GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26A00B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71072-26A00B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71072-26A00B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71072-26882B1 |
KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26A01B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71072-26A01B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71072-26A01B1 |
KDH200,LH200..RHD..(GEN,TH);KDH201,202,212,LH202,212,TRH203,213..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-26090B1 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 70169-26090B1 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 70169-26080B2 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 70169-26090B1 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71074-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 70169-26110B0 |
KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71074-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71074-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 70169-26111B1 |
KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71074-26A00B1 |
KDH200,LH200..RHD..(GEN,TH);KDH201,202,212,LH202,212,TRH203,213..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71074-26A00B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71074-26A00B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-26030 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71120-26030 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71120-26030 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71120-26030 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71120-26030 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71120-26030 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
4 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
4 | ||
| 90467-08188 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,12S,15S,16S) |
2 | ||
| 90467-08188 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC,BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK |
4 | ||
| 90467-08186C0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK |
4 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71502-26080 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71502-26110 |
KDH202..TH;KDH212,221,TRH213,221..RHD..(03S,16S)..(GEN,SA);KDH200,201,202,220,222,LH20#,212,222,TRH20#,223..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71551-26300 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71848-26010 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71862-26020B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71862-26030B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26030B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71868-26050B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71875-26030B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26050B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71875-26040B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26020B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26050B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26040B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH202..RHD..15S SINGAPORE SPEC,RH SEAT |
1 | ||
| 72249-26020 |
KDH202..RHD..15S SINGAPORE SPEC,LH SEAT |
1 | ||
| 72249-26030 |
KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26010B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||

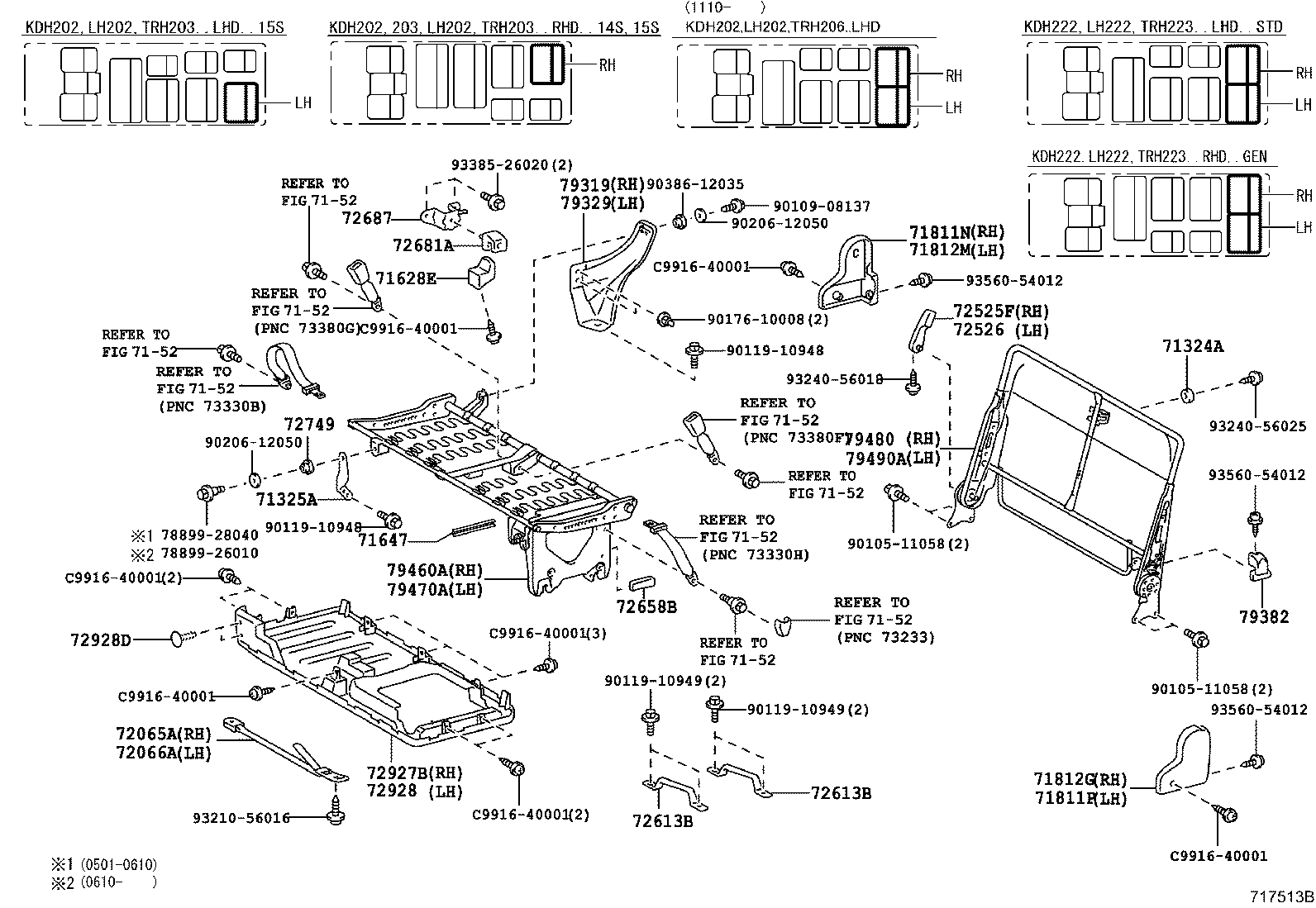

(0501-0709)KDH202,203,LH202,TRH203..RHD..14S,15S
RHD RR(3 PERSONS & FALL DOWN SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811H - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26180B0 |
KDH202,LH202,TRH203..RHD..SRF;KDH202,222,TRH203..LHD..(12S,16S)..STD;KDH203,LH202,222,TRH223..(12S,14S,16S)..STD..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 71811-26180B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71811-26190B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 71811-26180B0 |
KDH202,LH202,TRH203..RHD..15S;KDH202,222,TRH203..LHD..(12S,16S)..STD;KDH203,LH202,222,TRH223..(12S,14S,16S)..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71811-26190B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 71811-26190B0 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71811-26190B0 |
KDH202,222,LH202,222,TRH203,223..STD..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 71811-26190B1 |
KDH202,LH202,TRH203..RHD..GEN;KDH202,203,222,LH202,222,TRH223..(12S,16S)..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 71811-26190B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71811-26190B0 |
KDH202,222,LH202,222,TRH203,223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71813C - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-26010B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71813-26010B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71813-26010B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) GRAY,TRIM1# |
1 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-95D00B1 |
KDH202,203,LH202,TRH203..14S,15S GRAY,TRIM1# |
1 | ||
| 72593-95D00B1 |
KDH202,203,LH202,TRH203..14S,15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 72593-95D00B1 |
KDH202,203,LH202,TRH203..(14S,15S)..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 72630F - LOCK ASSY, REAR NO.2 SEAT | ||||
| 72630-26040 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 72630-26040 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) |
1 | ||
| 72630-26040 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-26040B0 |
KDH202,203,LH202,TRH203..14S,15S CLOVE BROWN,TRIM1# |
1 | ||
| 72665-26040B0 |
KDH202,203,LH202,TRH203..14S,15S AMBURANCE BASE&REAR SEAT-WITHOUT,CLOVE BROWN,TRIM1# |
1 | ||
| 72665-26040B0 |
KDH202,203,LH202,TRH203..(14S,15S)..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,CLOVE BROWN,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-28010B1 |
KDH202,203,LH202,TRH203..14S,15S GRAY,TRIM1# |
1 | ||
| 72679-28010B1 |
KDH202,203,LH202,TRH203..14S,15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 72679-28010B1 |
KDH202,203,LH202,TRH203..(14S,15S)..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 74611H - GRIP, ASSIST | ||||
| 74610-20040B9 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
8 | ||
| 74610-20040B9 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
8 | ||
| 74610-20040B9 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
8 | ||
| 74610-20040B7 |
KDH202,LH202,TRH203..15S DK.GRAY,TRIM1# |
8 | ||
| 74610-20040B7 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
8 | ||
| 74610-20040B7 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
8 | ||
| 74611H - GRIP, ASSIST | ||||
| 74610-20040B9 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
8 | ||
| 74610-20040B9 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
8 | ||
| 74610-20040B9 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
8 | ||
| 74610-20040B7 |
KDH202,LH202,TRH203..15S DK.GRAY,TRIM1# |
8 | ||
| 74610-20040B7 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
8 | ||
| 74610-20040B7 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
8 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-16010S0 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
16 | ||
| 74617-16010S0 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
16 | ||
| 74617-16010S0 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
16 | ||
| 74617-16010P9 |
KDH202,LH202,TRH203..15S DK.GRAY,TRIM1# |
16 | ||
| 74617-16010P9 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
16 | ||
| 74617-16010P9 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
16 | ||
| 74617D - PLUG, ASSIST GRIP | ||||
| 74617-16010S0 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
16 | ||
| 74617-16010S0 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
16 | ||
| 74617-16010S0 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
16 | ||
| 74617-16010P9 |
KDH202,LH202,TRH203..15S DK.GRAY,TRIM1# |
16 | ||
| 74617-16010P9 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
16 | ||
| 74617-16010P9 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
16 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79031-26790B2 |
KDH202,LH202,TRH203..RHD..15S SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 79031-26750B2 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79031-26750B2 |
KDH202,LH202,TRH203..RHD..15S GRAY,TRIM1# |
1 | ||
| 79031-26750B2 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 79031-26800B2 |
KDH202,LH202,TRH203..RHD..15S SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79031-26760B2 |
KDH202,LH202,TRH203..RHD..15S REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 79031-26800B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79031-26760B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 79031-26750B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) GRAY,TRIM1# |
1 | ||
| 79031-26750B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 79031-26790B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 79031-26750B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-26450B3 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 79023-26450B3 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79023-26510B2 |
KDH202,LH202,TRH203..RHD..15S SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79023-26510B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 79023-26450B3 |
KDH202,LH202,TRH203..RHD..15S GRAY,TRIM1# |
1 | ||
| 79023-26450B4 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79023-26510B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79023-26510B2 |
KDH202,LH202,TRH203..RHD..15S SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 79023-26450B4 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) GRAY,TRIM1# |
1 | ||
| 79023-26450B4 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 79023-26440B4 |
KDH202,222,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 79023-26440B4 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79023-26440B4 |
KDH202,222,LH202,TRH203..RHD..GEN GRAY,TRIM1# |
1 | ||
| 79023-26500B3 |
KDH202,LH202,TRH203..RHD..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79023-26441B5 |
KDH202,222,LH202,222,TRH203,223..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,BLUISH GRAY,TRIM1# |
1 | ||
| 79023-26441B5 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,BLUISH GRAY,TRIM1# |
1 | ||
| 79023-26500B4 |
KDH202,LH202,TRH203..RHD..GEN SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 79023-26441B5 |
KDH202,222,LH202,222,TRH203,223..RHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79013-26A60B3 |
KDH202,LH202,TRH203..RHD..15S GRAY,TRIM1# |
1 | ||
| 79013-26B50B2 |
KDH202,LH202,TRH203..RHD..15S SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 79013-26A60B3 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 79013-26A60B3 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79013-26B50B2 |
KDH202,LH202,TRH203..RHD..15S SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79013-26A60B4 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) GRAY,TRIM1# |
1 | ||
| 79013-26A60B4 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79013-26B50B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79013-26A60B4 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 79013-26B50B3 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79305-26290 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS) |
1 | ||
| 79305-26290 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS) |
1 | ||
| 79305-26340 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 79305-26340 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79305-26340 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79335-26120 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 79335-26120 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79335-26120 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-26030B0 |
KDH202,203,LH202,TRH203..(14S,15S)..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79236-26030B0 |
KDH202,203,LH202,TRH203..14S,15S GRAY,TRIM1# |
1 | ||
| 79236-26030B0 |
KDH202,203,LH202,TRH203..14S,15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79017-26120 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) |
1 | ||
| 79017-26120 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 79017-26120 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79027-26040 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79027-26040 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 79027-26040 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) |
1 | ||
| 79027-26031 |
KDH202,222,LH202,222,TRH203,223..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79027-26031 |
KDH202,222,LH202,222,TRH203,223..RHD..GEN |
1 | ||
| 79027-26031 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79290-26070 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 79290-26070 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79290-26070 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) |
1 | ||
| 79955B - COVER, NO.2 SEAT FRONT BRACKET, RH | ||||
| 79967-26010 |
KDH202,222,LH202,222,TRH203,223..RHD..(15S,16S)..GEN AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79967-26010 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 79967-26010 |
KDH202..RHD..15S;KDH202..HRF..GEN;KDH222,TRH223..GL..SA;KDH222,LH202,222,TRH203,223..RHD..(ARL,GEN,MA);KDH202,203,212,223,TRH213..(10S,12S,14S)..(ARL,MA,SA,TH) |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79968-26010 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 79968-26010 |
TRH203..RHD;KDH202..MA,TH;KDH222,TRH223..GL..SA;KDH202,LH202..RHD..15S;KDH202,TRH203..LHD..12S;KDH203,LH202,222..12S,16S;KDH222,TRH223..ARL,GCC,GEN;KDH202,212,223,TRH213..(HRF,SMRF)..4D..(09S,10S,11S,12S,14S)..(ARL,GEN,SA,VN) |
1 | ||
| 79968-26010 |
KDH202,TRH203..LHD..12S;KDH202,LH202,TRH203..RHD..15S;KDH203,222,LH202,222,TRH223..(12S,16S)..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| Common parts | ||||
| 78899-28050 | ||||
| 90105-10419 | ||||
| 90119-10948 | ||||
| 90159-60595 | ||||
| 90386-12005 | ||||
| 90386-12029 | ||||
| 90463-13003 | ||||
| 90523-08001 | ||||
| 91511-80816 | ||||
| 91515-81020 | ||||
| 93510-53510 | ||||
| 93540-53510 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0610- )RHD..03S,06S,12S,15S,16S..ARL,GEN,SA,TH
FRONT LH(2 PERSONS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801D - BOX ASSY, CONSOLE | ||||
| 58801-26100B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| 58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE | ||||
| 58839-26040B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.1 |
1 | ||
| 58839-26050B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.2 |
1 | ||
| 58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE | ||||
| 58839-26040B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.1 |
1 | ||
| 58839-26050B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1#,NO.2 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-26170 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-26210B2 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71095-26200B3 |
KDH201..ARL;KDH201,202,212,TRH213..RHD..(SMRF,SRF)..(06S,12S,15S,16S)..GEN;KDH200,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71095-26210B2 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71095-26210B2 |
KDH200..TH;KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71095-26201B5 |
KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71095-26210B3 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71095-26210B3 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71095-26210B3 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71095-26211B3 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71095-26202B5 |
KDH201..ARL,TH;KDH201,222,TRH223..RHD..(06S,16S)..GEN;KDH200,202,212,220,221,LH20#,212,222,TRH20#,213,221..RHD..STD..(ARL,GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71095-26211B3 |
KDH200,LH200..RHD..(GEN,TH);KDH201,202,212,LH202,212,TRH203,213..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71095-26211B3 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26740B4 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71072-26710B2 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-26700B2 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71072-26740B4 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26740B4 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26710B2 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26710B2 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26770B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26770B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-26770B2 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26880B0 |
KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71072-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71072-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71072-26881B1 |
TRH201..RHD;KDH201..06S;KDH201..ARL;KDH200,202,212,220,221,222,LH20#,212,222,TRH203,213,22#..RHD..(03S,15S,16S)..(GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26A00B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71072-26A00B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71072-26A00B1 |
KDH200,202,212,LH20#,212,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71072-26882B1 |
KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26A01B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71072-26A01B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71072-26A01B1 |
KDH200,LH200..RHD..(GEN,TH);KDH201,202,212,LH202,212,TRH203,213..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-26090B1 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 70169-26090B1 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 70169-26080B2 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 70169-26090B1 |
KDH202,212,LH202,212,TRH203,213..RHD..(15S,16S) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71073-26A00B1 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71027-26040B3 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71074-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 70169-26110B0 |
KDH201..ARL;KDH201,212,TRH213..RHD..(06S,16S);KDH200,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71074-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71074-26A00B0 |
KDH200,202,212,LH20#,212,TRH20#,213..RHD..(03S,15S,16S)..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 70169-26111B1 |
KDH201..06S;KDH201..ARL,TH;KDH222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH) BLUISH GRAY,TRIM1# |
1 | ||
| 71074-26A00B1 |
KDH200,LH200..RHD..(GEN,TH);KDH201,202,212,LH202,212,TRH203,213..RHD..4D..5F..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 71074-26A00B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),DARK GRAY,TRIM1# |
1 | ||
| 71074-26A00B1 |
KDH200,202,212,LH20#,TRH203,213..RHD..STD..(GEN,TH) SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71377-26030 |
KDH200,201,202,LH20#,TRH20#..RHD |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71148-26010 |
KDH212,221,222,TRH213,22#..RHD..(03S,16S)..(GEN,SA);KDH20#,220,LH20#,212,222,TRH20#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71033-26020 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-26020 |
KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
2 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-26020 |
KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
2 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-26030B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-26010B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71396-26010B1 |
KDH222..TH;KDH200,201,202,LH20#,TRH20#..RHD DK.GRAY,TRIM1# |
1 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-26010B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71398-26010B1 |
KDH222..TH;KDH200,201,202,LH20#,TRH20#..RHD DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71502-26080 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71512-26090 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71502-26110 |
KDH202..TH;KDH212,221,TRH213,221..RHD..(03S,16S)..(GEN,SA);KDH200,201,202,220,222,LH20#,212,222,TRH20#,223..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY) |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC |
1 | ||
| 71551-26270 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE) |
1 | ||
| 71551-26300 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) |
1 | ||
| 71788B - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-26010 |
KDH20#,22#,LH20#,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71862-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71862-26020B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71862-26030B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26030B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71868-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71868-26050B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71875-26030B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26050B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71875-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71875-26040B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26020B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876-26010B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26050B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 71876-26030B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 71876-26040B0 |
KDH202..TH;KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH) GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-26090 |
KDH202..GL..TH;TRH201..ARL,SA;TRH201..SG..4FC;TRH201..06S..5F..GEN;KDH202,222,TRH203..HRF..(MA,TH);KDH200..RHD..03S..5F..(GEN,MA,SA,TH);KDH201,202,LH20#,TRH203..RHD..(03S,06S,15S) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26010B0 |
KDH200..RHD..03S..GEN;KDH202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S) GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC,GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH202..RHD..15S SINGAPORE SPEC&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH200,202,212,222,LH20#,212,222,TRH20#,213,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN) GRAY,TRIM1# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26030B0 |
KDH212,TRH213..09S,16S;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..(03S,06S,12S,15S,16S)..(ARL,GCC,GEN,MA,SA,TH) GRAY,TRIM1#,FRONT SEAT |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 90339-10001P8 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
2 | ||
| 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH | ||||
| 72881-26020 |
KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH | ||||
| 72881-26010 |
KDH212,222,TRH213..RHD..STD..GEN;KDH20#,220,221,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) |
1 | ||
| 78631 - TABLE, FRONT SEAT SIDE | ||||
| 78061-26030B0 |
KDH212,TRH213..RHD..STD..GEN;KDH200,201,202,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,12S,15S,16S) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-26100 | ||||
| 72702-26110 | ||||
| 72702-26120 | ||||
| 78899-52030 | ||||
| 90105-10261 | ||||
| 90119-10949 | ||||
| 90159-40082 | ||||
| 90386-12036 | ||||
| 93249-14008 | ||||
| 93249-54006 | ||||
| 93269-54016 | ||||
| 93560-54012 | ||||
| C9916-40001 | ||||
(0709- )KDH202,203,LH202,TRH203..RHD..GEN
SUB SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
2 | ||
| 71315-95J02 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
2 | ||
| 71315-95J02 |
KDH202,LH202,TRH203..15S |
2 | ||
| 71315B - PIN, REAR SEAT HINGE | ||||
| 71315-95J02 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
2 | ||
| 71315-95J02 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
2 | ||
| 71315-95J02 |
KDH202,LH202,TRH203..15S |
2 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-95J02B3 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
2 | ||
| 71485-95J02B3 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
2 | ||
| 71485-95J02B3 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
2 | ||
| 71485-95J02B4 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
2 | ||
| 71485-95J02B4 |
KDH202,LH202,TRH203..15S DK.GRAY,TRIM1# |
2 | ||
| 71485-95J02B4 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71845C - CAP, REAR SEAT COVER | ||||
| 71845-26010B0 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
1 | ||
| 71845-26010B1 |
KDH202,LH202,TRH203..15S DK.GRAY,TRIM1# |
1 | ||
| 71845-26010B0 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71845-26010B1 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 71845-26010B0 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71845-26010B1 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-26120B1 |
KDH202,LH202,TRH203..RHD..GEN GRAY,TRIM1# |
1 | ||
| 78071-26120B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 78071-26130B1 |
KDH202,LH202,TRH203..RHD..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 78071-26121B2 |
KDH202,LH202,TRH203..RHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26120B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 78071-26121B2 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26121B2 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,BLUISH GRAY,TRIM1# |
1 | ||
| 78071-26130B2 |
KDH202,LH202,TRH203..RHD..GEN SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-26050B0 |
KDH202,LH202,TRH203..RHD..GEN GRAY,TRIM1# |
1 | ||
| 78073-26050B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 78073-26050B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 78073-26051B1 |
KDH202,LH202,TRH203..RHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 78073-26110B0 |
KDH202,LH202,TRH203..RHD..GEN SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 78073-26110B1 |
KDH202,LH202,TRH203..RHD..GEN SEAT COVER MATERIAL-VINYL LEATHER,DARK GRAY,TRIM1# |
1 | ||
| 78073-26051B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,BLUISH GRAY,TRIM1# |
1 | ||
| 78073-26051B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,BLUISH GRAY,TRIM1# |
1 | ||
| 78701A - FRAME SUB-ASSY, SUB SEAT CUSHION | ||||
| 78701-26030 |
KDH202,LH202,TRH203..RHD..GEN |
1 | ||
| 78701-26030 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78701-26030 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J01 |
KDH202,LH202,TRH203..15S |
1 | ||
| 78703-95J01 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78703-95J01 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-95J04 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78705-95J04 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78705-95J04 |
KDH202,LH202,TRH203..RHD..GEN |
1 | ||
| 78722 - PLATE, SUB SEAT CUSHION BOARD, NO.1 | ||||
| 78733-26010 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78733-26010 |
KDH202,LH202,TRH203..RHD..GEN |
1 | ||
| 78733-26010 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,FOR SEAT LEG |
1 | ||
| 78726-95J01 |
KDH202,LH202,TRH203..15S FOR SEAT LEG |
1 | ||
| 78726-95J00 |
KDH202,LH202,TRH203..15S FOR SEAT CUSHION |
1 | ||
| 78726-95J01 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,FOR SEAT LEG |
1 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-95J01 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,FOR SEAT LEG |
1 | ||
| 78726-95J01 |
KDH202,LH202,TRH203..15S FOR SEAT LEG |
1 | ||
| 78726-95J00 |
KDH202,LH202,TRH203..15S FOR SEAT CUSHION |
1 | ||
| 78726-95J01 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,FOR SEAT LEG |
1 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-26010 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78727-26010 |
KDH202,LH202,TRH203..15S |
1 | ||
| 78727-26010 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78731 - ARM, SUB SEAT LINK, NO.1 | ||||
| 78731-95J02 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78731-95J02 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78731-95J02 |
KDH202,LH202,TRH203..RHD..GEN |
1 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-26030 |
KDH202,LH202,TRH203..RHD..GEN |
1 | ||
| 78735-26030 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78735-26030 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-26030 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78775-26030 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78775-26030 |
KDH202,LH202,TRH203..15S |
1 | ||
| 78791 - SPRING, SUB SEAT LINK, NO.1 | ||||
| 78791-95J00 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78791-95J00 |
KDH202,LH202,TRH203..15S |
1 | ||
| 78791-95J00 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78792 - SPRING, SUB SEAT LINK, NO.2 | ||||
| 78792-95J00 |
KDH202,LH202,TRH203..15S |
1 | ||
| 78792-95J00 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78792-95J00 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78803 - LEG SUB-ASSY, SUB SEAT | ||||
| 78803-95J05 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 78803-95J05 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 78803-95J05 |
KDH202,LH202,TRH203..15S |
1 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90109-08133 | ||||
| 90119-08079 | ||||
| 90176-08044 | ||||
| 90206-08016 | ||||
| 90206-12035 | ||||
| 90206-12050 | ||||
| 90523-06017 | ||||
| 93560-14012 | ||||
| 93560-15012 | ||||
| 93560-55010 | ||||
| 94541-01000 | ||||
| 94612-10800 | ||||
ILLUST NO. 2 OF 2(0501- )KDH202,203,222,LH202,222,TRH203,223..14S,15S,16S..STD..GCC,GEN
RR(SPACE UP SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-26100B0 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71324-26100B0 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71324-26100B1 |
KDH202,LH202,TRH203..15S DK.GRAY,TRIM1# |
1 | ||
| 71324-26100B1 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71324-26100B0 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
1 | ||
| 71324-26100B1 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 71325A - HINGE, REAR SEAT CUSHION LEG | ||||
| 71325-26040 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71325-26040 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) |
1 | ||
| 71325-26040 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 71325-26040 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,RH SEAT |
1 | ||
| 71325-26040 |
KDH202,LH202,TRH203..RHD..GEN RH SEAT |
1 | ||
| 71325-26040 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,RH SEAT |
1 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-26040B0 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71628-26040B0 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71628-26040B0 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
1 | ||
| 71628-26040B1 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 71628-26040B1 |
KDH202,LH202,TRH203..15S DK.GRAY,TRIM1# |
1 | ||
| 71628-26040B1 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-26010 |
KDH202,LH202,TRH203..15S |
1 | ||
| 71647-26010 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71647-26010 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 71811N - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26300B0 |
KDH222,LH222,TRH223..16S..STD;KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71811-26300B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71811-26310B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 71811-26310B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 71811-26300B0 |
KDH212,TRH213..GCC;KDH202,212,LH202,TRH203,213..RHD..(15S,16S)..GEN;KDH203,222,LH212,222,TRH223..(14S,15S,16S)..(GCC,GEN,TH) GRAY,TRIM1# |
1 | ||
| 71811-26310B0 |
TRH223..15S,16S;KDH202,LH202,TRH203..RHD..GEN;KDH212,222,LH212,222,TRH213..16S..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 71811-26310B0 |
KDH202,LH202,TRH203..RHD..GEN;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71811-26310B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71811-26310B1 |
KDH202,LH202,TRH203..RHD..GEN;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 71811-26310B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71811P - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26200B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71811-26200B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71811-26210B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 71811-26210B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 71811-26200B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) GRAY,TRIM1# |
1 | ||
| 71811-26210B0 |
KDH202,LH202,TRH203..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71811-26210B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71811-26210B1 |
KDH202,LH202,TRH203..RHD..GEN DK.GRAY,TRIM1# |
1 | ||
| 71811-26210B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71811-26210B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 71811-26210B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71812G - COVER, RECLINING ADJUSTER, LH | ||||
| 71811-26320B0 |
KDH202,LH202,TRH203..RHD..15S;KDH212,222,223,LH212,222,TRH213,223..14S,15S,16S GRAY,TRIM1# |
1 | ||
| 71811-26320B0 |
KDH202,LH202,TRH203..RHD..15S;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71811-26320B0 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71811-26320B1 |
KDH202,LH202,TRH203..RHD..GEN;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 71811-26320B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71812M - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26200B1 |
KDH202,LH202,TRH203..RHD..GEN DK.GRAY,TRIM1# |
1 | ||
| 71812-26200B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 71812-26190B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71812-26190B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) GRAY,TRIM1# |
1 | ||
| 71812-26200B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 71812-26190B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71812-26200B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 71812-26200B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 71812-26200B0 |
KDH202,LH202,TRH203..RHD..GEN GRAY,TRIM1# |
1 | ||
| 71812-26200B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 71812-26200B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH | ||||
| 72065-26040B0 |
KDH222..STD..GCC;TRH223..LHD..STD;KDH222..ARL,GEN,SA,TH;KDH212,223,LH212,222,TRH213..14S,15S,16S;KDH202,LH202,TRH203,223..RHD..(14S,15S,16S) GRAY,TRIM1# |
1 | ||
| 72065-26040B0 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 72065-26040B0 |
KDH202,LH202,TRH203..RHD..15S;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 72065-26040B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 72065-26040B1 |
KDH202,LH202,TRH203..RHD..GEN;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 72525F - HANDLE, RECLINING ADJUSTER RELEASE, NO.4 RH | ||||
| 72525-28090B1 |
KDH202,LH202,TRH203..RHD..15S;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 72525-28090B0 |
KDH202,LH202,TRH203..RHD..GEN;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 72525-28090B1 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 72525-28090B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 72525-28090B1 |
KDH202,LH202,TRH203..RHD..15S;KDH212,222,223,LH212,222,TRH213,223..14S,15S,16S GRAY,TRIM1# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26110 |
KDH202,LH202,TRH203..15S |
2 | ||
| 72613-26110 |
KDH202,LH202,TRH203..15S..5F AMBURANCE BASE |
2 | ||
| 72613-26110 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-26110 |
KDH202,LH202,TRH203..15S |
2 | ||
| 72613-26110 |
KDH202,LH202,TRH203..15S..5F AMBURANCE BASE |
2 | ||
| 72613-26110 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95701 |
KDH202,203,LH202,TRH203..14S,15S REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS) |
1 | ||
| 72658-95701 |
KDH202,203,LH202,TRH203..(14S,15S)..GEN SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS) |
1 | ||
| 72658-95701D0 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,ORANGE,TRIM1# |
1 | ||
| 72658-95701D0 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,ORANGE,TRIM1# |
1 | ||
| 72658-95701D0 |
KDH202,LH202,TRH203..15S ORANGE,TRIM1# |
1 | ||
| 72681A - HOOK, REAR SEAT | ||||
| 72681-26050B0 |
KDH202,LH202,TRH203..15S LT.GRAY,TRIM1# |
1 | ||
| 72681-26050B0 |
KDH202,LH202,TRH203..15S..5F AMBURANCE BASE,LT.GRAY,TRIM1# |
1 | ||
| 72681-26050B0 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,LT.GRAY,TRIM1# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48030 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 72749-48030 |
KDH202,LH202,TRH203..15S |
1 | ||
| 72749-48030 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-26010B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 72927-26040B0 |
KDH212,TRH213..GCC;KDH202,212,LH202,TRH203,213..RHD..(15S,16S)..GEN;KDH203,222,LH212,222,TRH223..(14S,15S,16S)..(GCC,GEN,TH) GRAY,TRIM1# |
1 | ||
| 72927-26040B0 |
KDH222,LH222,TRH223..16S..STD;KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 72927-26010B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS),GRAY,TRIM1# |
1 | ||
| 72927-26040B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 72927-26010B0 |
TRH223..15S,16S;KDH202,LH202,TRH203..RHD..GEN;KDH212,222,LH212,222,TRH213..16S..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 72927-26010B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 72927-26010B0 |
KDH202,LH202,TRH203..RHD..GEN;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 72927-26010B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 72927-26010B1 |
KDH202,LH202,TRH203..RHD..GEN;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 72928D - CLIP (FOR REAR SEAT CUSHION UNDER COVER) | ||||
| 90467-05147B6 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
2 | ||
| 90467-05147B6 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
2 | ||
| 71731-26020B0 |
KDH202,LH202,TRH203..15S GRAY,TRIM1# |
2 | ||
| 71731-26020B0 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
2 | ||
| 90467-05147B6 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
2 | ||
| 71731-26020B0 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
2 | ||
| 71731-26020B1 |
KDH202,LH202,TRH203..15S AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
2 | ||
| 71731-26020B1 |
KDH202,LH202,TRH203..15S..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71731-26020B1 |
KDH202,LH202,TRH203..15S DK.GRAY,TRIM1# |
2 | ||
| 79319 - BRACKET, NO.3 SEAT LEG, RR RH | ||||
| 79319-26090 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 79319-26090 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79319-26090 |
KDH212,LH212..15S,16S;TRH213..STD..(GCC,GEN,SA);KDH202,LH202,TRH203..RHD..15S |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-60080B1 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) GRAY,TRIM1# |
1 | ||
| 79382-60080B1 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1# |
1 | ||
| 79382-60080B1 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1# |
1 | ||
| 79382-60080B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,GRAY,TRIM1#,RH SEAT |
1 | ||
| 79382-60080B1 |
KDH202,LH202,TRH203..RHD..GEN GRAY,TRIM1#,RH SEAT |
1 | ||
| 79382-60080B1 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,GRAY,TRIM1#,RHSEAT |
1 | ||
| 79382-60080B2 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER,DK.GRAY,TRIM1#,RH SEAT |
1 | ||
| 79382-60080B2 |
KDH202,LH202,TRH203..RHD..GEN;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#,RH SEAT |
1 | ||
| 79460A - SPRING ASSY, NO.4 SEAT CUSHION, RH | ||||
| 71055-26020 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) SEAT COVER MATERIAL-VINYL LEATHER&REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS) |
1 | ||
| 71055-26020 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) REAR SEAT BELT-2 POINT TYPE X 12(FOR 12 PERSONS) |
1 | ||
| 71055-26030 |
KDH212,TRH213..GCC;KDH202,212,LH202,TRH203,213..RHD..(15S,16S)..GEN;KDH203,222,LH212,222,TRH223..(14S,15S,16S)..(GCC,GEN,TH) |
1 | ||
| 71055-26030 |
KDH222,LH222,TRH223..16S..STD;KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 71055-26030 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71055-26020 |
KDH202,LH202,TRH203..RHD..GEN;KDH212,222,LH212,222,TRH213,223..16S..5F..(GCC,GEN) |
1 | ||
| 71055-26020 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| 71055-26020 |
KDH202,LH202,TRH203..RHD..GEN;KDH222,LH222,TRH223..STD..(GCC,GEN) AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79480 - SPRING ASSY, NO.4 SEAT BACK | ||||
| 79380-26090 |
KDH222..LHD..STD;TRH213..STD..(GCC,GEN,SA);KDH202,LH202,TRH203..RHD..15S;KDH212,LH212,222,TRH223..(15S,16S)..STD..(GCC,GEN,SA,VN) |
1 | ||
| 79380-26090 |
KDH222..LHD..STD;LH222,TRH223..16S..STD;KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT |
1 | ||
| 79380-26090 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE&REAR SEAT-WITHOUT&SEAT COVER MATERIAL-VINYL LEATHER |
1 | ||
| Common parts | ||||
| 78899-26010 | ||||
| 78899-28040 | ||||
| 90105-11058 | ||||
| 90109-08137 | ||||
| 90119-10948 | ||||
| 90119-10949 | ||||
| 90176-10008 | ||||
| 90206-12050 | ||||
| 90386-12035 | ||||
| 93210-56016 | ||||
| 93240-56018 | ||||
| 93240-56025 | ||||
| 93385-26020 | ||||
| 93560-54012 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
