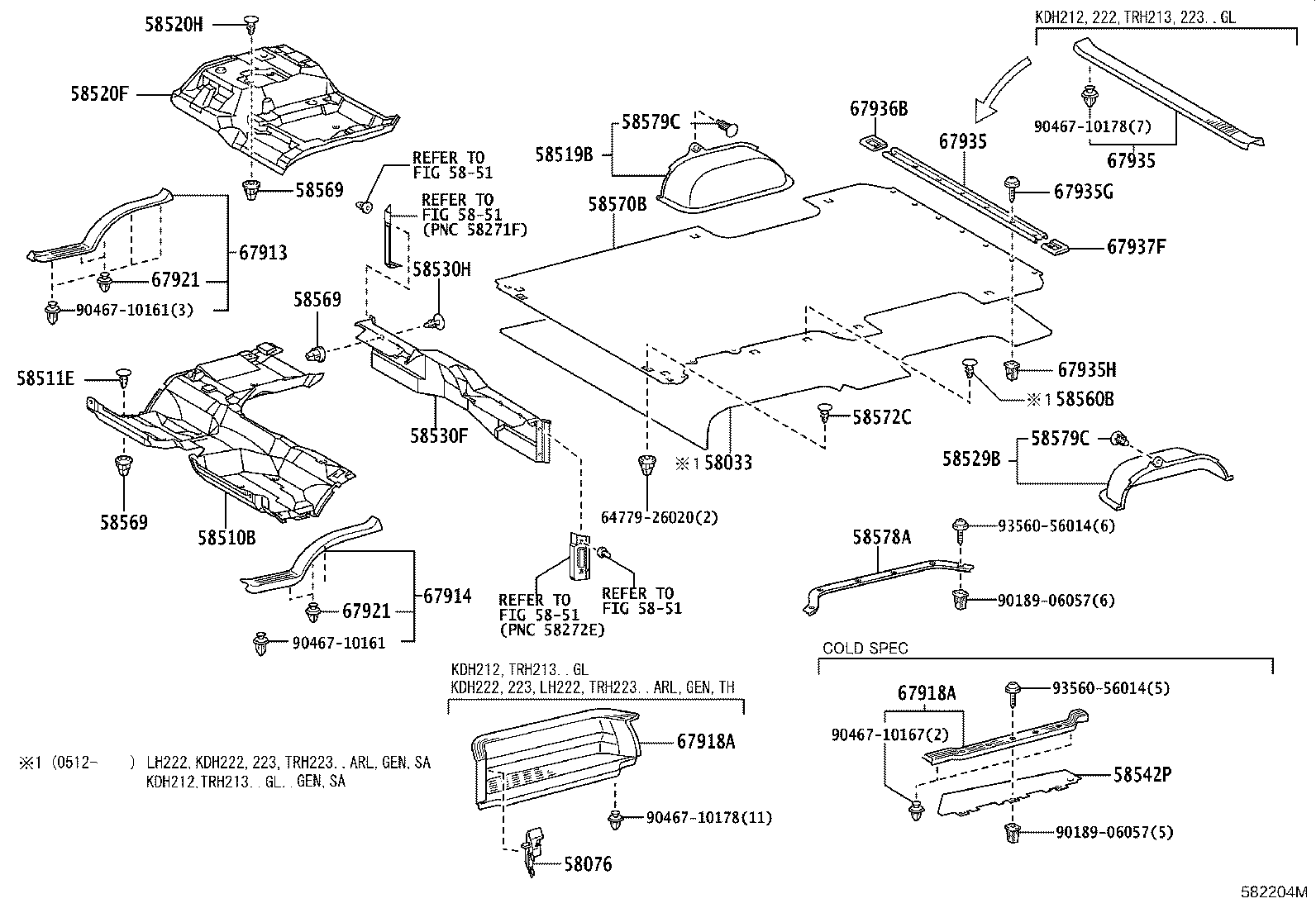

KDH202R-REMDY (2005)
Toyota Hiace
(0501-0610)RHD..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26A31B0 |
TRH201..RHD;KDH20#,LH20#,TRH203..RHD..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26A31B2 |
KDH201..RHD..5F;KDH200,202,203,LH20#,TRH20#..RHD DK.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
10 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-26410B0 |
KDH202,222,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26410B2 |
TRH203..LHD..GEN;KDH202,222,LH202,222,TRH223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 58519-26430B0 |
KDH222..LHD..GEN;LH222,TRH223..STD..GEN;KDH202,LH202,TRH203..RHD..15S REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26410B0 |
KDH222..LHD..GEN;KDH202,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26430B2 |
KDH202,LH202..RHD..GEN;KDH222,LH222,TRH223..STD..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-26330B0 |
KDH202..RHD..15S SINGAPORE SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26311B0 |
KDH200,201,202,LH20#,TRH20#..RHD..(GEN,MA,SA,TH) MEDIUM GRAY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
2 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58529-26320B0 |
KDH202,LH202,TRH203..RHD..15S;KDH202,LH202,TRH203..LHD..12S REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
TRH203..LHD..GEN;KDH202,222,LH202,222,TRH223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH222..LHD..GEN;KDH202,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH202,LH202..RHD..GEN;KDH202,203,LH202..12S..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH202,222,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26740B0 |
KDH202..RHD..15S SINGAPORE SPEC&AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26710B0 |
KDH202..RHD..15S SINGAPORE SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26E21B0 |
KDH202..RHD..15S AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26E11B0 |
KDH200..SA;KDH202..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26G00B0 |
KDH200..SA;KDH202..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26G10B0 |
KDH202..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26G10B2 |
KDH202..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
9 | ||
| 58542P - MAT, STEP, LH | ||||
| 58542-26050B0 |
KDH200..SG..GEN;KDH200..5F..ARL;KDH220..4FC..GEN;TRH201..SP..03S..GEN;KDH220..RHD..5F..(ARL,GEN);KDH200,TRH221..LHD..5D..GEN;KDH200,202,LH20#,TRH203,213..RHD..(03S,15S,16S)..GEN COLD AREA SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58542-26050B2 |
KDH200..5D..GEN;KDH200..RHD..4D..GEN;KDH202,LH20#,TRH213..RHD..GEN;KDH201,TRH201,221..LHD..SP..GEN COLD AREA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58517-26780B0 |
KDH202..RHD..15S AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26780B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26790B0 |
KDH202,LH202,TRH203..RHD..15S REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26780B0 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D00B0 |
KDH202..RHD..GEN AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D10B0 |
KDH202,LH202,TRH203..RHD..GEN REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D00B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D00B0 |
KDH202,LH202,TRH203..RHD..GEN MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D00B2 |
KDH202,LH202,TRH203..RHD..GEN DK.GRAY,TRIM1# |
1 | ||
| 58517-26D10B2 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58517-26D00B2 |
KDH202..RHD..GEN AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58517-26D00B2 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE,DK.GRAY,TRIM1# |
1 | ||
| 58517-26K90B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE,DK.GRAY,TRIM1# |
1 | ||
| 58517-26K90B0 |
KDH202..RHD..GEN AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58517-26K90B0 |
KDH202,LH202,TRH203..RHD..GEN DK.GRAY,TRIM1# |
1 | ||
| 58517-26L00B0 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58572C - CLIP, REAR FLOOR MAT SET | ||||
| 64726-26010B0 |
KDH202..15S..GEN;KDH202..LHD..12S AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH200,TRH201..SA;KDH212,220,221,TRH201,221..4D..SG;KDH200,201,202,222,223,LH202,212,222,TRH20#,213,223..06S,09S,10S,12S,13S,14S,15S,16S MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH202,222..LHD..(12S,16S)..STD;LH202,212,TRH203..(SMRF,SRF)..(10S,12S,15S);KDH202,LH222,TRH223..(15S,16S)..STD..(GCC,GEN) AMBURANCE BASE,MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH202..GEN AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH222..LHD..STD;KDH202,LH202,222,TRH203,223..5F..STD..(GCC,GEN) AMBURANCE BASE,DK.GRAY,TRIM1# |
2 | ||
| 58578A - PLATE, REAR FLOOR MAT SUPPORT SIDE, LH | ||||
| 58578-26040B0 |
KDH220;TRH221..SP;TRH201..SRF;KDH200..LHD..5D;TRH223..STD..SA;KDH20#,212,221,LH20#,212,TRH203,213..RHD..(03S,06S,12S,14S,15S,16S) MD.GRAY,TRIM1# |
1 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
KDH222..LHD..GEN;KDH202,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 90467-10034C0 |
KDH202..15S..GEN;TRH203..LHD..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH203,LH202,222,TRH223..(12S,15S,16S)..STD..GEN REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 90467-10034C0 |
TRH203..LHD..15S..GEN;KDH202,222,LH202,222,TRH223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,BLACK |
2 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
KDH222..LHD..GEN;KDH202,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 90467-10034C0 |
KDH202..15S..GEN;TRH203..LHD..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH203,LH202,222,TRH223..(12S,15S,16S)..STD..GEN REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 90467-10034C0 |
TRH203..LHD..15S..GEN;KDH202,222,LH202,222,TRH223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,BLACK |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26080B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26061B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67914-26060B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67914-26061B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26160B0 |
KDH200..SG..GEN;KDH200..5F..ARL;KDH220..4FC..GEN;TRH201..SP..03S..GEN;KDH220..RHD..5F..(ARL,GEN);KDH200,TRH221..LHD..5D..GEN;KDH200,202,LH20#,TRH203,213..RHD..(03S,15S,16S)..GEN COLD AREA SPEC,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B1 |
KDH200..5D..GEN;KDH200..RHD..4D..GEN;KDH202,LH20#,TRH213..RHD..GEN;KDH201,TRH201,221..LHD..SP..GEN COLD AREA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26160B0 |
KDH200..SG..GEN;KDH200..5F..ARL;KDH220..4FC..GEN;TRH201..SP..03S..GEN;KDH220..RHD..5F..(ARL,GEN);KDH200,TRH221..LHD..5D..GEN;KDH200,202,LH20#,TRH203,213..RHD..(03S,15S,16S)..GEN COLD AREA SPEC,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B1 |
KDH200..5D..GEN;KDH200..RHD..4D..GEN;KDH202,LH20#,TRH213..RHD..GEN;KDH201,TRH201,221..LHD..SP..GEN COLD AREA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26120 |
KDH20#,LH20#,TRH20# |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26120 |
KDH20#,LH20#,TRH20# |
1 | ||
| 67935G - SCREW, BACK DOOR SCUFF PLATE | ||||
| 93560-56014 |
KDH20#,LH20#,TRH20# |
6 | ||
| 67935H - GROMMET, BACK DOOR SCUFF PLATE | ||||
| 90189-06057 |
KDH20#,LH20#,TRH20# |
6 | ||
| 67936B - COVER, BACK DOOR SCUFF SIDE, RH | ||||
| 67936-26040B0 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67936-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937F - COVER, BACK DOOR SCUFF SIDE, LH | ||||
| 67937-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937-26040B0 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10178 | ||||
| 93560-56014 | ||||
| Linked diagrams | ||||
| 5851 | ||||
(0610- )KDH200,202,LH20#,TRH201,203..RHD..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-26A31B0 |
TRH201..RHD;KDH20#,LH20#,TRH203..RHD..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58510-26A31B2 |
KDH201..RHD..5F;KDH200,202,203,LH20#,TRH20#..RHD DK.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
10 | ||
| 58519B - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-26410B0 |
KDH202,222,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26410B2 |
TRH203..LHD..GEN;KDH202,222,LH202,222,TRH223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 58519-26430B0 |
KDH222..LHD..GEN;LH222,TRH223..STD..GEN;KDH202,LH202,TRH203..RHD..15S REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26410B0 |
KDH222..LHD..GEN;KDH202,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58519-26430B2 |
KDH202,LH202..RHD..GEN;KDH222,LH222,TRH223..STD..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-26330B0 |
KDH202..RHD..15S SINGAPORE SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58520-26311B0 |
KDH200,201,202,LH20#,TRH20#..RHD..(GEN,MA,SA,TH) MEDIUM GRAY,TRIM1# |
1 | ||
| 58520H - CLIP(FOR ENGINE COVER MAT) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
2 | ||
| 58529B - MAT, REAR WHEEL HOUSE, LH | ||||
| 58529-26320B0 |
KDH202,LH202,TRH203..RHD..15S;KDH202,LH202,TRH203..LHD..12S REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
TRH203..LHD..GEN;KDH202,222,LH202,222,TRH223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH222..LHD..GEN;KDH202,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58529-26320B2 |
KDH202,LH202..RHD..GEN;KDH202,203,LH202..12S..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58529-26320B0 |
KDH202,222,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530F - MAT ASSY, HEADER | ||||
| 58530-26740B0 |
KDH202..RHD..15S SINGAPORE SPEC&AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26710B0 |
KDH202..RHD..15S SINGAPORE SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26E21B0 |
KDH202..RHD..15S AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26E11B0 |
KDH200..SA;KDH202..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26G00B0 |
KDH200..SA;KDH202..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26G10B0 |
KDH202..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,MEDIUM GRAY,TRIM1# |
1 | ||
| 58530-26G10B2 |
KDH202..RHD..GEN AMBURANCE BASE&REAR SEAT-WITHOUT,DK.GRAY,TRIM1# |
1 | ||
| 58530H - CLIP(FOR HEADER MAT & HEADER CARPET) | ||||
| 64726-26010B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
9 | ||
| 58542P - MAT, STEP, LH | ||||
| 58542-26050B0 |
KDH200..SG..GEN;KDH200..5F..ARL;KDH220..4FC..GEN;TRH201..SP..03S..GEN;KDH220..RHD..5F..(ARL,GEN);KDH200,TRH221..LHD..5D..GEN;KDH200,202,LH20#,TRH203,213..RHD..(03S,15S,16S)..GEN COLD AREA SPEC,MEDIUM GRAY,TRIM1# |
1 | ||
| 58542-26050B2 |
KDH200..5D..GEN;KDH200..RHD..4D..GEN;KDH202,LH20#,TRH213..RHD..GEN;KDH201,TRH201,221..LHD..SP..GEN COLD AREA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58569 - STOPPER, REAR FLOOR MAT | ||||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR HEADER MAT |
6 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR ENGINE COVER MAT |
1 | ||
| 64779-26010 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# FOR FRONT FLOOR MAT |
10 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58517-26780B0 |
KDH202..RHD..15S AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26780B0 |
KDH202,203,LH202,TRH203..RHD..(14S,15S) MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26790B0 |
KDH202,LH202,TRH203..RHD..15S REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26780B0 |
KDH202,LH202,TRH203..RHD..15S AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D00B0 |
KDH202..RHD..GEN AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D10B0 |
KDH202,LH202,TRH203..RHD..GEN REAR HEATER-WITH(FLOOR SET),MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D00B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE,MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D00B0 |
KDH202,LH202,TRH203..RHD..GEN MEDIUM GRAY,TRIM1# |
1 | ||
| 58517-26D00B2 |
KDH202,LH202,TRH203..RHD..GEN DK.GRAY,TRIM1# |
1 | ||
| 58517-26D10B2 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58517-26D00B2 |
KDH202..RHD..GEN AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58517-26D00B2 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE,DK.GRAY,TRIM1# |
1 | ||
| 58517-26K90B0 |
KDH202,LH202,TRH203..RHD..GEN AMBURANCE BASE,DK.GRAY,TRIM1# |
1 | ||
| 58517-26K90B0 |
KDH202..RHD..GEN AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58517-26K90B0 |
KDH202,LH202,TRH203..RHD..GEN DK.GRAY,TRIM1# |
1 | ||
| 58517-26L00B0 |
KDH202,LH202..RHD..GEN REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
1 | ||
| 58572C - CLIP, REAR FLOOR MAT SET | ||||
| 64726-26010B0 |
KDH202..15S..GEN;KDH202..LHD..12S AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH200,TRH201..SA;KDH212,220,221,TRH201,221..4D..SG;KDH200,201,202,222,223,LH202,212,222,TRH20#,213,223..06S,09S,10S,12S,13S,14S,15S,16S MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B0 |
KDH202,222..LHD..(12S,16S)..STD;LH202,212,TRH203..(SMRF,SRF)..(10S,12S,15S);KDH202,LH222,TRH223..(15S,16S)..STD..(GCC,GEN) AMBURANCE BASE,MD.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH202..GEN AMBURANCE BASE&COLD AREA SPEC&REAR HEATER-WITH(FLOOR SET),DK.GRAY,TRIM1# |
2 | ||
| 64726-26010B1 |
KDH222..LHD..STD;KDH202,LH202,222,TRH203,223..5F..STD..(GCC,GEN) AMBURANCE BASE,DK.GRAY,TRIM1# |
2 | ||
| 58578A - PLATE, REAR FLOOR MAT SUPPORT SIDE, LH | ||||
| 58578-26040B0 |
KDH220;TRH221..SP;TRH201..SRF;KDH200..LHD..5D;TRH223..STD..SA;KDH20#,212,221,LH20#,212,TRH203,213..RHD..(03S,06S,12S,14S,15S,16S) MD.GRAY,TRIM1# |
1 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
KDH222..LHD..GEN;KDH202,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 90467-10034C0 |
KDH202..15S..GEN;TRH203..LHD..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH203,LH202,222,TRH223..(12S,15S,16S)..STD..GEN REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 90467-10034C0 |
TRH203..LHD..15S..GEN;KDH202,222,LH202,222,TRH223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,BLACK |
2 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-10034C0 |
KDH222..LHD..GEN;KDH202,LH202,222,TRH203,223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 90467-10034C0 |
KDH202..15S..GEN;TRH203..LHD..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH203,LH202,222,TRH223..(12S,15S,16S)..STD..GEN REAR HEATER-WITH(FLOOR SET),BLACK |
2 | ||
| 90467-10034C0 |
TRH203..LHD..15S..GEN;KDH202,222,LH202,222,TRH223..(15S,16S)..STD..GEN AMBURANCE BASE&REAR HEATER-WITH(FLOOR SET)&REAR SEAT-WITHOUT,BLACK |
2 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-26080B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 67913-26081B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-26061B1 |
KDH222..GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# DK.GRAY,TRIM1# |
1 | ||
| 67914-26060B0 |
TRH223;KDH200..06S..GCC;KDH200..03S..(GCC,GEN,MA);KDH202,212,222,LH20#,212,222,TRH20#,213,221..03S,06S,09S,10S,11S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67914-26061B0 |
KDH20#,212,22#,LH20#,212,222,TRH20#,213,22# MD.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26160B0 |
KDH200..SG..GEN;KDH200..5F..ARL;KDH220..4FC..GEN;TRH201..SP..03S..GEN;KDH220..RHD..5F..(ARL,GEN);KDH200,TRH221..LHD..5D..GEN;KDH200,202,LH20#,TRH203,213..RHD..(03S,15S,16S)..GEN COLD AREA SPEC,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B1 |
KDH200..5D..GEN;KDH200..RHD..4D..GEN;KDH202,LH20#,TRH213..RHD..GEN;KDH201,TRH201,221..LHD..SP..GEN COLD AREA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-26160B0 |
KDH200..SG..GEN;KDH200..5F..ARL;KDH220..4FC..GEN;TRH201..SP..03S..GEN;KDH220..RHD..5F..(ARL,GEN);KDH200,TRH221..LHD..5D..GEN;KDH200,202,LH20#,TRH203,213..RHD..(03S,15S,16S)..GEN COLD AREA SPEC,MD.GRAY,TRIM1# |
1 | ||
| 67918-26160B1 |
KDH200..5D..GEN;KDH200..RHD..4D..GEN;KDH202,LH20#,TRH213..RHD..GEN;KDH201,TRH201,221..LHD..SP..GEN COLD AREA SPEC,DK.GRAY,TRIM1# |
1 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67921 - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-26240 |
KDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22# |
4 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26120 |
KDH20#,LH20#,TRH20# |
1 | ||
| 67935G - SCREW, BACK DOOR SCUFF PLATE | ||||
| 93560-56014 |
KDH20#,LH20#,TRH20# |
6 | ||
| 67935H - GROMMET, BACK DOOR SCUFF PLATE | ||||
| 90189-06057 |
KDH20#,LH20#,TRH20# |
6 | ||
| 67936B - COVER, BACK DOOR SCUFF SIDE, RH | ||||
| 67936-26040B0 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67936-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937F - COVER, BACK DOOR SCUFF SIDE, LH | ||||
| 67937-26020B1 |
KDH222,TRH213,223..STD;KDH20#,212,220,LH20#,212,222,TRH20#,221..03S,06S,10S,12S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| 67937-26040B0 |
KDH222,LH212,TRH223..STD;KDH20#,212,220,221,223,LH20#,222,TRH20#,213,221..03S,06S,12S,14S,15S,16S MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90189-06057 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10178 | ||||
| 93560-56014 | ||||
| Linked diagrams | ||||
| 5851 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
