KDH202R-REMDY (2005)
Toyota Hiace
(0501- )KDH20#,212,22#..RHD

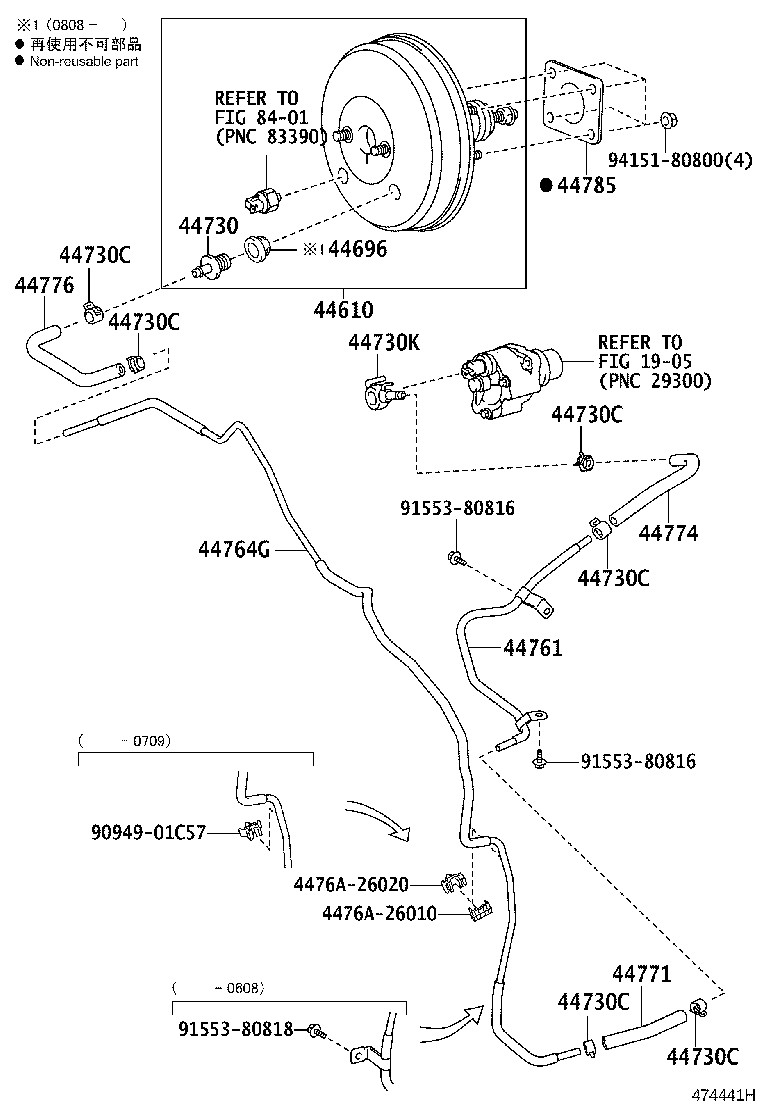

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26700 |
KDH202..RHD..SRF..GEN;KDH200,201,203,212,22#,LH20#,212,222..RHD..(ARL,GEN,SA) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 44610-26710 |
KDH20#,212,22#,LH20#,212,222..RHD |
1 | ||
| 44610-26701 |
KDH221..4D..5F;KDH202..STD..TH;KDH221..4FC..GEN;KDH200,201,203,222,LH20#,222..RHD..(03S,14S,15S,16S)..GEN;KDH201,202,212..RHD..(SMRF,SRF)..SG..(06S,12S,15S,16S)..(GEN,SA) ABS(ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-28030 |
KDH202..5F;KDH222,TRH223..GL..SA;KDH222,TRH223..ARL,CIS,GCC,GEN,TH;KDH200,201,203,212,220,221,223,LH20#,212,222,TRH20#,213,221 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KDH20#,212,22#,TRH20#,213,22# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KDH20#,212,22#,TRH20#,213,22# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KDH20#,212,22#,TRH20#,213,22# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KDH20#,212,22#,TRH20#,213,22# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KDH20#,212,22#,TRH20#,213,22# |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 96133-41500 |
KDH20#,212,22#,TRH20#,213,22# |
4 | ||
| 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) | ||||
| 90405-09175 |
KDH202..RHD..15S;KDH200..RHD..5D..03S SINGAPORE SPEC |
1 | ||
| 90405-09141 |
KDH212..RHD..GEN;KDH200,212..SG..GCC;KDH200,202..(03S,15S)..5F..(GCC,GEN);KDH202,220,222..LHD..(03S,12S,16S)..5F |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-26381 |
KDH20#,212,22#..RHD |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-26150 |
KDH20#,TRH20#..RHD |
1 | ||
| 44764-26090 |
KDH20#,TRH20#..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 95446-09160 |
KDH20#,212,22#,TRH20#,213,22#..RHD |
1 | ||
| 44771-26150 |
KDH20#,212,22#,TRH20#,213,22# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-26391 |
KDH20# |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-26040 |
KDH20#,212,22#,TRH20#,213,22#..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
TRH203..5F;KDH222..GL..SA;TRH213..GEN,SA,TH,VN;KDH222..ARL,GCC,GEN,TH;TRH223..ARL,CIS,GEN,TH;TRH213,223..5F..STD..GCC;TRH223..5F..GL..(GCC,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH200,201,221 |
1 | ||
| Common parts | ||||
| 4476A-26010 | ||||
| 4476A-26020 | ||||
| 90949-01C57 | ||||
| 91553-80816 | ||||
| 91553-80818 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 8401 | ||||
